Choose your product version
| Product description | Base (standard designation) | Nominal wattage | Nominal voltage | Nominal lamp life time | Nominal luminous flux | Claimed equiv. conventional lamp power | Beam angle | Dimmable |
|---|---|---|---|---|---|---|---|---|
| LED Star Classic Stick Flame 0.5W 515 Frosted E14 | E14 | 0.5 W | 220…240 V | 15000 h | 10 lm | 330 ° | No |
| Nominal wattage | 8 W |
| Construction wattage | 8.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 60 W |
| Nominal current | 58 mA |
| Type of current | AC |
| Inrush current | < 18 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 172 |
| Max. lamp number on MCB B16 A | 275 |
| Total harmonic distortion | 119 % |
| Power factor λ | > 0.50 |
| Luminous flux | 806 lm |
| Nominal useful luminous flux 90° | 806 lm |
| Luminous efficacy | 100 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | ≥80 |
| Light color | 840 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
| Beam angle | 200 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
| Overall length | 114.00 mm |
| Diameter | 40.40 mm |
| Maximum diameter | 38 mm |
| Product weight | 29.00 g |
| Ambient temperature range | -40…+40 °C |
| Maximum temperature at tc test point | 90 °C |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
| Dimmable | No |
| Energy efficiency class | F 1) |
| Energy consumption | 8.00 kWh/1000h |
| Type of protection | IP20 |

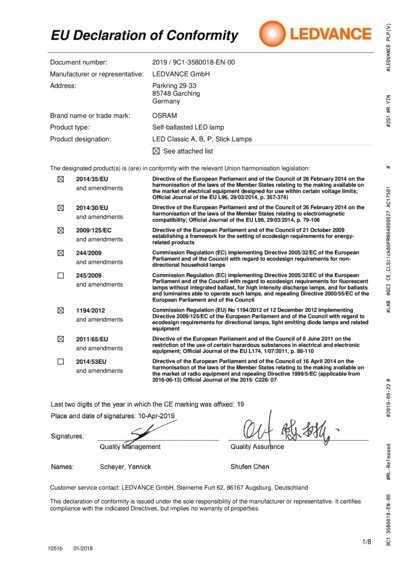

| Standards | CE |
| Photobiological safety group acc. to EN62778 | RG1 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
| ILCOS | DRSGT/F-7/827-230-E27-41 |
| Order reference | LEDSSTICK60 8W/ |
| Light source cap-type (or other electric interface) | E27 |
| Correlated colour temperature type | SINGLE_VALUE |
| Length | 114.00 mm |
| Height | 40.40 mm |
| Width | 40.40 mm |
| EPREL ID | 1402977,523292,1838212,2190113 |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

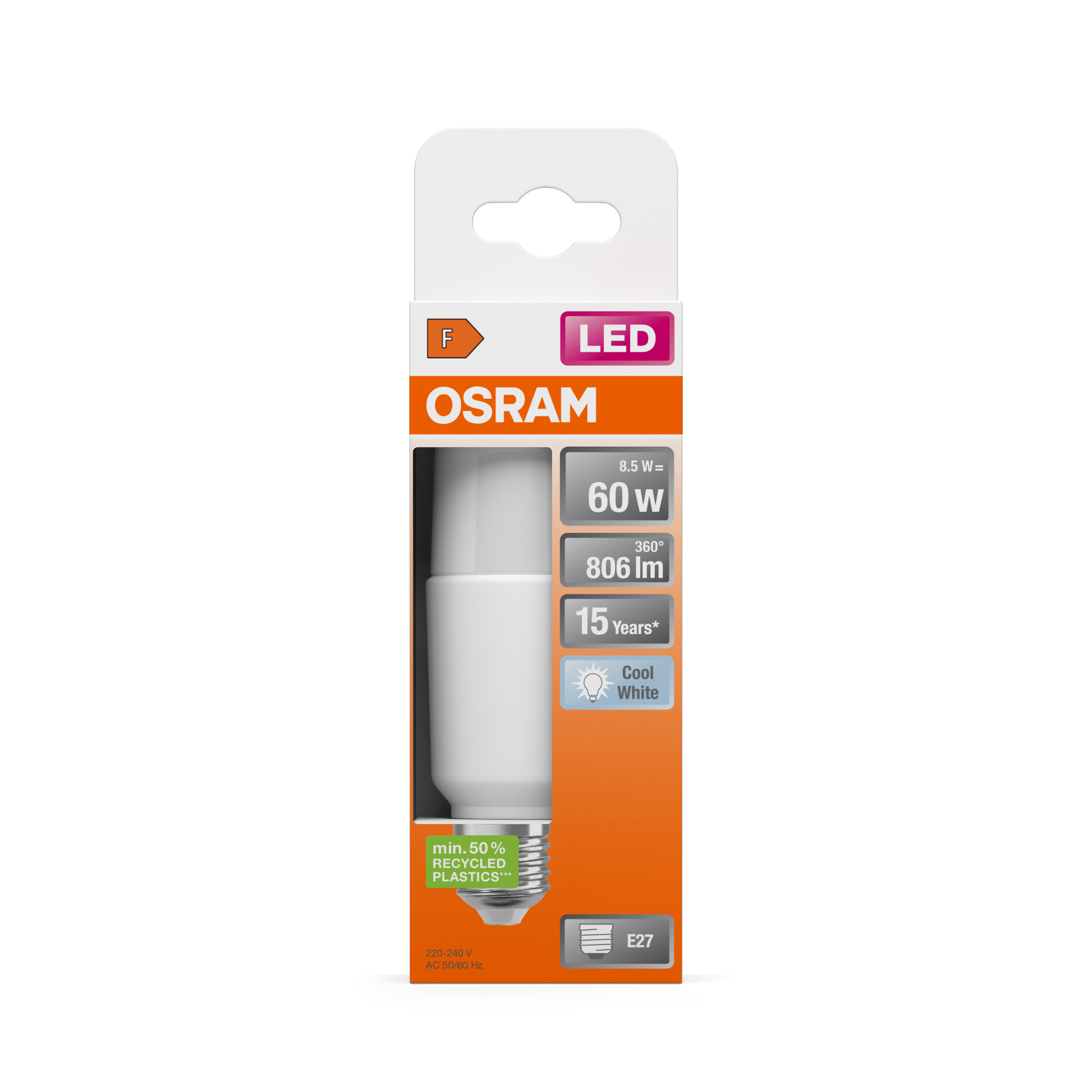

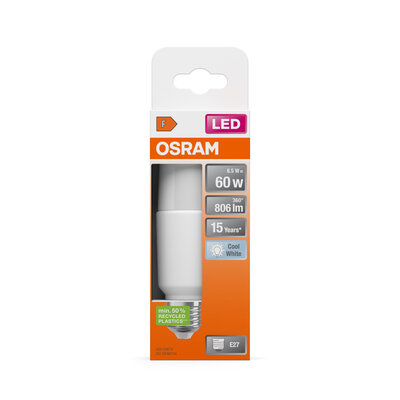

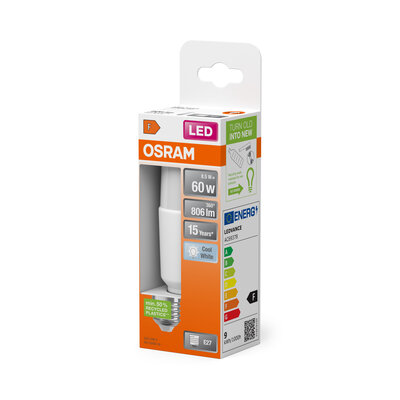

| 4058075428508 | Folding box 1 |
41 mm x 49 mm x 155 mm | 43.00 g | 0.31 dm³ |

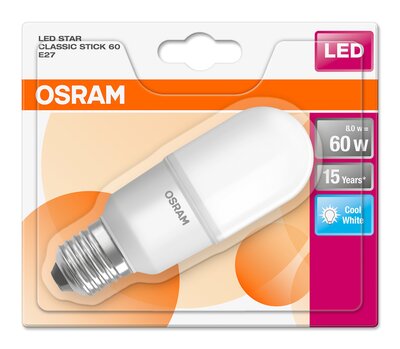

| 4058075815933 | Blister 1 |
45 mm x 140 mm x 120 mm | 49.00 g | 0.76 dm³ |
| 4058075059177 | Folding box 1 |
41 mm x 49 mm x 155 mm | 43.00 g | 0.31 dm³ |
| 4058075585799 | Shipping box 6 |
144 mm x 111 mm x 131 mm | 327.00 g | 2.09 dm³ |
| 4058075586116 | Shipping box 6 |
144 mm x 111 mm x 131 mm | 327.00 g | 2.09 dm³ |
| 4058075059184 | Shipping box 10 |
226 mm x 111 mm x 131 mm | 483.00 g | 3.29 dm³ |
| 4058075815940 | Shipping box 6 |
285 mm x 153 mm x 136 mm | 362.00 g | 5.93 dm³ |
