LED TUBE T5 EXTERNAL HO39 849 mm 17W 865

Product benefits
  • Simple upgrade to dimmable LED system
  • Hassle free application, no ballast compatibility check necessary
  • Shatter protection thanks to special PET coating
  • No bending thanks to glass tube
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 17 W
Construction wattage 17.00 W
Nominal voltage 43 V
Operating mode EXT 1)
Nominal current 400 mA
Type of current DC
Operating frequency 0 Hz
Mains frequency 0 Hz
Total harmonic distortion < 20 %
Power factor λ 0.90

1) Designed to power with LEDVANCE LED DRIVER LED TUBE EXTERNAL DALI P

Photometrical data

Luminous flux 2600 lm
Luminous efficacy 152 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool Daylight
Color temperature 6500 K
Color rendering index Ra 80
Light color 865
Standard deviation of color matching ≤5 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0,4

Light technical data

Beam angle 180 °
Warm-up time (60 %) ‹ 2.00 s
Starting time < 1.0 s

Dimensions & Weight

Overall length 863.00 mm
Length with base excl. base pins/connection 849.00 mm
Diameter 17.00 mm
Product weight 180.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C 1)
Maximum temperature at tc test point 75 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C 75000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G5
Mercury content 0.0 mg
Mercury-free Yes
Product remark Single sided LED TUBE (one-sided DC input ) complying with safety requirement acc. IEC 62776:2014. Safety protection against electrical shock in misuse (ECG/CCG/Mains operation).

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class D 1)
Energy consumption 17.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDTUBE T5 EXT

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G5
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power No
Length 863.00 mm
Height 17.00 mm
Width 17.00 mm
Chromaticity coordinate x 0,312
Chromaticity coordinate y 0,328
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0,90
Displacement factor 0,90
LED light source replaces a fluorescent light source No
EPREL ID 1939309
Model number AC59124,AC59124

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Simple upgrade to dimmable LED system
  • Hassle free application, no ballast compatibility check necessary
  • Shatter protection thanks to special PET coating
  • No bending thanks to glass tube
  • 5 years guarantee
Areas of application
  • Industrial lighting (e.g. manufacturing plants, logistic centers, warehouses)
  • Linear lighting for office, education, storage areas and retail
  • Shops, supermarkets
Product features
  • Designed to power only with LED DRIVER LED TUBE EXTERNAL DALI
  • Lamp tube made of glass with splinter protection
  • Quality dimming of 1…100 %
  • High resistance to switching loads
  • Suitable for ambient temperatures from -20…+50 °C
Safety advice
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • LED TUBE T5 EXTERNAL HO80 cannot be operated with 2-channel driver.
  • All electrical connections must be made by a qualified person.
  • Disconnect mains before installation.
References / Links
  • For current information see www.ledvance.com/ledtube
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854294402 Sleeve
1		 849 mm x 22 mm x 22 mm 205.00 g 0.41 dm³
4099854294419 Shipping box
25		 904 mm x 159 mm x 178 mm 6433.00 g 25.59 dm³
Product image Product name EAN
DR EXTERNAL DALI -1X15-37W 220-240 4058075730632
DR EXTERNAL DALI -1X7-37W 220-240 4099854295157
DR EXTERNAL DALI -2X7-26W 220-240 4099854295171
User instruction / safety instructions
LEDTUBE EXT P User ins truction LEDV PDF (2.74 MB)
Extended installation guide
LEDVANCE Luminaire con version checklist PDF (168.28 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
LEDTUBE T5-T8 EXT PDF (317.42 KB)
Product image: white background, diagonal with LEDVANCE logo
LEDTUBE T5 EXT P LEDV JPG (967.46 KB)
Product image: white background, diagonal
LEDTUBE T5 EXT P LEDV JPG (689.28 KB)
Product image: white background, upright LEDVANCE logo
LEDTUBE T5 EXT P LEDV JPG (663.91 KB)
Product line drawing with letters
LEDTUBE T5 EXT LEDV SVG (23.76 KB)
Product line drawing with numbers
LEDTUBE T5 EXT 849 LE DV SVG (21.7 KB)
Product line drawing - technical
LEDTUBE T5 EXT P HO 14 49 LDV SVG (13.22 KB)

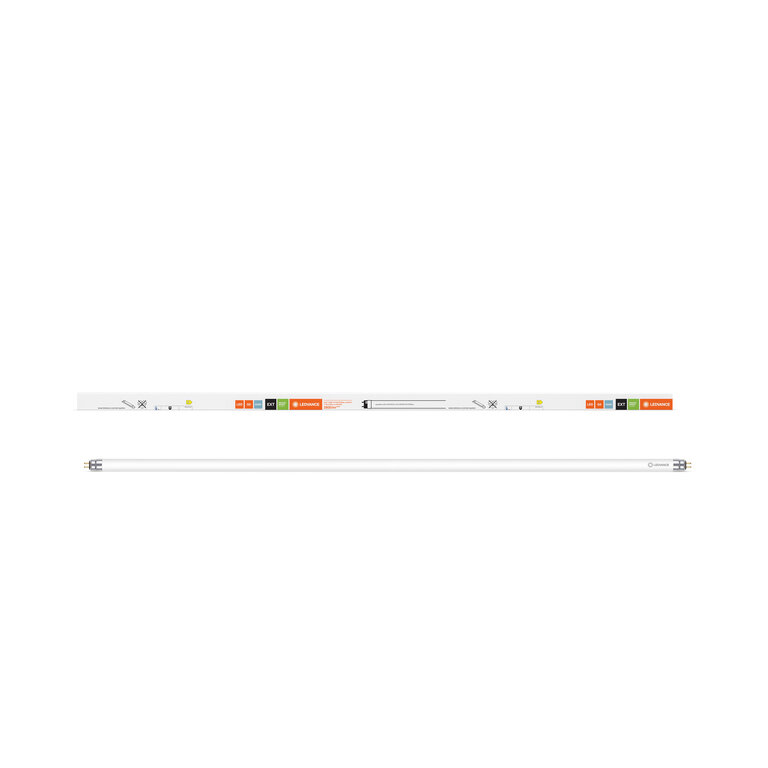

Combo Shot = Product Beauty Shot + Packaging Image
LEDTUBE T5 EXT HO39 P 17.0W 865 G5 JPG (363.82 KB)
Packaging image, frontal
LEDTUBE T5 EXT HO39 P 17.0W 865 G5 JPG (348.82 KB)

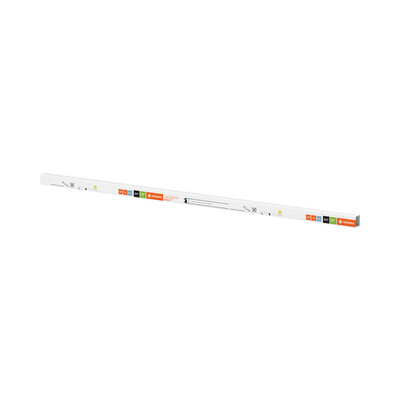

Packaging image, spacial
