LED MR16 50 36° DIM P 6.1W 930 GU5.3

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Stepless dimming
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • Compatible with many common conventional and electronic control gears (see also compatibility list)
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 6.1 W
Construction wattage 6.10 W
Nominal voltage 12 V
Operating mode 12V AC/DC 1)
Claimed equiv. conventional lamp power 50 W
Nominal current 550 mA
Type of current AC/DC
Inrush current 0.55 A
Max. lamp number on MCB B10 A 29
Max. lamp number on MCB B16 A 56
Total harmonic distortion 150 %
Power factor λ > 0.70

1) Check ECG compatibility at ledvance.com/compatibility

Photometrical data

Luminous intensity 1250 cd
Luminous flux 621 lm
Nominal useful luminous flux 90° 621 lm
Luminous efficacy 101 lm/W
Lumen main.fact.at end of nom.life time 0.96
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 90
Light color 930
Standard deviation of color matching ≤6 sdcm
Rated peak intensity 1250 cd
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 36 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 44.00 mm
Diameter 50.00 mm
Maximum diameter 50 mm
Product weight 42.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 105 °C

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.96

Additional product data

Base (standard designation) GU5.3
Mercury content 0.0 mg
Mercury-free Yes
Design / version Spot
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LED MR165036 DI

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional DLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) GU5.3
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 44.00 mm
Height 50.00 mm
Width 50.00 mm
Chromaticity coordinate x 0.4390
Chromaticity coordinate y 0.3948
R9 Colour rendering index 1
Beam angle correspondence NARROW_CONE_90
Survival factor 0.9
Displacement factor > 0.9
LED light source replaces a fluorescent light source No
EPREL ID 2176422
Model number AC70557

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Stepless dimming
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • Compatible with many common conventional and electronic control gears (see also compatibility list)
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Shops and exhibition rooms
  • Domestic applications
  • Commercial applications
  • Accent lighting
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to low voltage halogen lamps
  • High color consistency: ≤ 5 sdcm
  • Dimmable
  • Base: GU5.3
  • Lamp made of glass
  • Very high color rendering CRI > 90
  • Lifetime up to 25,000 h
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854456107 Folding box
1		 49 mm x 49 mm x 62 mm 49.00 g 0.15 dm³
4099854456114 Shipping box
10		 255 mm x 107 mm x 72 mm 543.00 g 1.96 dm³

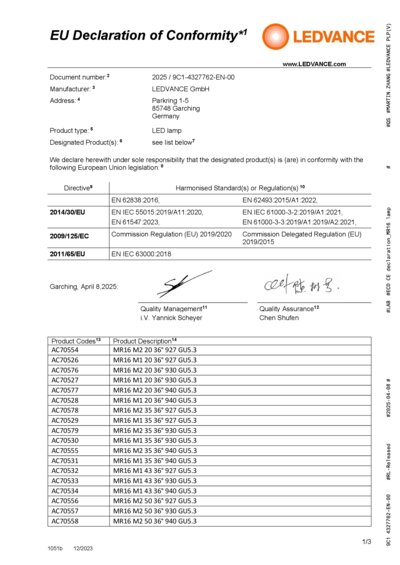

Declarations of conformity
LED lamps MR16 GU5.3 PDF (294.98 KB)

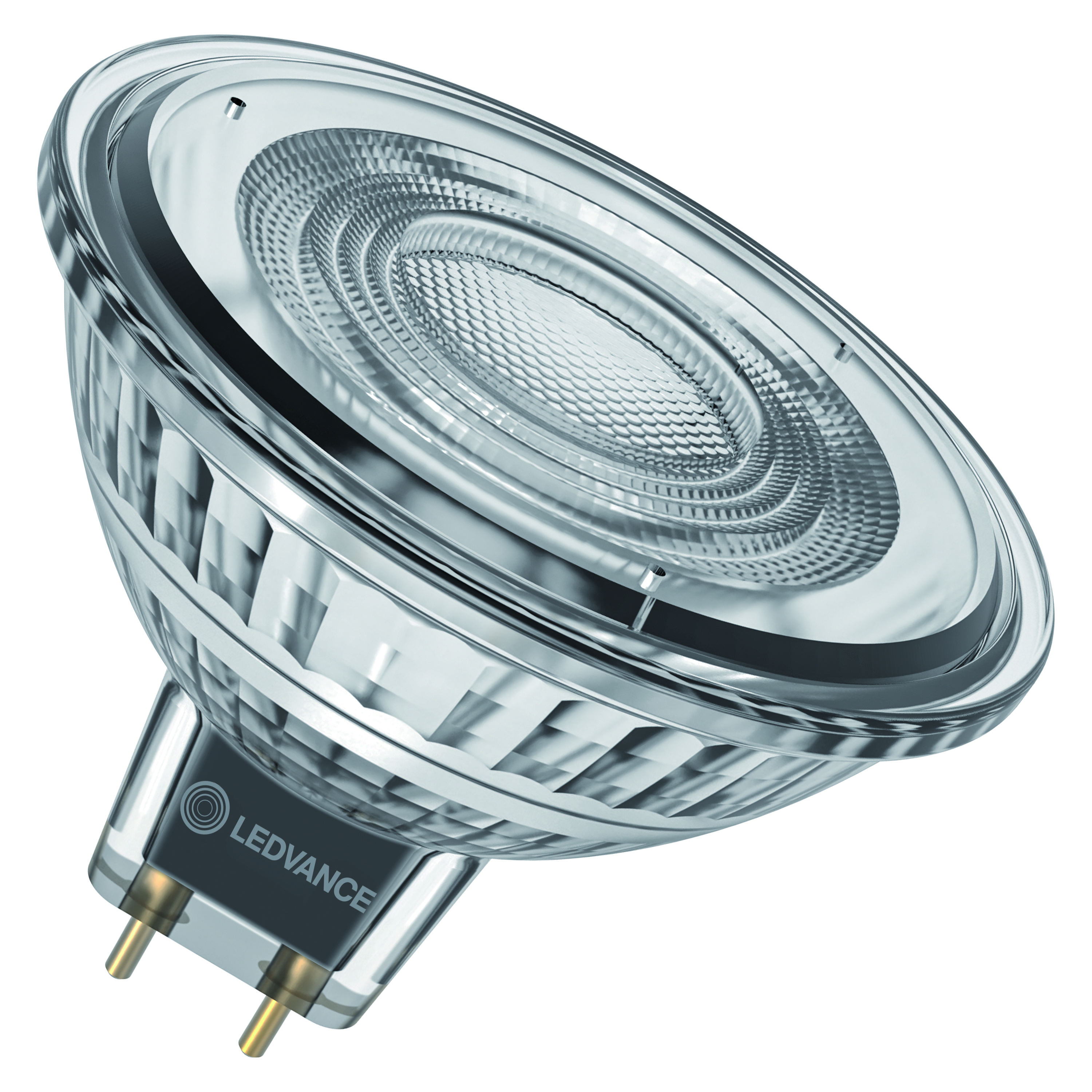

Product image: white background, diagonal with LEDVANCE logo
LED MR16 GU5.3 Fillin g glue JPG (4.75 MB)
Product image: white background, diagonal
LED MR16 GU5.3 Fillin g glue JPG (4.71 MB)

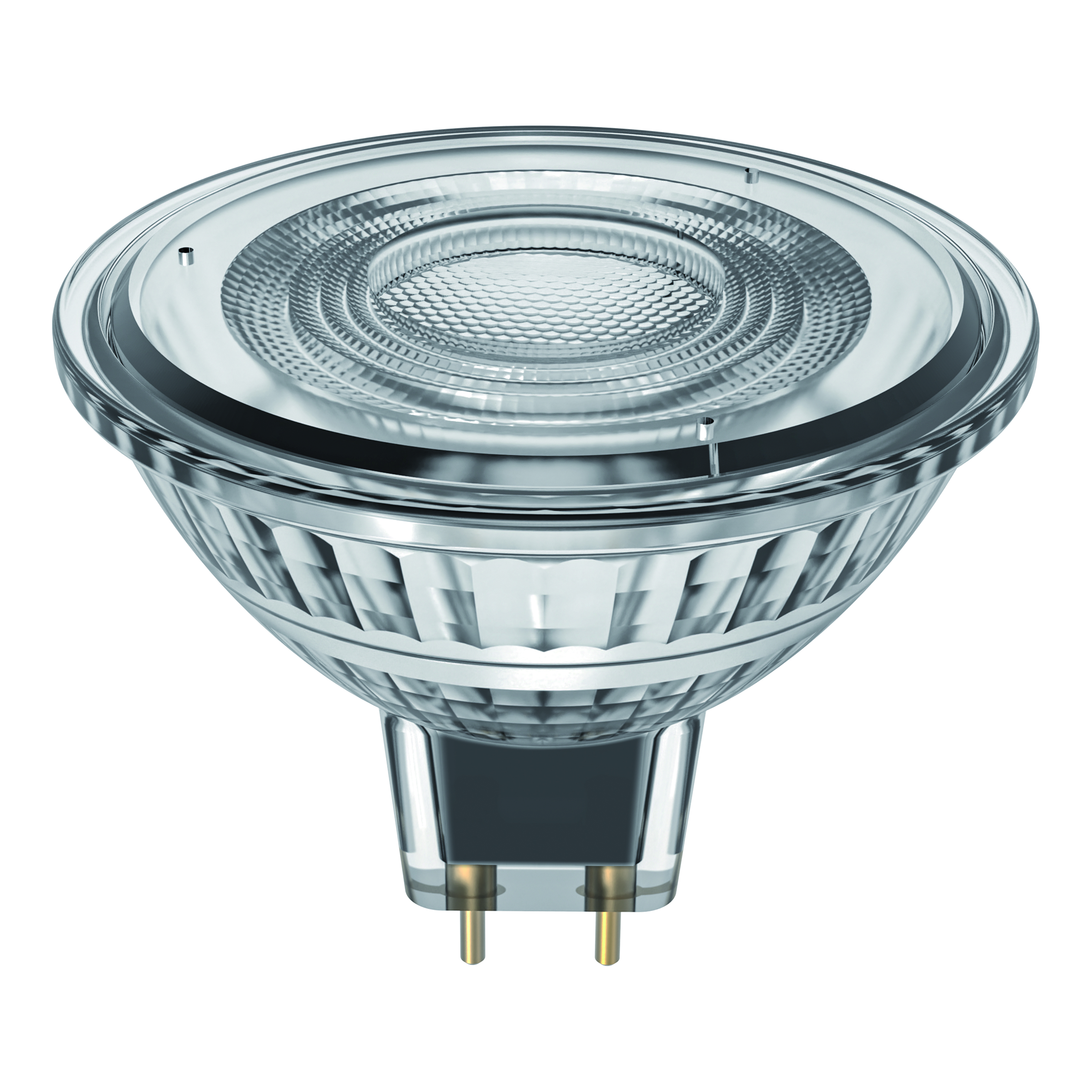

Product image: white background, upright LEDVANCE logo
LED MR16 GU5.3 Fillin g glue JPG (3.72 MB)
Product image: white background, upright
LED MR16 GU5.3 Fillin g glue JPG (3.7 MB)
Product line drawing with letters
LED MR16 GU5,3 SVG (20.96 KB)
Product line drawing with numbers
LED MR16 GU5.3 SVG (20.54 KB)
Product line drawing - technical
LED MR16 GU5,3 SVG (17.04 KB)

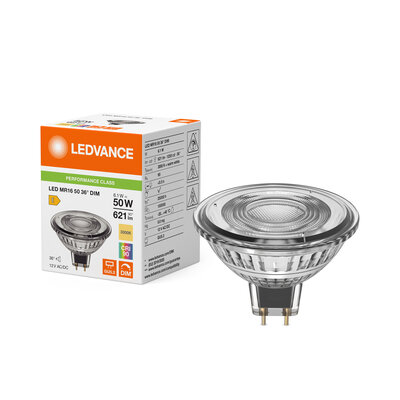

Combo Shot = Product Beauty Shot + Packaging Image
FC1 MR16 50 DIM PFM 6. 1W ba36 930 GL GU5.3 JPG (773.44 KB)
Packaging image, frontal
FC1 MR16 50 DIM PFM 6. 1W ba36 930 GL GU5.3 JPG (675.55 KB)
Packaging image, spacial
FC1 MR16 50 DIM PFM 6. 1W ba36 930 GL GU5.3 JPG (834.73 KB)
Energy label
EL-4099854456107-AC705 57 PDF (21.26 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)

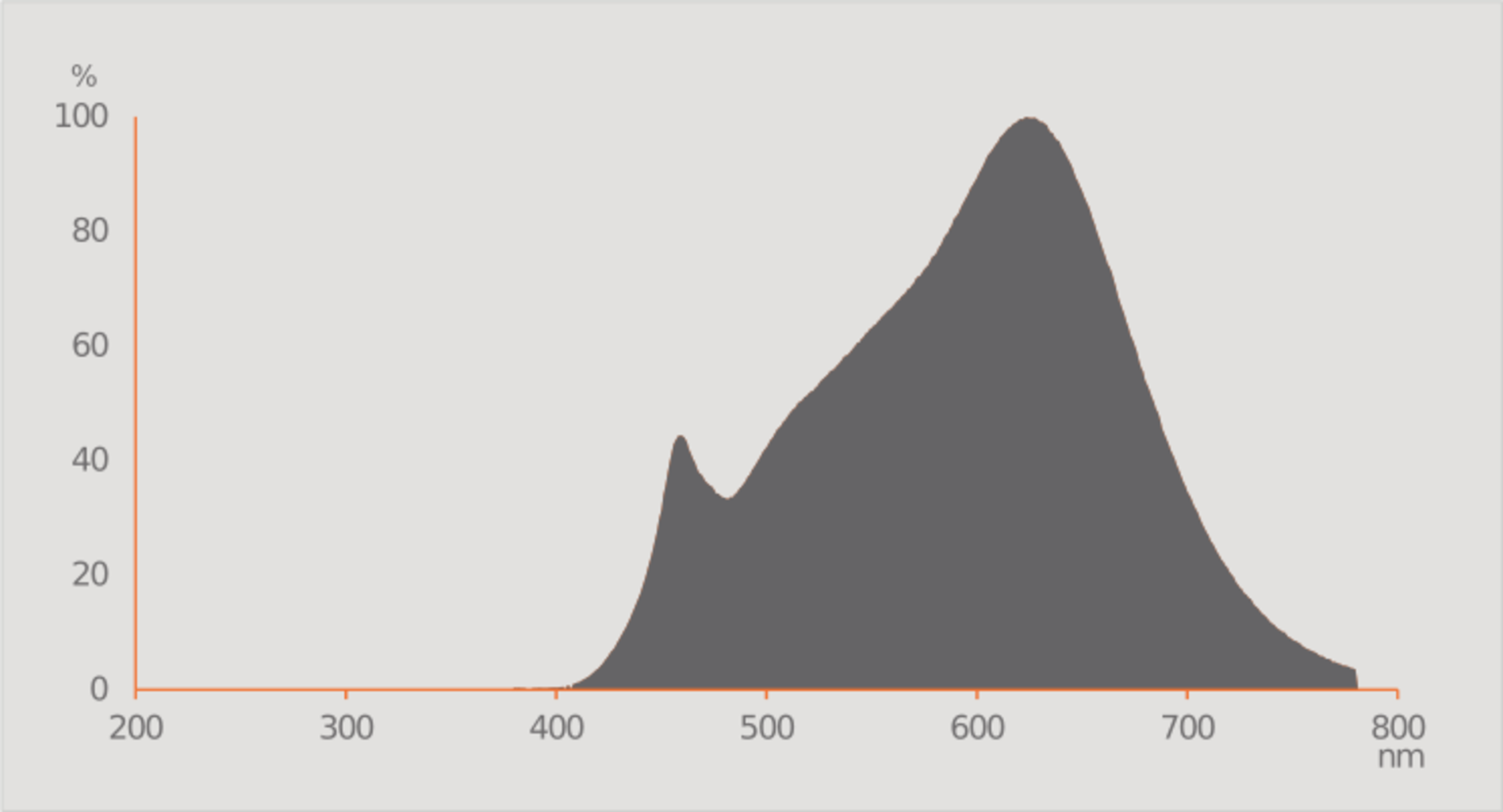

Spectral power distribution
Everlight 67-23ST RKE 3000K PNG (115.03 KB)
EAN SEG number STK number EFO number ELDAS number
4099854456107 8289697 4738545 3780445 941902572
