Smart+ Wifi Flex Magic RGB 5M + RC

Product benefits
  • Easy and quick installation
  • Magic RGB Color Control for maximum flexible selection
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 24.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 130.000 mA
Inrush current 24 mA
Power factor λ > 0.5
Total harmonic distortion < 100 %
Protection class II

Photometrical data

Light color (designation) Red, Green, Blue
Standard deviation of color matching < 6 sdcm
Photobiological safety group acc. to EN62778 RG1
Beam angle 120 °

Dimensions & Weight

Length 5000.00 mm
Height 3.00 mm
Width 10.00 mm
Product weight 330.00 g

Materials & Colors

Product color White
Housing color White
Body material Polyurethane (PU)
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…80 °C
Type of connection Plug type C (EU)
Type of protection IP20
Dimmable Yes
Type of dimming WiFi
Mounting type Surface
Application environment Indoor

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 15000

BATTERY

Battery size [GMS] CR2025

Certificates & Standards

Standards CE

Additional product data

Product remark Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy and quick installation
  • Magic RGB Color Control for maximum flexible selection
Areas of application
  • Living areas
  • Indirect lighting
Product features
  • Dimmable
  • RGB color control, approx. 16 million color options adjustable
  • DIY function: You can adjust the color segment per segment and create your own lighting scenes or just use already available lighting scenes
  • Flexible, bendable LED strips
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
  • Control via app or voice control requires compatible Smart home system
  • Complete mounting and connecting accessories included
  • Remote control and battery included
  • For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
  • Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854095146 Folding box
1		 70 mm x 170 mm x 160 mm 450.00 g 1.90 dm³
4099854095153 Shipping box
4		 340 mm x 195 mm x 160 mm 2115.00 g 10.61 dm³
User instruction / safety instructions
UI SMART WIFI FLEX MGC RGB RC PDF (1.52 MB)
Legal information
Legal Insert FLEX PDF (2.12 MB)
Declarations of conformity
SMART WIFI FLEX 3M AND 5M PDF (256.19 KB)
EU Data Act
SMART WiFi Lamps and L uminaires PDF (539.99 KB)
Product image: white background, upright
SMART WIFI FLEX 5M MGC RGB RC JPG (2.16 MB)
Product image: white background, upright, switched on
SMART WIFI FLEX 5M MGC RGB RC JPG (2.31 MB)
Product image: white background, with accessory, alternative image
SMART WIFI FLEX RC JPG (718.68 KB)
Product infographic (application image with text and graphic)
SmartP Wifi Magic E-C om_Grafik 1200x1200px 2023 EN JPG (736.08 KB)
Product infographic (application image with text and graphic)
Entertainment E-Com Gr afik 1200x1200px 2024 EN JPG (638.8 KB)
Product line drawing with letters
SMART WIFI FLEX 5M MGC RGB RC SVG (102.96 KB)
Product line drawing with numbers
SMART WIFI FLEX 5M MGC RGB RC SVG (103.73 KB)
Product line drawing, front, no dimensions
SMART WIFI FLEX 5M MGC RGB RC SVG (8.34 KB)

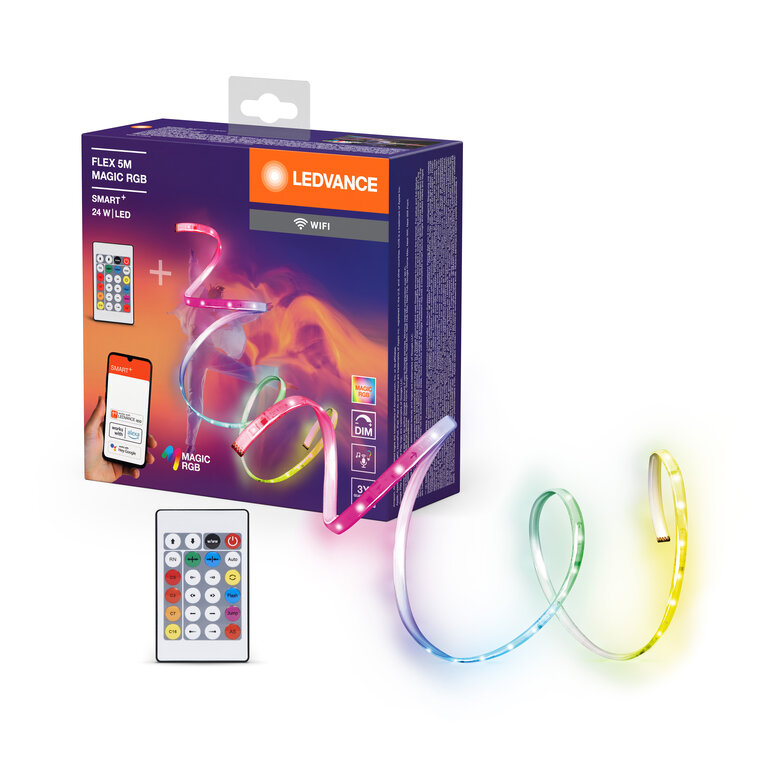

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI FLEX 5M MGC RGB RC MiPRC JPG (1.03 MB)
Packaging image, frontal
SH FC WIFI FLEX 5M MGC RGB RC MiPRC JPG (792.95 KB)
Packaging image, spacial
SH FC WIFI FLEX 5M MGC RGB RC MiPRC JPG (1.11 MB)
Application pictures
SMART+ Wifi Flexible L ight Strips Colored JPG (19.85 MB)
Application pictures
Building a DIY cloud w ith led strips JPG (1.46 MB)
Application pictures
DIY Cloud glueing cott on wool on wires JPG (772.69 KB)
Application pictures

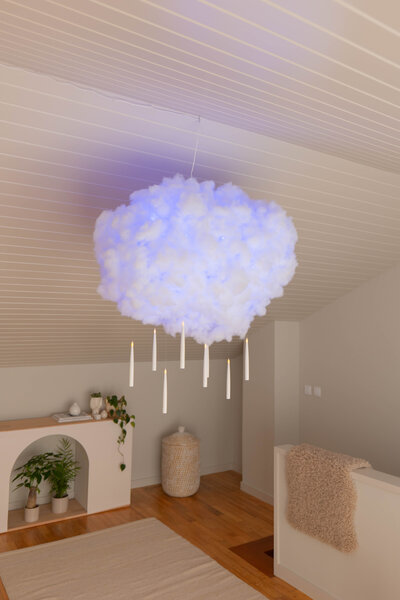

DIY blue cloud hanging from the livingroom c eiling JPG (683.62 KB)
Application pictures Getty
Smart Wifi RGBIC Flex WW JPG (9.32 MB)
Application pictures Getty

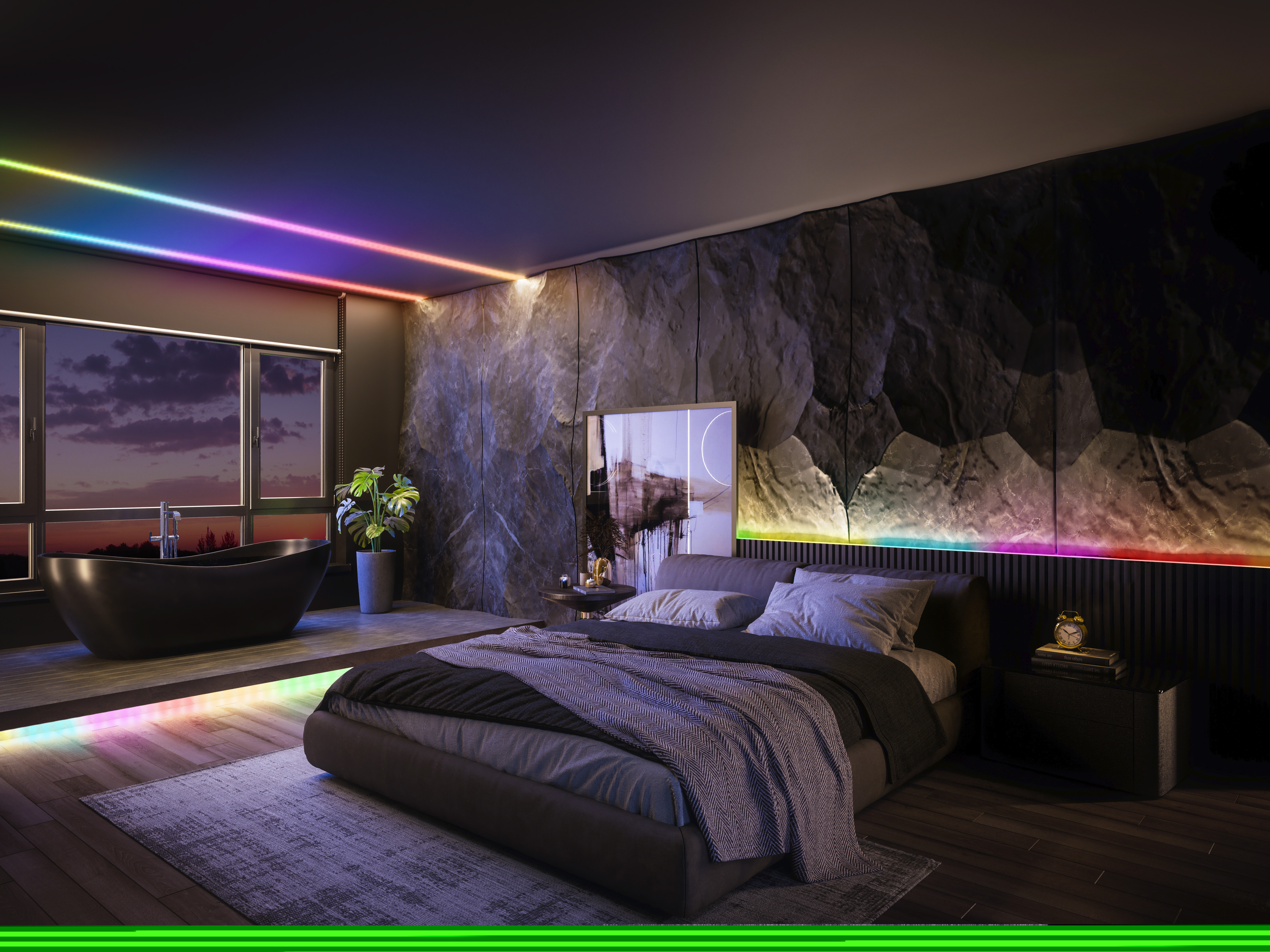

Smart Wifi RGBIC Flex RGB JPG (9.38 MB)
Application pictures Getty
Entertainment set reto uched TIF (125.2 MB)
Video
DIY Cloud video out of flex led strips MP4 (45.71 MB)
Video
Construma 2024 LEDVANC E booth Budapest MP4 (469.41 MB)
Video
DIY Influencer Video L ED-strip 3D mirror tab le MP4 (64.85 MB)
Video
DIY SoMe video. Make s helf light with LED-st rip MP4 (33.32 MB)
Video
DIY back lit earth lam p with LED-strips MP4 (40.49 MB)
Video
DIY back lit earth lam p with LED-strips MOV (61.75 MB)
EAN ELDAS number
4099854095146 941603410
