Phase out


HQL LED 11700 lm 90 W/2700 K E40

Product benefits
  • Saves up to 78 % energy when used as replacement for mercury vapor lamps (HQL)
  • Low maintenance costs thanks to long lifetime
  • Instant 100 % light, no warm-up time
View all details
Product data sheet
Go to LEDVANCE successor product

PRODUCT DETAILS

Electrical data

Nominal wattage 90 W
Construction wattage 90.00 W
Nominal voltage 220…240 V
Operating mode Conventional control gear (CCG) without ignitor, AC Mains
Claimed equiv. conventional lamp power 250 W
Nominal current 410 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 13
Max. lamp number on MCB B10 A - CCG without compensation 11
Max. lamp number on MCB B10 A - CCG with compensation 10
Max. lamp number on MCB B16 A 21
Max. lamp number on MCB B16 A - CCG without compensation 18
Max. lamp number on MCB B16 A - CCG with compensation 16
Total harmonic distortion 20 %
Power factor λ > 0.90

Photometrical data

Luminous flux 11700 lm
Nominal useful luminous flux 90° 11700 lm
Luminous efficacy 130 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0,4

Light technical data

Beam angle 360 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 270.00 mm
Diameter 110.00 mm
Product weight 1380.00 g

Temperatures & operating conditions

Ambient temperature range -20…+60 °C
Maximum temperature at tc test point 95 °C

Lifespan

Lifespan L70/B50 at 25 °C 60000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E40
Mercury content 0.0 mg

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 90.00 kWh/1000h
Type of protection IP65
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference HQLLED11700 90W

LOGISTICAL DATA

Temperature range at storage -30…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E40
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 270.00 mm
Height 110.00 mm
Width 110.00 mm
Chromaticity coordinate x 0,458
Chromaticity coordinate y 0,410
R9 Colour rendering index >0
Beam angle correspondence SPHERE_360
Survival factor 0,90
Displacement factor >0,9
LED light source replaces a fluorescent light source No
EPREL ID 1157795
Model number AC41497

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Saves up to 78 % energy when used as replacement for mercury vapor lamps (HQL)
  • Low maintenance costs thanks to long lifetime
  • Instant 100 % light, no warm-up time
Areas of application
  • Streets
  • Area lighting
  • Pedestrian zones
  • Parks
  • Outdoor applications only in suitable luminaires
Product features
  • Replacement for HQL: Suitable for operation with conventional control gear (CCG) for HQL or 230 V mains
  • Replacement for other HID: Suitable for operation with line voltage without control gear
  • Power factor: 0.9
  • Type of protection: IP65
  • High surge protection: up to 6 kV (L-N)
Safety advice
  • The bulb may be larger and heavier than the replaced bulb. Before installation it must be checked, if the luminaire and especially the holder is capable of carrying the weight of the lamp. If possible, please install the safety rope included in the package containing the lamp for the types 90 W lamps.
  • Not suitable for operation with ignitors.
  • Operation on the capacitor can lead to a reduction of the power factor of the system.
  • When installed horizontally, the tc point of the lamp is located on the top side of the lamp.
  • Use in tight luminaires and luminaires with tight reflectors not recommended.
  • All electrical connections must be made by a qualified person.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075766051 Folding box
1		 115 mm x 115 mm x 300 mm 1463.00 g 3.97 dm³
4058075766068 Shipping box
6		 360 mm x 245 mm x 320 mm 9284.00 g 28.22 dm³
User instruction / safety instructions
HQL LED PDF (3.66 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
CE Declaration HQL LED E40 Gen6 PDF (287.01 KB)

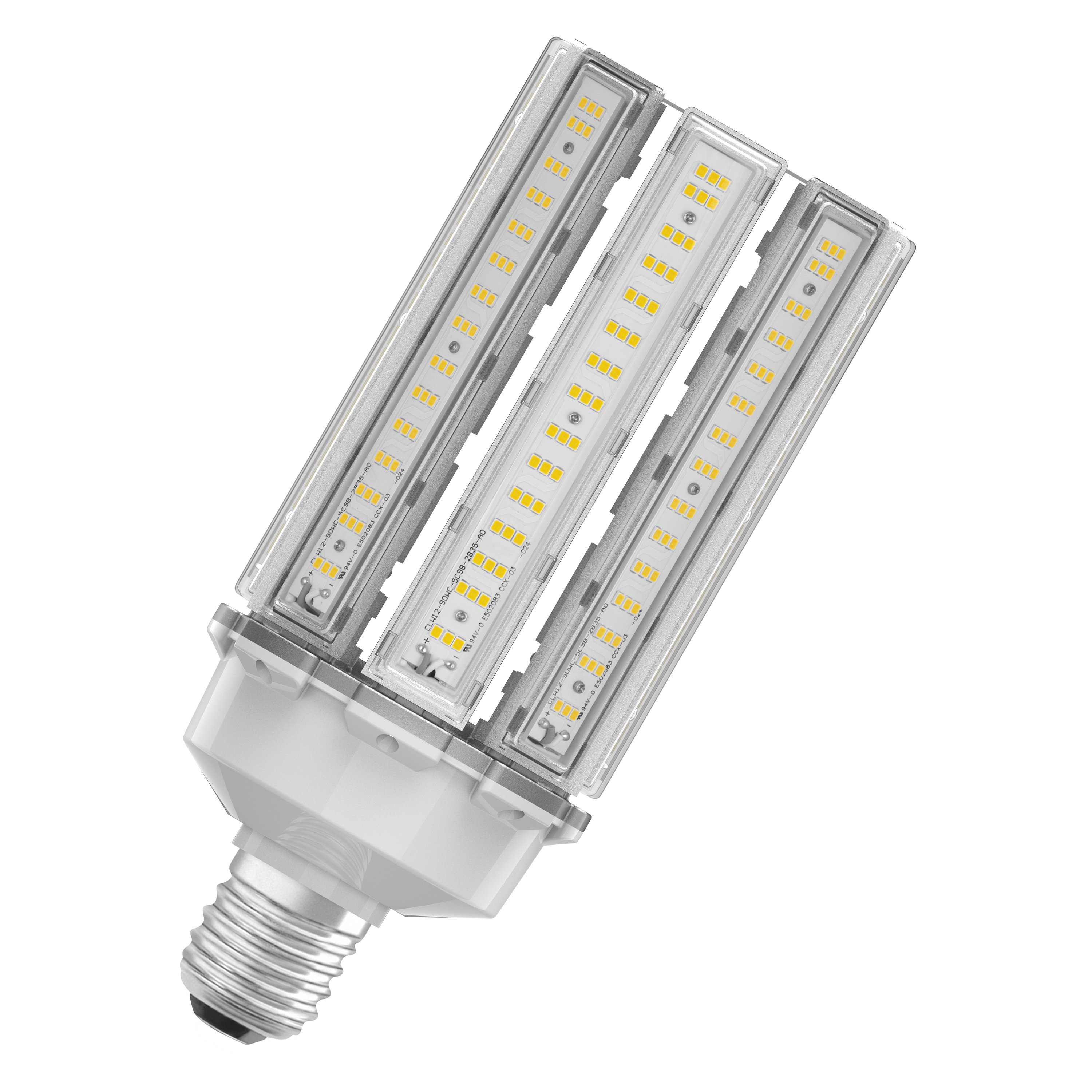

Product image: white background, diagonal
HQLLED 90W E40 OSRAM JPG (2.22 MB)

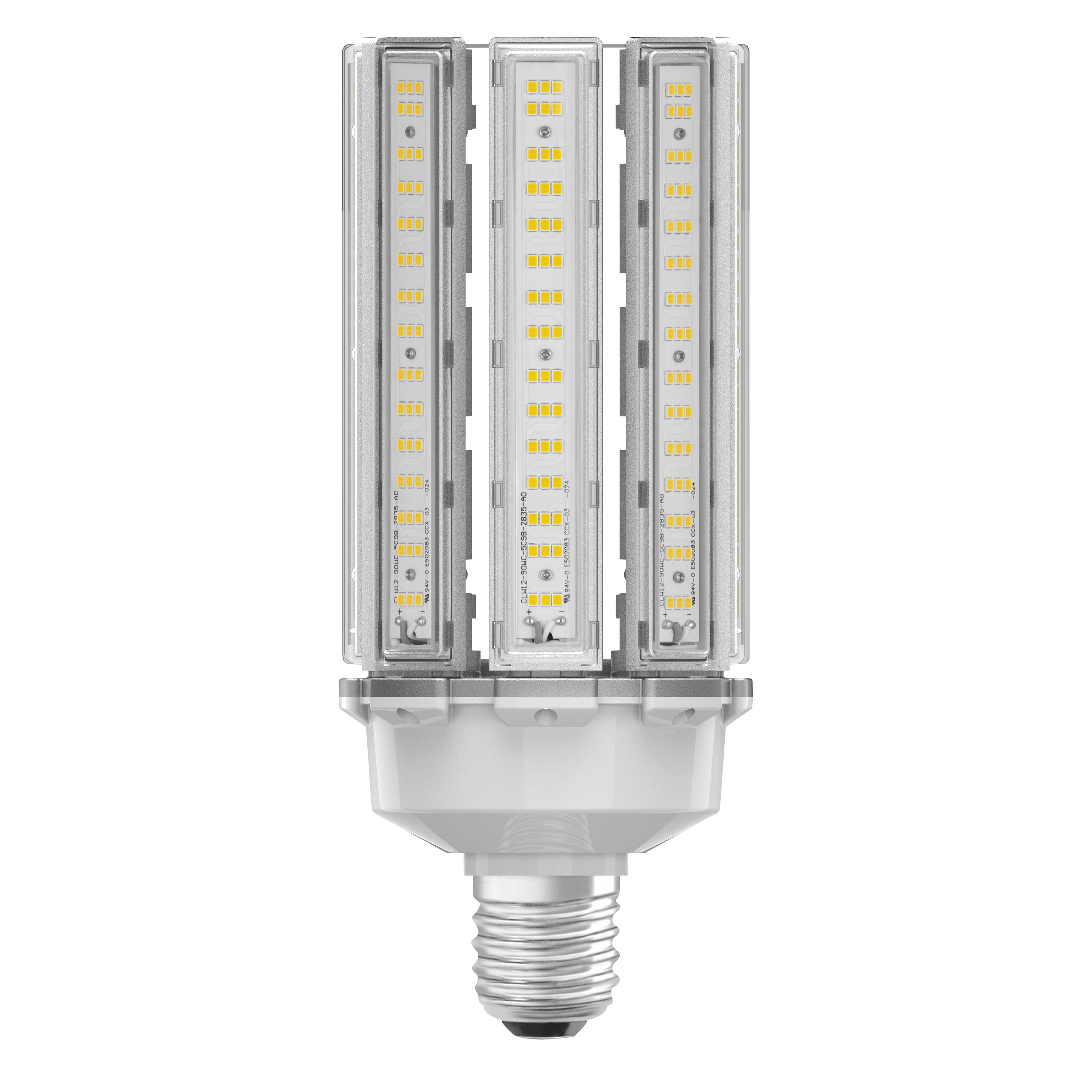

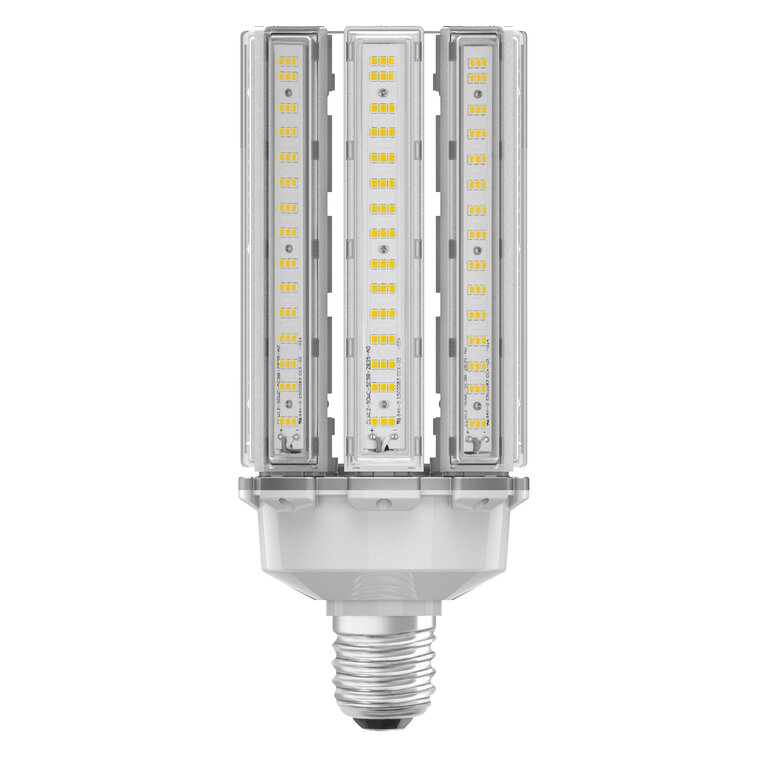

Product image: white background, upright
HQLLED 90W E40 OSRAM JPG (1.97 MB)
Product line drawing with letters
HQLLED 90W E40 OSRAM SVG (100.8 KB)
Product line drawing with numbers
HQLLED 90W E40 OSRAM SVG (104.12 KB)
Product line drawing - technical
HQLLED 90W E40 OSRAM SVG (99.12 KB)
Energy label
EL-4058075766051-AC414 97 PDF (21.3 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
IES file (IES)
HQL LED 11700 90W 827 E40 IES (9.24 KB)
LDT file (Eulumdat)
HQL LED 11700 90W 827 E40 LDT (9.95 KB)
UGR file (UGR table)
HQL LED 11700 90W 827 E40 PNG (59.71 KB)
Light distribution curve type polar
HQL LED 11700 90W 827 E40 SVG (20.02 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 2700K PNG (103.24 KB)
EAN SEG number STK number EFO number ELDAS number
4058075766051 8297892 4802870 3764910 941812420
