Vintage 1906 Globe 80 5 Spiral Filament DIM 3W 618 Copper E27

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lamps with innovative LED "slim-filament" technology
  • Spiral slim-filament with φ 0.6 mm
  • Straight, long slim - filament width: minimum 0.7 mm
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 3 W
Construction wattage 3.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 5 W
Nominal current 17 mA
Type of current AC
Inrush current 0.167 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 179
Max. lamp number on MCB B16 A 287
Total harmonic distortion 120 %
Power factor λ 0.50

Photometrical data

Luminous flux 45 lm
Luminous efficacy 15 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Comfort warm white
Color temperature 1800 K
Color rendering index Ra 66
Light color 618
Standard deviation of color matching ≤ 20 sdcm
Flickering metric (Pst LM) ≤1.0
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 123.00 mm
Diameter 80.00 mm
Maximum diameter 80 mm
Product weight 40.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 60 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Copper
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy consumption 3.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG1

Country-specific categorizations

Order reference 1906LGL80D 3W/6

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Standby power 0 W
Claim of equivalent power Yes
Length 123.00 mm
Height 80.00 mm
Width 80.00 mm
Chromaticity coordinate x 0.5513
Chromaticity coordinate y 0.4153
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor ≥0.5
LED light source replaces a fluorescent light source No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lamps with innovative LED "slim-filament" technology
  • Spiral slim-filament with φ 0.6 mm
  • Straight, long slim - filament width: minimum 0.7 mm
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Lamp made of glass
  • Lifetime up to 15,000 h
  • Beam angle: up to 360°
  • Dimmable
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • Can be used directly as luminaire
  • Thinner filament, better decorative effect
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854586361 Folding box
1		 90 mm x 90 mm x 160 mm 68.00 g 1.30 dm³
4099854586378 Shipping box
4		 202 mm x 194 mm x 172 mm 468.00 g 6.74 dm³
On-Pack-Info
ELR - exempt lamps PDF (1.88 MB)

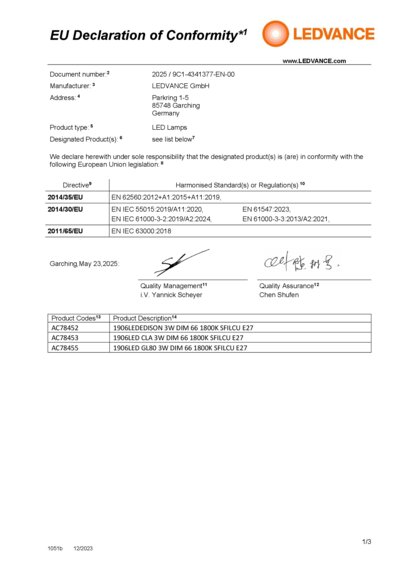

Declarations of conformity
LED lamp PDF (283.83 KB)

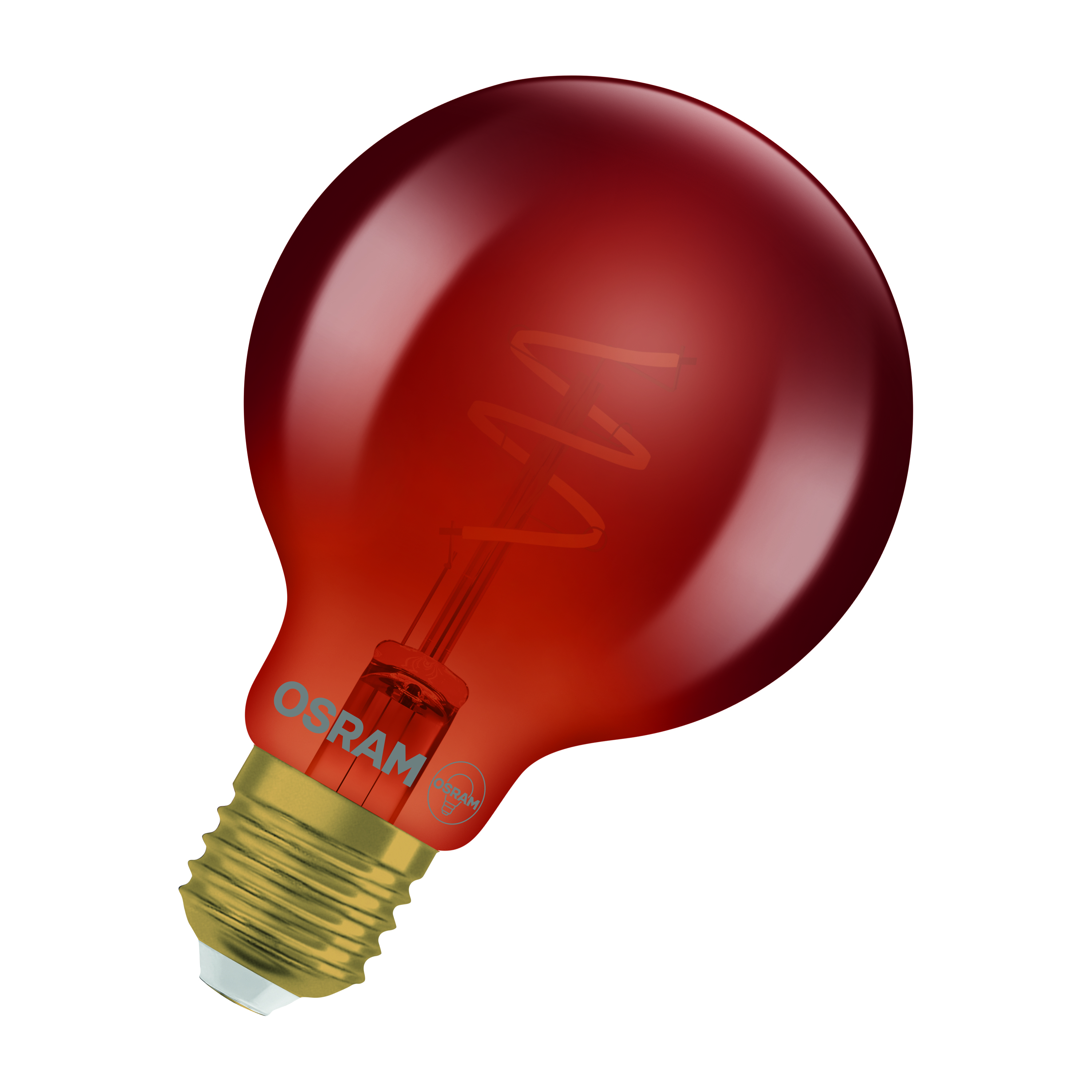

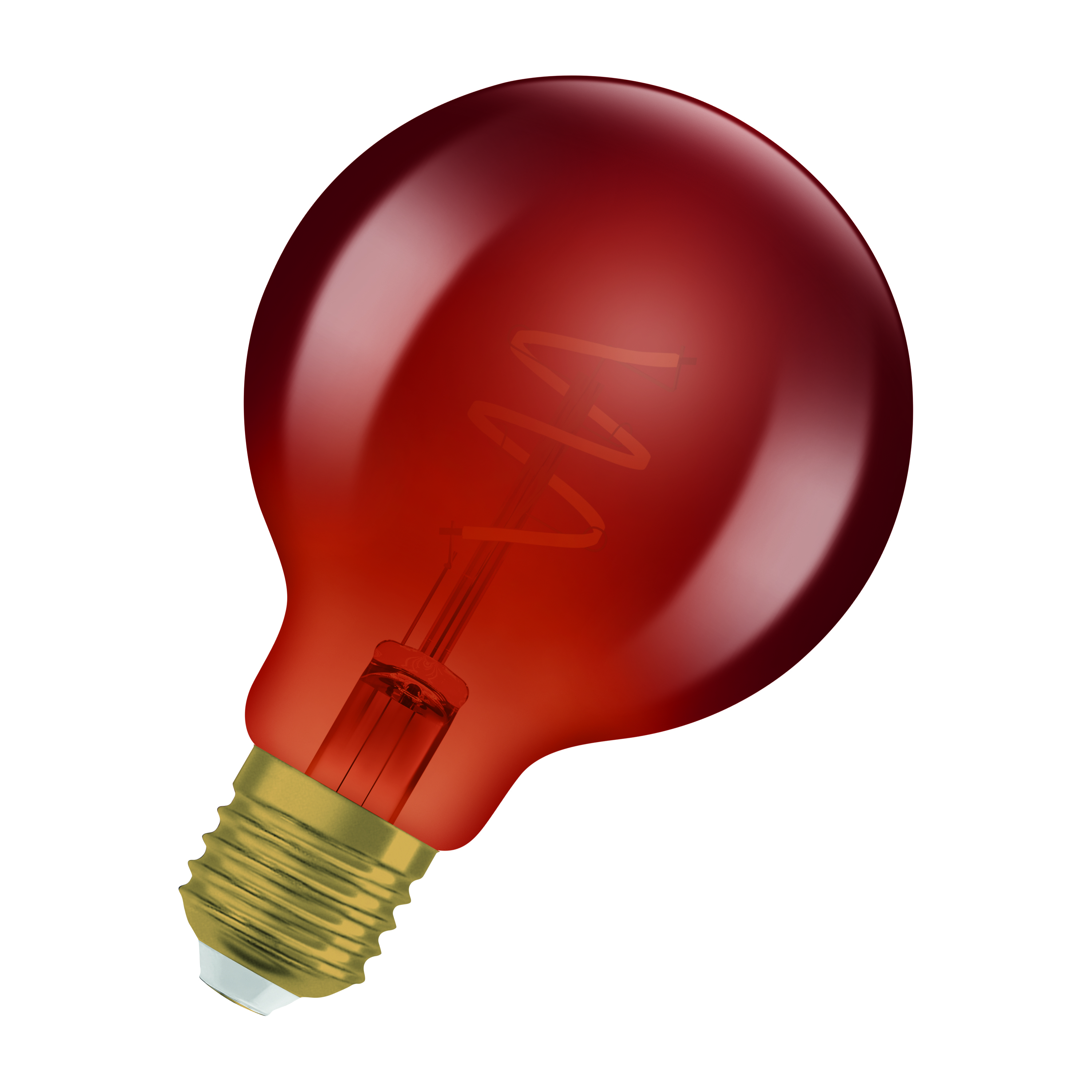

Product image: white background, diagonal with OSRAM logo
LED 1906 GLOBE 80 DIM S FIL CU E27 JPG (2.63 MB)

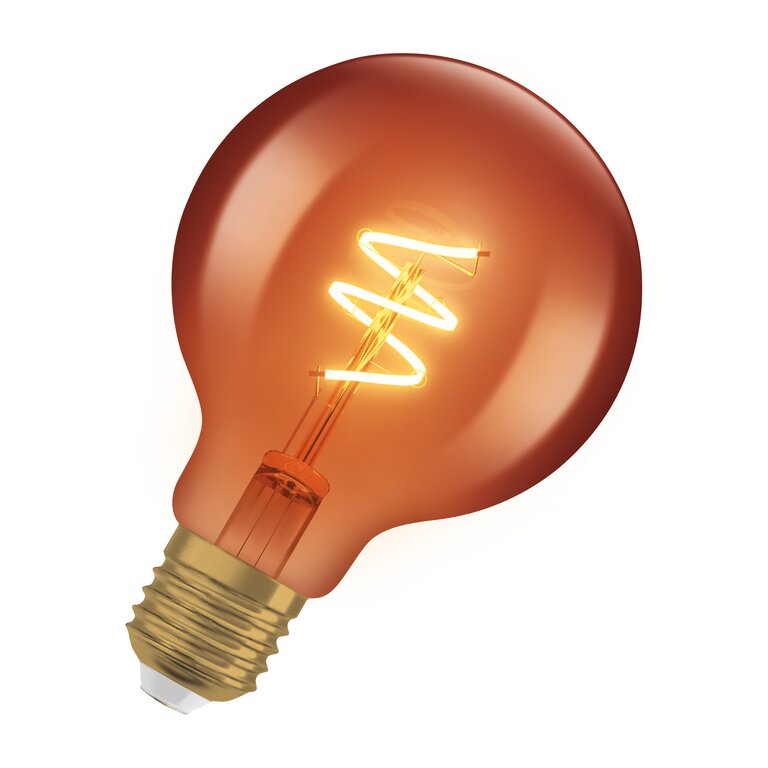

Product image: white background, diagonal
LED 1906 GLOBE 80 DIM S FIL CU E27 JPG (2.59 MB)

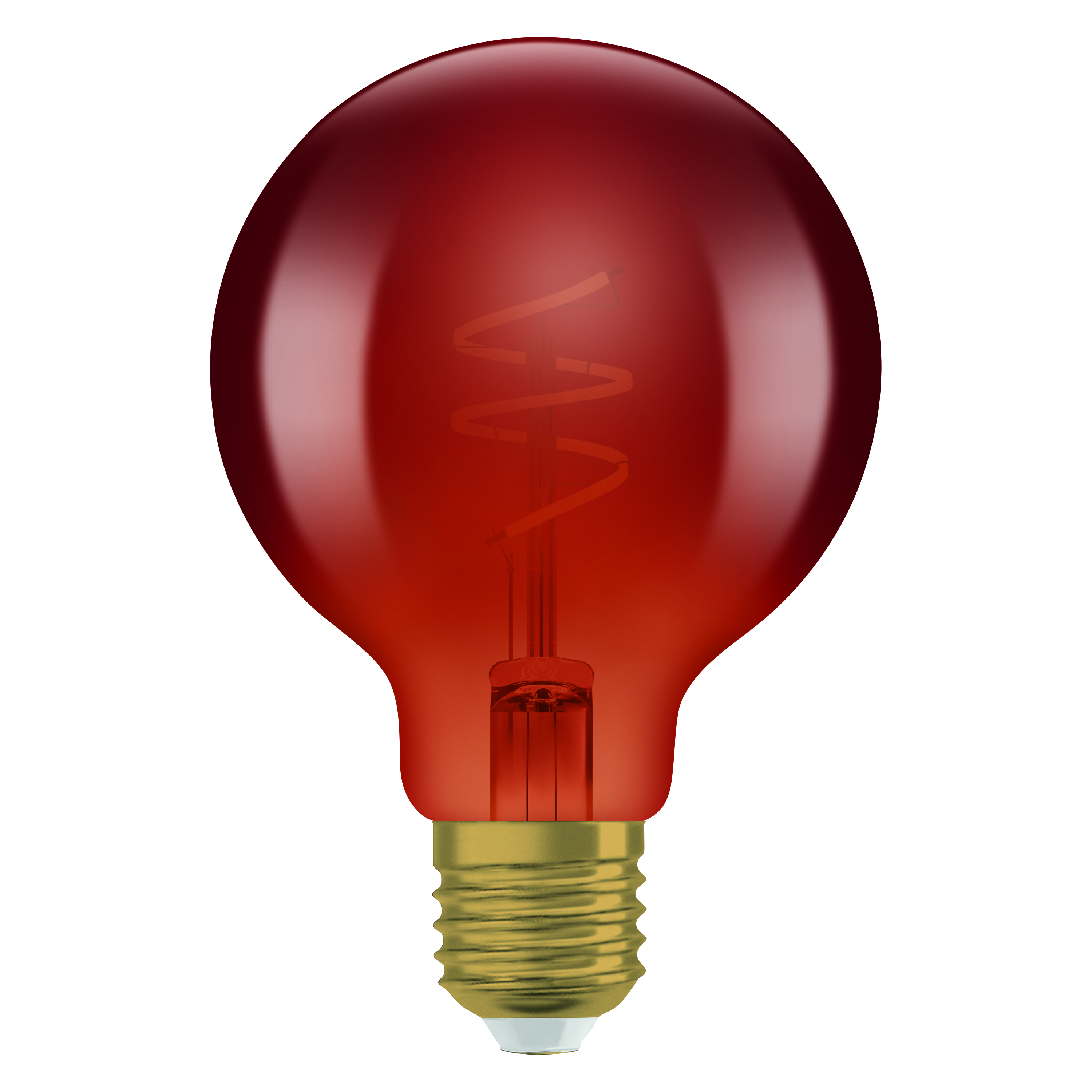

Product image: white background, upright, OSRAM logo
LED 1906 GLOBE 80 DIM S FIL CU E27 JPG (2.58 MB)
Product image: white background, upright
LED 1906 GLOBE 80 DIM S FIL CU E27 JPG (2.55 MB)

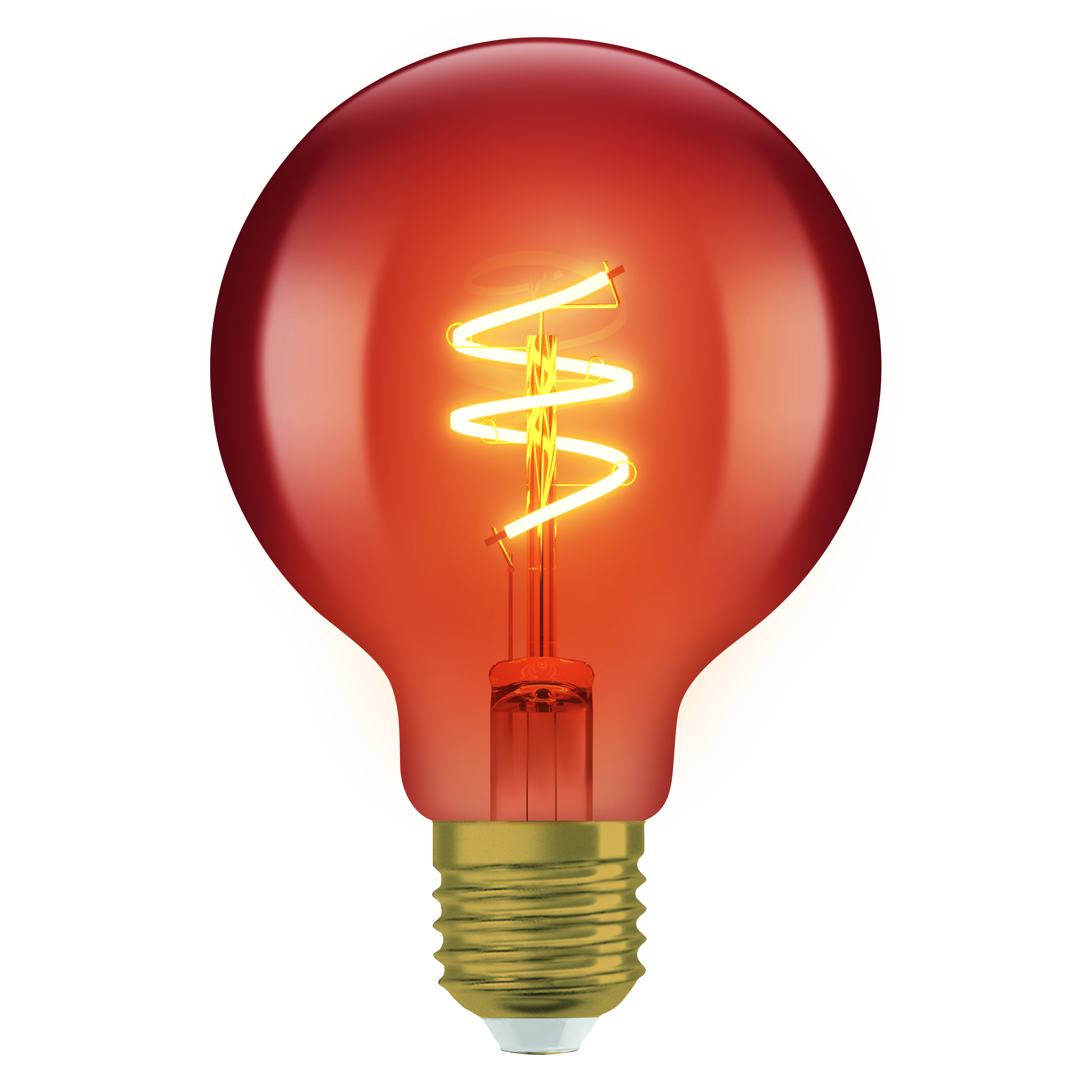

Product image: white background, upright, switched on
LED 1906 GLOBE 80 DIM S FIL CU E27 JPG (2.49 MB)
Product line drawing with letters
LED 1906 GLOBE 80 DIM S FIL CU E27 SVG (12.92 KB)
Product line drawing with numbers
LED 1906 GLOBE 80 DIM S FIL CU E27 SVG (15.06 KB)
Product line drawing - technical
LED 1906 GLOBE 80 DIM S FIL CU E27 SVG (9.27 KB)

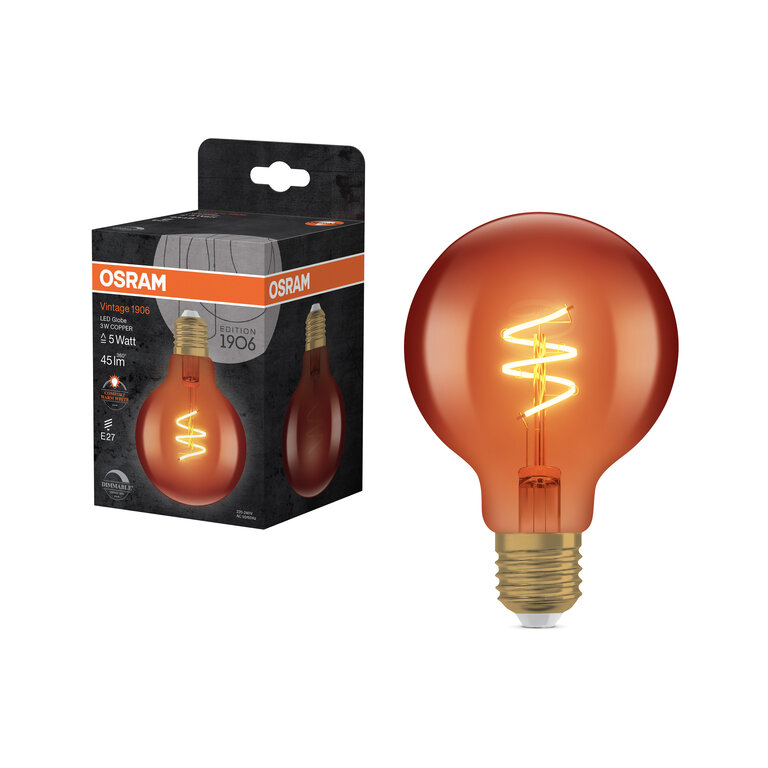

Combo Shot = Product Beauty Shot + Packaging Image
FC1 LED V1906 GLOBE 80 DIM 3W 818 FILCU E27 JPG (766.47 KB)

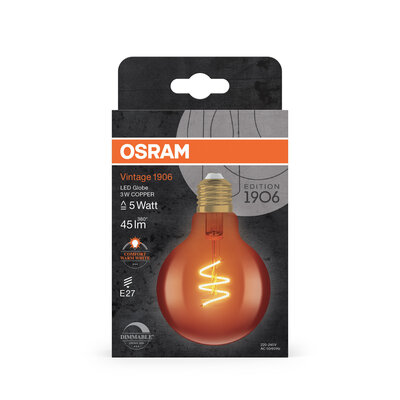

Packaging image, frontal
FC1 LED V1906 GLOBE 80 DIM 3W 818 FILCU E27 JPG (771.51 KB)

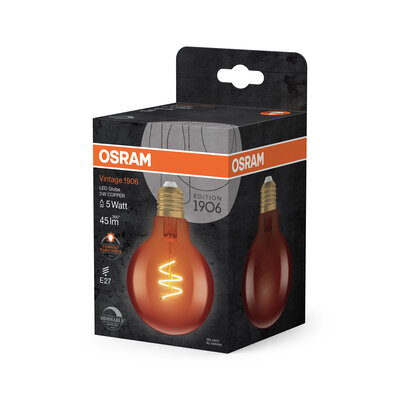

Packaging image, spacial
FC1 LED V1906 GLOBE 80 DIM 3W 818 FILCU E27 JPG (855.26 KB)
Application pictures

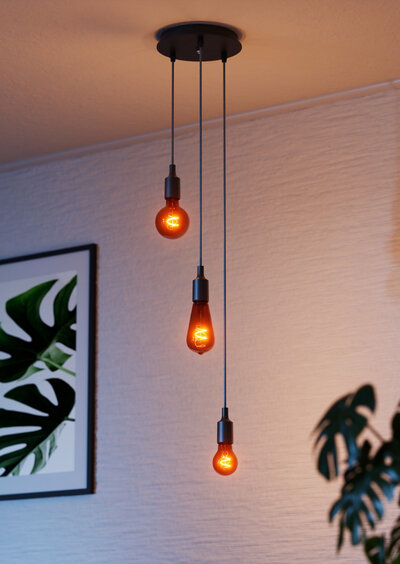

Three Vintage 1906 Cop per Lamps in living ro om JPG (7.81 MB)
