LED TUBE T8 EM VALUE 900 mm 10W 865

Product benefits
  • Energy savings of up to 69 % (compared to T8 fluorescent lamp)
  • Quick, simple and safe replacement with or without rewiring
  • No bending thanks to glass technology
  • Very high resistance to switching loads
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Also suitable for operation at low temperatures
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 10 W
Construction wattage 10.00 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Nominal current 47 mA
Type of current AC
Inrush current 10 A
Suitable for DC input Yes
Input voltage DC 186…260 V
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz 1)
Max. lamp number on MCB B10 A 60
Max. lamp number on MCB B10 A - CCG without compensation 65
Max. lamp number on MCB B10 A - CCG with compensation 21
Max. lamp number on MCB B16 A 75
Max. lamp number on MCB B16 A - CCG without compensation 82
Max. lamp number on MCB B16 A - CCG with compensation 27
Total harmonic distortion < 30 %
Power factor λ 0.90

1) DC 0Hz

Photometrical data

Luminous flux 1200 lm
Luminous efficacy 120 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool Daylight
Color temperature 6500 K
Color rendering index Ra 80
Light color 865
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 190 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 908.00 mm
Length with base excl. base pins/connection 900.00 mm
Diameter 26.70 mm
Product weight 143.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 70 °C
Performance temp. acc. to IEC 62717 64 °C 2)

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
2) Tp rated. Tp point coincides with Tc point - marked on device

Lifespan

Lifespan L70/B50 at 25 °C 50000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 10.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDTUBE T8 EM V

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power <0.5 W
Claim of equivalent power No
Length 908.00 mm
Height 26.70 mm
Width 26.70 mm
Chromaticity coordinate x 0.313
Chromaticity coordinate y 0.337
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.9
LED light source replaces a fluorescent light source No
EPREL ID 2153819
Model number AC69486

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings of up to 69 % (compared to T8 fluorescent lamp)
  • Quick, simple and safe replacement with or without rewiring
  • No bending thanks to glass technology
  • Very high resistance to switching loads
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Also suitable for operation at low temperatures
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Corridors, stairways, parking garages
  • Warehouses
  • Cooling and storage rooms
  • Domestic applications
Product features
  • LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
  • Single and tandem operation on conventional control gear (≤ 0.9 m versions)
  • Tube made of glass
  • Long lifetime up to 50,000 h
  • Uniform illumination
  • Mercury-free and RoHS compliant
  • Type of protection: IP20
  • Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
Equipment / Accessories
  • Suitable for operation with low-loss and conventional control gears
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • Not suitable for emergency lighting.
  • Disconnect mains before installation.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854435102 Sleeve
1		 955 mm x 28 mm x 28 mm 171.00 g 0.76 dm³
4099854435119 Shipping box
10		 990 mm x 170 mm x 100 mm 2210.00 g 16.83 dm³
User instruction / safety instructions
PDF (3.44 MB)
Extended installation guide
Installation instructi ons LED TUBE T8, T5 un d DULUX LED 2024 10 EN PDF (3.36 MB)
Extended installation guide
Notes on the operation of LEDVANCE LED tubes in compensated lumina ires PDF (551.59 KB)
Extended installation guide
LEDVANCE Luminaire con version checklist PDF (168.28 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
LED tube PDF (227.53 KB)
Product image: white background, diagonal with LEDVANCE logo
LEDVANCE LED TUBE T8 E M JPG (862.17 KB)
Product image: white background, diagonal
LED TUBE T8 EM JPG (769.9 KB)
Product image: white background, upright LEDVANCE logo
LEDVANCE LED TUBE T8 E M JPG (657.34 KB)
Product image: white background, upright
LED TUBE T8 EM JPG (650.51 KB)
Product line drawing with letters
LEDTUBE T8 EM SVG (9.49 KB)
Product line drawing with numbers
LEDTUBE T8 EM 900 SVG (15.26 KB)
Product line drawing - technical
638401_Technical drawi ng TC point LED TUBE T 8 EM SVG (22 KB)
Combo Shot = Product Beauty Shot + Packaging Image
AdTp LEDTUBE T8 EM V 9 00 10W 865 G13 JPG (381.03 KB)

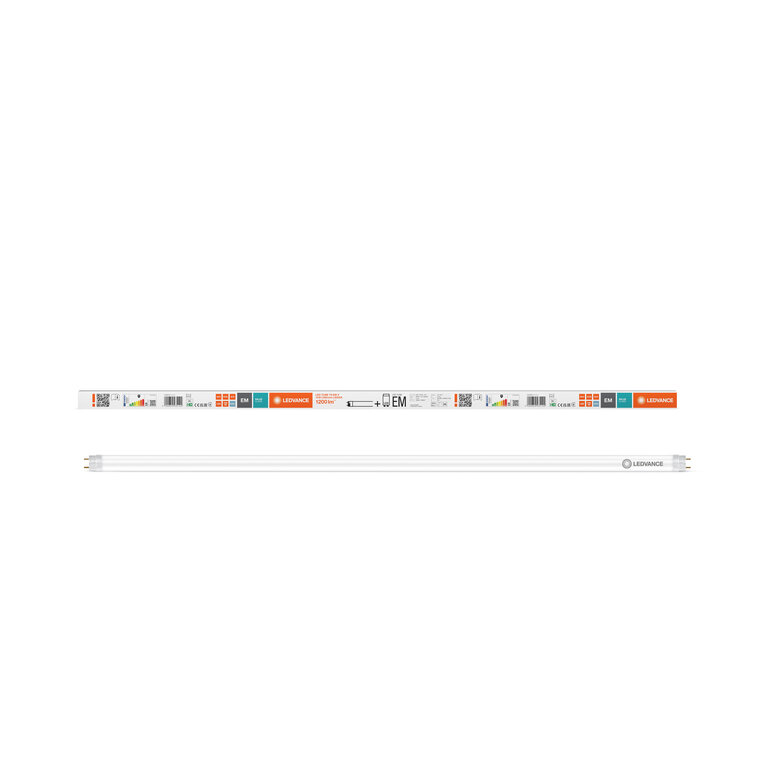

Packaging image, frontal
AdTp LEDTUBE T8 EM V 9 00 10W 865 G13 JPG (363.19 KB)

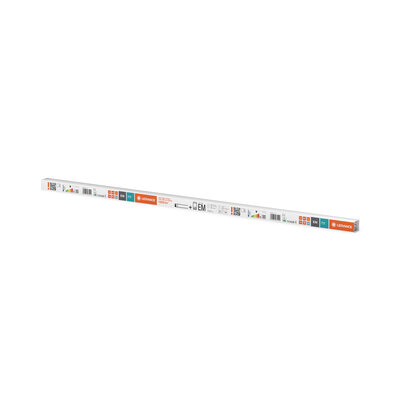

Packaging image, spacial
AdTp LEDTUBE T8 EM V 9 00 10W 865 G13 JPG (376.92 KB)
Catalog info 6
SVG (6.48 KB)
Energy label
EL-4099854435102-AC694 86 PDF (21.62 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
IES file (IES)
LEDTUBE T8 EM V 900 10 W 865 LEDV IES (1.28 KB)
LDT file (Eulumdat)
LEDTUBE T8 EM V 900 10 W 865 LEDV LDT (1.16 KB)

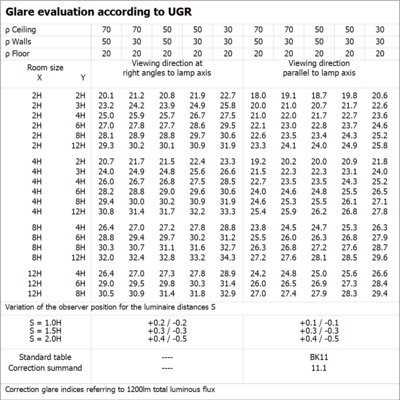

UGR file (UGR table)
LEDTUBE T8 EM V 900 10 W 865 LEDV PNG (63.54 KB)
Light distribution curve type polar
LEDTUBE T8 EM V 900 10 W 865 LEDV SVG (20.38 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 6500K PNG (104.93 KB)
Tender documents
LED TUBE T8 EM VALUE 9 00 mm 10W 865-en TXT (3.5 KB)
EAN SEG number STK number ELDAS number
4099854435102 8289446 4935366 941904102
