PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	15 W
Construction wattage	15.00 W
Nominal voltage	220…240 V
Operating mode	CCG, AC Mains
Nominal current	76 mA
Type of current	AC
Inrush current	8.4 A
Suitable for DC input	Yes
Input voltage DC	186…260 V
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz ¹⁾
Max. lamp number on MCB B10 A	71
Max. lamp number on MCB B10 A - CCG without compensation	74
Max. lamp number on MCB B10 A - CCG with compensation	28
Max. lamp number on MCB B16 A	89
Max. lamp number on MCB B16 A - CCG without compensation	92
Max. lamp number on MCB B16 A - CCG with compensation	36
Total harmonic distortion	< 52 %
Power factor λ	0.90

¹⁾ DC 0Hz

Photometrical data

Luminous flux	1620 lm
Luminous efficacy	108 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Warm White
Color temperature	3000 K
Color rendering index Ra	80
Light color	830
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80
Flickering metric (Pst LM)	1
Stroboscope effect metric (SVM)	0.4

Light technical data

Beam angle	190 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	1213.00 mm
Length with base excl. base pins/connection	1200.00 mm
Diameter	26.70 mm
Product weight	175.00 g

Temperatures & operating conditions

Ambient temperature range	-20…+45 °C ¹⁾
Maximum temperature at tc test point	70 °C
Performance temp. acc. to IEC 62717	55 °C ²⁾

¹⁾ Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
²⁾ Tp rated. Tp point coincides with Tc point - marked on device

Lifespan

Lifespan L70/B50 at 25 °C	50000 h
Number of switching cycles	200000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Additional product data

Base (standard designation)	G13
Mercury content	0.0 mg
Mercury-free	Yes

Capabilities

Dimmable

Certificates & Standards

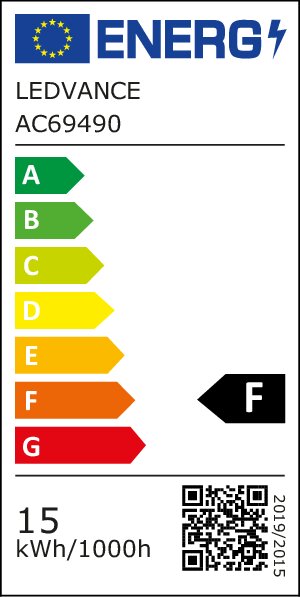

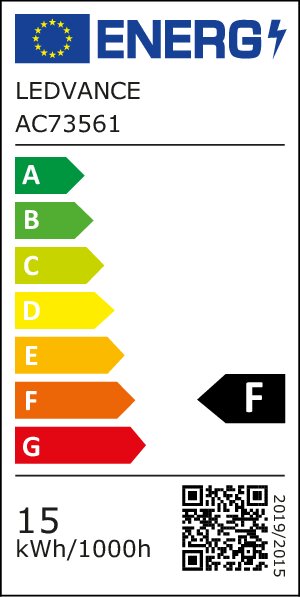

Energy efficiency class	F ¹⁾
Energy consumption	15.00 kWh/1000h
Type of protection	IP20
Standards	CE, EAC, UKCA
Photobiological safety group acc. to EN62778	RG0

¹⁾ Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference

LEDTUBE T8 EM V

LOGISTICAL DATA

Temperature range at storage

-20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	G13
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	<0.5 W
Claim of equivalent power	No
Length	1213.00 mm
Height	26.70 mm
Width	26.70 mm
Chromaticity coordinate x	0.44
Chromaticity coordinate y	0.403
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.9
Displacement factor	0.9
LED light source replaces a fluorescent light source	No
EPREL ID	2153807,2329444
Model number	AC69490,AC73561

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Energy savings of up to 69 % (compared to T8 fluorescent lamp)
Quick, simple and safe replacement with or without rewiring
No bending thanks to glass technology
Very high resistance to switching loads
Instant-on light, therefore ideally suitable in combination with sensor technology
Also suitable for operation at low temperatures

Areas of application

General illumination within ambient temperatures from -20…+45 °C
Corridors, stairways, parking garages
Warehouses
Cooling and storage rooms
Domestic applications

Product features

LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
Single and tandem operation on conventional control gear (≤ 0.9 m versions)
Tube made of glass
Long lifetime up to 50,000 h
Uniform illumination
Mercury-free and RoHS compliant
Type of protection: IP20
Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)

Equipment / Accessories

Suitable for operation with low-loss and conventional control gears

Legal advice

When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.

Safety advice

Not suitable for operation with electronic control gear.
Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
Not suitable for emergency lighting.
Disconnect mains before installation.

References / Links

For Guarantee see www.ledvance.com/guarantee

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854434600	Sleeve 1	1,255 mm x 29 mm x 29 mm	204.00 g	1.06 dm³
4099854434617	Shipping box 10	1,290 mm x 170 mm x 95 mm	2661.00 g	20.83 dm³

Country-specific information

EAN	SEG number	STK number	ELDAS number
4099854434600	8289450	4935370	941903892

LED TUBE T8 EM VALUE 1200 mm 15W 830
