SMART+ Wifi Garden Dot 18P RGB

Product benefits
  • Easy and quick installation
  • Colorful garden lighting with smart and intelligent control options
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Power factor λ > 0.5
Protection class II
Operating mode Mains voltage

Photometrical data

Luminous flux 680 lm
Luminous efficacy 170 lm/W
Light color (designation) RGB
Standard deviation of color matching < 6 sdcm
Beam angle 33.00 °

Dimensions & Weight

Length 13500.00 mm
Height 96.00 mm
Width 23.00 mm
Product weight 590.00 g

Materials & Colors

Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)

Application & Mounting

Ambient temperature range -20…+40 °C
Type of connection Plug, EU
Type of protection IP65
Dimmable Yes
Type of dimming WiFi
Mounting type Ground spike
Mounting location Ground
Application environment Outdoor
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 12500

Certificates & Standards

Standards CE, EAC
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy and quick installation
  • Colorful garden lighting with smart and intelligent control options
Areas of application
  • Gardens, balconies and other outdoor areas
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • RGB color control, approx. 16 million color options adjustable
  • Dimmable
  • Protection class (dots): IP65
  • Protection class (power supply): IP44
  • Extension up to maximum 18 dots
Equipment / Accessories
  • Power supply included only in basic set
  • Control via app or voice control requires compatible Smart home system
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075478558 Folding box
1		 202 mm x 122 mm x 124 mm 657.00 g 3.06 dm³
4058075478565 Shipping box
4		 427 mm x 267 mm x 150 mm 3060.00 g 17.10 dm³
User instruction / safety instructions
SMART WIFI GARDEN DOT PDF (1.04 MB)
Declarations of conformity
CE_SMART WIFI GARDEN D OT RGB 18P PDF (299.5 KB)

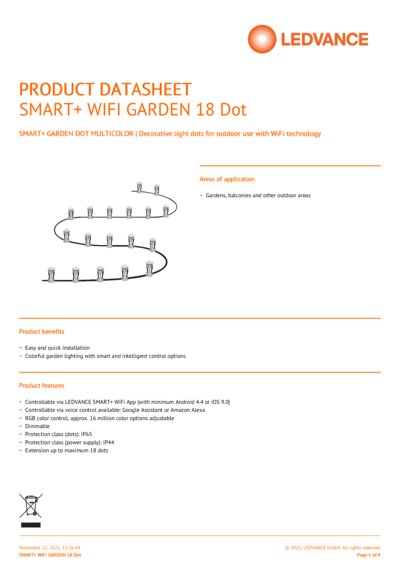

Product datasheet -> old version of product
4058075478558 SMART W IFI GARDEN 18 Dot en o ld PDF (504.28 KB)
EU Data Act
SMART WiFi Lamps and L uminaires PDF (539.99 KB)

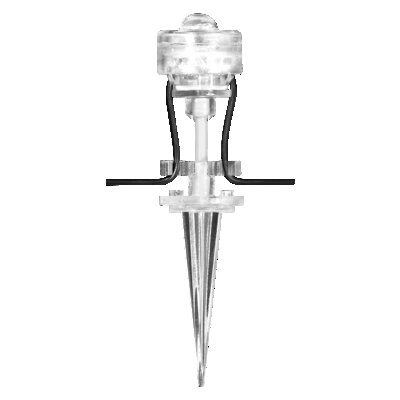

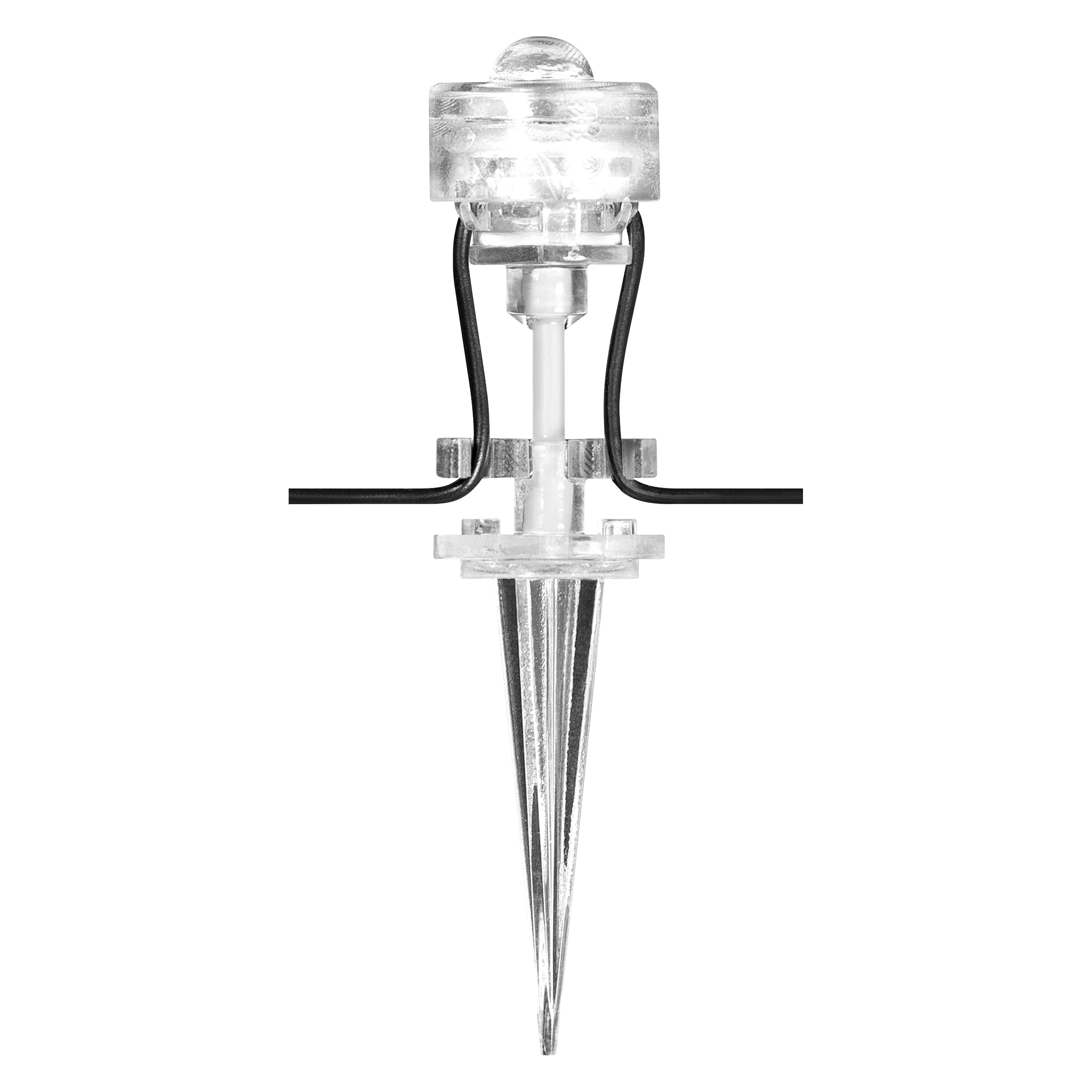

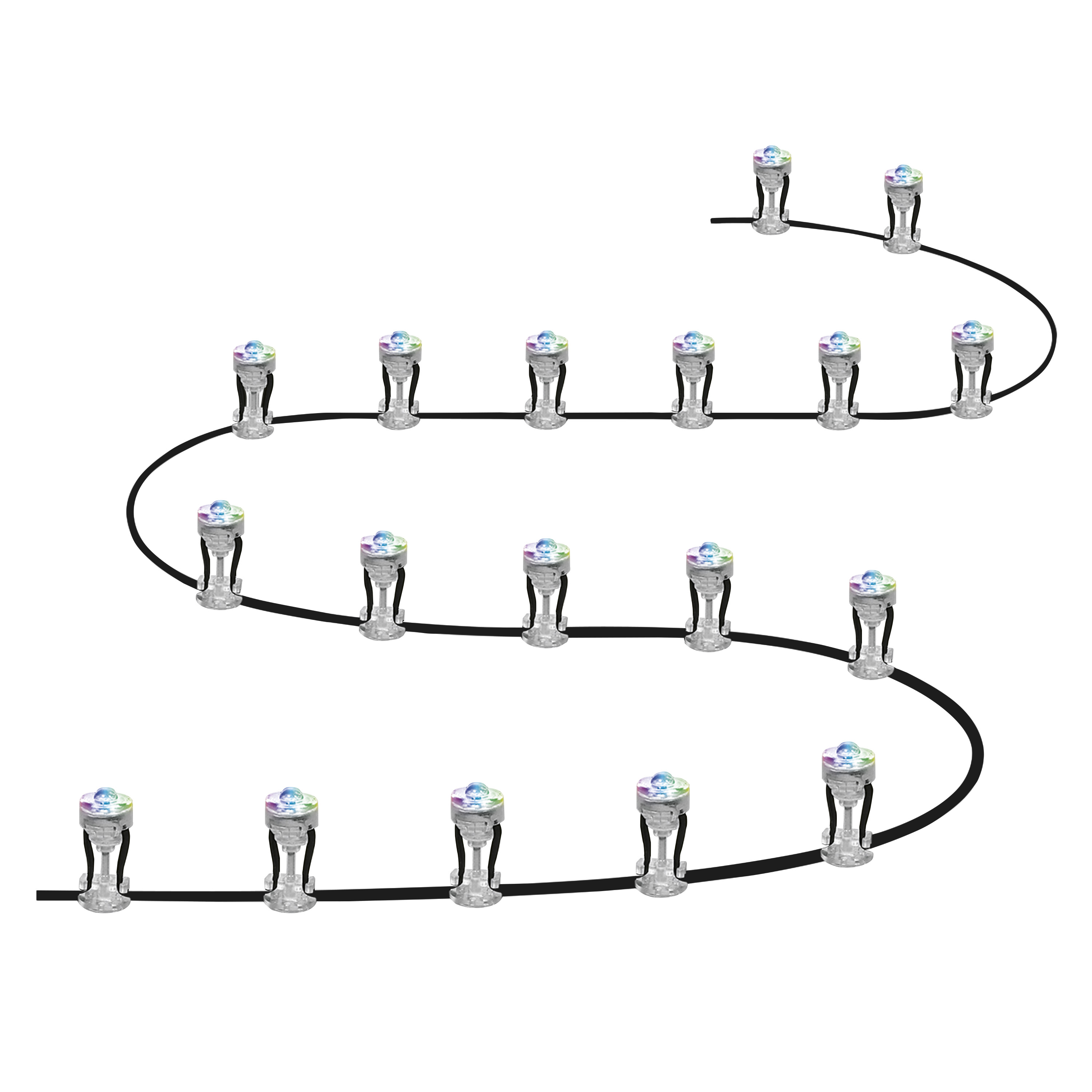

Product image: white background, upright
SMART WIFI GARDEN DOT RGB 18P JPG (544.11 KB)
Product image: white background, upright, alternative image
SMART WIFI GARDEN DOT RGB 18P JPG (511.13 KB)
Product image: white background, upright, switched on
SMART WIFI GARDEN DOT RGB 18P JPG (573.09 KB)
Product line drawing with numbers
SMART WIFI GARDEN DOT RGB 18P SVG (313.88 KB)
Product line drawing, front, no dimensions
SMART WIFI GARDEN DOT RGB 18P SVG (1.39 MB)
Product line drawing - technical
SMART WIFI GARDEN DOT RGB 18P SVG (1.41 MB)

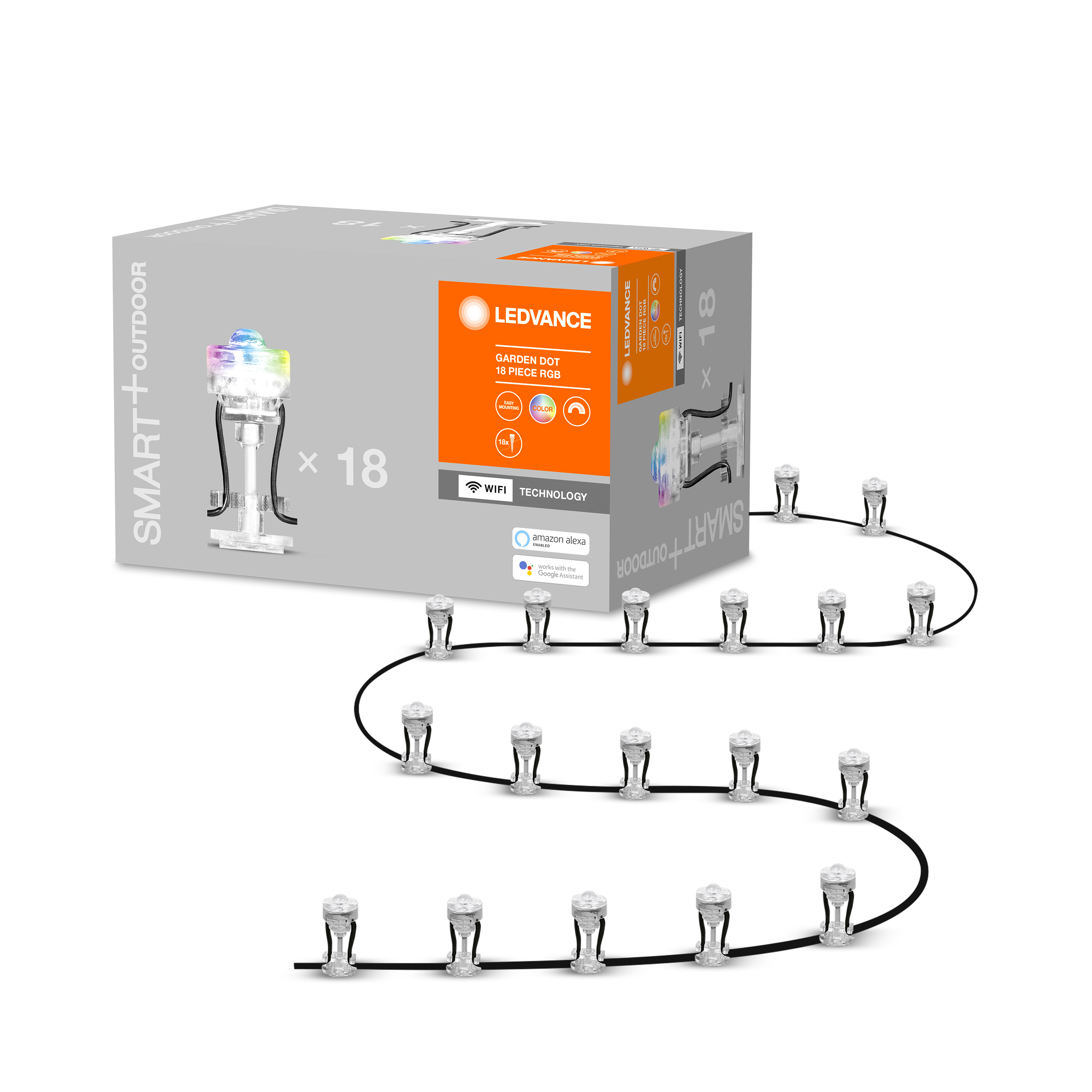

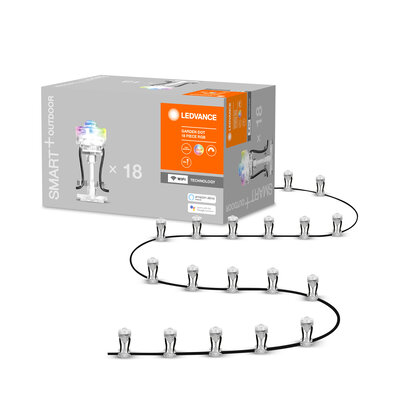

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI GARDEN DOT RGB 18P MiPRC JPG (642.12 KB)

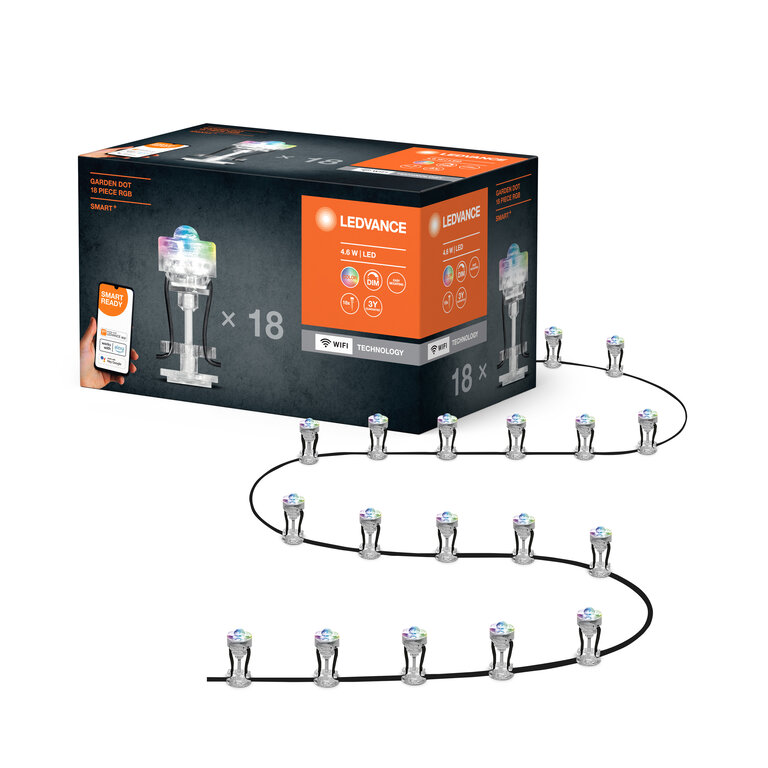

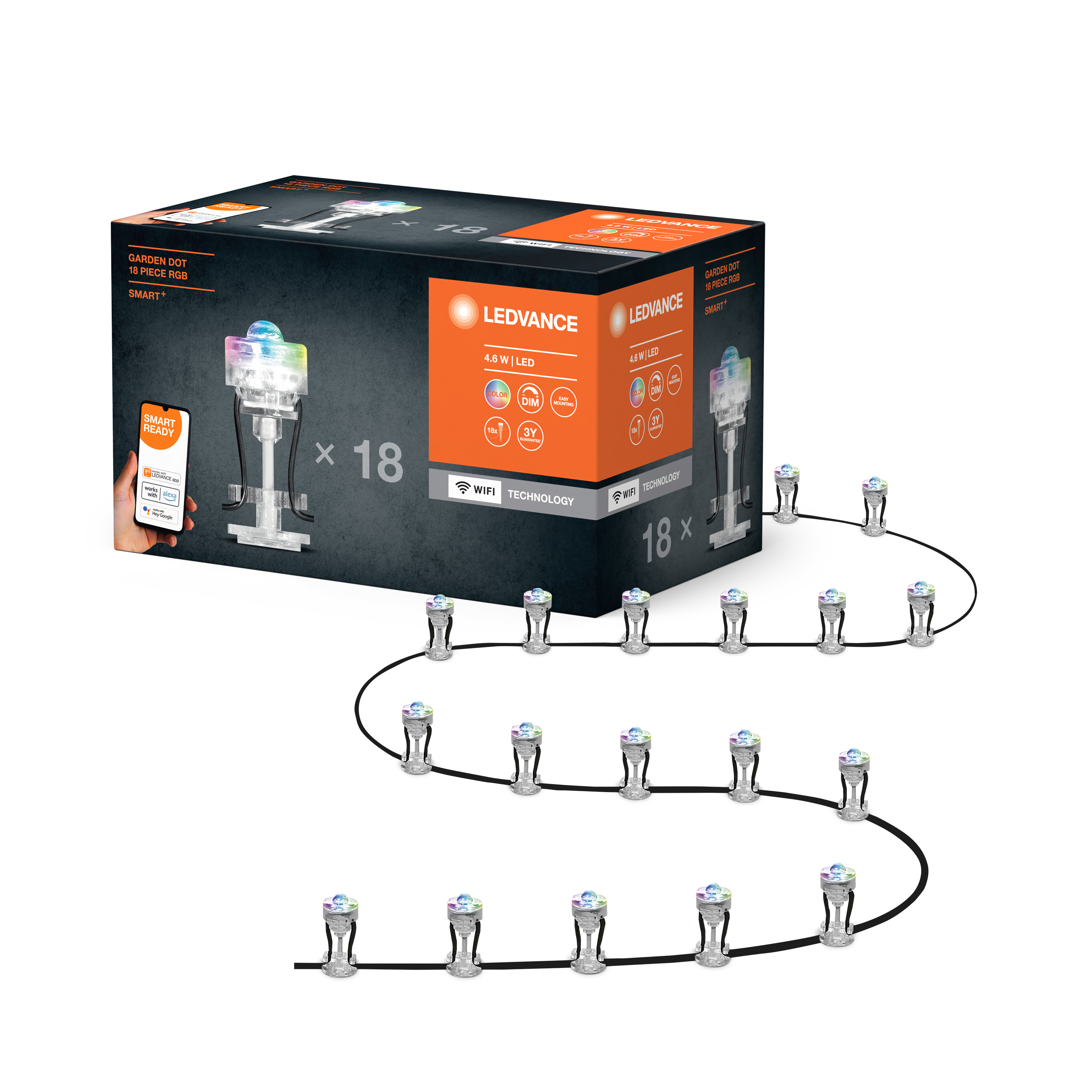

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI GARDEN DOT 18P RGB MiPRC JPG (912.62 KB)

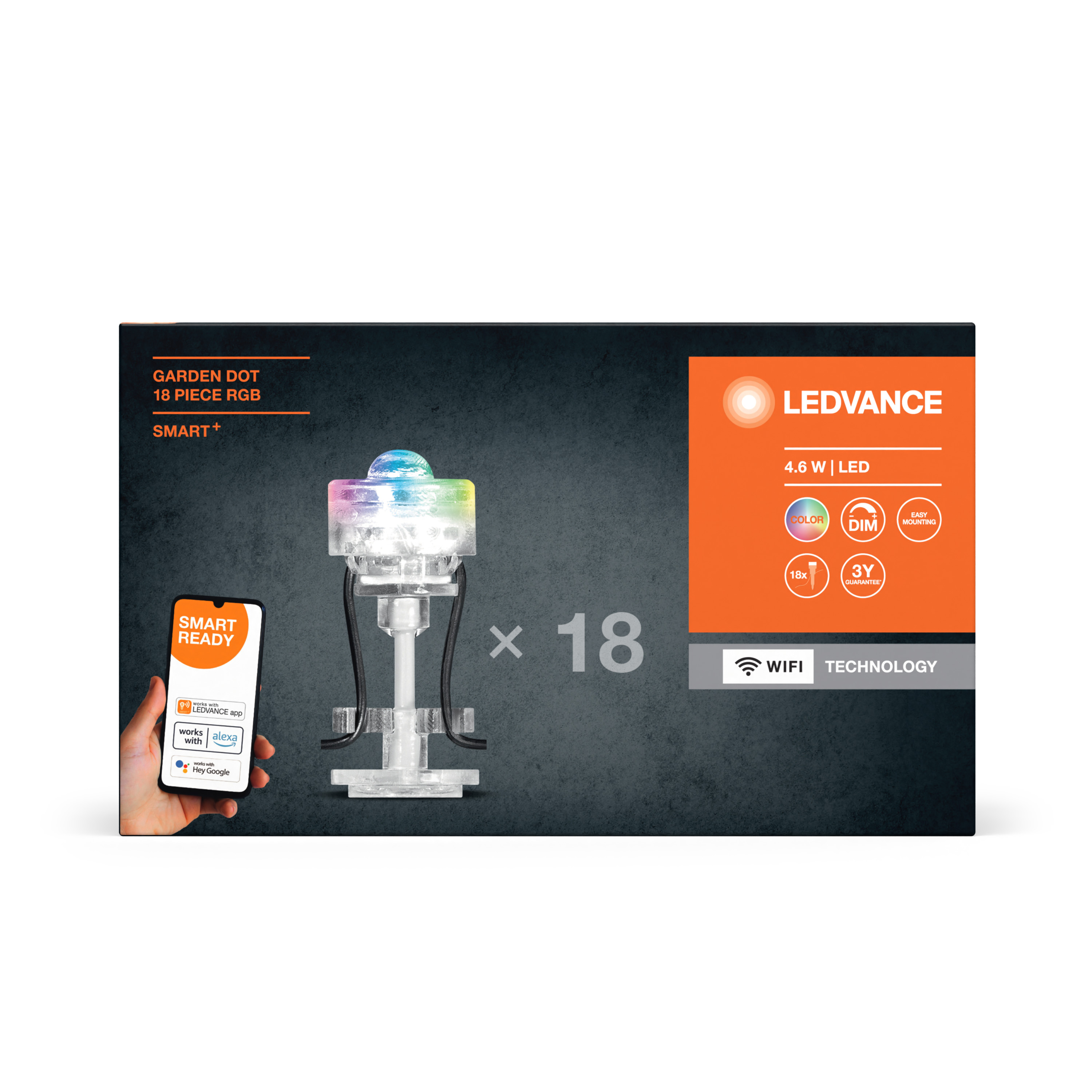

Packaging image, frontal
SH FC WIFI GARDEN DOT RGB 18P MiPRC JPG (841.75 KB)

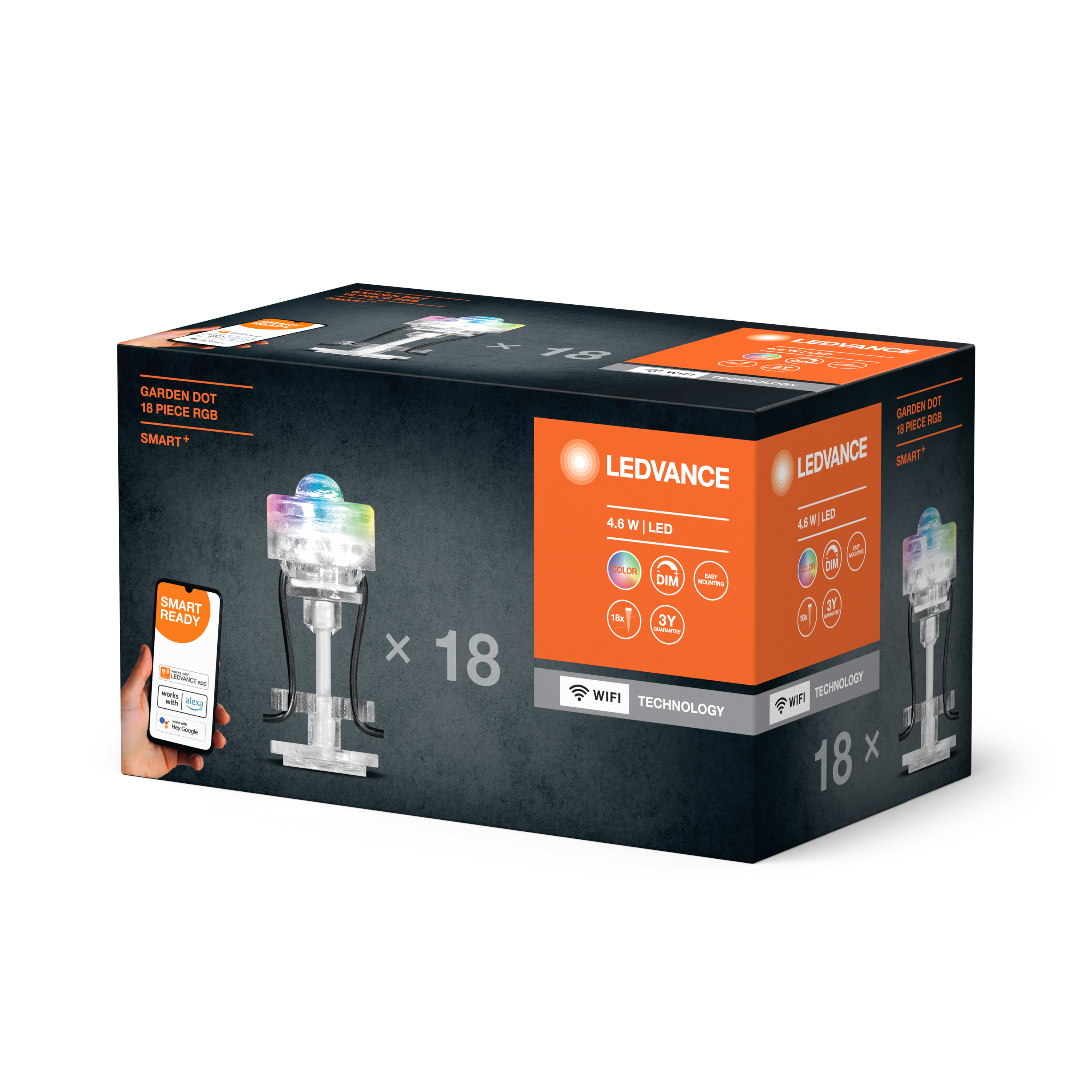

Packaging image, spacial
SH FC WIFI GARDEN DOT RGB 18P MiPRC JPG (952.61 KB)
Application pictures
Smart+ WIFI Garden Dot JPG (4.67 MB)

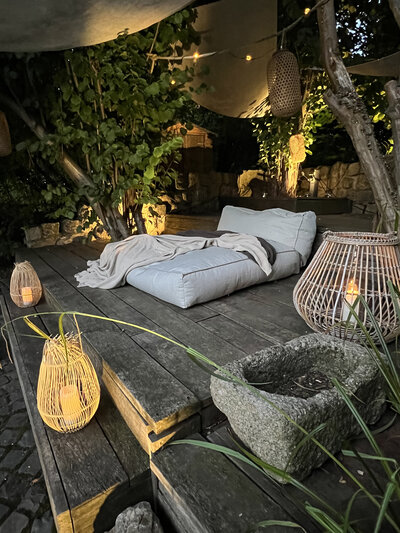

Application pictures
influencer colognecoun trylife instagram camp aign outdoor bed JPG (9.21 MB)

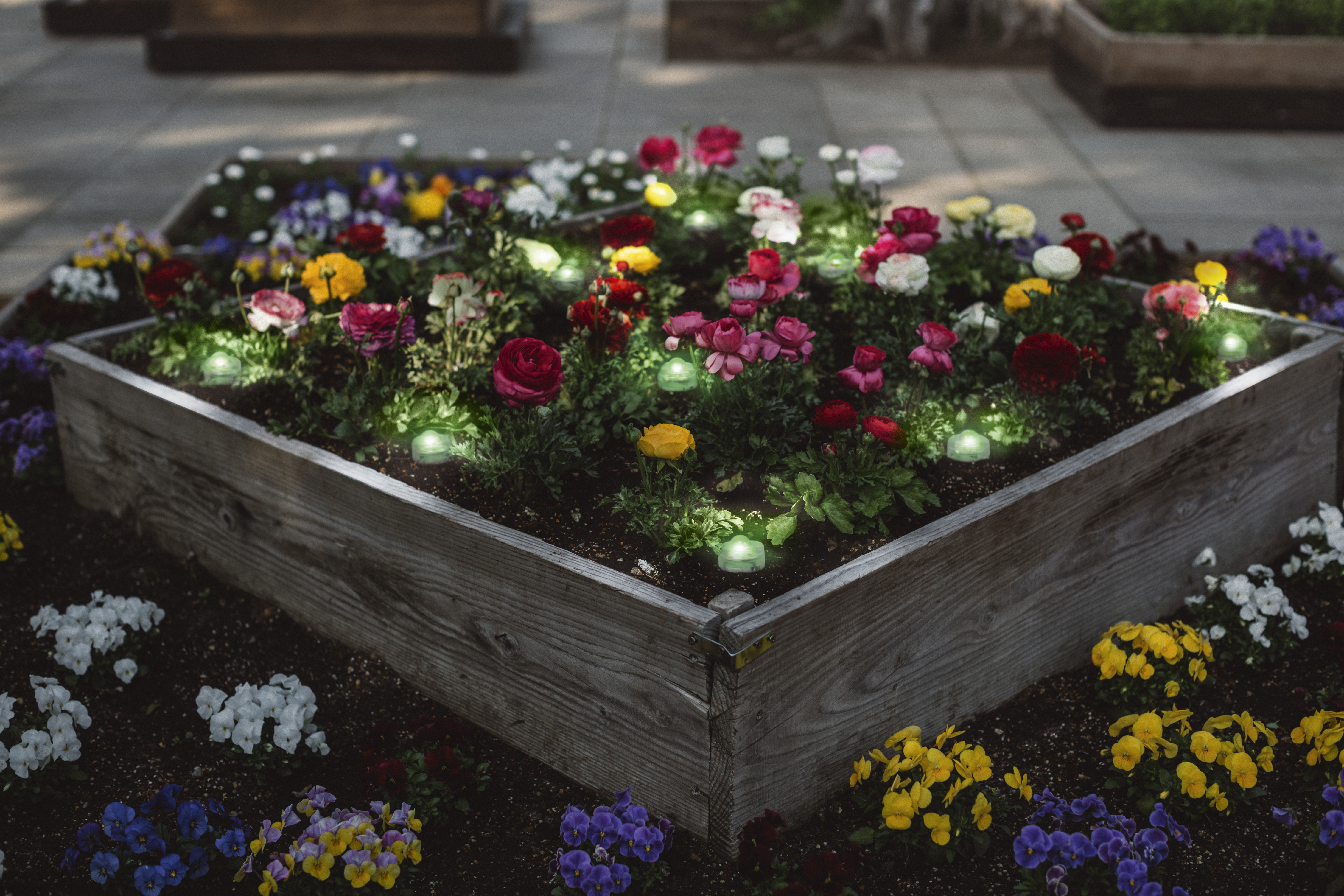

Application pictures Getty
