LED MR16 20 36° DIM P PRO 3.6W 930 GU5.3

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Stepless dimming
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • Compatible with many common conventional and electronic control gears (see also compatibility list)
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet
Go to LEDVANCE successor product

PRODUCT DETAILS

Electrical data

Nominal wattage 3.6 W
Construction wattage 3.60 W
Nominal voltage 12 V
Operating mode 12V AC
Claimed equiv. conventional lamp power 20 W
Nominal current 320 mA
Type of current AC/DC
Inrush current 12.8 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 46
Max. lamp number on MCB B16 A 58
Power factor λ > 0.70

Photometrical data

Luminous intensity 500 cd
Luminous flux 230 lm
Nominal useful luminous flux 90° 230 lm
Luminous efficacy 63 lm/W
Lumen main.fact.at end of nom.life time 0.96
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 97
Light color 930
Standard deviation of color matching ≤3 sdcm
Rated peak intensity 500 cd
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0,4

Light technical data

Beam angle 36 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 44.00 mm
Diameter 50.00 mm
Maximum diameter 50 mm
Product weight 36.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 75 °C

Lifespan

Lifespan L70/B50 at 25 °C 40000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.96
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) GU5.3
Mercury content 0.0 mg
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class G 1)
Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LPPMR16D2036 3,

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional DLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) GU5.3
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0
Networked standby power for CLS 0.0 W
Claim of equivalent power Yes
Length 44.00 mm
Height 50.00 mm
Width 50.00 mm
Chromaticity coordinate x 0,4339
Chromaticity coordinate y 0,4033
R9 Colour rendering index 1
Beam angle correspondence NARROW_CONE_90
Survival factor 0,90
Displacement factor 0.00
LED light source replaces a fluorescent light source No
EPREL ID 1235151
Model number AC42765

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), Tripnehyl Phosphate (115-86-6)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Stepless dimming
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • Compatible with many common conventional and electronic control gears (see also compatibility list)
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Shops and exhibition rooms
  • Domestic applications
  • Commercial applications
  • Accent lighting
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to low voltage halogen lamps
  • High color consistency: ≤ 3 SDCM
  • Dimmable
  • Base: GU5.3
  • Lamp made of glass
  • Excellent color rendering CRI > 97
  • Lifetime up to 40,000 h
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075796416 Folding box
1		 49 mm x 49 mm x 62 mm 43.00 g 0.15 dm³
4058075796423 Shipping box
10		 255 mm x 107 mm x 72 mm 483.00 g 1.96 dm³
Declarations of conformity
MR16 LED lamp PDF (301.88 KB)
Product image: white background, diagonal
MR16 20-35 GU5.3 TIF (15.98 MB)
Product image: white background, upright
MR16 20-35 GU5.3 JPG (2.51 MB)
Product line drawing with letters
666399_MR16 20/35 2016 SVG (16.56 KB)
Product line drawing, front, no dimensions
628150_LED MR16 SVG (3.84 KB)

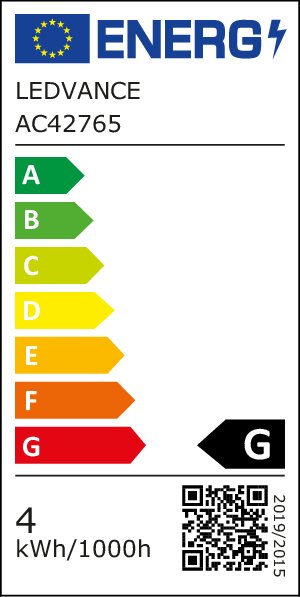

Energy label
EL-4058075796416-AC427 65 PDF (21.36 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)
Spectral power distribution
Everlight 67-23ST RKE 3000K PNG (115.03 KB)
EAN SEG number STK number EFO number ELDAS number
4058075796416 8298004 4731880 3764968 941814310
