DULUX D LED EM & AC Mains 18 7 W/4000 K G24d-2

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 7 W
Construction wattage 7.00 W
Nominal voltage 220…240 V
Operating mode AC, Conventional control gear (CCG)
Claimed equiv. conventional lamp power 18 W
Nominal current 54 mA
Type of current AC
Inrush current 10 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 70
Max. lamp number on MCB B10 A - CCG without compensation 70
Max. lamp number on MCB B10 A - CCG with compensation 70
Max. lamp number on MCB B16 A 40
Max. lamp number on MCB B16 A - CCG without compensation 40
Max. lamp number on MCB B16 A - CCG with compensation 40
Total harmonic distortion ≤ 30 %
Power factor λ > 0.50

Photometrical data

Luminous flux 700 lm
Nominal useful luminous flux 90° 700 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra > 80
Light color 840
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 120 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 148.00 mm
Length with base excl. base pins/connection 125,70 mm
Diameter 35,0 mm
Maximum diameter 35 mm
Product weight 65.00 g

Temperatures & operating conditions

Ambient temperature range -20…+35 °C
Maximum temperature at tc test point 67 °C

Lifespan

Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G24d-2
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class A+ 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference DULUX D18LED 7W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G24d-2
Length 148.00 mm
Height 35,0 mm
Width 35,0 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
Areas of application
  • Supermarkets and department stores
  • Walkways and corridors
  • Hotels, restaurants
Product features
  • LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
  • Rotatable base around its longitudinal axis (± 90°)
  • Lifetime up to 30,000 h
  • Single-ended two-pin plug-in G24d base
  • Type of protection: IP20
  • Mercury-free lamps
Safety advice
  • Not suitable for tandem operation.
  • The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • All electrical connections must be made by a qualified person.
  • Not suitable for emergency lighting.
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075024939 Folding box
1		 37 mm x 37 mm x 151 mm 78.00 g 0.21 dm³
4058075024946 Shipping box
10		 193 mm x 82 mm x 165 mm 831.00 g 2.61 dm³
Declarations of conformity
EC Declaration of Conf ormity Dulux_D_18+26_L ED PDF (1.27 MB)

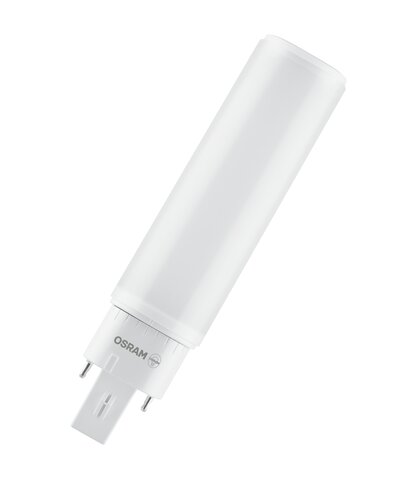

Product image: white background, diagonal with OSRAM logo
DULUX LED D/E HF 7W TIF (22.69 MB)

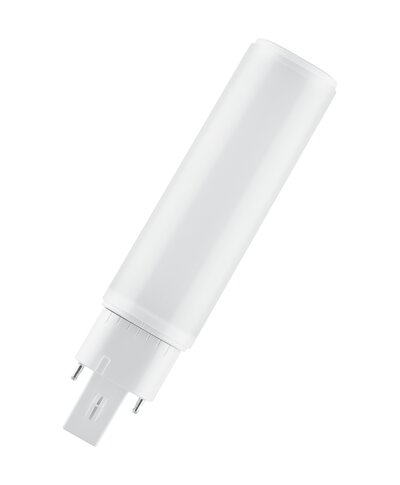

Product image: white background, diagonal
Dulux D 18 LED G24D-2 TIF (19.55 MB)

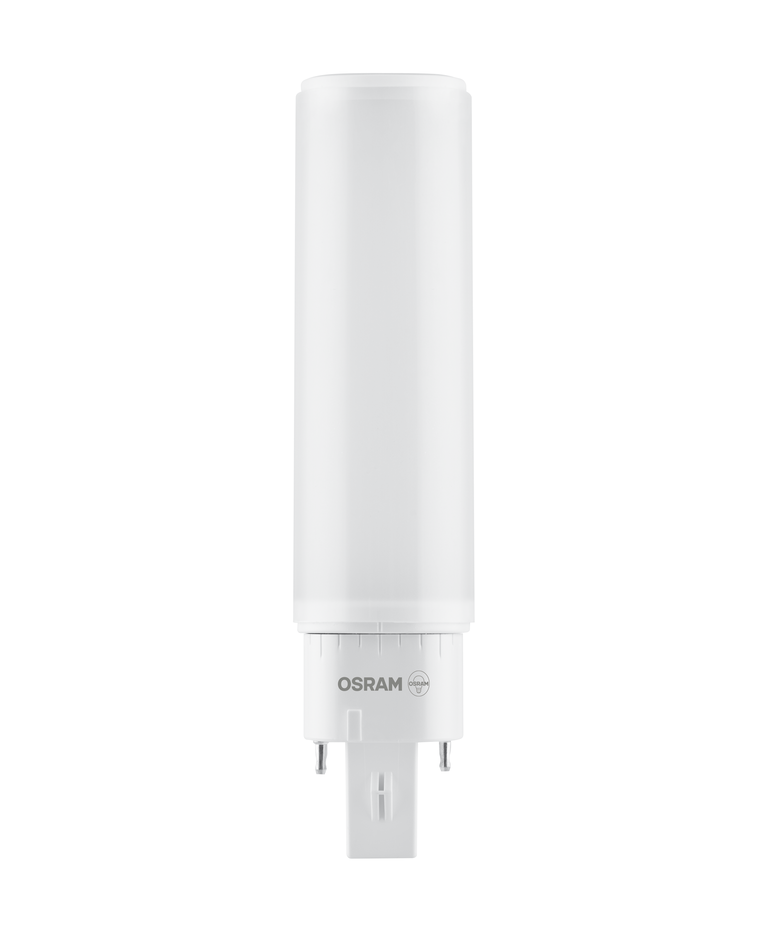

Product image: white background, upright, OSRAM logo
DULUX LED D/E HF 7W TIF (22.69 MB)
Product image: white background, upright
Dulux D 18 LED G24D-2 TIF (22.68 MB)
Product line drawing with letters
Dulux D 18 LED G24D-2 SVG (21.17 KB)
Product line drawing with numbers
Dulux D 18 LED G24D-2 SVG (26.69 KB)
Product line drawing, front, no dimensions
Dulux D 18 LED G24D-2 SVG (18.35 KB)

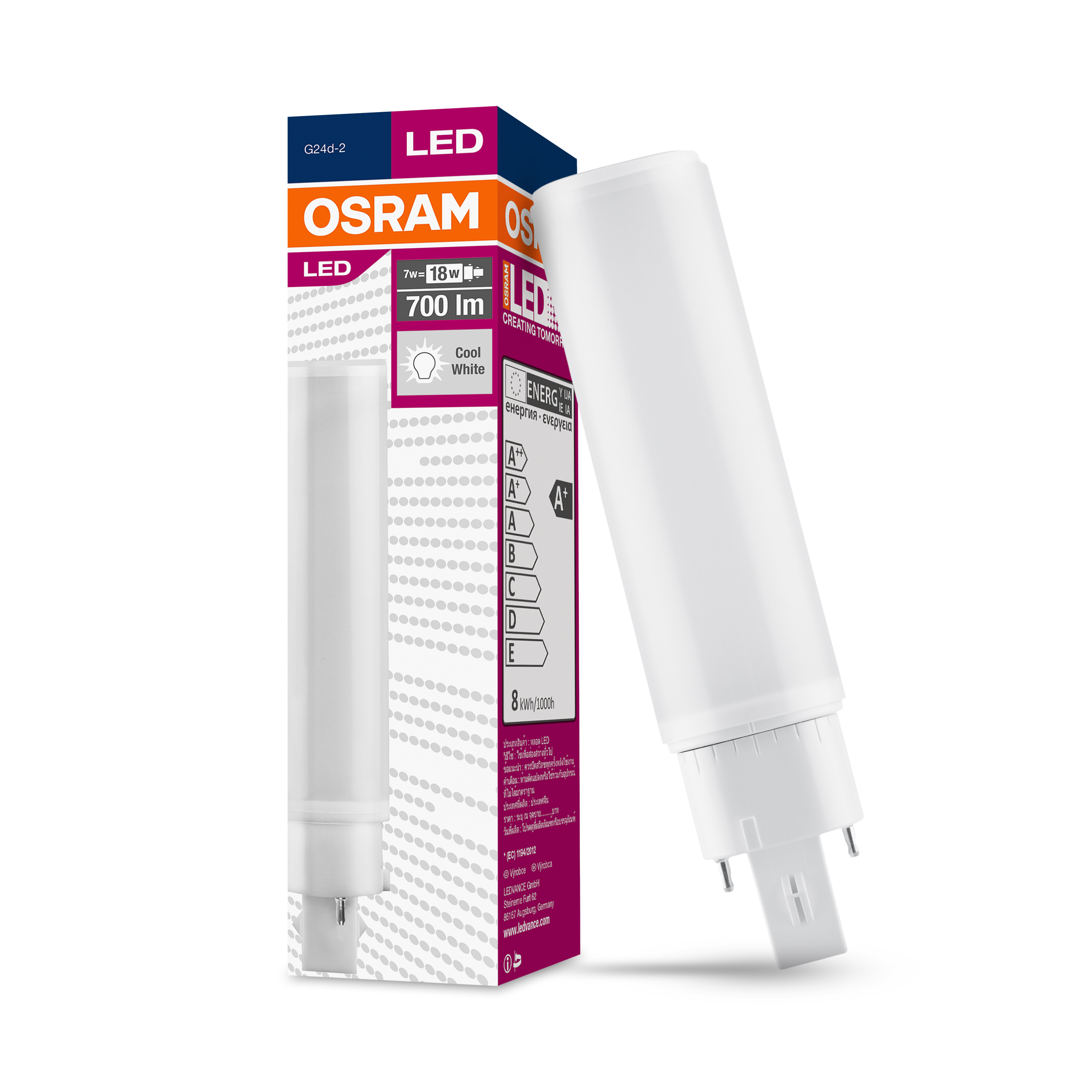

Combo Shot = Product Beauty Shot + Packaging Image
DULUX D18LED 7W-840230 VEMG24D-210X1 JPG (1.56 MB)
Packaging image, frontal
LED DULUX D 7W 840 EM G24d-2 MiCh Front TIF (4.52 MB)

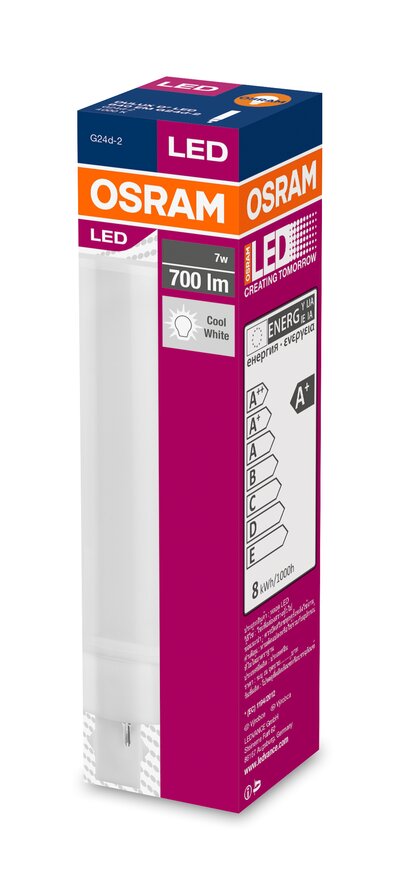

Packaging image, spacial
