LED Retrofit CLASSIC P

Choose your product version

5.9W 840 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Star Classic P 60 Filament 5.9W 840 Frosted E27 E27 5.9 W 220…240 V 15000 h 806 lm 60 W 300 ° No


LED Star Classic P 15 1.5W 827 Frosted E14

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Lamps with innovative LED "filament" technology
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 1.5 W
Construction wattage 1.50 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 15 W
Nominal current 12 mA
Type of current AC
Inrush current 1.45 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 310
Max. lamp number on MCB B16 A 666
Power factor λ > 0.40

Photometrical data

Luminous flux 136 lm
Nominal useful luminous flux 90° 136 lm
Luminous efficacy 90 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 77.00 mm
Diameter 45,0 mm
Maximum diameter 45 mm
Product weight 15.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 55 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 2.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDSCLP15 1,5W/

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Networked standby power for CLS 0 W
Claim of equivalent power Yes
Length 77.00 mm
Height 45,0 mm
Width 45,0 mm
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.40
LED light source replaces a fluorescent light source No
EPREL ID 1402971,523056
Model number AC32446,AC17494

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Lamps with innovative LED "filament" technology
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Beam angle: up to 300°
  • Lifetime up to 15,000 h
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075450578 Folding box
1		 46 mm x 49 mm x 130 mm 27.00 g 0.29 dm³
4058075605046 Shipping box
6		 159 mm x 111 mm x 106 mm 252.00 g 1.87 dm³
Declarations of conformity
LED lamps CLA,B,G,P PDF (223.84 KB)

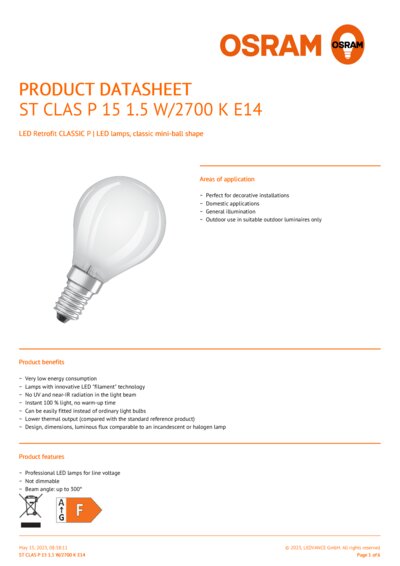

PRODUCT DATASHEET
LED STAR CL P GL FR 1 5 non-dim 1,5W/827 E1 4 PDF (220.67 KB)

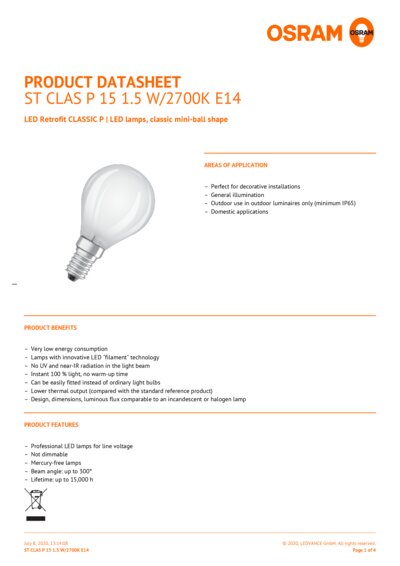

PRODUCT DATASHEET
STCLASP151.5W2700KE14e n PDF (450.6 KB)
Product image: white background, diagonal
CLP GL FR E14 TIF (72.64 MB)
Product image: white background, upright
CLP GL FR E14 TIF (72.63 MB)
Product line drawing with letters
CLP GL FR E14 ml SVG (9.98 KB)
Product line drawing with numbers
LED CLASSIC P Dimmable GLFR E14 SVG (9.61 KB)

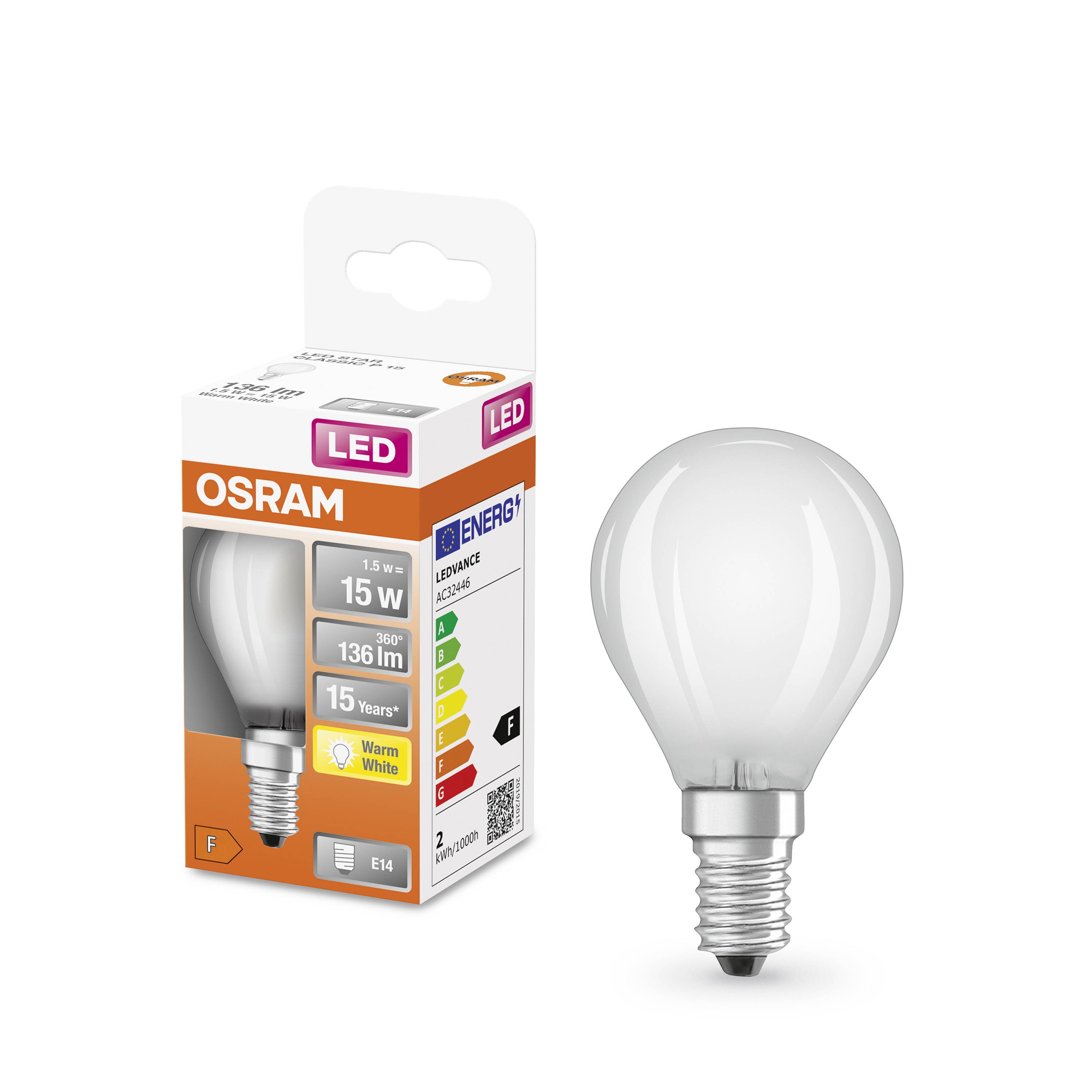

Combo Shot = Product Beauty Shot + Packaging Image
LEDSCLP15 1,5W-827 230 VGLFR E14 FS1 OSRAM JPG (971.43 KB)
Packaging image, frontal
LED ST CLP 15 1.5W 827 FR E14 MiCh TIF (1.28 MB)
Packaging image, spacial
LED ST CLP 15 1.5W 827 FR E14 MiCh TIF (1.49 MB)
Energy label
EL-4058075450578-AC324 46 PDF (21.6 KB)
Energy label
EL-4058075450578-AC174 94 PDF (21.33 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 2700K PNG (103.24 KB)
EAN EFO number
4058075450578 3730086
