PARATHOM® Retrofit CLASSIC B

PARATHOM Retrofit CLASSIC B

Choose your product version

25 2.5 W/2700 K B22d

25 FR 2.5 W/2700 K E14

2.5W 827 Frosted E14

25 2.5 W/2700 K E14

25 2.5 W/2700 K E14

40 4 W/2700 K E14

40 4 W/2700 K E14

4W 827 Clear E14

40 4 W/2700 K E14

40 4 W/2700 K E27

40 4 W/4000 K E14

5.5W 827 Clear E14

5.5W 827 Frosted E14

60 6 W/2700 K E14

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
P CLAS B 25 2.5 W/2700 K B22d B22d 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
P RF CLAS B 25 FR 2.5 W/2700 K E14 E14 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
LED Classic B 25 P 2.5W 827 Frosted E14 E14 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
P RF CLAS B 25 2.5 W/2700 K E14 E14 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
P CLAS B 25 2.5 W/2700 K E14 E14 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
P CLAS B 40 4 W/2700 K E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
P CLAS B 40 4 W/2700 K E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Classic B 40 Filament P 4W 827 Clear E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
P CLAS B 40 4 W/2700 K E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
P CLAS B 40 4 W/2700 K E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
P CLAS B 40 4 W/4000 K E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Classic B 60 Filament P 5.5W 827 Clear E14 E14 5.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED Classic B 60 P 5.5W 827 Frosted E14 E14 5.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
P CLAS B 60 6 W/2700 K E14 E14 6 W 220…240 V 15000 h 806 lm 60 W 300 ° No


LED Classic B 25 Filament P 2.5W 827 Clear B22d

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet
Go to Predecessor product data
Go to LEDVANCE successor product

PRODUCT DETAILS

Electrical data

Nominal wattage 2.5 W
Construction wattage 2.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 25 W
Nominal current 19 mA
Type of current AC
Inrush current 1.8 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 250
Max. lamp number on MCB B16 A 400
Power factor λ > 0.50

Photometrical data

Luminous flux 250 lm
Nominal useful luminous flux 90° 250 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.9

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 91.00 mm
Diameter 35.00 mm
Maximum diameter 35 mm
Product weight 20.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 60 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) B22d
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 3.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDPCLB25 2,5W/

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) B22d
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power Yes
Length 91.00 mm
Height 35.00 mm
Width 35.00 mm
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.40
LED light source replaces a fluorescent light source No
EPREL ID 523065
Model number AC32455

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Beam angle: up to 300°
  • Not dimmable
  • Base: E14
  • Lifetime: up to 15,000 h
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075590274 Folding box
1		 39 mm x 39 mm x 109 mm 33.00 g 0.17 dm³
4058075590281 Shipping box
10		 205 mm x 87 mm x 123 mm 379.00 g 2.19 dm³
Declarations of conformity
LED lamps CLA,B,G,P PDF (223.84 KB)
PRODUCT DATASHEET

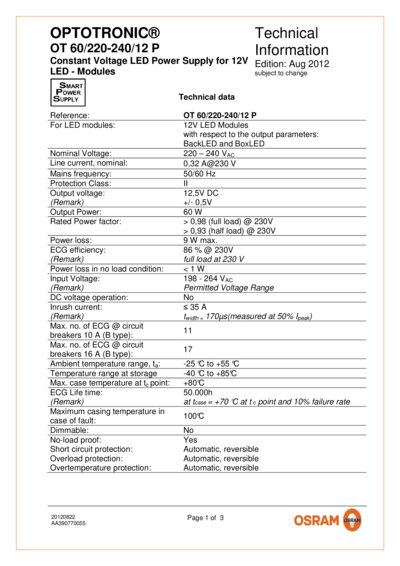

340365_OPTOTRONIC OT 6 0/220-240/12 P PDF (58.85 KB)
Product image: white background, diagonal
597743_RFCLB25 2 W/827 B22D clear TIF (25.98 MB)
Product image: white background, upright
597756_RFCLB25 2 W/827 B22D clear TIF (25.98 MB)
Product line drawing with letters
600982_RFCLB25 2 W/827 B22D clear SVG (11.76 KB)
Product line drawing, front, no dimensions
600989_RFCLB25 2 W/827 B22D clear SVG (8.58 KB)
Energy label
EL-4058075590274-AC324 55 PDF (21.37 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 2700K PNG (103.24 KB)
EAN SEG number STK number ELDAS number
4058075590274 8296789 4731641 941809440
