VIALOX NAV-E

Choose your product version

50 W/E E27

70 W/E E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal luminous flux Dimmable
NAV-E 50 W/E E27 E27 50 W 85 V 24000 h 3700 lm Yes
NAV-E 70 W/E E27 E27 70 W 90 V 24000 h 5900 lm Yes


NAV-E 150 W E40

Product benefits
  • High luminous efficacy
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 150 W
Construction wattage 150.00 W
Nominal voltage 100 V
Ignition voltage 3.3/5.0 kVp 1)
Operating mode Conventional control gear (CCG) and ignitor
Nominal current 1.8 A

1) Minimum / Maximum

Photometrical data

Luminous flux 14500 lm
Luminous efficacy 97 lm/W
Color temperature 2000 K
Color rendering index Ra ≤25
Light color 220
Rated LLMF at 2,000 h 0.97
Rated LLMF at 4,000 h 0.96
Rated LLMF at 6,000 h 0.95
Rated LLMF at 8,000 h 0.94
Rated LLMF at 12,000 h 0.92
Rated LLMF at 16,000 h 0.91
Rated LLMF at 20,000 h 0.89
Rated lamp efficacy (standard co.) 97 lm/W
UV protection No

Dimensions & Weight

Overall length 226.00 mm
Diameter 91 mm
Product weight 200.00 g

Temperatures & operating conditions

Maximum permitted outer bulb temperature 310 °C
Maximum permitted base edge temperature 210 °C

Lifespan

Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.98
Rated lamp survival factor at 6,000 h 0.97
Rated lamp survival factor at 8,000 h 0.96
Rated lamp survival factor at 12,000 h 0.95
Rated lamp survival factor at 16,000 0.90
Rated lamp survival factor at 20,000 h 0.85
Lifespan B10 16000 h
Lifespan B5 12000 h
Lifespan B50 28000 h
Operation mode LLMF/LSF 50 Hz

Additional product data

Base (standard designation) E40
Mercury content 19.9 mg
Mercury-free No
Design / version Coated
Product remark Phased out in the EU as non ErP compliant according to EU directive 245/2009

Capabilities

Dimmable Yes 1)
Burning position Any
Enclosed luminaire required No

1) In combination with POWERTRONIC PTo

Certificates & Standards

Energy efficiency class A+
Energy consumption 165.00 kWh/1000h

Country-specific categorizations

ILCOS SE-150-H/E/SL-E40-91/226
Order reference NAV-E 150W E40

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E40
Length 226.00 mm
Height 91 mm
Width 91 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • High luminous efficacy
Areas of application
  • Streets
  • Outdoor lighting
  • Industrial installations
  • Suitable for use in open and enclosed luminaires
  • Outdoor applications only in suitable luminaires
Product features
  • Service lifetime: 3 years (at approx. 11 h/day)
Safety advice
  • Disconnect mains before installation.
  • Must not be used if outer bulb is defective.
  • Protect from spray water.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300015613 Round wrap
1		 235 mm x 95 mm x 95 mm 203.75 g 2.12 dm³
4050300219837 Shipping box
12		 427 mm x 255 mm x 334 mm 3086.17 g 36.37 dm³

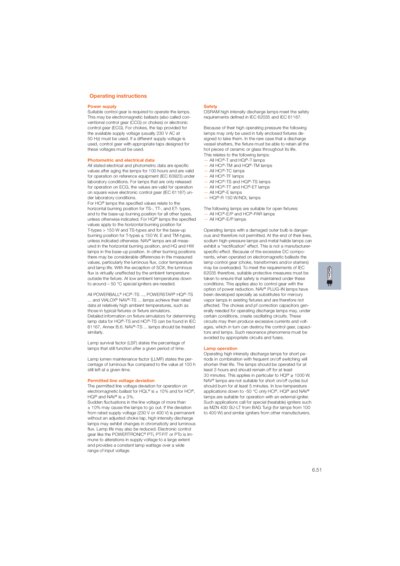

User instruction / safety instructions
High-Intensity-Dischar ge lamps. Operation in structions PDF (563.46 KB)

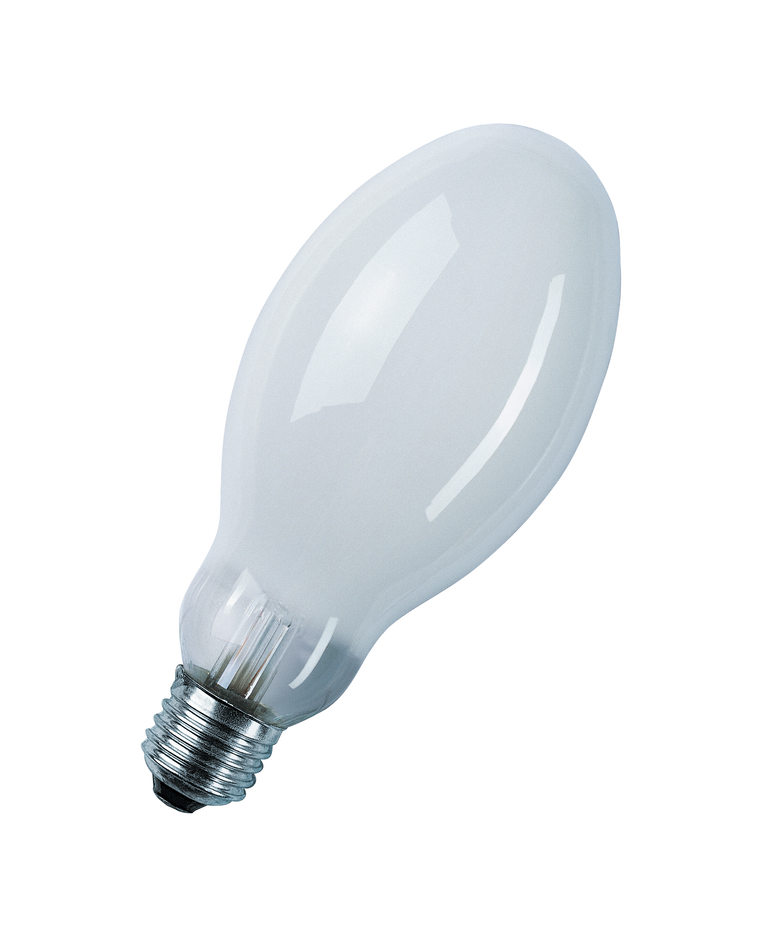

Product image: white background, diagonal
324457_MERCURY VAPOUR LAMPS HQL DE LUXE HQL STANDARD TIF (21.43 MB)
Product line drawing with letters
2012_HIGH PRESSURE SOD IUM LAMPS VIALOX NAV / 4Y/PLUG IN SVG (9.12 KB)
Product line drawing, front, no dimensions
325817_VALIOX NAV-E ST ANDARD E40 SVG (5.97 KB)
EAN AU model number
4050300015613 OSRNAV-E150/E
