BULKHEAD COMBO ROUND

Choose your product version

325 V 16W MS 840 WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
BLKH CBO RD 325 V 16W MS 840 WT 16.0 W / 13 W / 9 W 25000 110 ° 1920 lm / 1612 lm / 1125 lm No


BLKH CBO RD 325 V 16W MS 840 WT

Product benefits
  • Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
  • Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
  • Separate decor element available for an aesthetic and functional product design
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 16.0 W / 13 W / 9 W
Nominal voltage 220…240 V
Mains frequency 50/60 Hz
Nominal current 90mA / 75mA / 55 mA
Inrush current 2 A
Inrush current time Th50 400 µs
Max. number of luminaires per miniature circuit breaker B16 40
Max. number of luminaires per miniature circuit breaker C10 24
Max. number of luminaires per miniature circuit breaker C16 40
Power factor λ > 0.70
Total harmonic distortion 42.2 %
Protection class II
Operating mode Integrated LED driver

Photometrical data

Luminous flux 1920 lm / 1612 lm / 1125 lm
Luminous efficacy 120 lm/W / 124 lm/W / 125 lm/W
Color temperature 3000 K / 4000 K / 5700 K
Reference control setting of contained light source (Kelvin) 4000 K
Light color (designation) Warm White, Cool White, Cool Daylight
Color rendering index Ra ≥80
Standard deviation of color matching < 6 sdcm
Luminous intensity 700 cd
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 110 °

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
16 W 3000 K 1760 lm 110 lm/W
16 W 4000 K 1920 lm 120 lm/W
16 W 5700 K 1920 lm 120 lm/W
13 W 3000 K 1508 lm 116 lm/W
13 W 4000 K 1612 lm 124 lm/W
13 W 5700 K 1612 lm 124 lm/W
9 W 3000 K 1080 lm 120 lm/W
9 W 4000 K 1125 lm 125 lm/W
9 W 5700 K 1125 lm 125 lm/W

Dimensions & Weight

Diameter 325.00 mm
Height 90.00 mm
Product weight 710.00 g

Materials & Colors

Product color White
Housing color White
Body material Polycarbonate (PC)
Cover material Acrylonitrile butadiene styrene (ABS)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal
Type of protection IP65
Protection class IK (shock resistance) IK10
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Outdoor
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 20000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 170mA/140mA/95 mA
ECG - Output ripple current 5 %

Emergency lighting

Type of Emergency Lighting (EL) Optional EL unit (battery and controller) for decentral operation available separately
Type of emergency operation test None
Wattage in emergency operation mode 1.5 W
Luminous flux in emergency operation mode 150 lm

Certificates & Standards

Standards CE, CB, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00051-V01.01-EN
Replaceable light source (EPREL) Not replaceable

Additional product data

Added function MULTI SELECT, PLUG & UPGRADE

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
  • Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
  • Separate decor element available for an aesthetic and functional product design
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors, stairways, entrance areas
  • Passages, underpasses
  • Public areas
Product features
  • High luminous efficacy: up to 125 lm/W
  • Type of protection: IP65
  • Impact resistance: IK10
  • Luminous flux: up to 1920 lm
  • Push wire terminal for tool-free connection
  • Lifetime (L70/B50) up to 50,000 h (at 25 °C)
  • Ambient temperature in operation: -20…+40 °C
  • Through-wiring possible
Equipment / Accessories
  • Mounting screws and dowels included
  • Plug & Upgrade high frequency sensor and emergency kit separately available
  • Attachable half visor ring available separately
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854480997 Folding box
1		 97 mm x 337 mm x 337 mm 870.00 g 11.02 dm³
4099854481000 Shipping box
10		 692 mm x 507 mm x 359 mm 10326.00 g 125.95 dm³
Product image Product name EAN
BLKH CBO RD EYELID 325 WT 4099854481031
BLKH CBO RD BAT 3.2V 1.8Ah 5.8Wh 4099854492518
BLKH CBO RD EL CG 100V 1.5W 3h MT 4099854481055
BLKH CBO RD SENSOR 4099854481093

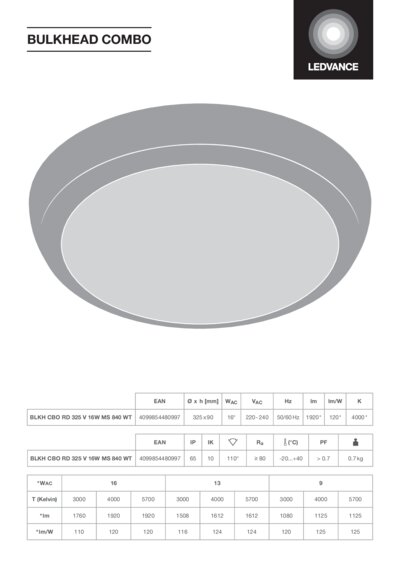

User instruction / safety instructions
BLKH CBO RD 325 WT PDF (4.65 MB)
Addon technical information
BLKH CBO RD 325 V 16W MS 840 WT PDF (2.24 MB)
Legal information
Safety Insert G1121881 0 PDF (244.72 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

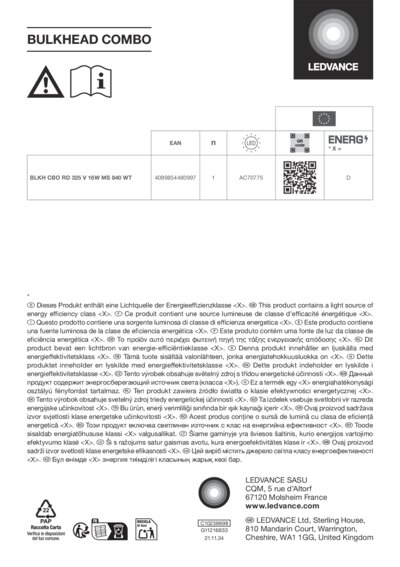

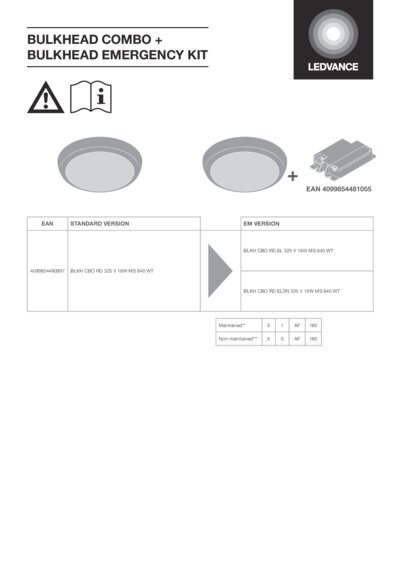

Legal information
BLKH CBO RD 325 V 16W MS 840 WT    LEDV PDF (2.51 MB)
Legal information
Legal Insert G11231556 PDF (848.32 KB)

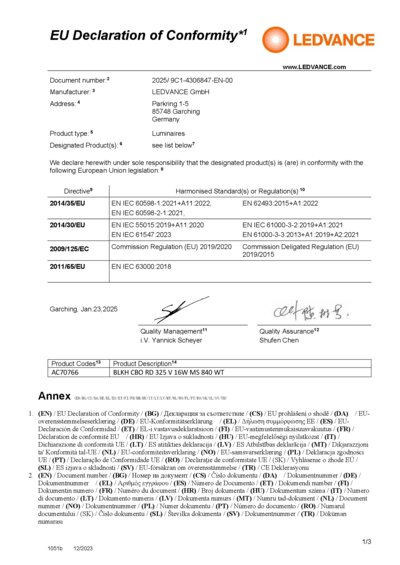

Declarations of conformity
BLKH CBO RD 325 V 16W MS 840 WT PDF (431.85 KB)

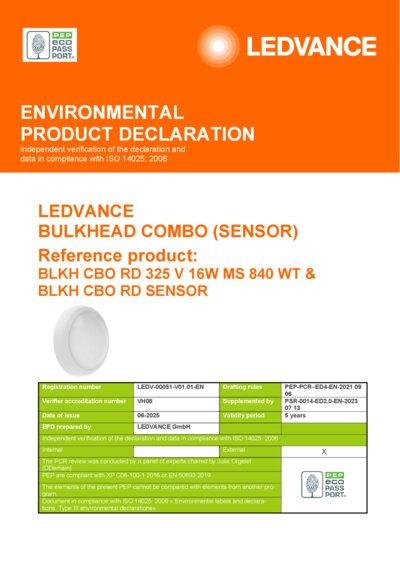

EPD
EPD EN BULKHEAD COMBO SENSOR PDF (665.68 KB)

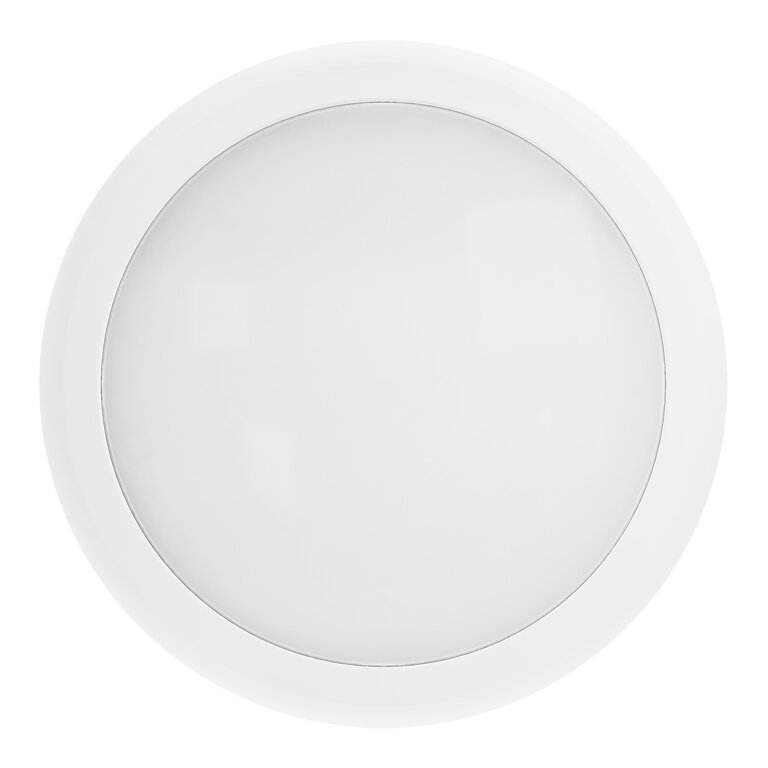

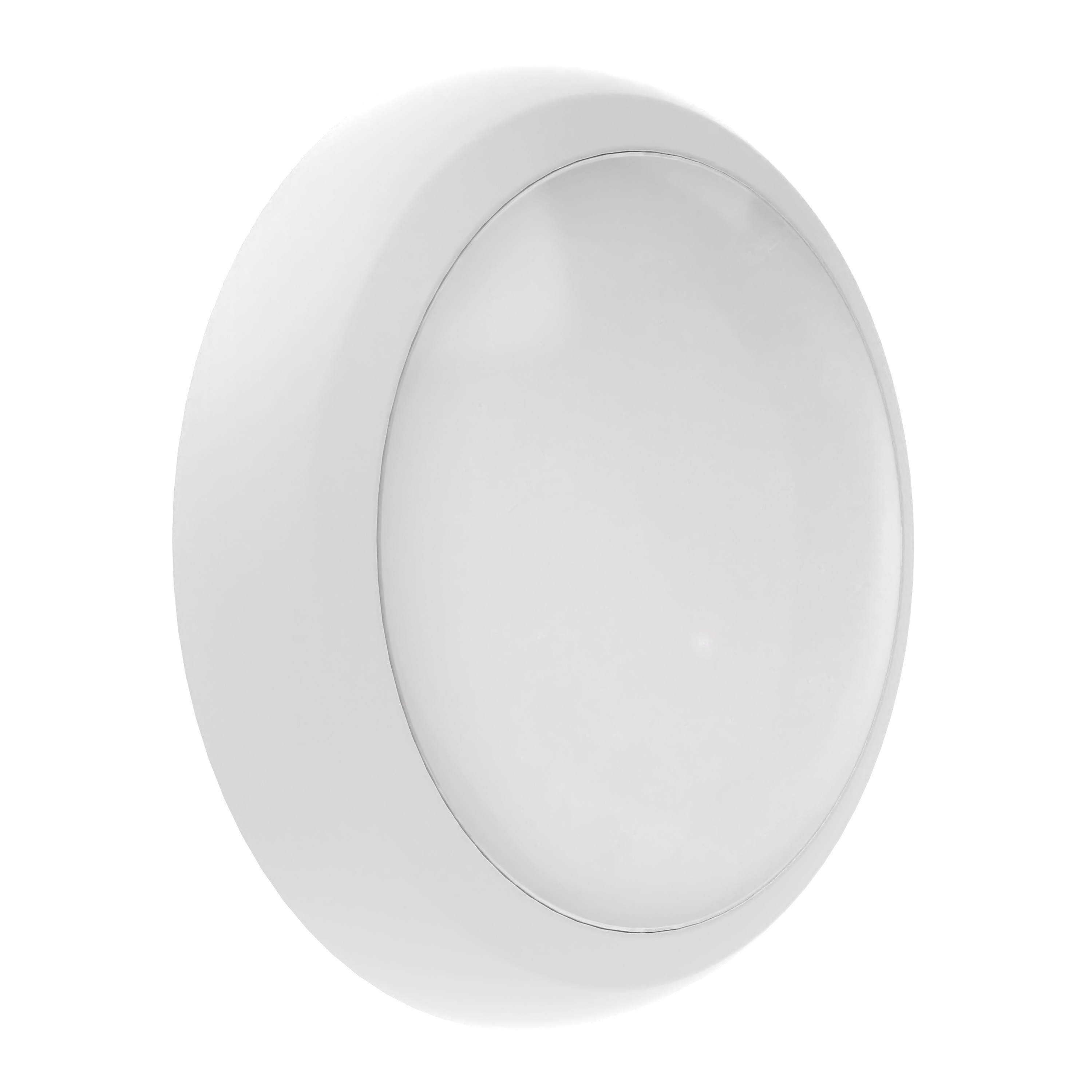

Product image: white background, diagonal
BLKH CBO RD 325 V 16W MS 840 WT JPG (193.08 KB)

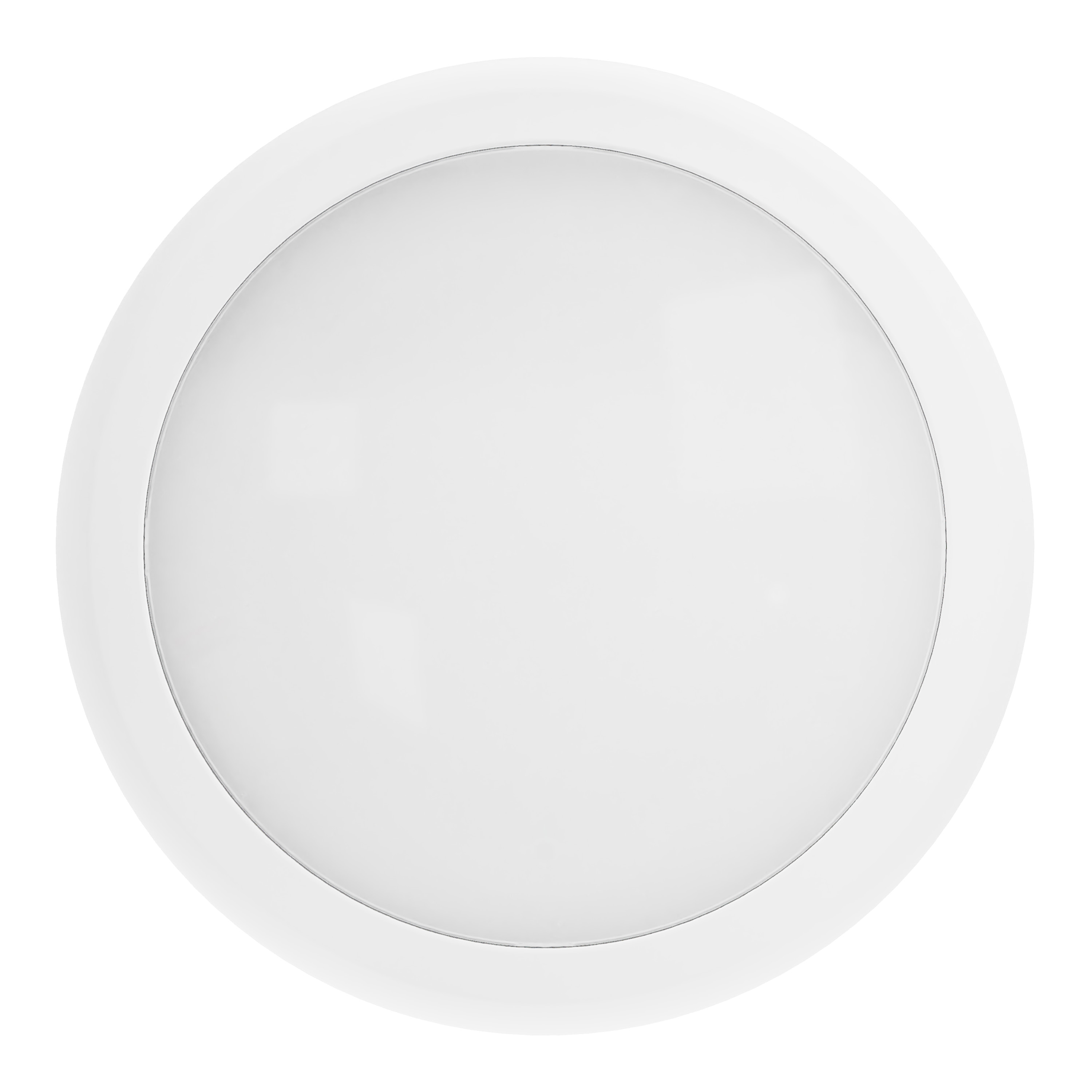

Product image: white background, horizontal
BLKH CBO RD 325 V 16W MS 840 WT JPG (199.09 KB)
Product line drawing with letters
BLKH CBO RD 325 V 16W MS 840 WT   SVG (9.7 KB)
Product line drawing with numbers
BLKH CBO RD 325 V 16W MS 840 WT   SVG (14.13 KB)
Product line drawing - technical
BLKH CBO RD 325 V 16W MS 840 WT   SVG (7.03 KB)
IES file (IES)
BLKH CBO RD 325 V 16W MS 830 WT IES (3.26 KB)
IES file (IES)
BLKH CBO RD 325 V 16W MS 840 WT IES (3.26 KB)
IES file (IES)
BLKH CBO RD 325 V 16W MS 857 WT IES (3.26 KB)
LDT file (Eulumdat)
BLKH CBO RD 325 V 16W MS 830 WT LDT (2.69 KB)
LDT file (Eulumdat)
BLKH CBO RD 325 V 16W MS 840 WT LDT (2.63 KB)
LDT file (Eulumdat)
BLKH CBO RD 325 V 16W MS 857 WT LDT (2.53 KB)
UGR file (UGR table)
BLKH CBO RD 325 V 16W MS 830 WT PNG (55.91 KB)
UGR file (UGR table)
BLKH CBO RD 325 V 16W MS 840 WT PNG (56.67 KB)

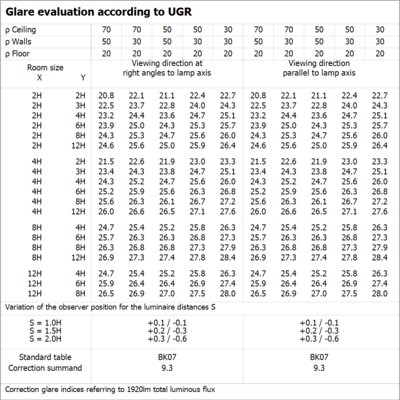

UGR file (UGR table)
BLKH CBO RD 325 V 16W MS 857 WT PNG (56.57 KB)
Light distribution curve type cone
BLKH CBO RD 325 V 16W MS 830 WT SVG (11.42 KB)
Light distribution curve type cone
BLKH CBO RD 325 V 16W MS 840 WT SVG (11.42 KB)
Light distribution curve type cone
BLKH CBO RD 325 V 16W MS 857 WT SVG (11.42 KB)
Light distribution curve type polar
BLKH CBO RD 325 V 16W MS 830 WT SVG (18.17 KB)
Light distribution curve type polar
BLKH CBO RD 325 V 16W MS 840 WT SVG (18.17 KB)
Light distribution curve type polar
BLKH CBO RD 325 V 16W MS 857 WT SVG (18.17 KB)
CAD STEP 3D
BLKH CBO RD STEP (568.19 KB)
Tender documents
BULKHEAD COMBO ROUND 3 25 V 16W MS 840 WT-en TXT (1.92 KB)
Video
MP4 (0 B)
EAN SEG number STK number ELDAS number
4099854480997 7706777 4161074 941006820
