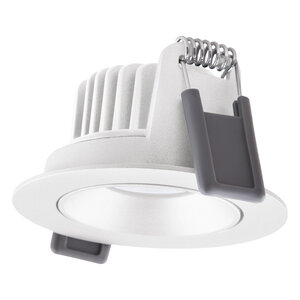

SPOT ADJUST

Choose your product version

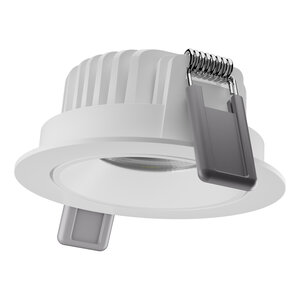

D83 P 8W ML 930 WT

8W 927 PS DIM IP20 WT

8W 930 PS DIM IP20 WT

8W 940 PS DIM IP20 WT

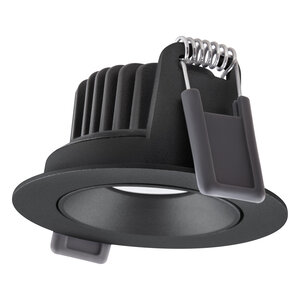

8W 927 PS DIM IP20 BK

8W 930 PS DIM IP20 BK

8W 930 PS DIM IP20 SI

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
SP ADJ D83 P 8W ML 930 WT 8 W / 6 W / 4 W 30000 36 ° 680 lm / 530 lm / 350 lm Yes
SP ADJ P 8W 927 PS DIM IP20 WT 8 W / 6 W / 4 W 30000 36 ° 640 lm / 480 lm / 320 lm Yes
SP ADJ P 8W 930 PS DIM IP20 WT 8 W / 6 W / 4 W 30000 36 ° 680 lm / 510 lm / 340 lm Yes
SP ADJ P 8W 940 PS DIM IP20 WT 8 W / 6 W / 4 W 30000 36 ° 680 lm / 510 lm / 340 lm Yes
SP ADJ P 8W 927 PS DIM IP20 BK 8 W / 6 W / 4 W 30000 36 ° 640 lm / 480 lm / 320 lm Yes
SP ADJ P 8W 930 PS DIM IP20 BK 8 W / 6 W / 4 W 30000 36 ° 680 lm / 510 lm / 340 lm Yes
SP ADJ P 8W 930 PS DIM IP20 SI 8 W / 6 W / 4 W 30000 36 ° 680 lm / 510 lm / 340 lm Yes


SP ADJ P 8W 930 PS DIM IP20 SI

Product benefits
  • Energy savings of up to 90 % compared to halogen lamp spotlights

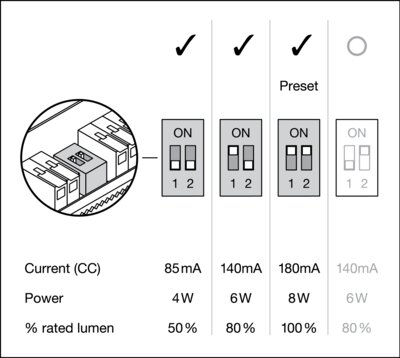

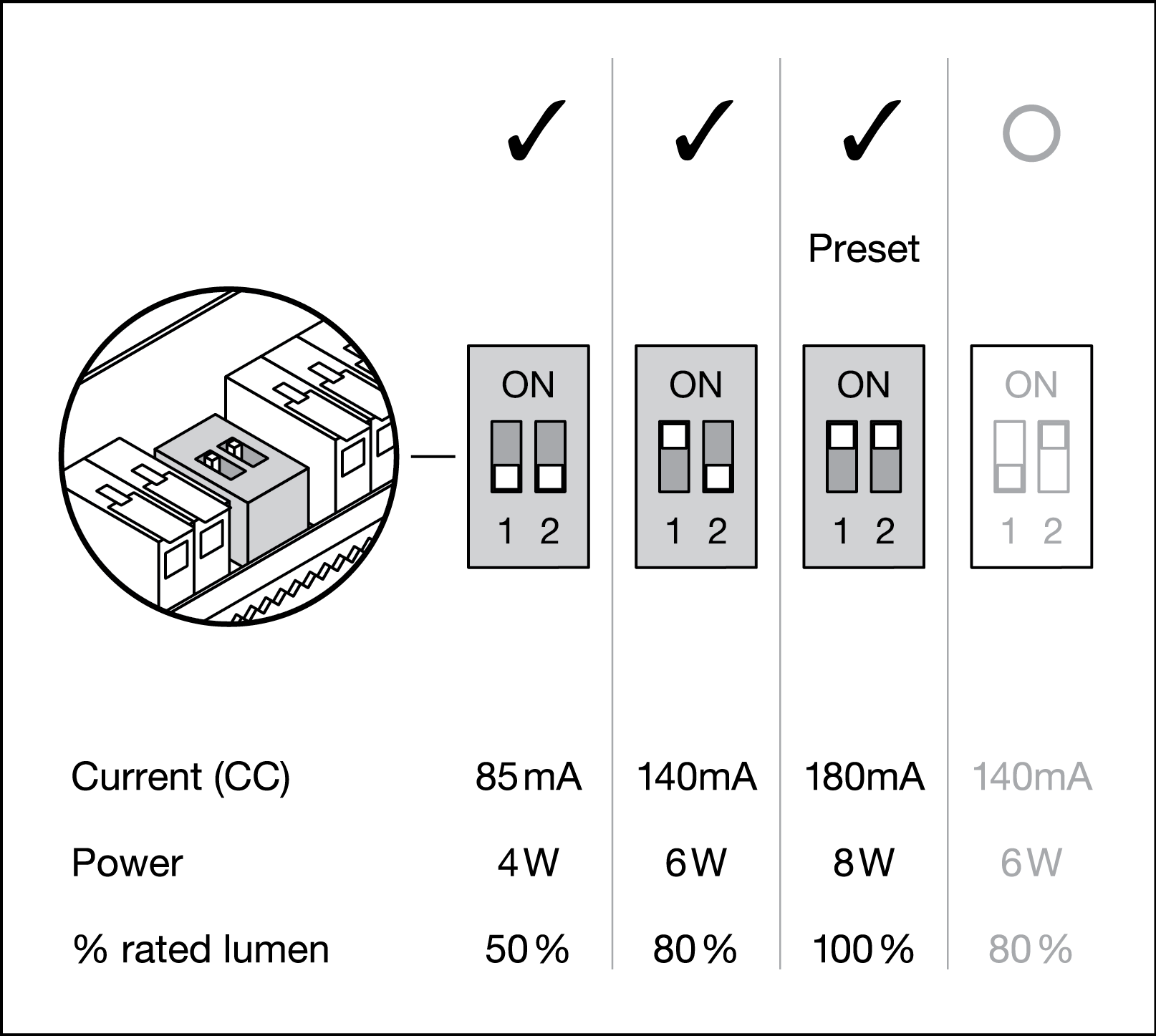

  • Powerselect: Brightness adjustment via dip switches on the driver
  • Easy replacement of external driver thanks to plug with bayonet lock
  • Easy installation and electrical connection thanks to tool-free electrical connectors
  • SCALE Design – great appearance, valuable materials and small size fits into every surrounding
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 8 W / 6 W / 4 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 37mA / 28mA / 20 mA
Inrush current 2 A
Inrush current time Th50 60 µs
Max. number of luminaires per miniature circuit breaker B16 336
Max. number of luminaires per miniature circuit breaker C10 210
Max. number of luminaires per miniature circuit breaker C16 336
Power factor λ 0.90
Total harmonic distortion < 20 %
Protection class II
Surge capability (L-N) 1 kV
Surge capability (L/N-Ground) 1 kV
Operating mode Electronic control gear (ECG)

Photometrical data

Luminous flux 680 lm / 510 lm / 340 lm
Total luminous flux of contained light sources 620 lm
Luminous efficacy 85 lm/W
Color temperature 3000 K
Reference control setting of contained light source (Kelvin) 3000 K
Light color (designation) Warm white
Color rendering index Ra 90
Standard deviation of color matching ≤3 sdcm
Luminous intensity 1200 cd
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 36 °
UGR < 28

Dimensions & Weight

Diameter 81.00 mm
Height 43.00 mm
Product weight 220.00 g

Materials & Colors

Product color Silver
Housing color Silver
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Push terminal
Type of protection IP20/IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming PHASE CUT
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 68 mm
Mounting depth 50,0 mm
Adjustable Yes
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 41000 h 1)
Lifespan L90/B10 at 25 °C 18000 h
Number of switching cycles 30000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 180 mA
ECG - Output ripple current < 10 %
ECG - Length 68.00 mm
ECG - Width 55,0 mm
ECG - Height 22,0 mm

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00014-V01.01-EN
Replaceable light source (EPREL) Not replaceable

Additional product data

Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings of up to 90 % compared to halogen lamp spotlights
  • Powerselect: Brightness adjustment via dip switches on the driver
  • Easy replacement of external driver thanks to plug with bayonet lock
  • Easy installation and electrical connection thanks to tool-free electrical connectors
  • SCALE Design – great appearance, valuable materials and small size fits into every surrounding
Areas of application
  • Direct replacement for recessed spotlights with halogen lamps
  • General illumination
  • Hotel rooms and corridors
  • Bars, restaurants
  • Accent lighting
  • Galleries, museums
  • Residential interiors
Product features
  • Available for ceiling cut-out diameters of 68 mm and 83 mm
  • Adjustable swivel angle: ±25°
  • Color rendering index Ra: 90
  • Beam angle: 36°
  • Die-cast aluminum housing
  • Silicon-pad protected springs
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • Through-wiring possible
Equipment / Accessories
  • External control gear included with dip-switches to select power during installation
  • Refurbishment rings are available as accessory
  • Selected DALI 2.0 driver available as accessory
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075799707 Folding box
1		 100 mm x 105 mm x 85 mm 264.00 g 0.89 dm³
4058075799714 Shipping box
20		 562 mm x 230 mm x 195 mm 5630.00 g 25.21 dm³
Product image Product name EAN
SPOT FRAME 100X200 2X D68 BK 4099854460081
SPOT FRAME 100X200 2X D68 WT 4099854460029
SPOT FRAME 100X300 3X D68 WT 4099854460203
SPOT FRAME 100X200 2X D68 SI 4099854460111
SPOT FRAME 100X300 3X D68 BK 4099854460258
SPOT FRAME 100X100 1X D68 SI 4099854459962
SPOT FRAME 100X300 3X D68 SI 4099854460289
SPOT FRAME 100X100 1X D68 WT 4099854459863
SPOT FRAME 100X100 1X D68 BK 4099854459917
SP RING D100 BK 4099854136542
SP RING D100 WT 4099854136511
SP DRIVER DALI 8W 4099854089558
SP RING D180 WT 4099854013416
CONNECTOR BOX 3POLE L/N/E 4099854013508
SP HOLDER DN68 H65 4099854013478
SP RING D180 BK 4099854013447
SP RING D133 BK 4099854013386
SP RING D133 WT 4099854013355
User instruction / safety instructions
UI SP FIX P and SP FIX ADJ PDF (3.71 MB)
Addon technical information
Dimmerlist SPOT GEN2 PDF (1.62 MB)
Legal information

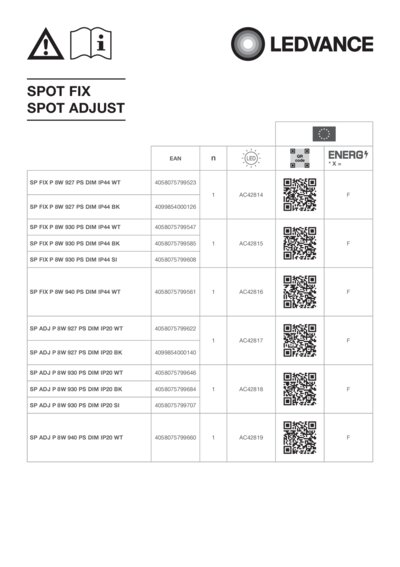

Light source Insert SP FIX P PS DIM IP44 PDF (2.66 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information

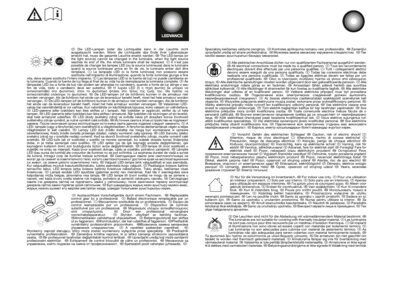

Legal Insert G11147511 PDF (879.76 KB)
Legal information

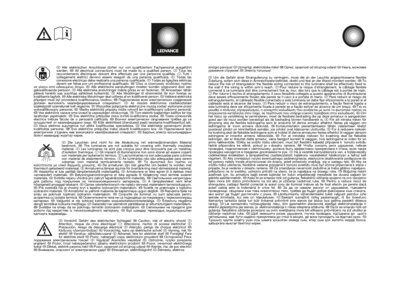

Safety Insert G1123500 1 PDF (268.05 KB)
Declarations of conformity

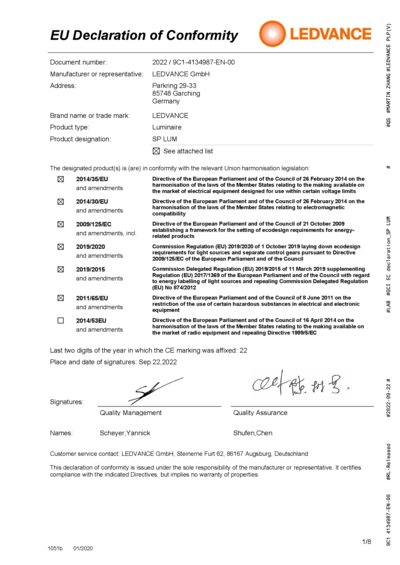

CE Declaration of Conf ormity SPOT DIM PDF (208.07 KB)

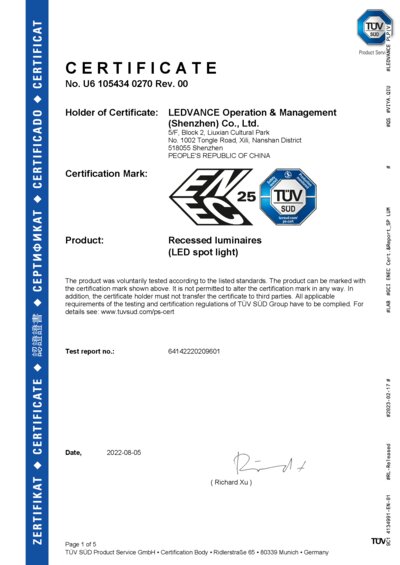

Certificates
SP GEN2 PDF (758.55 KB)

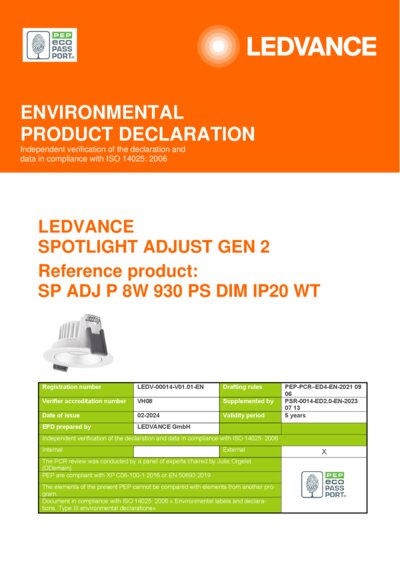

EPD
EPD EN SPOTLIGHT ADJUS T GEN 2 PDF (643.23 KB)

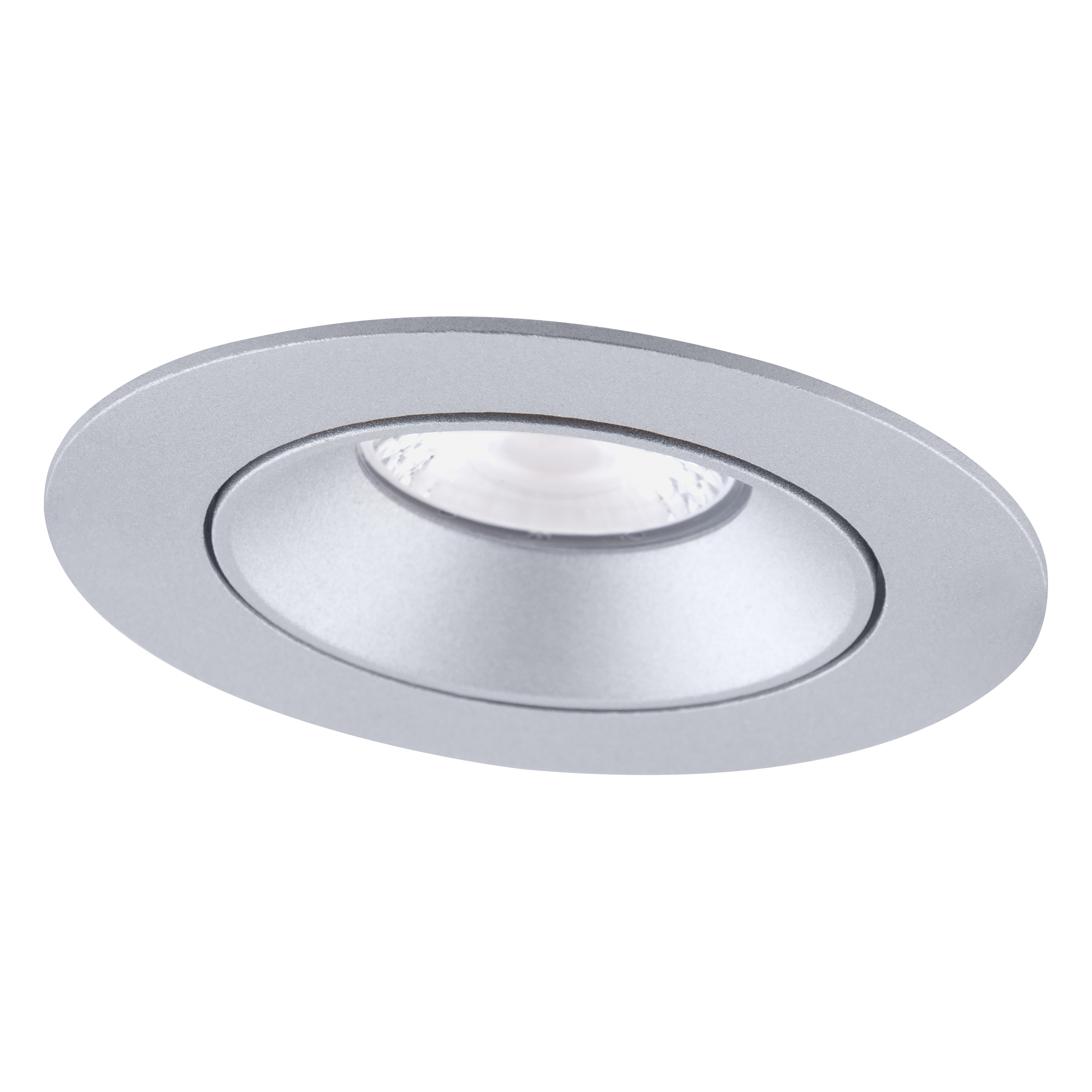

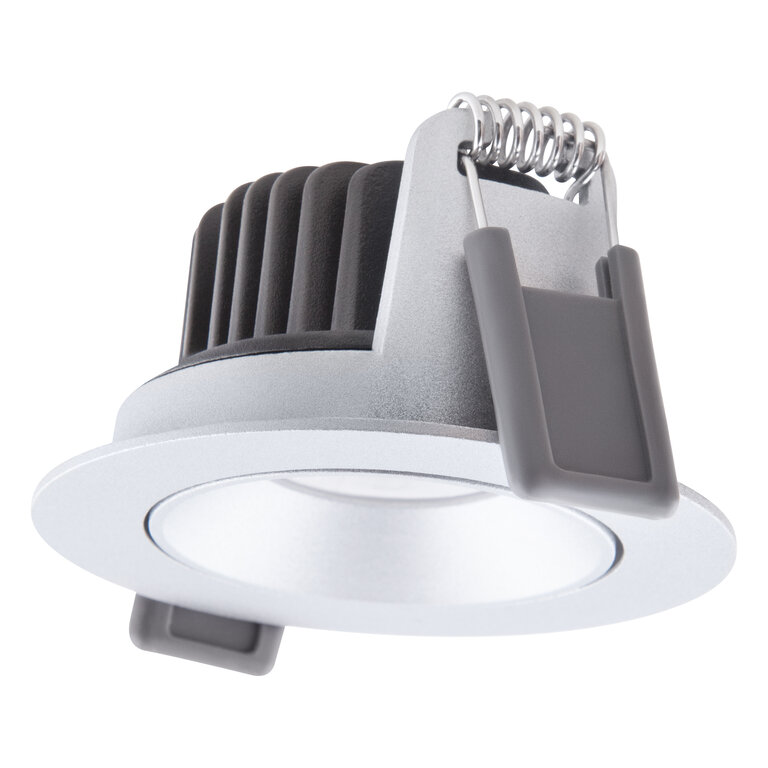

Product image: white background, diagonal
SP ADJ P 8W PS DIM IP2 0 SI JPG (1.35 MB)

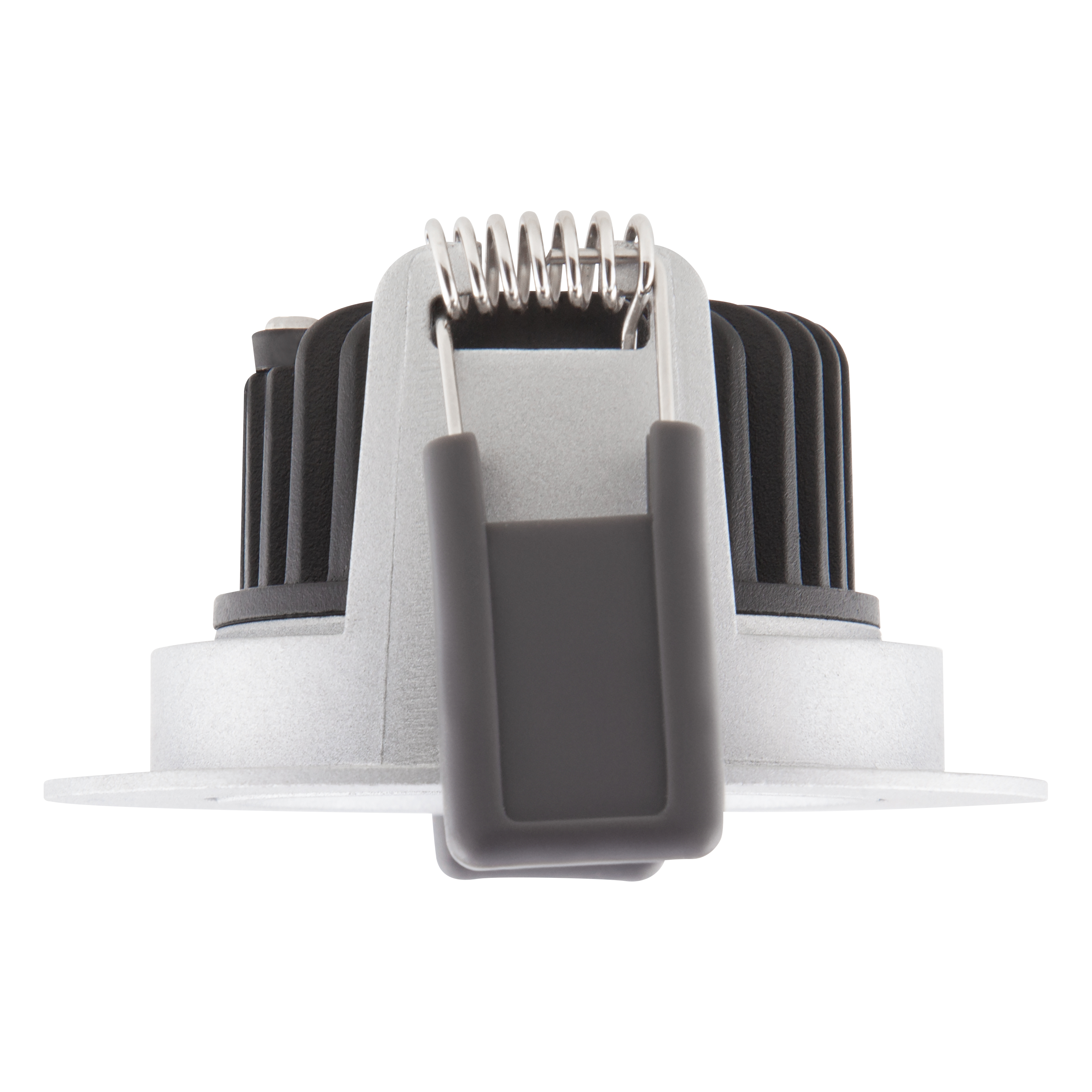

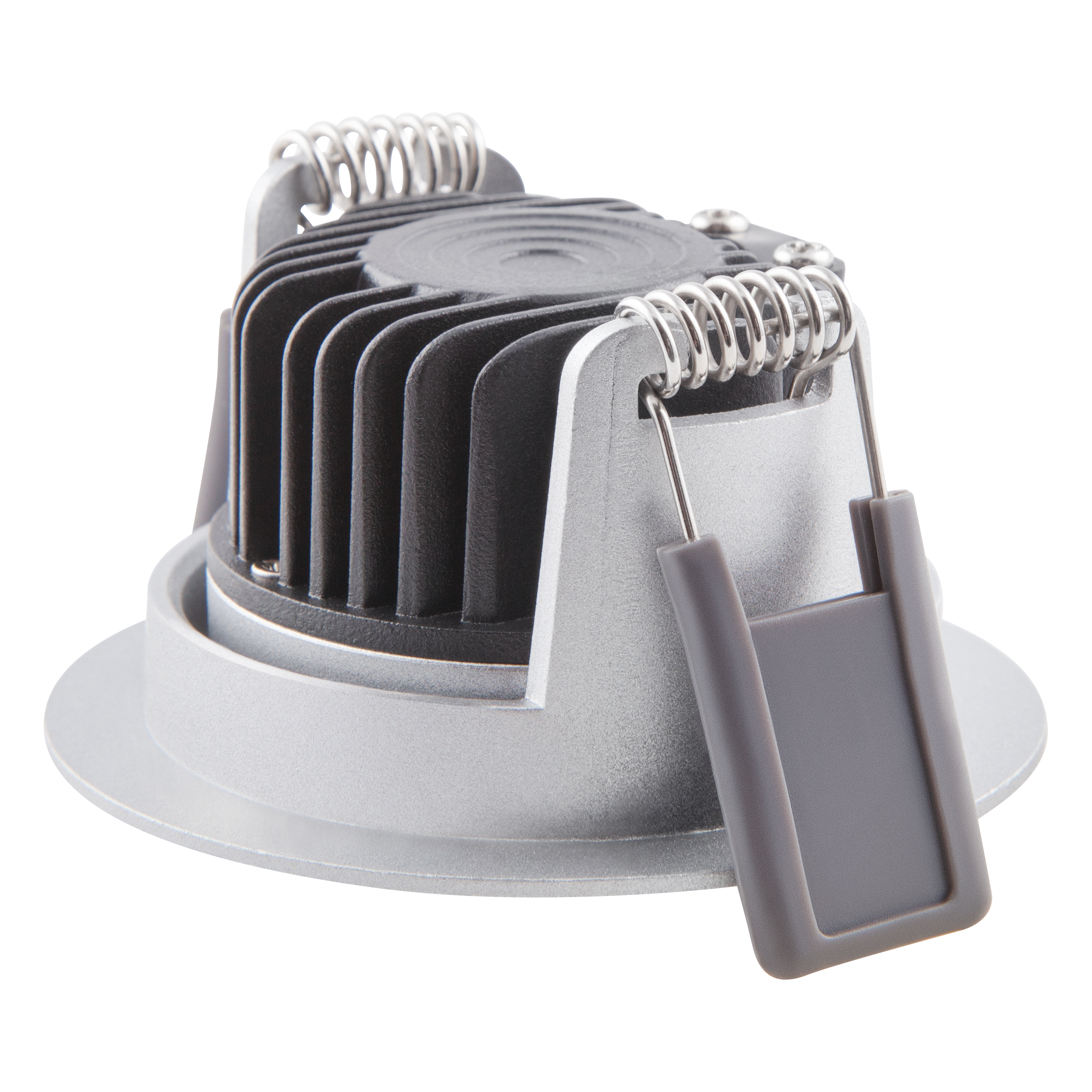

Product image: white background, horizontal
SP ADJ P 8W PS DIM IP2 0 SI JPG (2 MB)

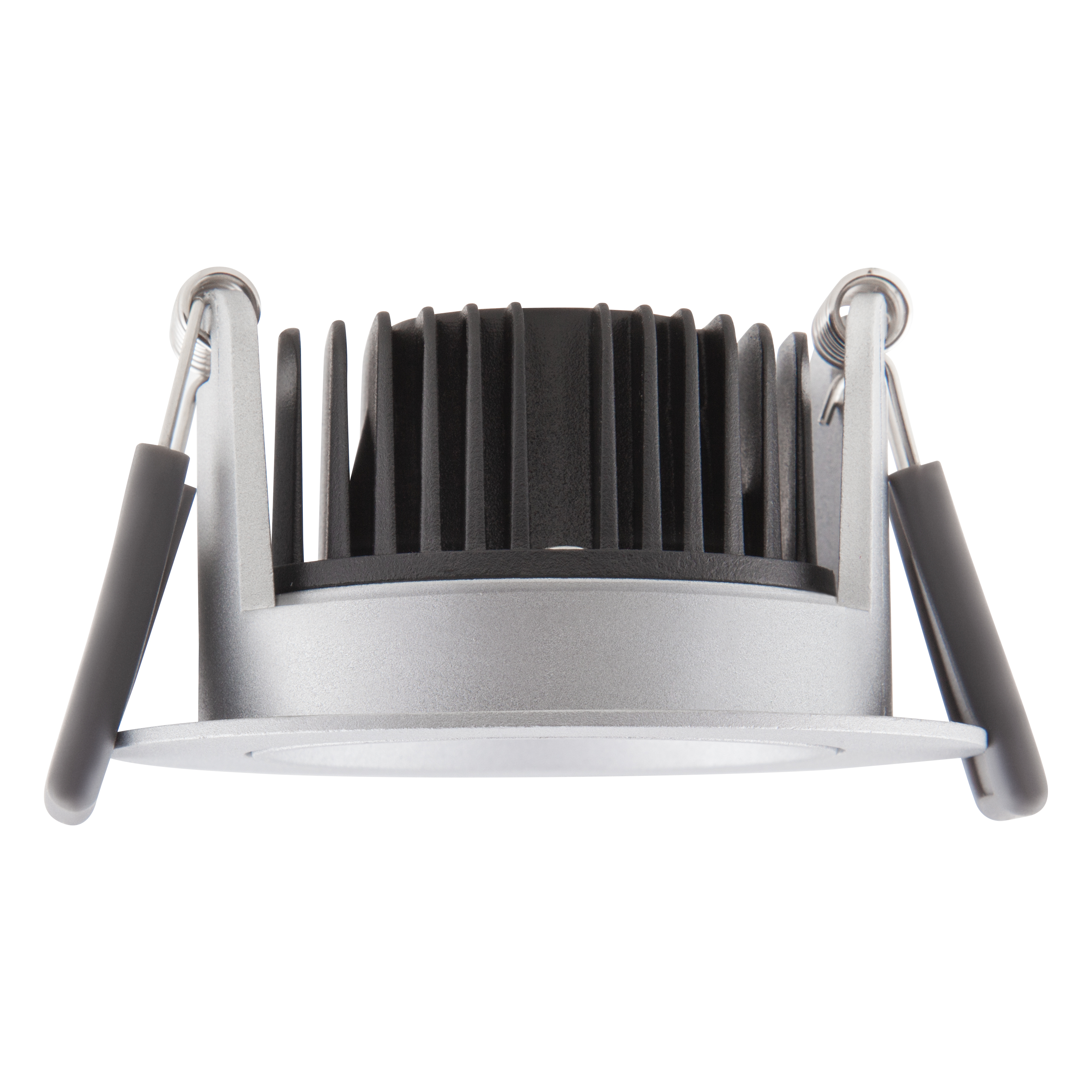

Product image: white background, horizontal, alternative image
SP ADJ P 8W PS DIM IP2 0 SI JPG (1.63 MB)

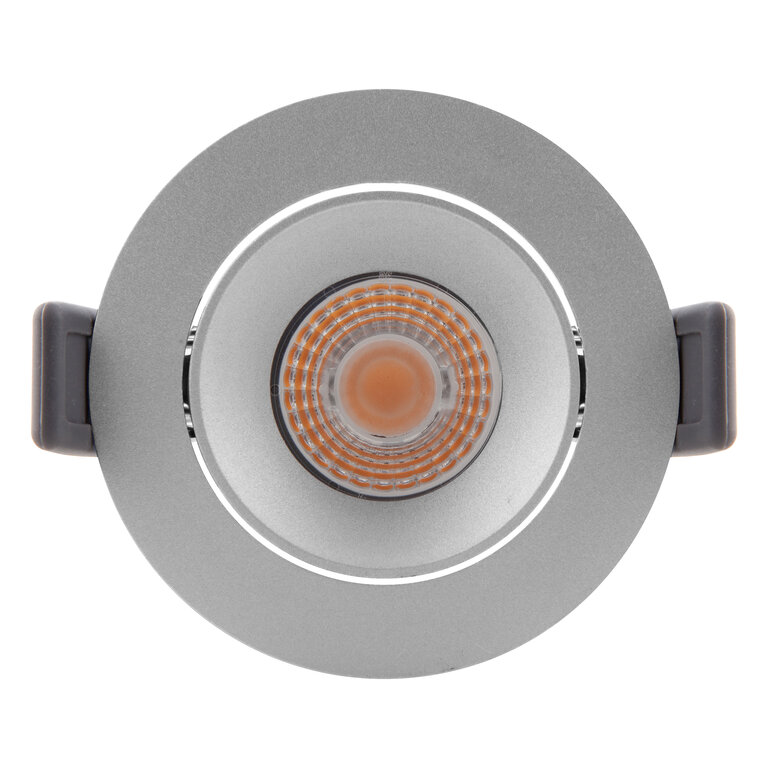

Product image: white background, upright
SP ADJ P 8W PS DIM IP2 0 SI JPG (2.89 MB)
Product image: white background, spacial
SP ADJ P 8W PS DIM IP2 0 SI JPG (2.08 MB)

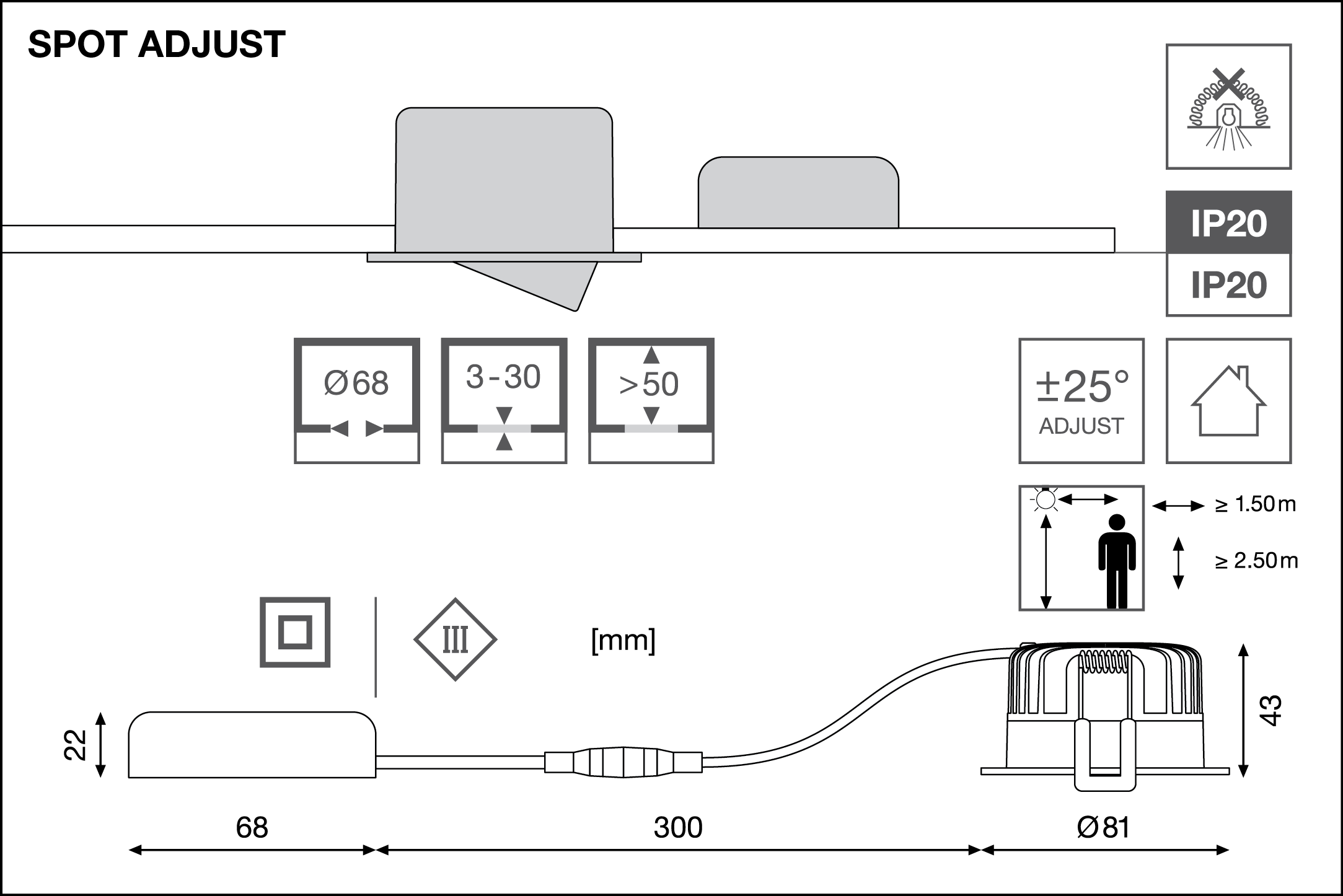

Product line drawing with letters
SP ADJ P 8W PS DIM IP2 0 SVG (38.68 KB)
Product line drawing with numbers
SP ADJ P 8W PS DIM IP2 0 SVG (41.72 KB)
Product line drawing - technical
SP ADJ P 8W PS DIM IP2 0 SVG (29.68 KB)

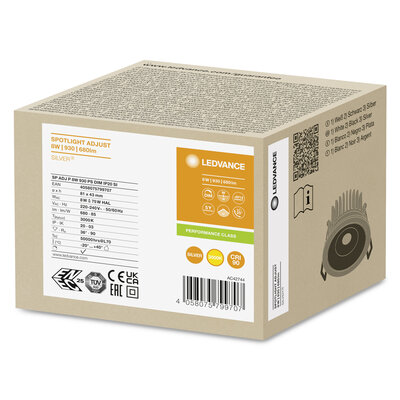

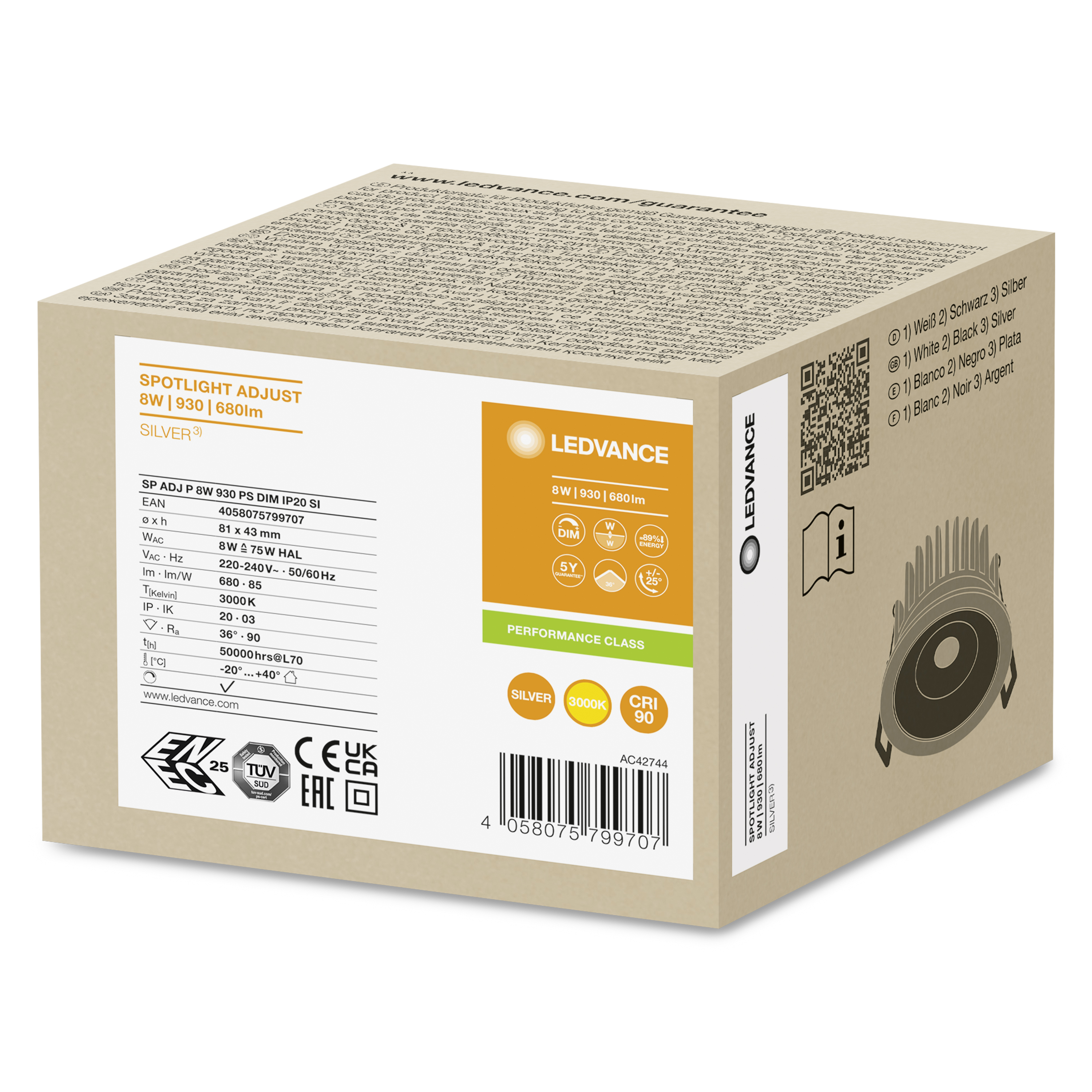

Packaging image, spacial
Spot ADJ MiCh JPG (2.6 MB)
Catalog info 1
SP ADJ P 8W PS DIM IP2 0 PNG (94.11 KB)
Catalog info 2
SP DK FIX P 8W PS DIM IP44 PNG (123.09 KB)
IES file (IES)
SP ADJ P 8W 930 PS DIM IP20 SI IES (1.71 KB)
LDT file (Eulumdat)
SP ADJ P 8W 930 PS DIM IP20 SI LDT (2.05 KB)
ULD file (DIALux)
SP ADJ P 8W 930 PS DI M ULD (128 KB)
ROLF file (RELUX)
SP ADJ P 8W 930 PS DIM ROLF (611.12 KB)

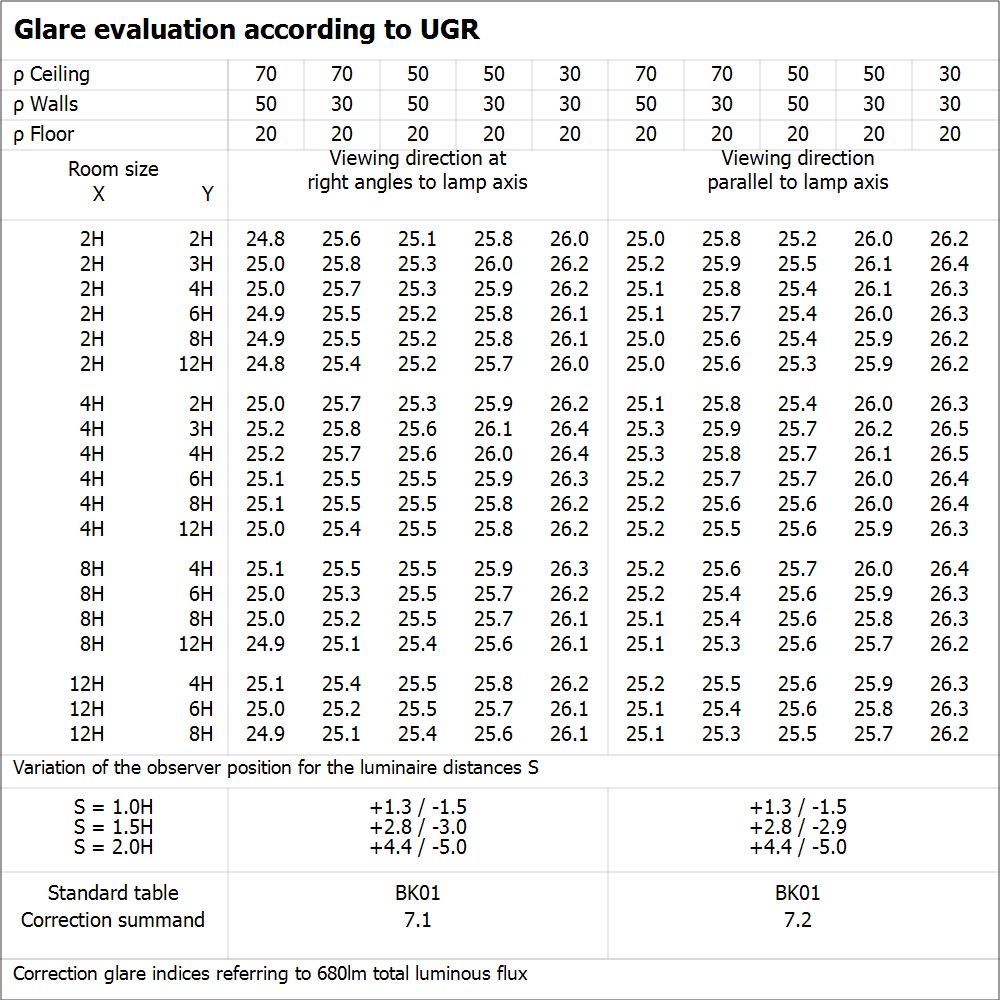

UGR file (UGR table)
SP ADJ P 8W 930 PS DIM IP20 SI PNG (60.68 KB)
Light distribution curve type cone
SP ADJ P 8W 930 PS DIM IP20 SI SVG (16.78 KB)
Light distribution curve type polar
SP ADJ P 8W 930 PS DIM IP20 SI SVG (17.43 KB)
BIM Revit 3D
SP ADJ G2 ZIP (904.41 KB)
CAD STEP 3D
SP ADJ STEP (9.9 MB)
Tender documents
SPOT ADJUST 8W 930 PS DIM IP20 SI-EN TXT (1.55 KB)
EAN SEG number STK number EFO number ELDAS number
4058075799707 7452912 4136138 3208935 941402890
