OSRAM DULUX D

Choose your product version

Phase out

10 W/827

Phase out

13 W/865

Phase out

13 W/827

Phase out

13 W/830

Phase out

13 W/840

Phase out

18 W/865

Phase out

18 W/827

Phase out

18 W/830

Phase out

18 W/840

Phase out

26 W/865

Phase out

26 W/827

Phase out

26 W/830

Phase out

26 W/840

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Dimmable
DULUX D 10 W/827 G24d-1 10 W 64 V 10000 h 600 lm No
DULUX D 13 W/865 G24d-1 13 W 91 V 10000 h 825 lm No
DULUX D 13 W/827 G24d-1 13 W 91 V 10000 h 870 lm No
DULUX D 13 W/830 G24d-1 13 W 91 V 10000 h 870 lm No
DULUX D 13 W/840 G24d-1 13 W 91 V 10000 h 870 lm No
DULUX D 18 W/865 G24d-2 18 W 100 V 10000 h 1100 lm No
DULUX D 18 W/827 G24d-2 18 W 100 V 10000 h 1200 lm No
DULUX D 18 W/830 G24d-2 18 W 100 V 10000 h 1200 lm No
DULUX D 18 W/840 G24d-2 18 W 100 V 10000 h 1200 lm No
DULUX D 26 W/865 G24d-3 26 W 105 V 10000 h 1600 lm No
DULUX D 26 W/827 G24d-3 26 W 105 V 10000 h 1750 lm No
DULUX D 26 W/830 G24d-3 26 W 105 V 10000 h 1750 lm No
DULUX D 26 W/840 G24d-3 26 W 105 V 10000 h 1750 lm No
Phase out

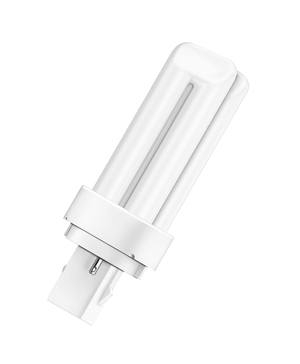

DULUX D 10 W/827

Product benefits
  • Improved maintenance
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 10 W
Construction wattage 10.70 W
Nominal voltage 64 V
Nominal current 0.19 A

Photometrical data

Luminous flux 600 lm
Luminous efficacy 56 lm/W
Light color (designation) LUMILUX INTERNA
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Rated LLMF at 2,000 h 0.85
Rated LLMF at 4,000 h 0.78
Rated LLMF at 6,000 h 0.76
Rated LLMF at 8,000 h 0.75

Dimensions & Weight

Overall length 109.50 mm
Length with base excl. base pins/connection 87,00 mm
Diameter 12.00 mm
Tube diameter 12 mm
Product weight 31.00 g

Temperatures & operating conditions

Ambient temperature range -5…+40 °C

Lifespan

Service life 6500 h
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.95
Rated lamp survival factor at 8,000 h 0.81
Lifespan B50 10000 h

Additional product data

Base (standard designation) G24d-1
Mercury content 1.6 mg

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class G
Energy consumption 11.00 kWh/1000h

Country-specific categorizations

ILCOS FSQ-10/827-I-G24d-1
Order reference DULUX D 10W/827

Energy labelling regulation data acc EU 2019/2015

Lighting technology used CFLNI
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G24d-1
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 109.50 mm
Height 12.00 mm
Width 12.00 mm
Chromaticity coordinate x 0,455
Chromaticity coordinate y 0,415
Beam angle correspondence SPHERE_360
EPREL ID 546424
Model number AC34199

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Improved maintenance
Areas of application
  • Offices, public buildings
  • Shops
  • Supermarkets and department stores
  • Hotels, restaurants
  • Industry
Product features
  • Good color rendering index
  • Short and compact pin-base lamp with double-turn tubes
  • Single-ended two-pin plug-in G24d base
Equipment / Accessories
  • Suitable for operation on conventional control gear
Safety advice
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300008110 Folding box
1		 35 mm x 35 mm x 118 mm 42.60 g 0.14 dm³
4050300238432 Shipping box
10		 186 mm x 81 mm x 132 mm 478.00 g 1.99 dm³
Declarations of conformity
EC Declaration of Conf ormity - 2021 9C1-4077 878-EN-00 - DULUX D PDF (43.21 KB)
Certificates
EAC RU C-DE.HA46.B.011 31_21 21.05.2021-20.05 .2026 Expert Certifica tion - CFLpin PDF (1.18 MB)
Certificates
EAC N RU D-DE.MU62.B.0 0933_20 06.03.2020-05. 03.2025 Prommash Test - CFLpin PDF (1.12 MB)
Product image: white background, diagonal
323942_DULUX D TIF (1.83 MB)
Product image: white background, upright
327054_DULUX D TIF (14.8 MB)
Product line drawing with letters
319452_DULUX D, D/E, D /E XT FOR ECG SVG (11.84 KB)
Product line drawing with numbers
552_DULUX D SVG (5.83 KB)
Product line drawing with numbers
325717_DULUX D, D/E, D /E XT FOR ECG SVG (19.69 KB)
Product line drawing, front, no dimensions
39467_DULUX D, D/E, D/ E XT FOR ECG SVG (7.88 KB)
Product line drawing, front, no dimensions
33628_OSRAM DULUX D SVG (4.7 KB)
Packaging image, spacial
DULUX D 10W 827 G24d-1 MiCh JPG (1.76 MB)
Energy label
EL-4050300008110-AC341 99 PDF (21.47 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)
Spectral power distribution
349636_FL_827 PNG (92.23 KB)
Video
Lamp Ban 2023 Video In dustry 2022 05 EN MP4 (245.76 MB)
Video
Lamp Ban 2023 Video Of fice 2023 05 EN MP4 (211.38 MB)
EAN SEG number STK number EFO number ELDAS number
4050300008110 8330120 4933871 3820416 946160130
