OSRAM DULUX D/E

Choose your product version

Phase out

10 W/827

Phase out

10 W/830

Phase out

10 W/840

Phase out

13 W/827

Phase out

13 W/830

Phase out

13 W/840

Phase out

18 W/865

Phase out

18 W/827

Phase out

18 W/830

Phase out

18 W/840

Phase out

26 W/865

Phase out

26 W/827

Phase out

26 W/830

Phase out

26 W/840

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Dimmable
DULUX D/E 10 W/827 G24q-1 10 W 64 V 20000 h 600 lm Yes
DULUX D/E 10 W/830 G24q-1 10 W 64 V 20000 h 600 lm Yes
DULUX D/E 10 W/840 G24q-1 10 W 64 V 20000 h 600 lm Yes
DULUX D/E 13 W/827 G24q-1 13 W 91 V 20000 h 870 lm Yes
DULUX D/E 13 W/830 G24q-1 13 W 91 V 20000 h 870 lm Yes
DULUX D/E 13 W/840 G24q-1 13 W 91 V 20000 h 870 lm Yes
DULUX D/E 18 W/865 G24q-2 18 W 100 V 20000 h 1100 lm Yes
DULUX D/E 18 W/827 G24q-2 18 W 100 V 20000 h 1200 lm Yes
DULUX D/E 18 W/830 G24q-2 18 W 100 V 20000 h 1200 lm Yes
DULUX D/E 18 W/840 G24q-2 18 W 100 V 20000 h 1200 lm Yes
DULUX D/E 26 W/865 G24q-3 26 W 105 V 20000 h 1600 lm Yes
DULUX D/E 26 W/827 G24q-3 26 W 105 V 20000 h 1750 lm Yes
DULUX D/E 26 W/830 G24q-3 26 W 105 V 20000 h 1750 lm Yes
DULUX D/E 26 W/840 G24q-3 26 W 105 V 20000 h 1750 lm Yes
Phase out


DULUX D/E 10 W/827

Product benefits
  • Improved maintenance
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 10 W
Construction wattage 10.70 W
Nominal voltage 64 V
Nominal current 0.19 A

Photometrical data

Luminous flux 600 lm
Luminous efficacy 56 lm/W
Light color (designation) LUMILUX INTERNA
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Rated LLMF at 2,000 h 0.90
Rated LLMF at 4,000 h 0.84
Rated LLMF at 6,000 h 0.83
Rated LLMF at 8,000 h 0.81
Rated LLMF at 12,000 h 0.79
Rated LLMF at 16,000 h 0.78
Rated LLMF at 20,000 h 0.77

Dimensions & Weight

Overall length 103.00 mm
Length with base excl. base pins/connection 87,00 mm
Diameter 12.0 mm
Tube diameter 12 mm
Product weight 28.5 g

Temperatures & operating conditions

Ambient temperature range -5…+40 °C

Lifespan

Service life 13000 h
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.99
Rated lamp survival factor at 8,000 h 0.99
Rated lamp survival factor at 12,000 h 0.95
Rated lamp survival factor at 16,000 0.81
Rated lamp survival factor at 20,000 h 0.50
Lifespan B50 20000 h

Additional product data

Base (standard designation) G24q-1
Mercury content 1.6 mg

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class G
Energy consumption 11.00 kWh/1000h

Country-specific categorizations

ILCOS FSQH-10/827-/P/-G24q-1
Order reference DULUX D/E 10W/8

Energy labelling regulation data acc EU 2019/2015

Lighting technology used CFLNI
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G24q-1
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 103.00 mm
Height 12.0 mm
Width 12.0 mm
Chromaticity coordinate x 0,455
Chromaticity coordinate y 0,415
Beam angle correspondence SPHERE_360
EPREL ID 546439
Model number AC34214

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Improved maintenance
Areas of application
  • Offices, public buildings
  • Shops
  • Supermarkets and department stores
  • Hotels, restaurants
  • Industry
Product features
  • Good color rendering index
  • Dimmable (3…100 %)
  • Short and compact pin-base lamp with double-turn tubes
  • Single-ended four-pin plug-in G24q base
Equipment / Accessories
  • Suitable for operation on electronic control gear
Safety advice
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300012124 Folding box
1		 35 mm x 35 mm x 118 mm 37.60 g 0.14 dm³
4050300245423 Shipping box
10		 186 mm x 81 mm x 132 mm 428.00 g 1.99 dm³
Declarations of conformity

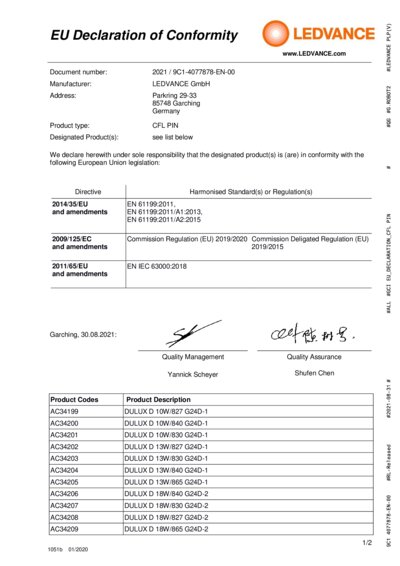

EC Declaration of Conf ormity - 2021 9C1-4077 878-EN-00 - DULUX D PDF (43.21 KB)
Certificates
EAC RU C-DE.HA46.B.011 31_21 21.05.2021-20.05 .2026 Expert Certifica tion - CFLpin PDF (1.18 MB)
Certificates
EAC N RU D-DE.MU62.B.0 0933_20 06.03.2020-05. 03.2025 Prommash Test - CFLpin PDF (1.12 MB)

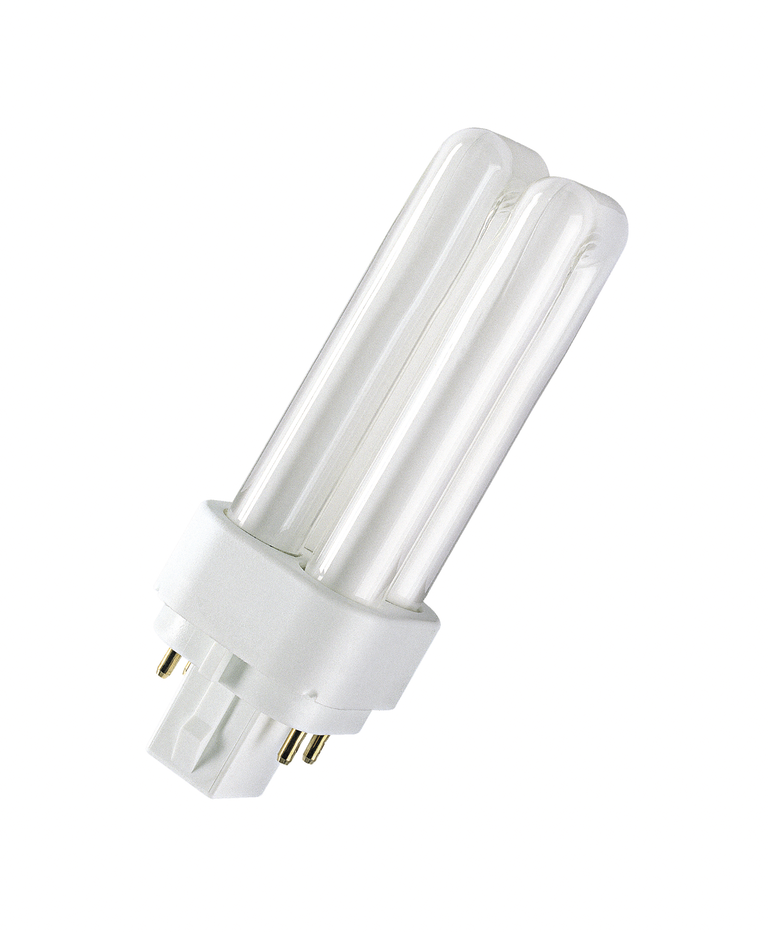

Product image: white background, diagonal
325088_DULUX D/E FOR E CG AND DIMMING OPERATI ON TIF (21.43 MB)
Product image: white background, horizontal
16429_DULUX D SVG (6.95 MB)
Product line drawing with letters
319452_DULUX D, D/E, D /E XT FOR ECG SVG (11.84 KB)
Product line drawing with numbers
319564_OSRAM DULUX D/E SVG (19.69 KB)
Product line drawing with numbers
555_DULUX D/E SVG (5.41 KB)
Product line drawing, front, no dimensions
39471_DULUX D/E SVG (9.52 KB)
Product line drawing, front, no dimensions
33632_OSRAM DULUX D/E SVG (4.67 KB)
Product line drawing, front, no dimensions
39467_DULUX D, D/E, D/ E XT FOR ECG SVG (7.88 KB)
Energy label
EL-4050300012124-AC342 14 PDF (21.59 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)
Spectral power distribution
349636_FL_827 PNG (92.23 KB)
EAN SEG number STK number EFO number ELDAS number
4050300012124 8330170 4933921 3820469 946153130
