OSRAM DULUX T/E CONSTANT

Choose your product version

Phase out

26 W/830

Phase out

26 W/840

Phase out

32 W/830

Phase out

32 W/840

Phase out

42 W/830

Phase out

42 W/840

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Dimmable
DULUX T/E CONSTANT 26 W/830 GX24q-3 26 W 105 V 20000 h 1750 lm Yes
DULUX T/E CONSTANT 26 W/840 GX24q-3 26 W 105 V 20000 h 1750 lm Yes
DULUX T/E CONSTANT 32 W/830 GX24q-3 32 W 100 V 20000 h 2250 lm Yes
DULUX T/E CONSTANT 32 W/840 GX24q-3 32 W 100 V 20000 h 2250 lm Yes
DULUX T/E CONSTANT 42 W/830 GX24q-4 42 W 135 V 20000 h 3050 lm Yes
DULUX T/E CONSTANT 42 W/840 GX24q-4 42 W 135 V 20000 h 3050 lm Yes
Phase out


DULUX T/E CONSTANT 26 W/830

Product benefits
  • Excellent luminous flux at high and low ambient temperatures
  • Improved maintenance
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 26 W
Construction wattage 27.10 W
Nominal voltage 105 V
Nominal current 0.33 A

Photometrical data

Luminous flux 1750 lm
Luminous efficacy 65 lm/W
Light color (designation) LUMILUX Warm White
Color temperature 3000 K
Color rendering index Ra ≥80
Light color 830
Rated LLMF at 2,000 h 0.90
Rated LLMF at 4,000 h 0.84
Rated LLMF at 6,000 h 0.83
Rated LLMF at 8,000 h 0.81
Rated LLMF at 12,000 h 0.79
Rated LLMF at 16,000 h 0.78
Rated LLMF at 20,000 h 0.90

Dimensions & Weight

Overall length 127.50 mm
Length with base excl. base pins/connection 112,00 mm
Diameter 12.00 mm
Tube diameter 12 mm
Product weight 61.5 g

Temperatures & operating conditions

Ambient temperature range -5…+40 °C

Lifespan

Service life 13000 h
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.99
Rated lamp survival factor at 8,000 h 0.99
Rated lamp survival factor at 12,000 h 0.95
Rated lamp survival factor at 16,000 0.81
Rated lamp survival factor at 20,000 h 0.50
Lifespan B50 20000 h

Additional product data

Base (standard designation) GX24q-3
Mercury content 3.0 mg
Product remark For ECG operation only

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class G
Energy consumption 28.00 kWh/1000h

Country-specific categorizations

ILCOS FSMH//L//H-26/830-/P/-GX24q-3
Order reference DULUX T/E 26W/8

Energy labelling regulation data acc EU 2019/2015

Lighting technology used CFLNI
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) GX24q-3
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 127.50 mm
Height 12.00 mm
Width 12.00 mm
Chromaticity coordinate x 0,440
Chromaticity coordinate y 0,403
Beam angle correspondence SPHERE_360
EPREL ID 546470
Model number AC34245

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Excellent luminous flux at high and low ambient temperatures
  • Improved maintenance
Areas of application
  • Street and city lighting
  • Industrial lighting
  • Hot luminaires
  • Locations with special thermal requirements
  • Outdoor applications only in suitable luminaires
Product features
  • Good color rendering index
  • Luminous flux > 90 % in a temperature range from +10…+70 °C
  • Dimmable (3…100 %)
  • Short and compact pin-base lamp with triple-turn tubes
  • Single-ended four-pin plug-in GX24q base with shortened base casing
Equipment / Accessories
  • Suitable for operation on electronic control gear
Safety advice
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300425467 Folding box
1		 45 mm x 48 mm x 142 mm 74.00 g 0.31 dm³
4050300425474 Shipping box
10		 240 mm x 102 mm x 161 mm 853.00 g 3.94 dm³
Declarations of conformity
EC Declaration of Conf ormity - 2021 9C1-4077 884-EN-00 - DULUX T PDF (42.56 KB)

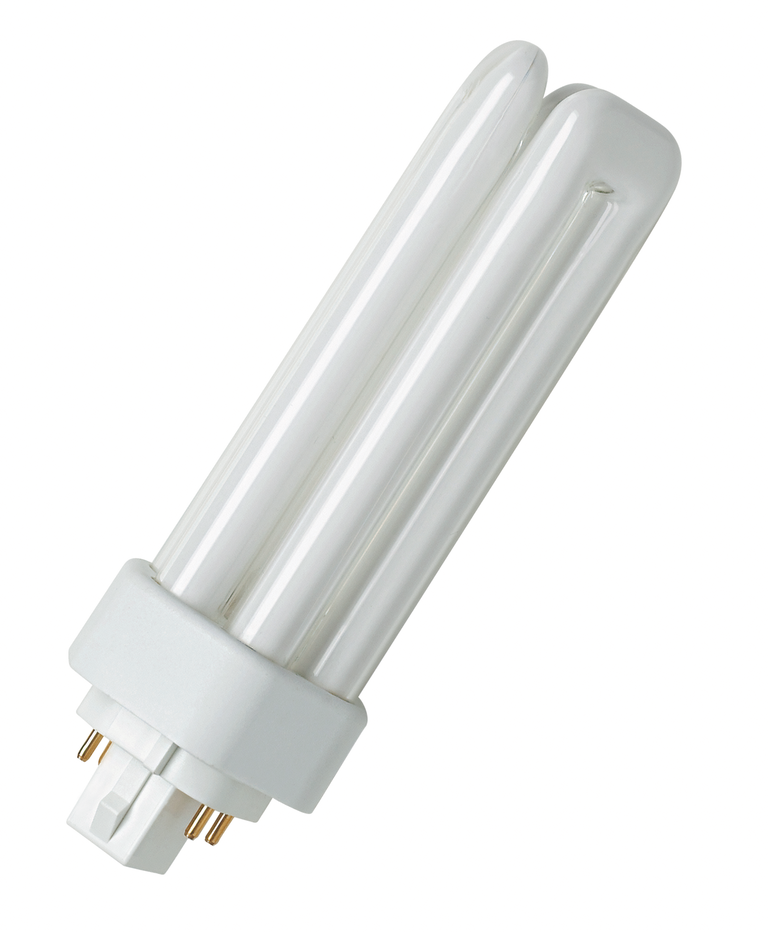

Product image: white background, diagonal
325156_DULUX T/E PLUS TIF (4.71 MB)
Product line drawing with letters
319568_OSRAM DULUX T/E PLUS, T/E IN PLUS SVG (9.97 KB)
Product line drawing with numbers
36505_BASE DULUX T, T/ E SVG (6.97 KB)
Product line drawing with numbers
548_DULUX T/E SVG (11.81 KB)
Product line drawing, front, no dimensions
325453_DULUX T/E CONST ANT / PLUS / XT SVG (6.02 KB)
Energy label
EL-4050300425467-AC342 45 PDF (21.57 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)
Spectral power distribution
349617_FL_830 PNG (92.09 KB)
EAN SEG number STK number EFO number ELDAS number
4050300425467 8330399 4933633 3810263 946588110
