LUMILUX T5 FC

Choose your product version

Phase out

22 W/3000 K

Phase out

22 W/6500 K

Phase out

40 W/3000 K

Phase out

40 W/4000 K

Phase out

40 W/6500 K

Phase out

55 W/6500 K

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Dimmable
FC 22 W/3000 K 2GX13 22 W 75 V 12000 h 1800 lm Yes
FC 22 W/6500 K 2GX13 22 W 75 V 12000 h 1700 lm Yes
FC 40 W/3000 K 2GX13 40 W 126 V 12000 h 3300 lm Yes
FC 40 W/4000 K 2GX13 40 W 126 V 12000 h 3300 lm Yes
FC 40 W/6500 K 2GX13 40 W 126 V 12000 h 3200 lm Yes
FC 55 W/6500 K 2GX13 55 W 101 V 12000 h 3900 lm Yes
Phase out


FC 22 W/3000 K

Product benefits
  • Excellent uniform illumination with no shadows
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 22 W
Construction wattage 23.80 W
Nominal voltage 75 V
Nominal current 0.3 A

Photometrical data

Luminous flux 1800 lm
Luminous efficacy 76 lm/W
Light color (designation) LUMILUX Warm White
Color temperature 3000 K
Color rendering index Ra ≥80
Light color 830
Rated LLMF at 2,000 h 0.85
Rated LLMF at 4,000 h 0.83
Rated LLMF at 6,000 h 0.80
Rated LLMF at 8,000 h 0.80
Rated LLMF at 12,000 h 0.75

Dimensions & Weight

Overall length 240.00 mm
Diameter 16,0 mm
Tube diameter 16 mm
Product weight 81.00 g

Lifespan

Service life 8000 h 1)
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.98
Rated lamp survival factor at 8,000 h 0.92
Rated lamp survival factor at 12,000 h 0.50
Lifespan B50 12000 h

1) With preheat ECG

Additional product data

Base (standard designation) 2GX13
Mercury content 3.0 mg
Product remark Suitable for ECG operation only

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class G
Energy consumption 24.00 kWh/1000h

Country-specific categorizations

ILCOS FSCH-22/830-L/P-2Gx13-16/225
Order reference FC 22W/830

Energy labelling regulation data acc EU 2019/2015

Lighting technology used OTHER_FL
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) 2GX13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 240.00 mm
Height 16,0 mm
Width 16,0 mm
Chromaticity coordinate x 0,440
Chromaticity coordinate y 0,403
Beam angle correspondence SPHERE_360
EPREL ID 546400
Model number AC34175

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Excellent uniform illumination with no shadows
Areas of application
  • Public buildings
  • Offices
  • Restaurants
  • Industry
  • Shops
  • Supermarkets and department stores
  • Hotels
Product features
  • Good color rendering index
  • Single-ended round fluorescent lamp
  • Dimmable
Equipment / Accessories
  • Exclusively for operation on electronic control gears
Safety advice
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300528489 Folding box
1		 231 mm x 228 mm x 23 mm 128.50 g 1.21 dm³
4050300528496 Shipping box
12		 300 mm x 243 mm x 249 mm 1865.00 g 18.15 dm³
Declarations of conformity

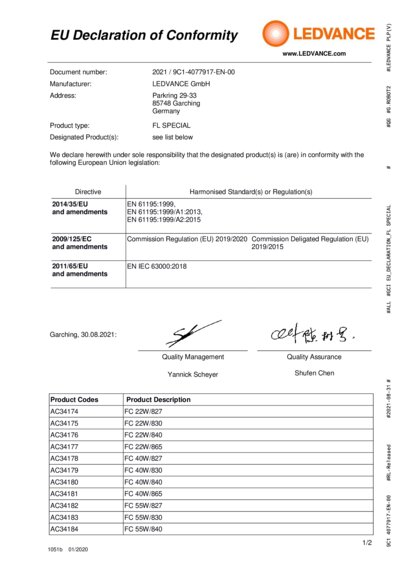

EC Declaration of Conf ormity - 2021 9C1-4077 917-EN-00 - T5 FC PDF (39.11 KB)
Certificates
EAC RU C-DE HA10.B.006 71 16 08 2018 15 07 20 23 Expert Sertifikaciy a FL PDF (1.43 MB)
Certificates

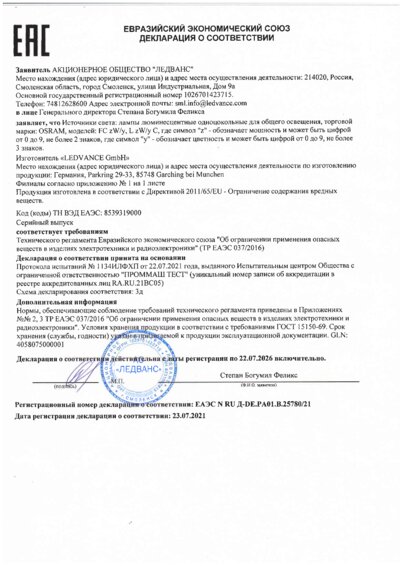

EAC N RU D-DE.PA01.B.2 5780_21 23.07.2021-22. 07.2026 - FL Special PDF (160.84 KB)

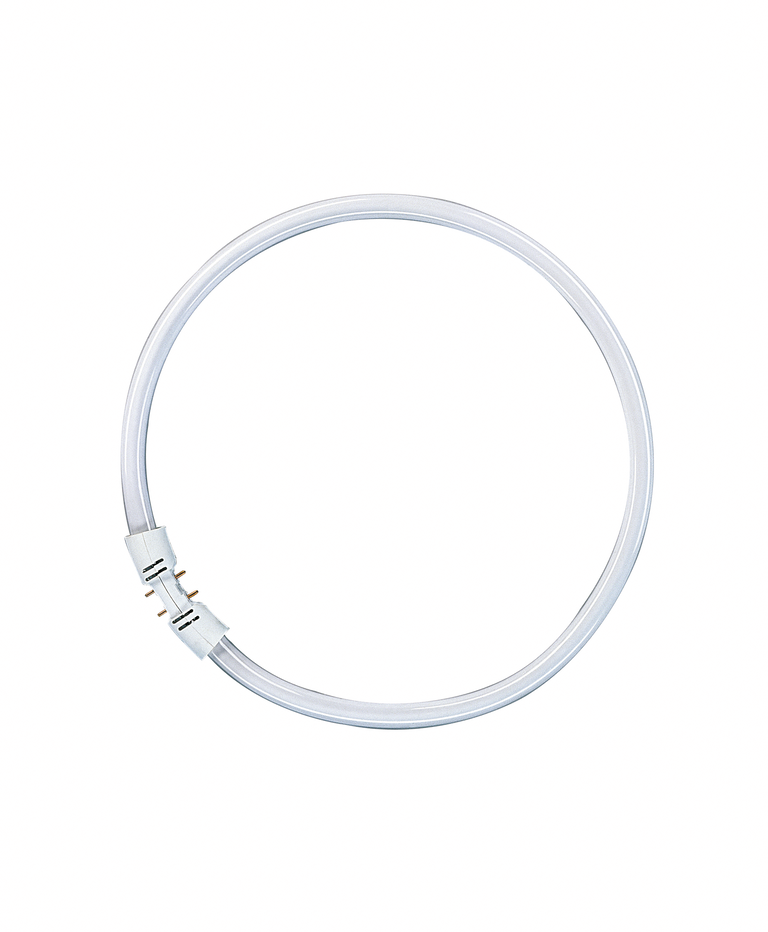

Product image: white background, diagonal
323753_LUMILUX T5 FC F LUORESCENT CIRCLINE TIF (21.43 MB)
Product line drawing with letters
1014_LUMILUX T5 FC FLU ORESCENT CIRCLINE WITH 2Gx13 BASE SVG (7.21 KB)
Product line drawing, front, no dimensions
325850_LUMILUX T5 FC F LUORESCENT CIRCLINE SVG (3.96 KB)
Product line drawing - technical
325881_LAMP DIMENSIONS RING FORM // U-FORM SVG (8.64 KB)

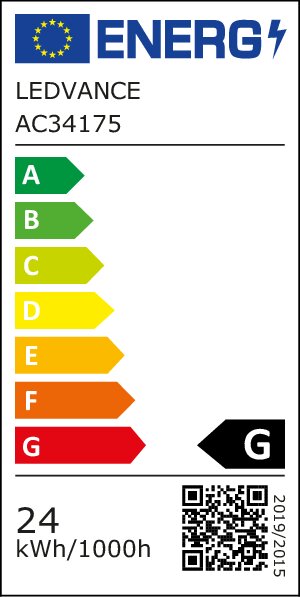

Energy label
EL-4050300528489-AC341 75 PDF (21.64 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)

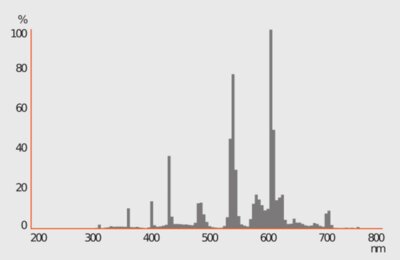

Spectral power distribution
349617_FL_830 PNG (92.09 KB)
EAN SEG number STK number EFO number ELDAS number
4050300528489 8330902 4931683 3835124 946203110
