Starters for series operation at 230 V AC ( ST 151, ST 172)

Choose your product version

Phase out

172 SAFETY DEOS

Phase out

151 LONGLIFE

OVERVIEW

Product description Nominal wattage Nominal voltage Dimmable
ST 172 SAFETY DEOS 22.00 W 220…240 V No

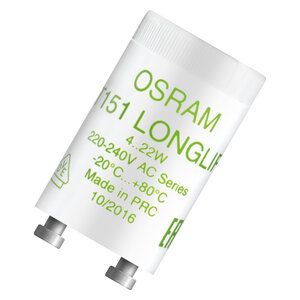

ST 151 LONGLIFE 22.00 W 220…240 V No
Phase out


ST 172 SAFETY DEOS

Product benefits
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 22.00 W
Nominal voltage 220…240 V
Mains frequency 50/60 Hz

Dimensions & Weight

Diameter 21,5 mm
Product weight 9.39 g

Additional product data

Mercury content 0.0 mg
Product remark Temperature range for reliable switch-off: -20…+80 °C

Capabilities

Dimmable No

Country-specific categorizations

Order reference ST 172/220-240

Energy labelling regulation data acc EU 2019/2015

Length 40.30 mm
Height 21,5 mm
Width 21.50 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product features
  • Temperature range for reliable cut-out: -20…+80 °C
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300854069 Unpacked
1		 38 mm x 19 mm x 22 mm 9.39 g 0.02 dm³
4050300797786 Tray
25		 114 mm x 40 mm x 110 mm 241.75 g 0.50 dm³
4050300797793 Shipping box
200		 227 mm x 98 mm x 227 mm 2086.00 g 5.05 dm³
Declarations of conformity
Glow starter for fluor escent lamps PDF (2.23 MB)

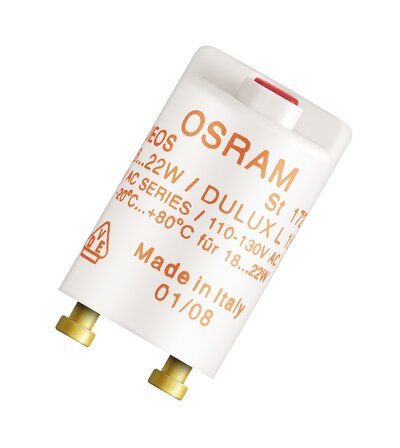

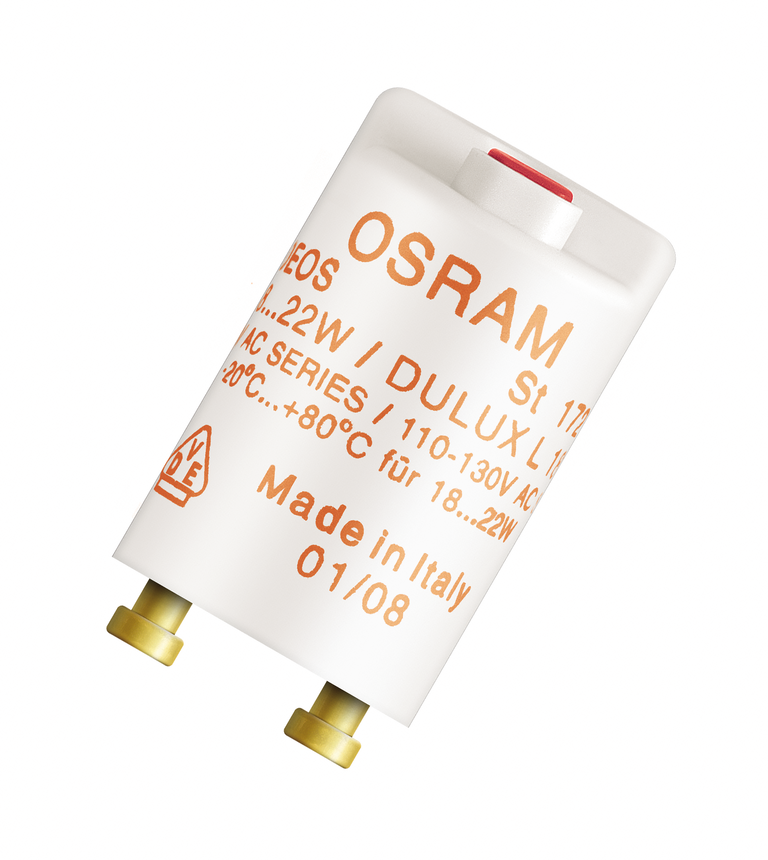

Product image: white background, diagonal
316148_STARTER ST 172 DEOS TIF (13.17 MB)

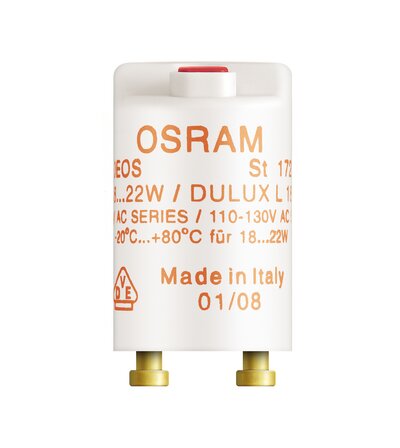

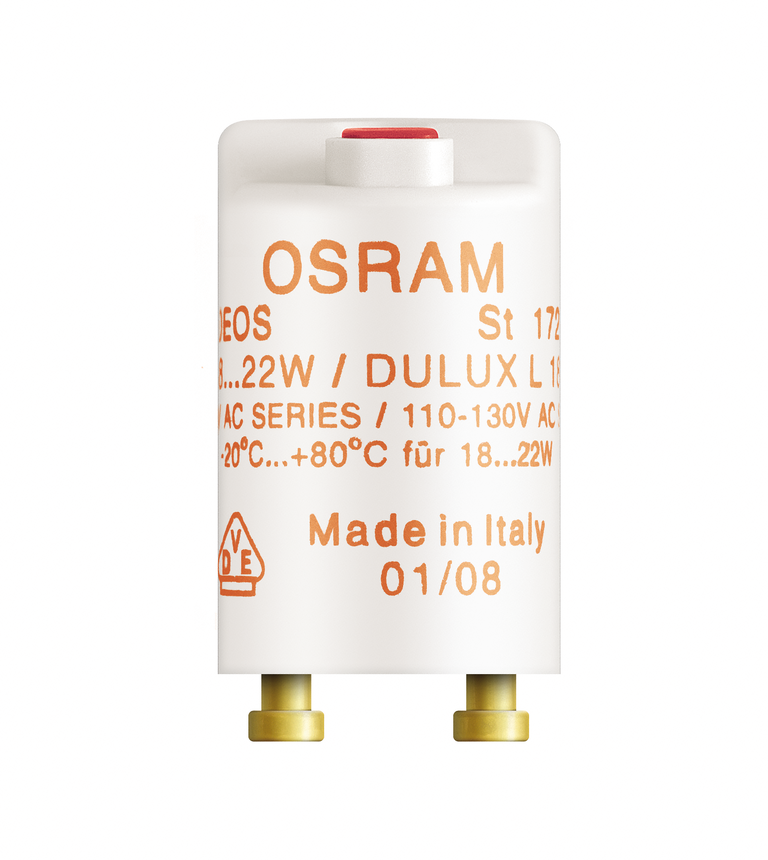

Product image: white background, upright
316150_STARTER ST 172 DEOS TIF (13.17 MB)
Product line drawing with letters
327972_STARTER 171/172 /173 SAFTY SVG (9.64 KB)
Product line drawing, front, no dimensions
327971_STARTER 171/172 /173 SAFTY SVG (6.02 KB)
EAN SEG number STK number EFO number ELDAS number
4050300854069 7902116 4030107 3843106 919501010
