LED CLASSIC LAMPS FOR FACILITIES S

LED CLASSIC LAMPS FOR FACILITIES S

Choose your product version

7.3W 827 Frosted E14

7W 827 Frosted E27

7.3W 840 Frosted E14

7W 840 Frosted E27

9W 827 Frosted E27

9W 840 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic B 60 Facility S 7.3W 827 Frosted E14 E14 7.3 W 220…240 V 25000 h 806 lm 60 W 200 ° No
LED Classic A 60 Facility S 7W 827 Frosted E27 E27 7 W 220…240 V 25000 h 806 lm 60 W 200 ° No
LED Classic B 60 Facility S 7.3W 840 Frosted E14 E14 7.3 W 220…240 V 25000 h 806 lm 60 W 200 ° No
LED Classic A 60 Facility S 7W 840 Frosted E27 E27 7 W 220…240 V 25000 h 806 lm 60 W 200 ° No
LED Classic A 75 Facility S 9W 827 Frosted E27 E27 9 W 220…240 V 25000 h 1055 lm 75 W 200 ° No
LED Classic A 75 Facility S 9W 840 Frosted E27 E27 9 W 220…240 V 25000 h 1055 lm 75 W 200 ° No


LED Classic B 60 Facility S 7.3W 827 Frosted E14

Product benefits
  • Light for AC/DC system (AC 220-240V, DC 176-250V)
  • High switching cycle enables long lifetime when it is connected to motion sensors
  • Very long lifetime of up to 25,000 h
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 7.3 W
Construction wattage 7.30 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 60 W
Nominal current 59 mA
Type of current AC/DC
Inrush current 4.78 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 27
Max. lamp number on MCB B16 A 30
Total harmonic distortion 130 %
Power factor λ > 0.50

Photometrical data

Luminous flux 806 lm
Nominal useful luminous flux 90° 806 lm
Luminous efficacy 110 lm/W
Lumen main.fact.at end of nom.life time 0.96
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 200 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 107.00 mm
Diameter 37.00 mm
Maximum diameter 37 mm
Product weight 24.00 g

Temperatures & operating conditions

Ambient temperature range -30…+50 °C
Maximum temperature at tc test point 84.3 °C

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 500000
Lumen maintenance at end of service lifetime 0.96
Rated lamp survival factor at 6,000 h 0.90

Additional product data

Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 8.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LED CLB60 FA 7.

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00 W
Networked standby power for CLS 0.00 W
Claim of equivalent power Yes
Length 107.00 mm
Height 37.00 mm
Width 37.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.50
LED light source replaces a fluorescent light source No
EPREL ID 1412881
Model number AC47871,AC47871

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Light for AC/DC system (AC 220-240V, DC 176-250V)
  • High switching cycle enables long lifetime when it is connected to motion sensors
  • Very long lifetime of up to 25,000 h
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Public space in large-scaled buildings: staircases, corridors, emergency exits, basement
  • Outdoor applications only in suitable luminaires
Product features
  • LED lamp compatible for emergency power system
  • High switching cycle with 500,000 times
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854086342 Folding box
1		 38 mm x 38 mm x 112 mm 33.00 g 0.16 dm³
4099854086359 Shipping box
10		 205 mm x 87 mm x 123 mm 378.00 g 2.19 dm³

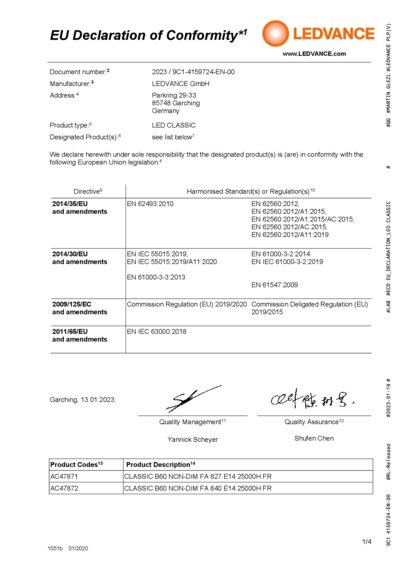

Declarations of conformity
Classic B Facility lam p non dim E17 FR PDF (225.92 KB)
Product image: white background, diagonal with LEDVANCE logo
LED CLB FR E14 JPG (1.71 MB)
Product image: white background, diagonal
CANDLE B40 E14 JPG (2.76 MB)
Product image: white background, upright LEDVANCE logo
LED CLB FR E14 JPG (1.65 MB)
Product image: white background, upright
CANDLE B40 E14 (3.0) JPG (5.09 MB)
Product line drawing with letters
666460_Classic B 40 fr osted dim E14 SVG (7.97 KB)
Product line drawing, front, no dimensions
666484_Classic B 40 fr osted dim E14 SVG (4.82 KB)

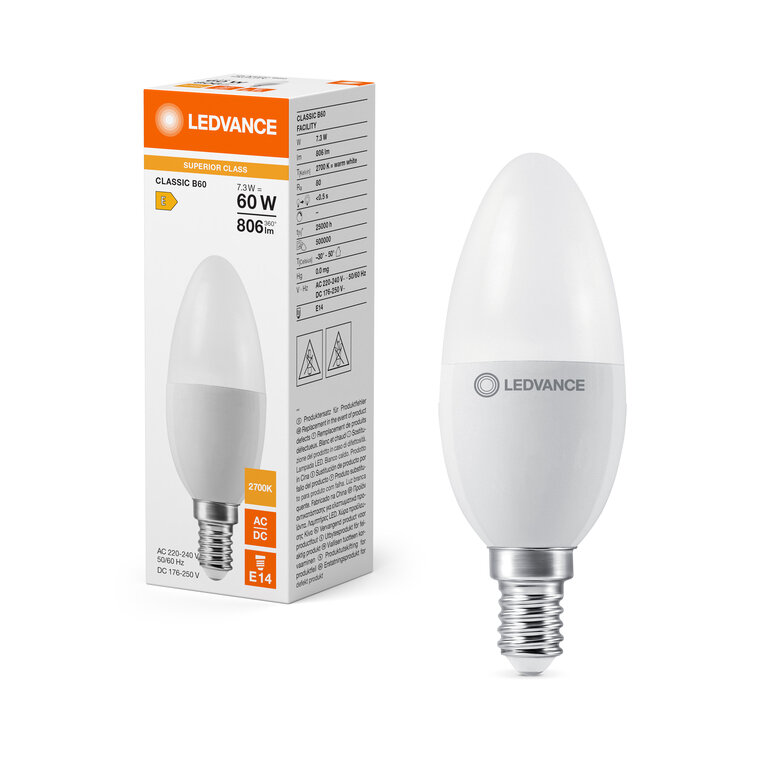

Combo Shot = Product Beauty Shot + Packaging Image
FC1 CLB 60 SUP 7.3 827 FR E14 JPG (775.98 KB)
Packaging image, frontal
FC1 CLB 60 SUP 7.3 827 FR E14 JPG (487.76 KB)

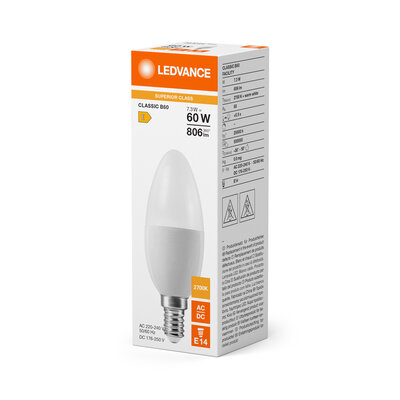

Packaging image, spacial
FC1 CLB 60 SUP 7.3 827 FR E14 JPG (656.61 KB)
Energy label
EL-4099854086342-AC478 71 PDF (21.52 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)

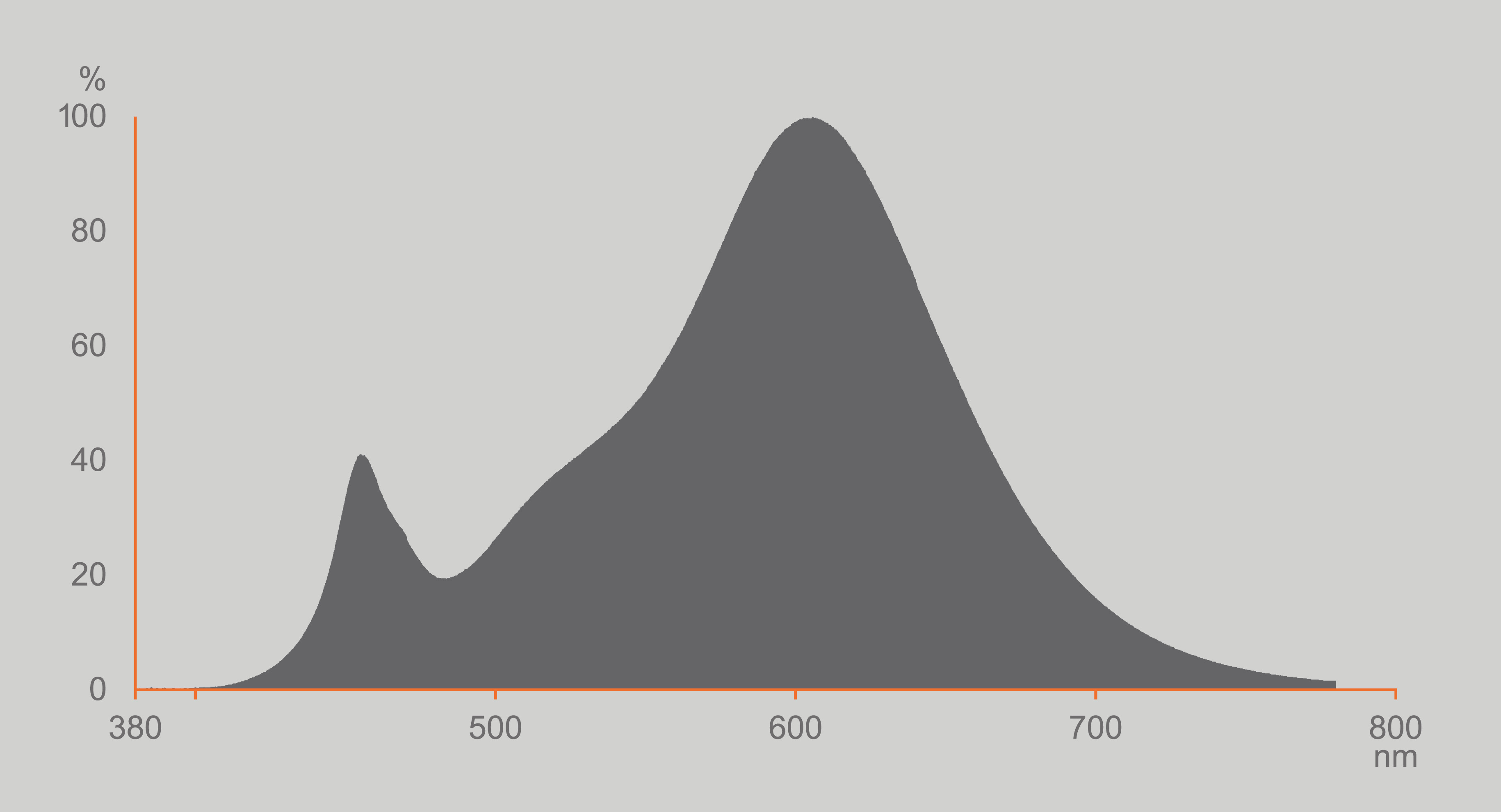

Spectral power distribution
EPREL Data Spectral Di agram LEDr_classic A_B _P_2700K_827 PNG (84.86 KB)
EAN SEG number STK number ELDAS number
4099854086342 8299340 4737092 941004620
