LED CLASSIC A DAYLIGHT SENSOR S

LED CLASSIC A DAYLIGHT SENSOR S

Choose your product version

4.9W 827 Clear E27

7.3W 827 Clear E27

8.8W 827 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic A 40 Filament Daylight Sensor S 4.9W 827 Clear E27 E27 4.9 W 220…240 V 15000 h 470 lm 40 W 320 ° No
LED Classic A 60 Filament Daylight Sensor S 7.3W 827 Clear E27 E27 7.3 W 220…240 V 15000 h 806 lm 60 W 320 ° No
LED Classic A 60 Daylight Sensor S 8.8W 827 Frosted E27 E27 8.8 W 220…240 V 25000 h 806 lm 60 W 200 ° No


LED Classic A 40 Filament Daylight Sensor S 4.9W 827 Clear E27

Product benefits
  • Short payback period thanks to low energy consumption and maintenance costs
  • Energy-saving lighting solutions thanks to automatic switch off at daylight (> 20 lux)
  • Safety through automatic switch-on at darkness (< 20 lux)
  • Lower energy consumption than incandescent or halogen lamps
  • Easy replacement of classic lamps thanks to compact design
  • Instant 100 % light, no warm-up time
View all details
Product data sheet
Go to OSRAM predecessor product

PRODUCT DETAILS

Electrical data

Nominal wattage 4.9 W
Construction wattage 4.90 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 40 W
Nominal current 40 mA
Type of current AC
Inrush current 4.22 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 22
Max. lamp number on MCB B16 A 30
Total harmonic distortion 150 %
Power factor λ > 0.40

Photometrical data

Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 95 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 106.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 32.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 80 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Added function Daylight sensor

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 5.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LED CLA40DS 4.9

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power <0,5 W
Claim of equivalent power Yes
Length 106.00 mm
Height 60.00 mm
Width 60.00 mm
Chromaticity coordinate x 0,463
Chromaticity coordinate y 0,420
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor ≥0.4
LED light source replaces a fluorescent light source No
EPREL ID 1206270
Model number AC41849,AC41849

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Short payback period thanks to low energy consumption and maintenance costs
  • Energy-saving lighting solutions thanks to automatic switch off at daylight (> 20 lux)
  • Safety through automatic switch-on at darkness (< 20 lux)
  • Lower energy consumption than incandescent or halogen lamps
  • Easy replacement of classic lamps thanks to compact design
  • Instant 100 % light, no warm-up time
Areas of application
  • Wherever constant lighting is necessary at night
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional lamps
  • Not dimmable
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • The integrated light sensor detects daylight level every 10 minutes and turns on/off automatically
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854048197 Folding box
1		 61 mm x 61 mm x 112 mm 46.00 g 0.42 dm³
4099854048203 Shipping box
10		 315 mm x 136 mm x 126 mm 554.00 g 5.40 dm³

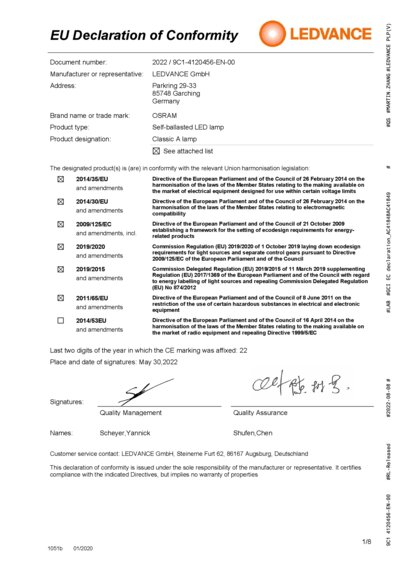

Declarations of conformity
Classic A lamp PDF (309.4 KB)

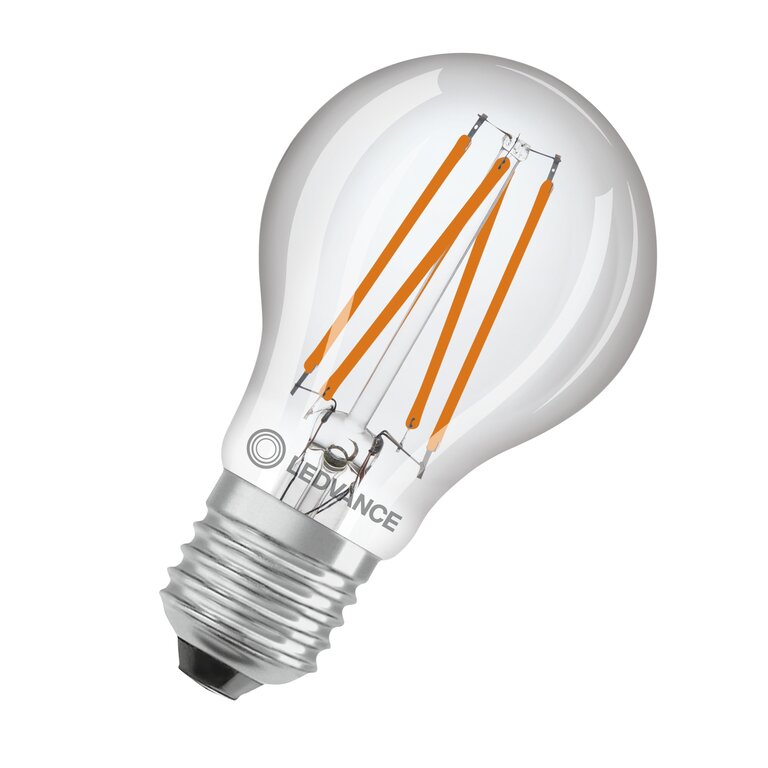

Product image: white background, diagonal with LEDVANCE logo
LED CLASSIC A DAYLIGHT SENSOR FIL E27 JPG (1.8 MB)

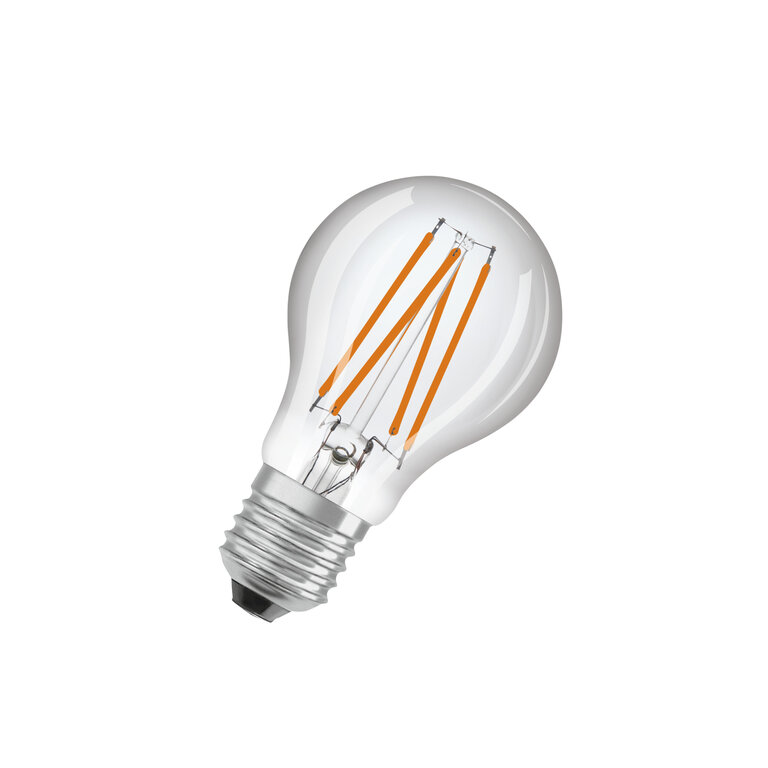

Product image: white background, diagonal
LEDSCLA60DS 7,3W/827 2 30VFILE27 4X1OSRAM JPG (370.14 KB)

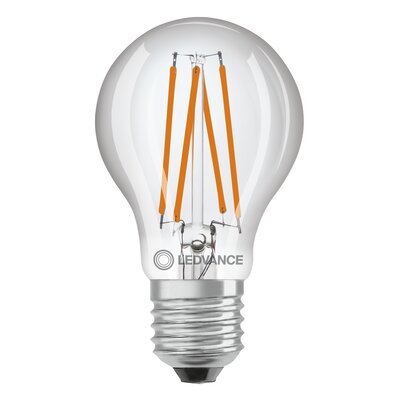

Product image: white background, upright LEDVANCE logo
LED CLASSIC A DAYLIGHT SENSOR FIL E27 JPG (1.6 MB)

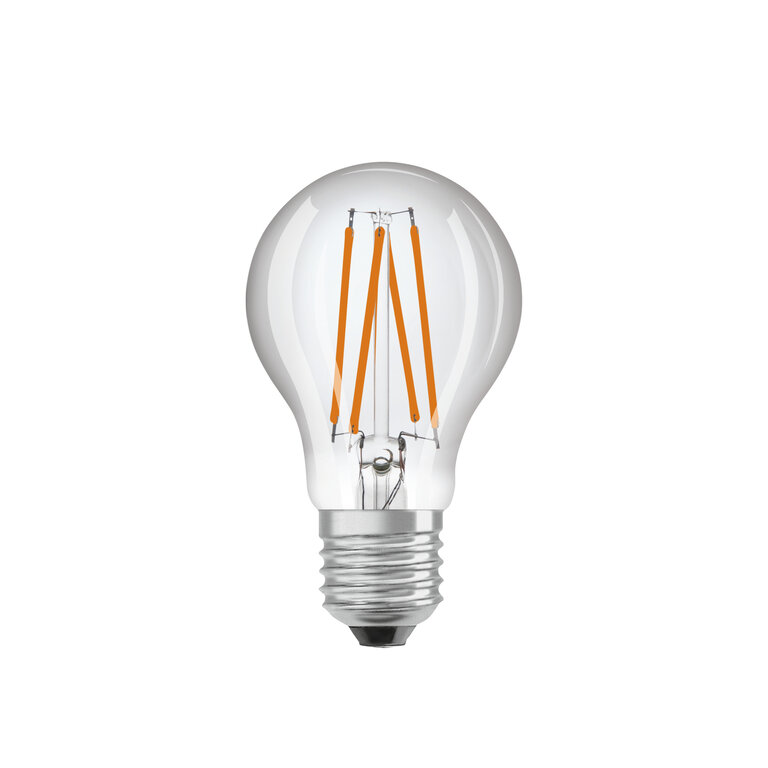

Product image: white background, upright
LEDSCLA60DS 7,3W/827 2 30VFILE27 4X1OSRAM JPG (341.13 KB)
Product line drawing with letters
LEDSCLA60DS 7,3W/827 2 30VFILE27 4X1OSRAM SVG (14.21 KB)
Product line drawing with numbers
LEDSCLA60DS 7,3W/827 2 30VFILE27 4X1OSRAM SVG (16.04 KB)
Product line drawing - technical
LEDSCLA60DS 7,3W/827 2 30VFILE27 4X1OSRAM SVG (10.56 KB)

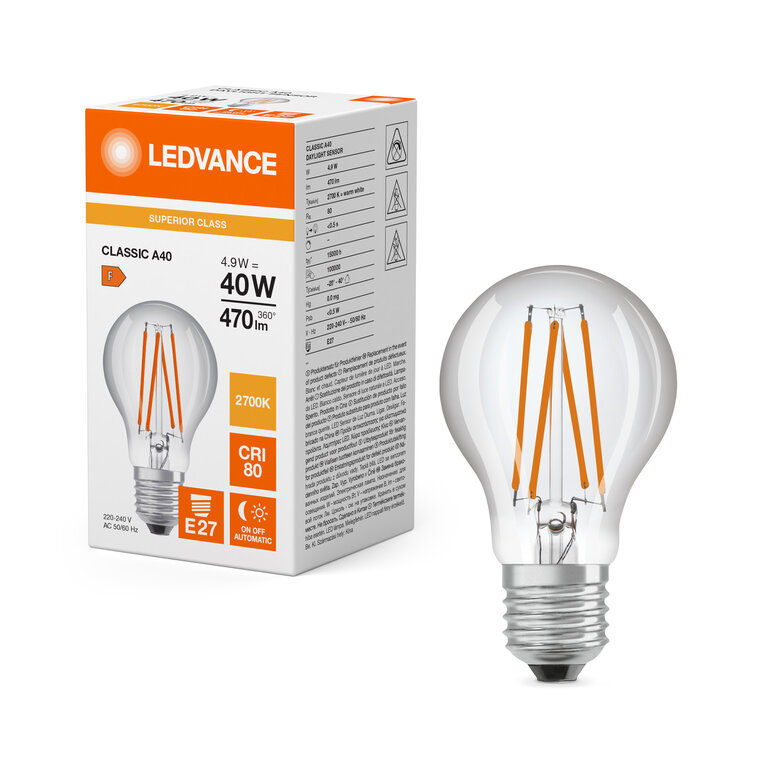

Combo Shot = Product Beauty Shot + Packaging Image
FC1 CLA 40 DS SUP 4.9W 827 FIL E27 JPG (844.19 KB)
Packaging image, frontal
FC1 CLA 40 DS SUP 4.9W 827 FIL E27 JPG (568.43 KB)
Packaging image, spacial
CLA40DSSUP4.9W827FILE2 7MiCh JPG (782.42 KB)
Energy label
EL-4099854048197-AC418 49 PDF (21.43 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 2700K PNG (103.24 KB)
EAN SEG number STK number EFO number ELDAS number
4099854048197 8299403 4737096 3768011 941815610
