LED CLASSIC A MOTION & DAYLIGHT SENSOR

LED CLASSIC A MOTION & DAYLIGHT SENSOR

Choose your product version

NEW

7.3W 827 Clear E27

8.8W 827 Frosted E27

10W 827 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic A 60 Filament Motion & Daylight sensor S 7.3W 827 Clear E27 E27 7.3 W 220…240 V 15000 h 806 lm 60 W 320 ° No
LED Classic A 60 Motion Sensor S 8.8W 827 Frosted E27 E27 8.8 W 220…240 V 25000 h 806 lm 60 W 200 ° No
LED Classic A 75 Motion Sensor S 10W 827 Frosted E27 E27 10 W 220…240 V 25000 h 1055 lm 75 W 200 ° No
NEW


LED Classic A 60 Filament Motion & Daylight sensor S 7.3W 827 Clear E27

Product benefits
  • Energy-saving solution thanks to motion sensor and automatic switch off at daylight
  • Short payback period thanks to low energy consumption and maintenance costs
  • Easy replacement of halogen lamps thanks to compact design
  • Automatic light switch off 30 seconds after the last motion detection
  • Illumination threshold for automatic switching: 20 lx
  • Lower energy consumption than incandescent or halogen lamps
View all details

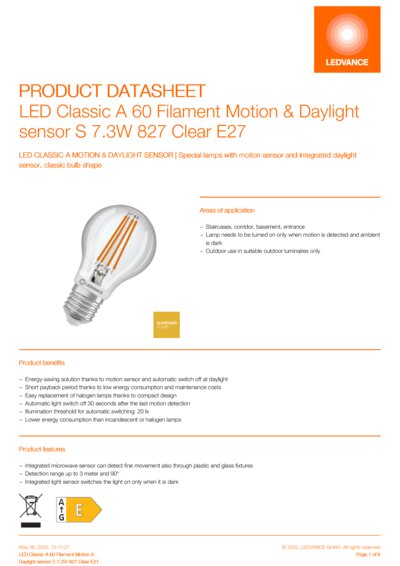

Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 7.3 W
Construction wattage 7.30 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 60 W
Nominal current 48 mA
Type of current AC
Inrush current 3.76 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 37
Max. lamp number on MCB B16 A 46
Total harmonic distortion < 100 %
Power factor λ > 0.50

Photometrical data

Luminous flux 806 lm
Luminous efficacy 110 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 116.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 38.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 60 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Added function Day & Night Sensor

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 8.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LCLA60 MS/DS 7.

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.5 W
Networked standby power for CLS Not relevant
Claim of equivalent power Yes
Length 116.00 mm
Height 60.00 mm
Width 60.00 mm
Chromaticity coordinate x 0.4578
Chromaticity coordinate y 0.4101
R9 Colour rendering index 4
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.5
LED light source replaces a fluorescent light source No
EPREL ID 1838152,2162502
Model number AC57858,AC69840

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy-saving solution thanks to motion sensor and automatic switch off at daylight
  • Short payback period thanks to low energy consumption and maintenance costs
  • Easy replacement of halogen lamps thanks to compact design
  • Automatic light switch off 30 seconds after the last motion detection
  • Illumination threshold for automatic switching: 20 lx
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Staircases, corridor, basement, entrance
  • Lamp needs to be turned on only when motion is detected and ambient is dark
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Integrated microwave sensor can detect fine movement also through plastic and glass fixtures
  • Detection range up to 3 meter and 90°
  • Integrated light sensor switches the light on only when it is dark
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854236792 Folding box
1		 61 mm x 61 mm x 120 mm 51.00 g 0.45 dm³
4099854236808 Shipping box
10		 315 mm x 132 mm x 134 mm 626.00 g 5.57 dm³

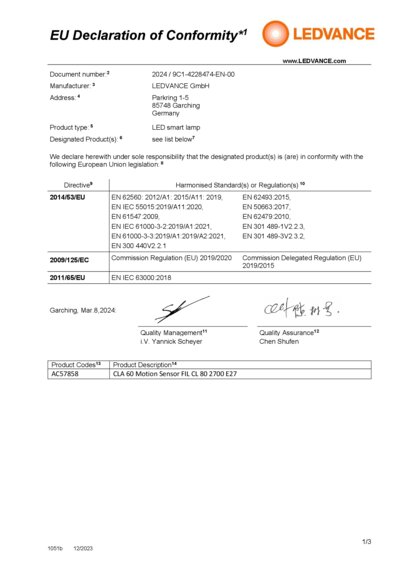

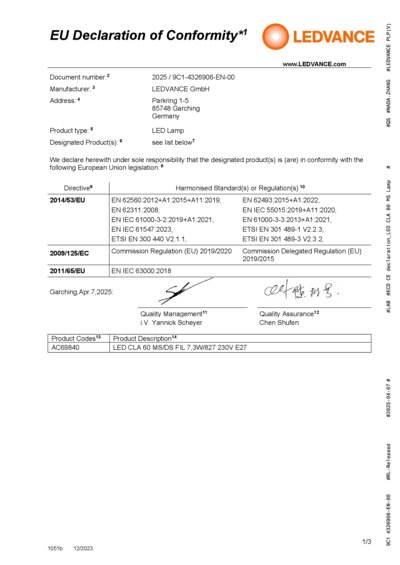

Declarations of conformity
LED smart lamp PDF (271.63 KB)

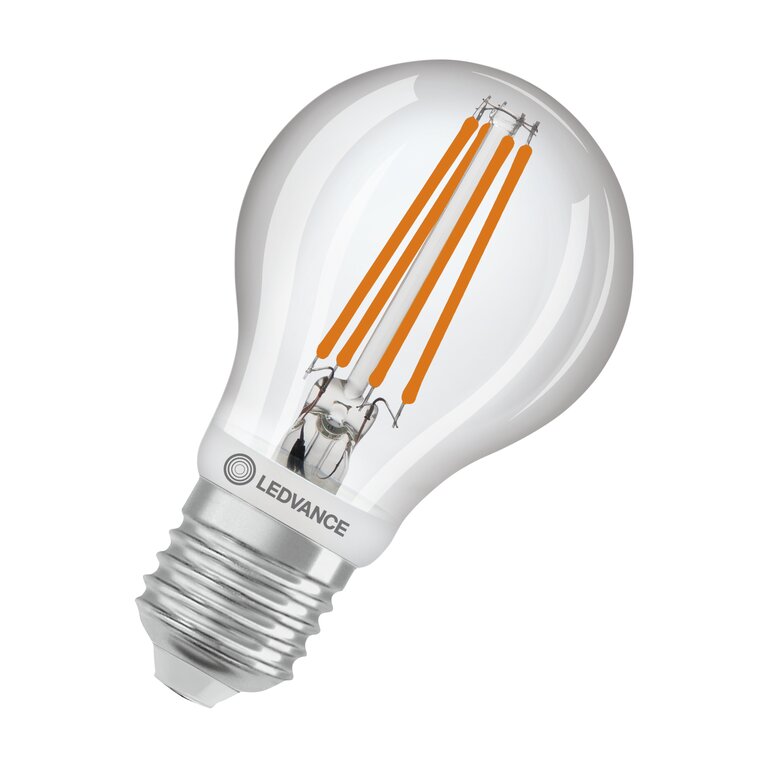

Product image: white background, diagonal with LEDVANCE logo
LED CLASSIC A MS/DS E2 7 WHITE BASE JPG (1.72 MB)

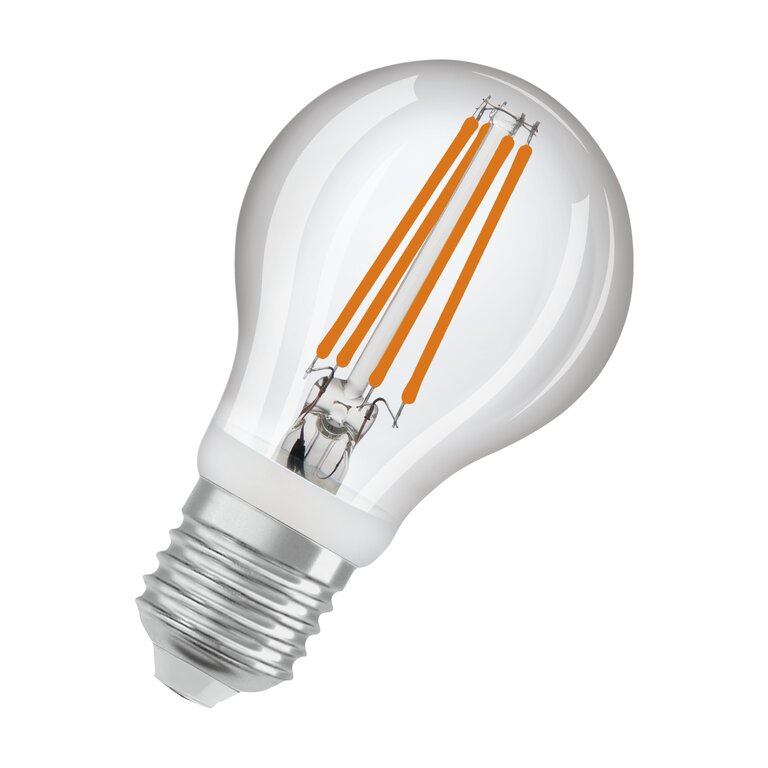

Product image: white background, diagonal
LED CLASSIC A MS/DS E2 7 WHITE BASE JPG (1.68 MB)

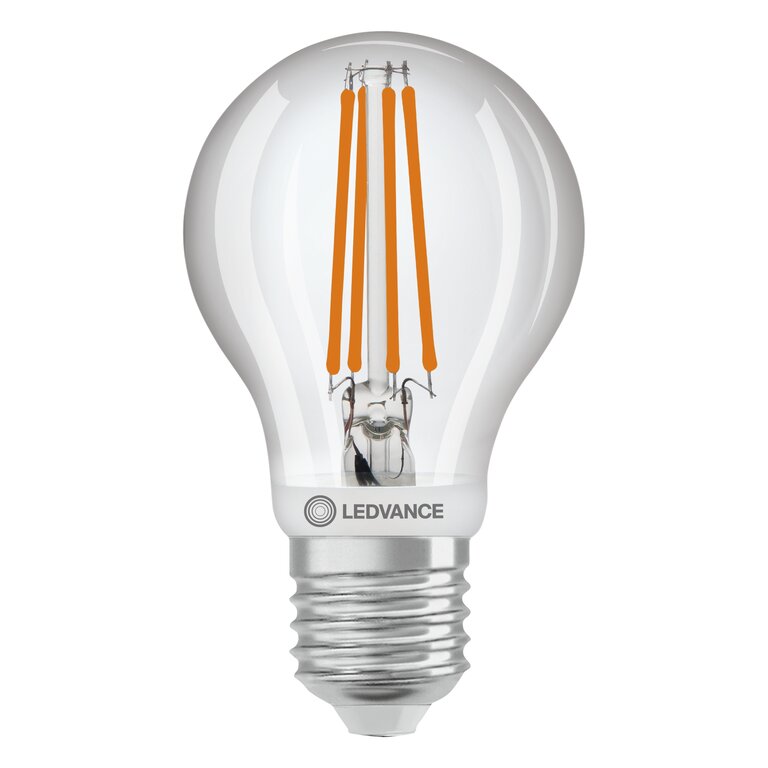

Product image: white background, upright LEDVANCE logo
LED CLASSIC A MS/DS E2 7 WHITE BASE JPG (1.58 MB)

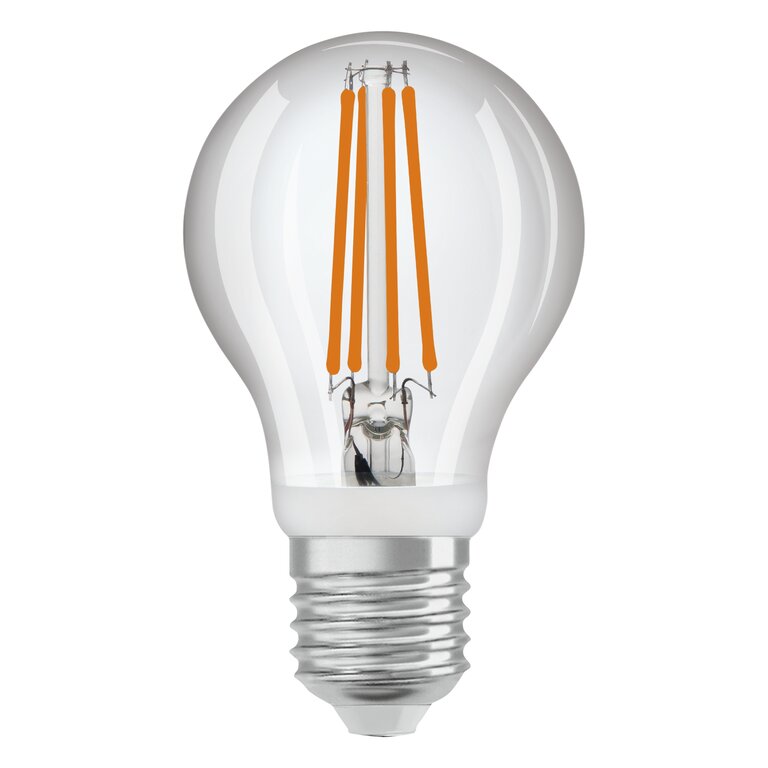

Product image: white background, upright
LED CLASSIC A MS/DS E2 7 WHITE BASE JPG (1.55 MB)
Product line drawing with letters
LEDSCLA60MS 7,3W/827 2 30VFIL E2710X1OSRAM SVG (15.96 KB)
Product line drawing with numbers
LEDSCLA60MS 7,3W/827 2 30VFIL E2710X1OSRAM SVG (18.58 KB)
Product line drawing - technical
LEDSCLA60MS 7,3W/827 2 30VFIL E2710X1OSRAM SVG (11.47 KB)

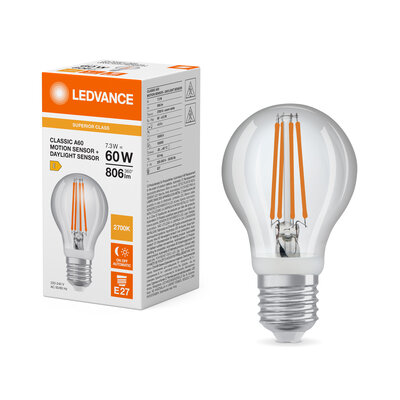

Combo Shot = Product Beauty Shot + Packaging Image
FC1 CLA 60 SUP 7.3W 82 7 FIL E27 JPG (874.11 KB)

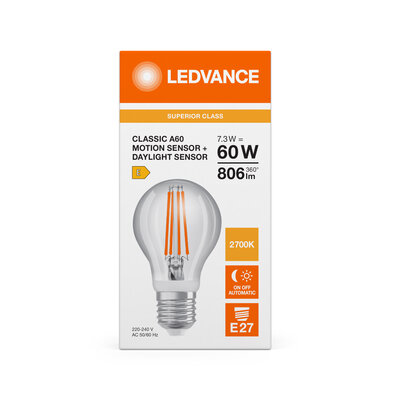

Packaging image, frontal
FC1 CLA 60 SUP 7.3W 82 7 FIL E27 JPG (577.3 KB)

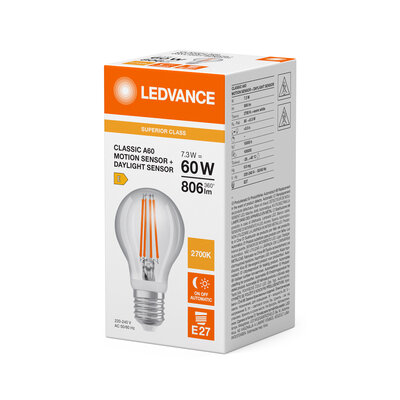

Packaging image, spacial
FC1 CLA 60 SUP 7.3W 82 7 FIL E27 JPG (837.39 KB)
Energy label
EL-4099854236792-AC578 58 PDF (21.43 KB)
Energy label
EL-4099854236792-AC698 40 PDF (21.68 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
Spectral power distribution
Spectral graph classic A 2700K MS/DS JPG (181.24 KB)
EAN SEG number STK number
4099854236792 8299806 4737928
