LED CLASSIC A DIM P

LED CLASSIC A DIM P

Choose your product version

4.8W 827 Frosted E27

4.8W 827 Clear E27

7W 827 Clear B22d

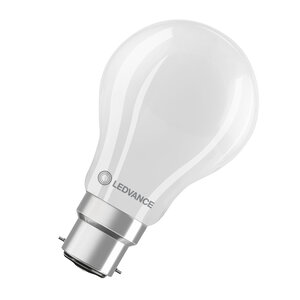

7W 827 Frosted B22d

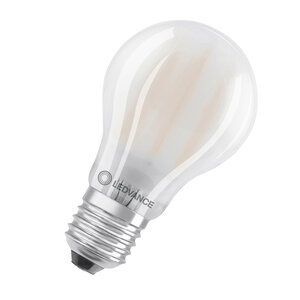

7W 827 Frosted E27

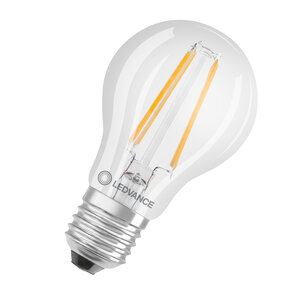

7W 827 Clear E27

7W 840 Frosted E27

7.5W 827 Clear E27

7.5W 827 Frosted E27

7.5W 840 Frosted E27

11W 827 Frosted E27

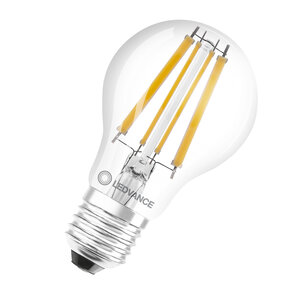

11W 827 Clear E27

18W 827 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic A 40 Filament DIM P 4.8W 827 Frosted E27 E27 4.8 W 220…240 V 15000 h 470 lm 40 W 320 ° Yes
LED Classic A 40 Filament DIM P 4.8W 827 Clear E27 E27 4.8 W 220…240 V 15000 h 470 lm 40 W 320 ° Yes

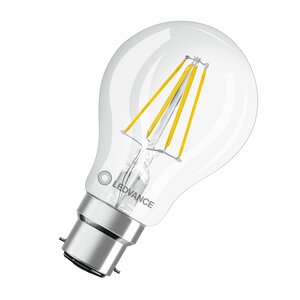

LED Classic A 60 Filament DIM P 7W 827 Clear B22d B22d 7 W 220…240 V 15000 h 806 lm 60 W 300 ° Yes
LED Classic A 60 Filament DIM P 7W 827 Frosted B22d B22d 7 W 220…240 V 15000 h 806 lm 60 W 300 ° Yes
LED Classic A 60 Filament DIM P 7W 827 Frosted E27 E27 7 W 220…240 V 15000 h 806 lm 60 W 300 ° Yes
LED Classic A 60 Filament DIM P 7W 827 Clear E27 E27 7 W 220…240 V 15000 h 806 lm 60 W 300 ° Yes
LED Classic A 60 Filament DIM P 7W 840 Frosted E27 E27 7 W 220…240 V 15000 h 806 lm 60 W 300 ° Yes
LED Classic A 75 Filament DIM P 7.5W 827 Clear E27 E27 7.5 W 220…240 V 15000 h 1055 lm 75 W 300 ° Yes
LED Classic A 75 Filament DIM P 7.5W 827 Frosted E27 E27 7.5 W 220…240 V 15000 h 1055 lm 75 W 300 ° Yes
LED Classic A 75 Filament DIM P 7.5W 840 Frosted E27 E27 7.5 W 220…240 V 15000 h 1055 lm 75 W 300 ° Yes
LED Classic A 100 Filament DIM P 11W 827 Frosted E27 E27 11 W 220…240 V 15000 h 1521 lm 100 W 300 ° Yes
LED Classic A 100 Filament DIM P 11W 827 Clear E27 E27 11 W 220…240 V 15000 h 1521 lm 100 W 300 ° Yes

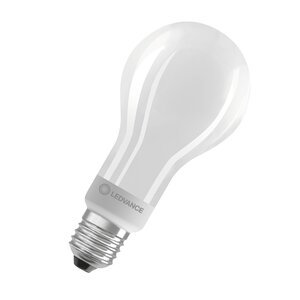

LED Classic A 150 Filament DIM P 18W 827 Frosted E27 E27 18 W 220…240 V 15000 h 2452 lm 150 W 330 ° Yes


LED Classic A 60 Filament DIM P 7W 827 Frosted E27

Product benefits
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Lower energy consumption than incandescent or halogen lamps
  • Robust against vibrations
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
View all details
Product data sheet
Go to OSRAM predecessor product

PRODUCT DETAILS

Electrical data

Nominal wattage 7 W
Construction wattage 7.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 60 W
Nominal current 42 mA
Type of current AC
Inrush current 0.055 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 190
Max. lamp number on MCB B16 A 304
Total harmonic distortion 84 %
Power factor λ > 0.50

Photometrical data

Luminous flux 806 lm
Luminous efficacy 115 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) ≤1.0
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 106.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 30.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 40.6 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDCLA60DIM 7W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power not applicable
Networked standby power for CLS not applicable
Claim of equivalent power Yes
Length 106.00 mm
Height 60.00 mm
Width 60.00 mm
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index >0
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor ＞0.5
LED light source replaces a fluorescent light source No
EPREL ID 1358108
Model number AC44667

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Lower energy consumption than incandescent or halogen lamps
  • Robust against vibrations
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Beam angle: up to 300°
  • Dimmable
  • Base: E27, B22d
  • Lifetime: up to 15,000 h
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854054433 Folding box
1		 61 mm x 61 mm x 112 mm 44.00 g 0.42 dm³
4099854054440 Shipping box
10		 315 mm x 136 mm x 126 mm 534.00 g 5.40 dm³

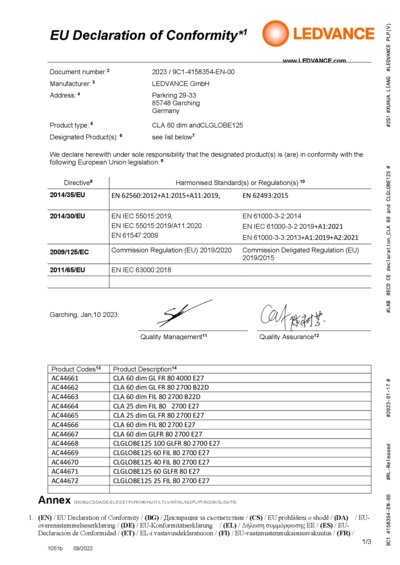

Declarations of conformity
CLA 60 dim andCLGLOBE1 25 PDF (405.83 KB)

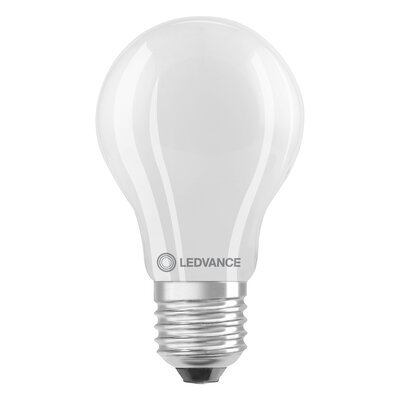

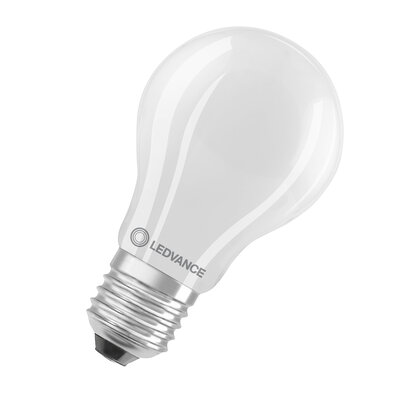

Product image: white background, diagonal with LEDVANCE logo
LED CLASSIC A FIL FR E 27 JPG (1.12 MB)

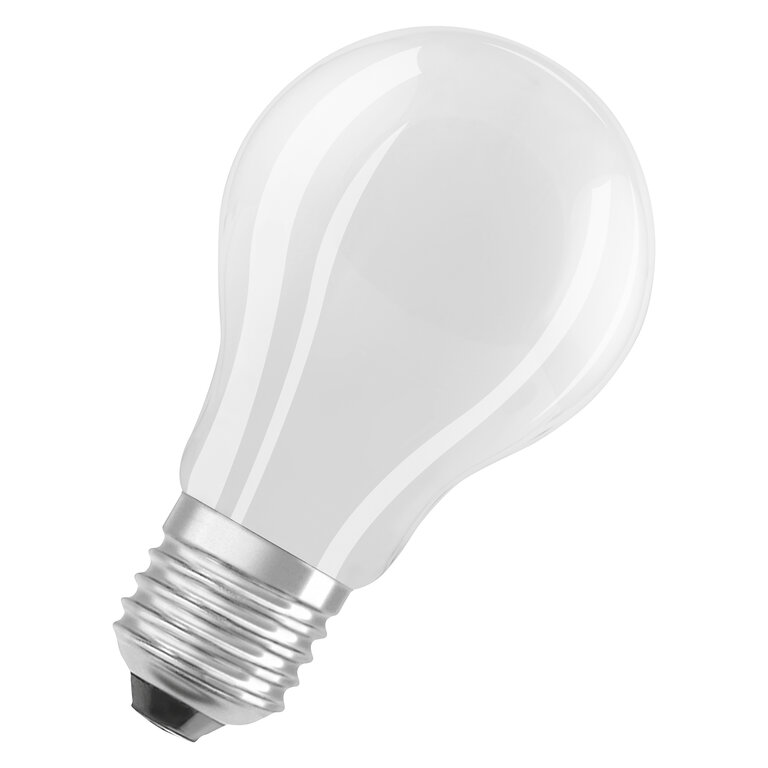

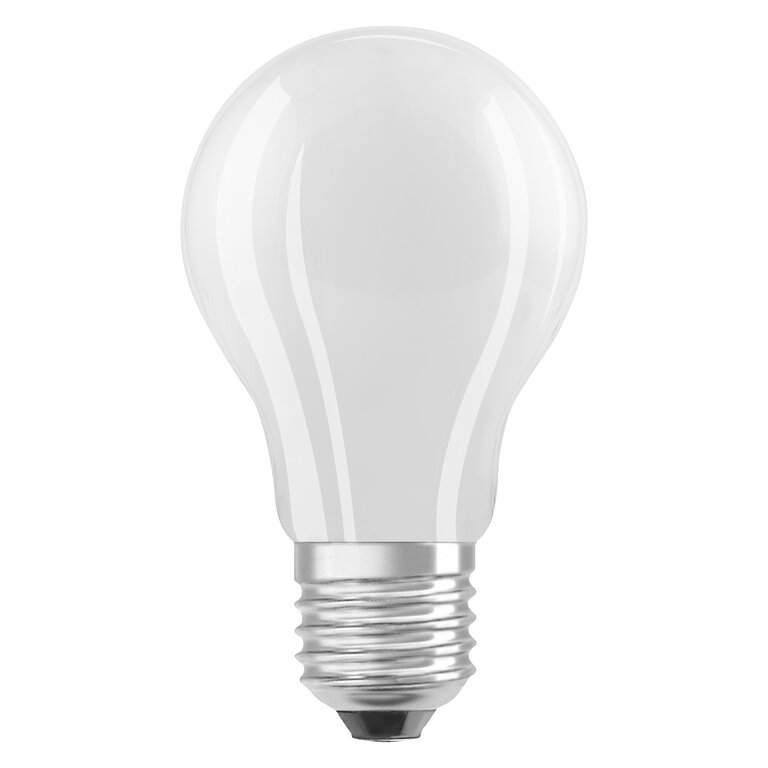

Product image: white background, diagonal
LED CLA GL FR E27 JPG (1.13 MB)

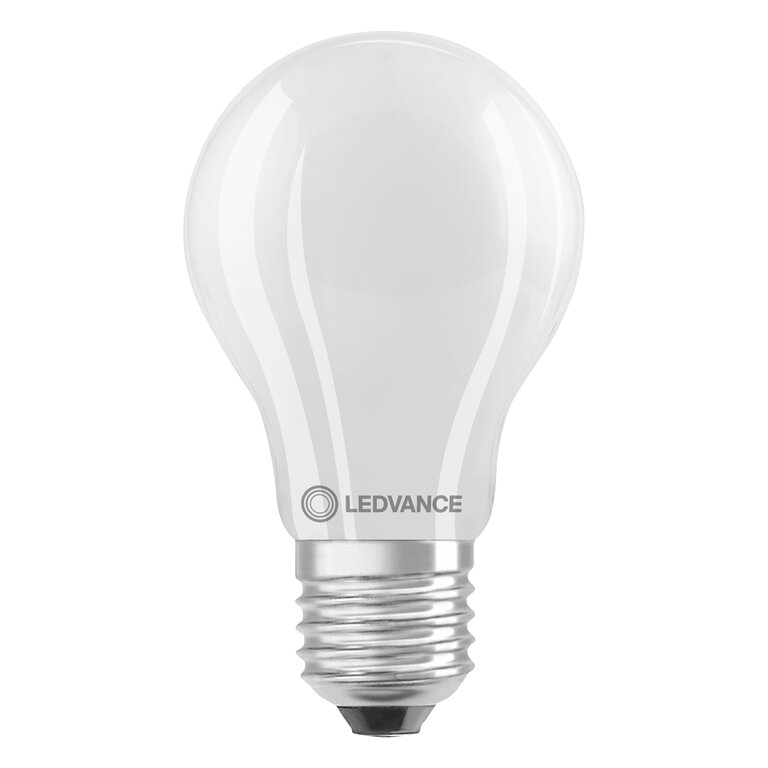

Product image: white background, upright LEDVANCE logo
LED CLASSIC A FIL FR E 27 JPG (1.08 MB)
Product image: white background, upright
LED CLA GL FR E27 JPG (1.06 MB)
Product line drawing with letters
LED CLA GL FR E27 SVG (7.17 KB)
Product line drawing with numbers
LED Classic A60 FR E27 SVG (10.77 KB)
Product line drawing, front, no dimensions
LED CLA GL FR E27 SVG (4.26 KB)
Energy label
EL-4099854054433-AC446 67 PDF (21.51 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)

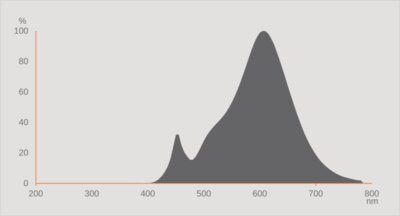

Spectral power distribution
EPREL data spectral di agram PROF LEDr 2700K PNG (103.24 KB)
EAN SEG number STK number EFO number ELDAS number
4099854054433 8299102 4736787 3750289 941815960
