LED CLASSIC A V

Choose your product version

4W 827 Clear E27

6.5W 827 Clear E27

6.5W 840 Clear E27

7.5W 827 Clear E27

7.5W 840 Clear E27

11W 827 Clear E27

11W 840 Clear E27

4.2W 830 Frosted E27

4W 830 Clear E27

7W 827 Clear E27

7W 830 Clear E27

7W 830 Frosted E27

7W 840 Clear E27

7.5W 827 Frosted E27

7.5W 830 Frosted E27

7.5W 830 Clear E27

7.5W 840 Frosted E27

11W 827 Clear E27

11W 827 Frosted E27

11W 830 Clear E27

11W 830 Frosted E27

11W 840 Frosted E27

11W 840 Clear E27

17W 827 Frosted E27

17W 827 Clear E27

17W 830 Frosted E27

17W 830 Clear E27

17W 840 Clear E27

17W 840 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic A 40 Filament V 4W 827 Clear E27 E27 4 W 220…240 V 10000 h 470 lm 40 W 300 ° No
LED Classic A 60 Filament V 6.5W 827 Clear E27 E27 6.5 W 220…240 V 10000 h 806 lm 60 W 300 ° No
LED Classic A 60 Filament V 6.5W 840 Clear E27 E27 6.5 W 220…240 V 10000 h 806 lm 60 W 300 ° No
LED Classic A 75 Filament V 7.5W 827 Clear E27 E27 7.5 W 220…240 V 10000 h 1055 lm 75 W 300 ° No
LED Classic A 75 Filament V 7.5W 840 Clear E27 E27 7.5 W 220…240 V 10000 h 1055 lm 75 W 300 ° No
LED Classic A 100 Filament V 11W 827 Clear E27 E27 11 W 220…240 V 10000 h 1521 lm 100 W 320 ° No
LED Classic A 100 Filament V 11W 840 Clear E27 E27 11 W 220…240 V 10000 h 1521 lm 100 W 320 ° No
LED Classic A 40 Filament V 4.2W 830 Frosted E27 E27 4.2 W 220…240 V 10000 h 470 lm 40 W 300 ° No
LED Classic A 40 Filament V 4W 830 Clear E27 E27 4 W 220…240 V 10000 h 470 lm 40 W 300 ° No
LED Classic A 60 Filament V 7W 827 Clear E27 E27 7 W 220…240 V 10000 h 806 lm 60 W 300 ° No
LED Classic A 60 Filament V 7W 830 Clear E27 E27 7 W 220…240 V 10000 h 806 lm 60 W 300 ° No
LED Classic A 60 Filament V 7W 830 Frosted E27 E27 7 W 220…240 V 10000 h 806 lm 60 W 300 ° No
LED Classic A 60 Filament V 7W 840 Clear E27 E27 7 W 220…240 V 10000 h 806 lm 60 W 300 ° No
LED Classic A 75 Filament V 7.5W 827 Frosted E27 E27 7.5 W 220…240 V 10000 h 1055 lm 75 W 300 ° No
LED Classic A 75 Filament V 7.5W 830 Frosted E27 E27 7.5 W 220…240 V 10000 h 1055 lm 75 W 300 ° No
LED Classic A 75 Filament V 7.5W 830 Clear E27 E27 7.5 W 220…240 V 10000 h 1055 lm 75 W 300 ° No
LED Classic A 75 Filament V 7.5W 840 Frosted E27 E27 7.5 W 220…240 V 10000 h 1055 lm 75 W 300 ° No
LED Classic A 100 Filament V 11W 827 Clear E27 E27 11 W 220…240 V 10000 h 1521 lm 100 W 300 ° No
LED Classic A 100 Filament V 11W 827 Frosted E27 E27 11 W 220…240 V 10000 h 1521 lm 100 W 300 ° No
LED Classic A 100 Filament V 11W 830 Clear E27 E27 11 W 220…240 V 10000 h 1521 lm 100 W 300 ° No
LED Classic A 100 Filament V 11W 830 Frosted E27 E27 11 W 220…240 V 10000 h 1521 lm 100 W 300 ° No
LED Classic A 100 Filament V 11W 840 Frosted E27 E27 11 W 220…240 V 10000 h 1521 lm 100 W 300 ° No
LED Classic A 100 Filament V 11W 840 Clear E27 E27 11 W 220…240 V 10000 h 1521 lm 100 W 300 ° No
LED Classic A 150 Filament V 17W 827 Frosted E27 E27 17 W 220…240 V 10000 h 2452 lm 150 W 320 ° No
LED Classic A 150 Filament V 17W 827 Clear E27 E27 17 W 220…240 V 10000 h 2452 lm 150 W 320 ° No
LED Classic A 150 Filament V 17W 830 Frosted E27 E27 17 W 220…240 V 10000 h 2452 lm 150 W 320 ° No
LED Classic A 150 Filament V 17W 830 Clear E27 E27 17 W 220…240 V 10000 h 2452 lm 150 W 320 ° No
LED Classic A 150 Filament V 17W 840 Clear E27 E27 17 W 220…240 V 10000 h 2452 lm 150 W 320 ° No
LED Classic A 150 Filament V 17W 840 Frosted E27 E27 17 W 220…240 V 10000 h 2452 lm 150 W 320 ° No


LED Classic A 150 Filament V 17W 840 Clear E27

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Can be easily fitted instead of ordinary light bulbs
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 17 W
Construction wattage 17.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 150 W
Nominal current 130 mA
Type of current AC
Inrush current 12 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 15
Max. lamp number on MCB B16 A 18
Total harmonic distortion ≤ 125 %
Power factor λ > 0.50

Photometrical data

Luminous flux 2452 lm
Luminous efficacy 144 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra 80
Light color 840
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 118.00 mm
Diameter 70.00 mm
Maximum diameter 70 mm
Product weight 45.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 62 °C

Lifespan

Lifespan L70/B50 at 25 °C 10000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class D 1)
Energy consumption 17.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LED CLA150 17W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 118.00 mm
Height 70.00 mm
Width 70.00 mm
Chromaticity coordinate x 0.3818
Chromaticity coordinate y 0.3797
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor ≥ 0.7
LED light source replaces a fluorescent light source No
EPREL ID 2191355
Model number AC70433

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Can be easily fitted instead of ordinary light bulbs
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional lamps
  • Not dimmable
  • Good color rendering CRI ≥ 80 and color stability throughout the life of the lamp
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854484513 Folding box
1		 70 mm x 70 mm x 122 mm 61.00 g 0.60 dm³
4099854484520 Shipping box
10		 360 mm x 150 mm x 136 mm 709.00 g 7.34 dm³
Declarations of conformity
LED lamp PDF (243.08 KB)

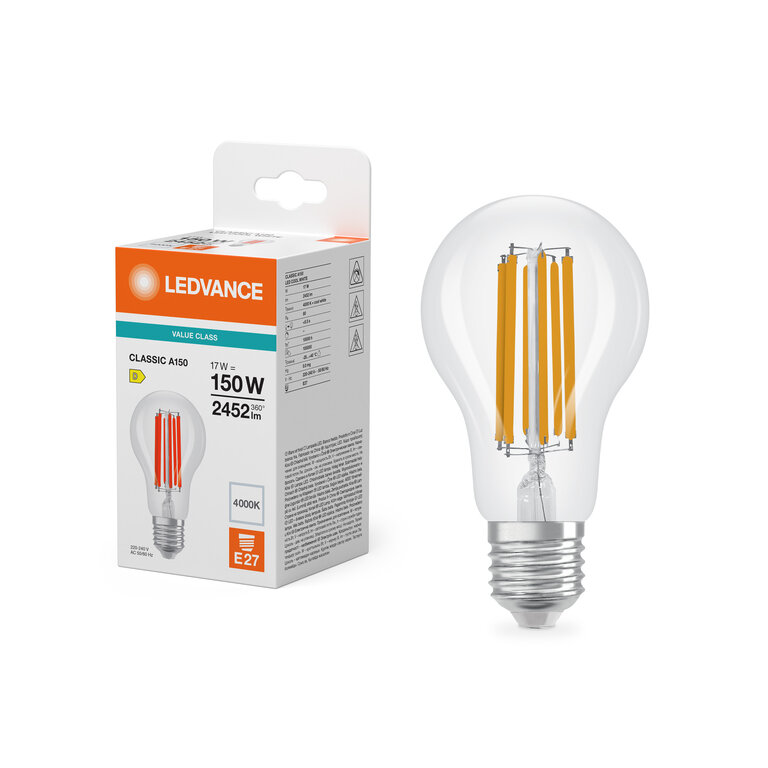

Product image: white background, diagonal
LED CLASSIC A150 230V FILAMENT E27 JPG (1.64 MB)
Product image: white background, upright
LED CLASSIC A150 230V FILAMENT E27 JPG (1.51 MB)
Product line drawing with letters
LED CLASSIC A150 230V FILAMENT E27 SVG (18.24 KB)
Product line drawing with numbers
LED CLASSIC A150 230V FILAMENT E27 SVG (19.73 KB)
Product line drawing - technical
LED CLASSIC A150 230V FILAMENT E27 SVG (14.59 KB)
Energy label
EL-4099854484513-AC704 33 PDF (21.44 KB)
Logos and pictos
D left SVG (1.8 KB)
Logos and pictos
D left BW SVG (1.07 KB)
Logos and pictos
D right SVG (1.77 KB)
Logos and pictos
D right BW SVG (1.07 KB)

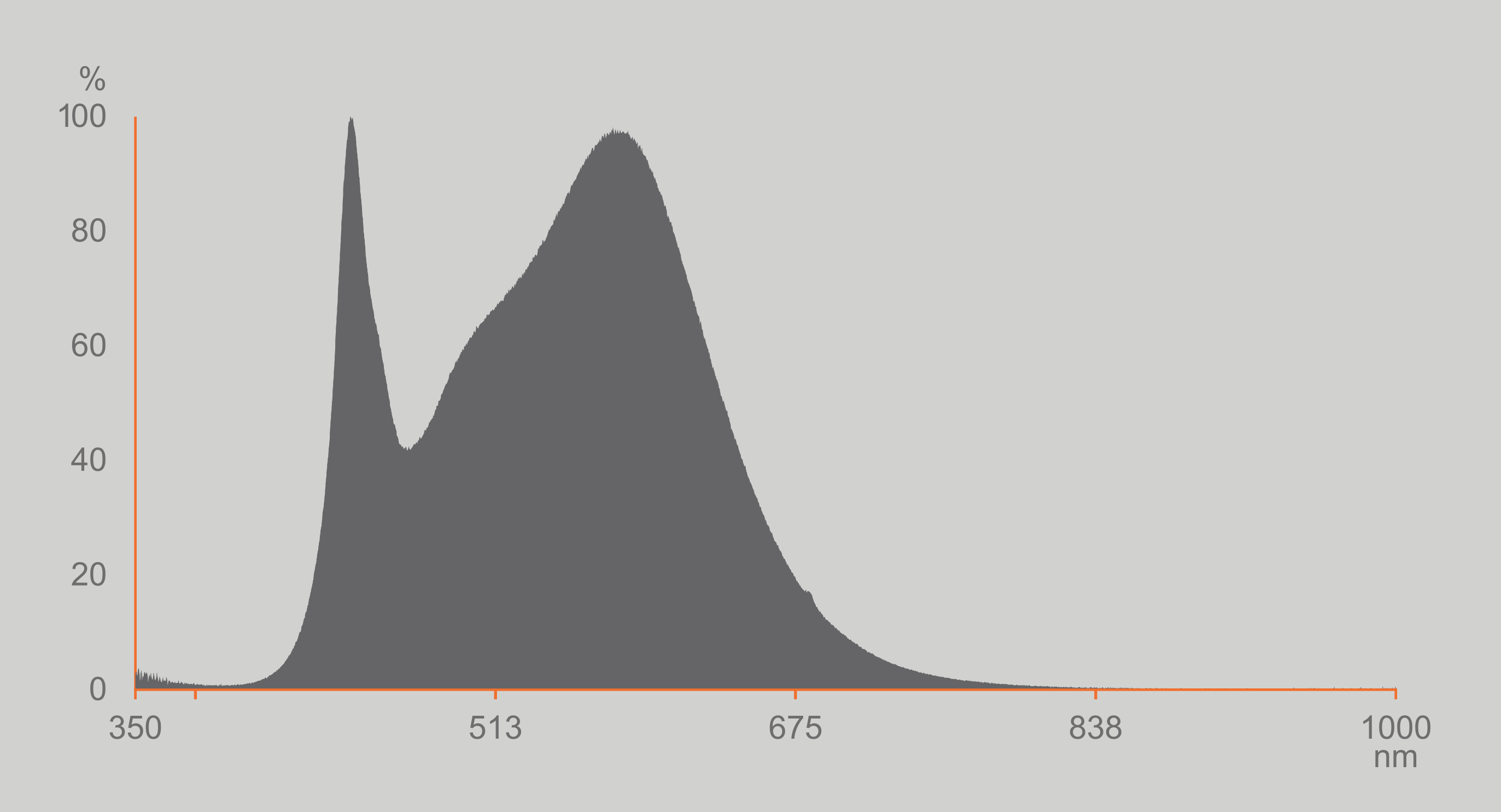

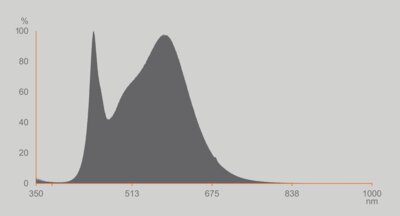

Spectral power distribution
Spectral graph Classic 4000K PNG (93.74 KB)
