LED CLASSIC A ENERGY EFFICIENCY B DIM S

LED CLASSIC A ENERGY EFFICIENCY B DIM S

Choose your product version

4.3W 827 Clear E27

4.3W 827 Frosted E27

5.7W 827 Frosted E27

NEW

5.7W 827 Frosted E27

NEW

5.7W 827 Clear E27

5.7W 827 Clear E27

8.2W 827 Clear E27

NEW

8.2W 827 Clear E27

8.2W 827 Frosted E27

NEW

8.2W 827 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic A 60 Filament DIM Energy efficiency class B S 4.3W 827 Clear E27 E27 4.3 W 220…240 V 50000 h 806 lm 60 W 300 ° Yes
LED Classic A 60 Filament DIM Energy efficiency class B S 4.3W 827 Frosted E27 E27 4.3 W 220…240 V 50000 h 806 lm 60 W 300 ° Yes
LED Classic A 75 Filament DIM Energy efficiency class B S 5.7W 827 Frosted E27 E27 5.7 W 220…240 V 50000 h 1055 lm 75 W 300 ° Yes
LED Classic A 75 Filament DIM Energy efficiency class B S 5.7W 827 Frosted E27 E27 5.7 W 220…240 V 50000 h 1055 lm 75 W 300 ° Yes
LED Classic A 75 Filament DIM Energy efficiency class B S 5.7W 827 Clear E27 E27 5.7 W 220…240 V 50000 h 1055 lm 75 W 300 ° Yes
LED Classic A 75 Filament DIM Energy efficiency class B S 5.7W 827 Clear E27 E27 5.7 W 220…240 V 50000 h 1055 lm 75 W 300 ° Yes
LED Classic A 100 Filament DIM Energy efficiency class B S 8.2W 827 Clear E27 E27 8.2 W 220…240 V 50000 h 1521 lm 100 W 300 ° Yes
LED Classic A 100 Filament DIM Energy efficiency class B S 8.2W 827 Clear E27 E27 8.2 W 220…240 V 50000 h 1521 lm 100 W 300 ° Yes
LED Classic A 100 Filament DIM Energy efficiency class B S 8.2W 827 Frosted E27 E27 8.2 W 220…240 V 50000 h 1521 lm 100 W 300 ° Yes
LED Classic A 100 Filament DIM Energy efficiency class B S 8.2W 827 Frosted E27 E27 8.2 W 220…240 V 50000 h 1521 lm 100 W 300 ° Yes


LED Classic A 60 Filament DIM Energy efficiency class B S 4.3W 827 Clear E27

Product benefits
  • Lamps with innovative LED "filament" technology
  • Low energy consumption
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Instant 100 % light, no warm-up time
  • Low flickering
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4.3 W
Construction wattage 4.30 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 60 W
Nominal current 22 mA
Type of current AC
Inrush current 2.58 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 20
Max. lamp number on MCB B16 A 33
Total harmonic distortion 32 %
Power factor λ ≥ 0.40

Photometrical data

Luminous flux 806 lm
Luminous efficacy 187 lm/W
Lumen main.fact.at end of nom.life time 0.96
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) ≤1.0
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 105.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 31.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 65 °C

Lifespan

Lifespan L70/B50 at 25 °C 50000 h
Number of switching cycles 500000
Lumen maintenance at end of service lifetime 0.96
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class B 1)
Energy consumption 5.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDCLA60DIMEELB

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power not applicable
Networked standby power for CLS not applicable
Claim of equivalent power Yes
Length 105.00 mm
Height 60.00 mm
Width 60.00 mm
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index >0
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor ≥0.4
LED light source replaces a fluorescent light source No
EPREL ID 1371378
Model number AC45257

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Low energy consumption
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Instant 100 % light, no warm-up time
  • Low flickering
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in outdoor luminaires only (minimum IP65)
Product features
  • LED lamps for line voltage
  • Very high efficiency of up to 185 lm/W
  • Beam angle: up to 300°
  • Very long lifetime of up to 50,000 h
  • Very high number of switching cycles: 500,000
  • Dimmable
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854065866 Folding box
1		 60 mm x 60 mm x 145 mm 46.00 g 0.52 dm³
4099854065873 Shipping box
6		 202 mm x 134 mm x 130 mm 381.00 g 3.52 dm³
Declarations of conformity
LED CLASSIC PDF (433.11 KB)
Product image: white background, diagonal with LEDVANCE logo
LED CLASSIC A DIM FIL CL E27 JPG (1.77 MB)

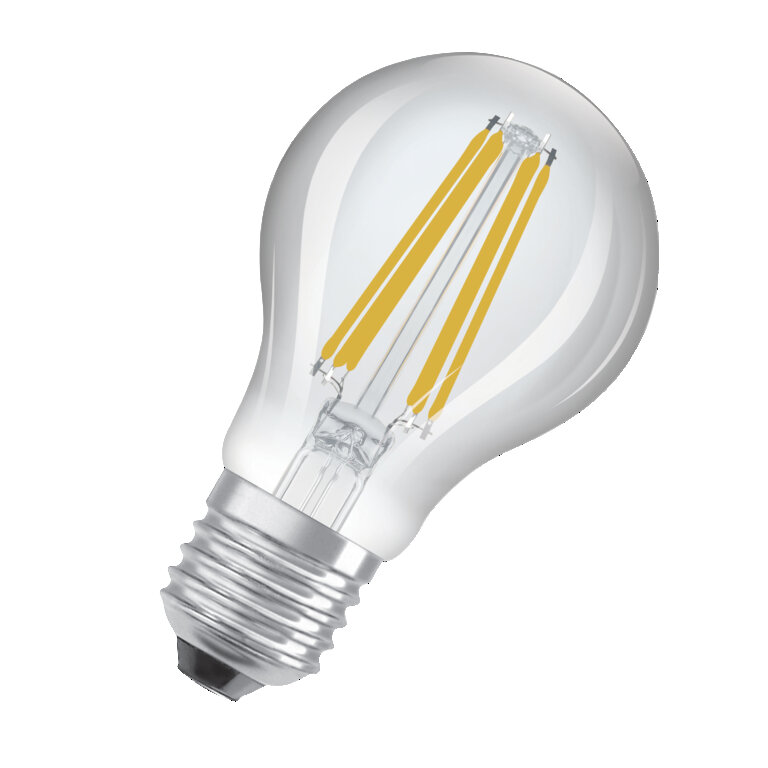

Product image: white background, diagonal
LED CLA 830 230V 6-Fil aments E27 Energy Clas s A JPG (1.52 MB)

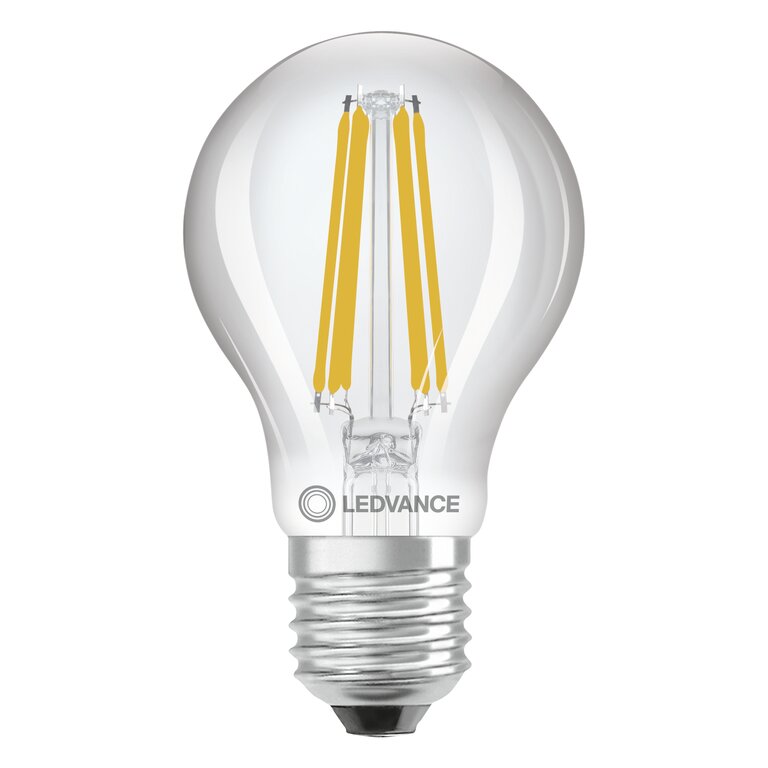

Product image: white background, upright LEDVANCE logo
LED CLASSIC A DIM FIL CL E27 JPG (1.56 MB)

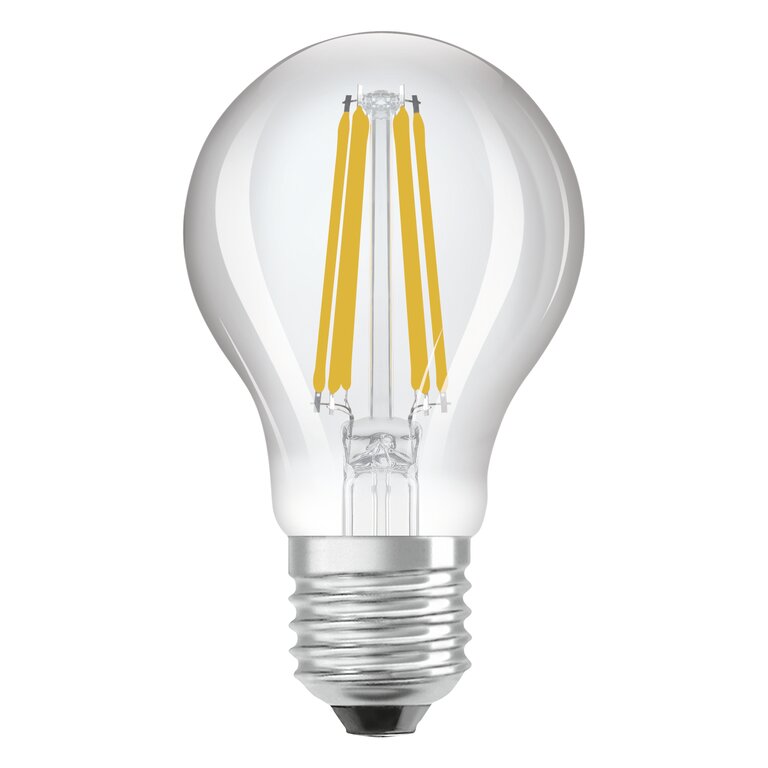

Product image: white background, upright
LED CLA 830 230V 6-Fil aments E27 Energy Clas s A JPG (1.51 MB)
Product line drawing with letters
LED CLA 830 230V 6-Fil aments E27 Energy Clas s A SVG (16.43 KB)
Product line drawing with numbers
LED CLA 830 230V 6-Fil aments E27 Energy Clas s A SVG (18.18 KB)
Product line drawing - technical
LED CLA 830 230V 6-Fil aments E27 Energy Clas s A SVG (12.58 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LED CLA 60 DIM ULTRA E FFICIENT 4.3W 827 FIL E27 MiCh JPG (2.13 MB)
Packaging image, frontal
LED CLA 60 DIM ULTRA E FFICIENT 4.3W 827 FIL E27 MiCh JPG (1.81 MB)
Packaging image, spacial
LED CLA 60 DIM ULTRA E FFICIENT 4.3W 827 FIL E27 MiCh JPG (2.56 MB)
Energy label
EL-4099854065866-AC452 57 PDF (21.31 KB)
Logos and pictos
B left SVG (2.27 KB)
Logos and pictos
B left BW SVG (1.07 KB)
Logos and pictos
B right SVG (2.24 KB)
Logos and pictos
B right BW SVG (1.06 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 2700K PNG (103.24 KB)
EAN SEG number STK number ELDAS number
4099854065866 8299046 4736698 941816080
