LED CLASSIC GLOBE ENERGY EFFICIENCY A S

LED CLASSIC GLOBE ENERGY EFFICIENCY A S

Choose your product version

3.8W 827 Clear E27

3.8W 827 Frosted E27

3.8W 830 Clear E27

3.8W 830 Frosted E27

3.8W 840 Clear E27

3.8W 840 Frosted E27

4W 830 Frosted E27

7.2W 827 Frosted E27

7.2W 840 Frosted E27

7.2W 865 Frosted E27

11.6W 840 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic Globe 95 60 Filament Energy efficiency class A S 3.8W 827 Clear E27 E27 3.8 W 220…240 V 50000 h 806 lm 60 W 300 ° No
LED Classic Globe 95 60 Filament Energy efficiency class A S 3.8W 827 Frosted E27 E27 3.8 W 220…240 V 50000 h 806 lm 60 W 300 ° No
LED Classic Globe 95 60 Filament Energy efficiency class A S 3.8W 830 Clear E27 E27 3.8 W 220…240 V 50000 h 806 lm 60 W 320 ° No
LED Classic Globe 95 60 Filament Energy efficiency class A S 3.8W 830 Frosted E27 E27 3.8 W 220…240 V 50000 h 806 lm 60 W 320 ° No
LED Classic Globe 95 60 Filament Energy efficiency class A S 3.8W 840 Clear E27 E27 3.8 W 220…240 V 50000 h 806 lm 60 W 300 ° No
LED Classic Globe 95 60 Filament Energy efficiency class A S 3.8W 840 Frosted E27 E27 3.8 W 220…240 V 50000 h 806 lm 60 W 300 ° No
LED Classic Globe 95 60 Energy efficiency class A S 4W 830 Frosted E27 E27 4 W 220…240 V 50000 h 840 lm 60 W 320 ° No
LED Classic Globe125 100 Filament Energy efficiency class A S 7.2W 827 Frosted E27 E27 7.2 W 220…240 V 50000 h 1521 lm 100 W 330 ° No
LED Classic Globe125 100 Filament Energy efficiency class A S 7.2W 840 Frosted E27 E27 7.2 W 220…240 V 50000 h 1521 lm 100 W 330 ° No
LED Classic Globe125 100 Filament Energy efficiency class A S 7.2W 865 Frosted E27 E27 7.2 W 220…240 V 50000 h 1521 lm 100 W 330 ° No
LED Classic Globe125 150 Filament Energy efficiency class A S 11.6W 840 Frosted E27 E27 11.6 W 220…240 V 50000 h 2452 lm 150 W 330 ° No


LED Classic Globe125 100 Filament Energy efficiency class A S 7.2W 865 Frosted E27

Product benefits
  • Lamps with innovative LED "filament" technology
  • Low energy consumption
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Instant 100 % light, no warm-up time
  • Low flickering
View all details

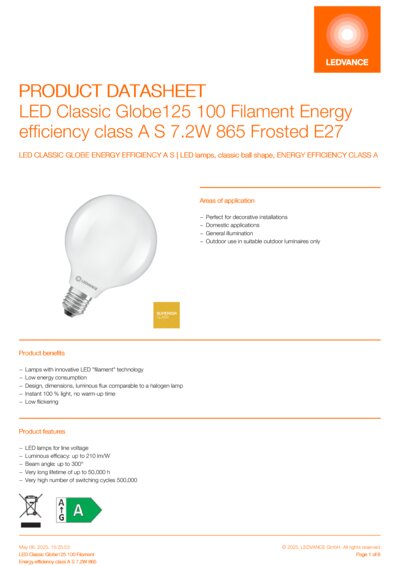

Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 7.2 W
Construction wattage 7.20 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 100 W
Nominal current 59 mA
Type of current AC
Inrush current 5.12 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 87
Max. lamp number on MCB B16 A 140
Total harmonic distortion 125.96 %
Power factor λ 0.53

Photometrical data

Luminous flux 1521 lm
Luminous efficacy 211 lm/W
Lumen main.fact.at end of nom.life time 0.96
Light color (designation) Cool Daylight
Color temperature 6500 K
Color rendering index Ra 80
Light color 865
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 330 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 168.00 mm
Diameter 125.00 mm
Maximum diameter 125 mm
Product weight 88.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point ≤65 °C

Lifespan

Lifespan L70/B50 at 25 °C 50000 h
Number of switching cycles 500000
Lumen maintenance at end of service lifetime 0.96

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class A 1)
Energy consumption 8.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDG125100EELA

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Networked standby power for CLS Not relevant
Claim of equivalent power Yes
Length 168.00 mm
Height 125.00 mm
Width 125.00 mm
Chromaticity coordinate x 0.313
Chromaticity coordinate y 0.337
R9 Colour rendering index 15
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.844
LED light source replaces a fluorescent light source No
EPREL ID 1902984,2185168
Model number AC59162,AC70018

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Low energy consumption
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Instant 100 % light, no warm-up time
  • Low flickering
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Luminous efficacy: up to 210 lm/W
  • Beam angle: up to 300°
  • Very long lifetime of up to 50,000 h
  • Very high number of switching cycles: 500,000
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854280313 Folding box
1		 140 mm x 140 mm x 189 mm 146.00 g 3.68 dm³
4099854280320 Shipping box
10		 710 mm x 290 mm x 203 mm 1832.00 g 41.80 dm³
Declarations of conformity
LED lamp PDF (312.17 KB)
Product image: white background, diagonal with LEDVANCE logo
LED GLOBE95 FILAMNET FROSTED EEA E27 JPG (2.06 MB)
Product image: white background, diagonal
LED GLOBE95 FILAMNET FROSTED EEA E27 JPG (2.02 MB)
Product image: white background, upright LEDVANCE logo
LED GLOBE95 FILAMNET FROSTED EEA E27 JPG (2.03 MB)
Product image: white background, upright
LED GLOBE95 FILAMNET FROSTED EEA E27 JPG (2 MB)
Product line drawing with letters
LED GLOBE95 FILAMNET FROSTED EEA E27 SVG (9.85 KB)
Product line drawing - technical
LED GLOBE95 FILAMNET FROSTED EEA E27 SVG (5.9 KB)

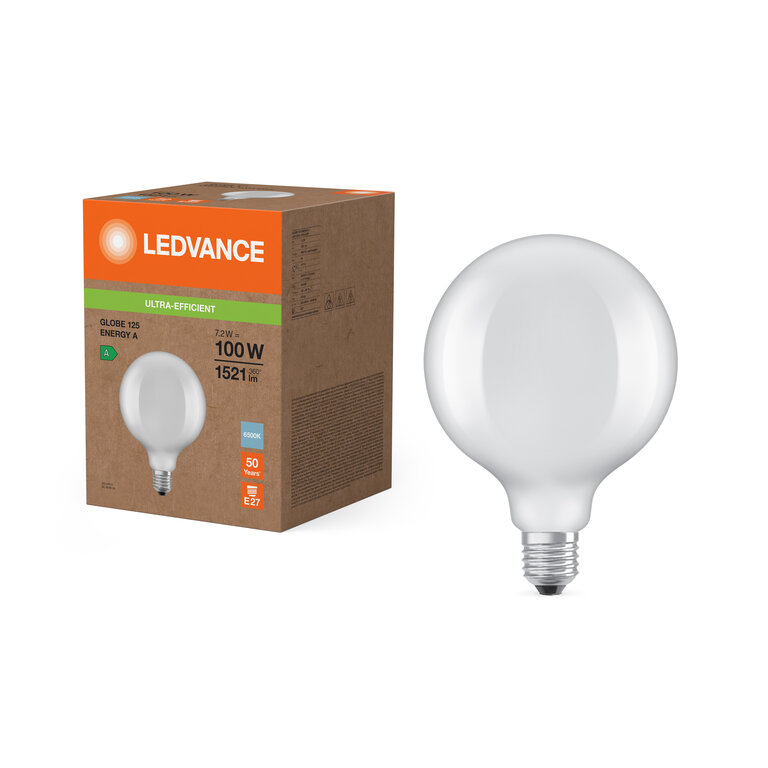

Combo Shot = Product Beauty Shot + Packaging Image
FC1 GLOBE125 100 SUP U LTRA EFFICIENT 7.2 865 GLFR E27 JPG (1.22 MB)
Packaging image, frontal
FC1 GLOBE125 100 SUP U LTRA EFFICIENT 7.2 865 GLFR E27 JPG (1.1 MB)
Packaging image, spacial
FC1 GLOBE125 100 SUP U LTRA EFFICIENT 7.2 865 GLFR E27 JPG (1.66 MB)
Energy label
EL-4099854280313-AC591 62 PDF (21.56 KB)
Energy label
EL-4099854280313-AC700 18 PDF (21.44 KB)
Logos and pictos
A left SVG (1.83 KB)
Logos and pictos
A left BW SVG (1.07 KB)
Logos and pictos
A right SVG (1.8 KB)
Logos and pictos
A right BW SVG (1.07 KB)

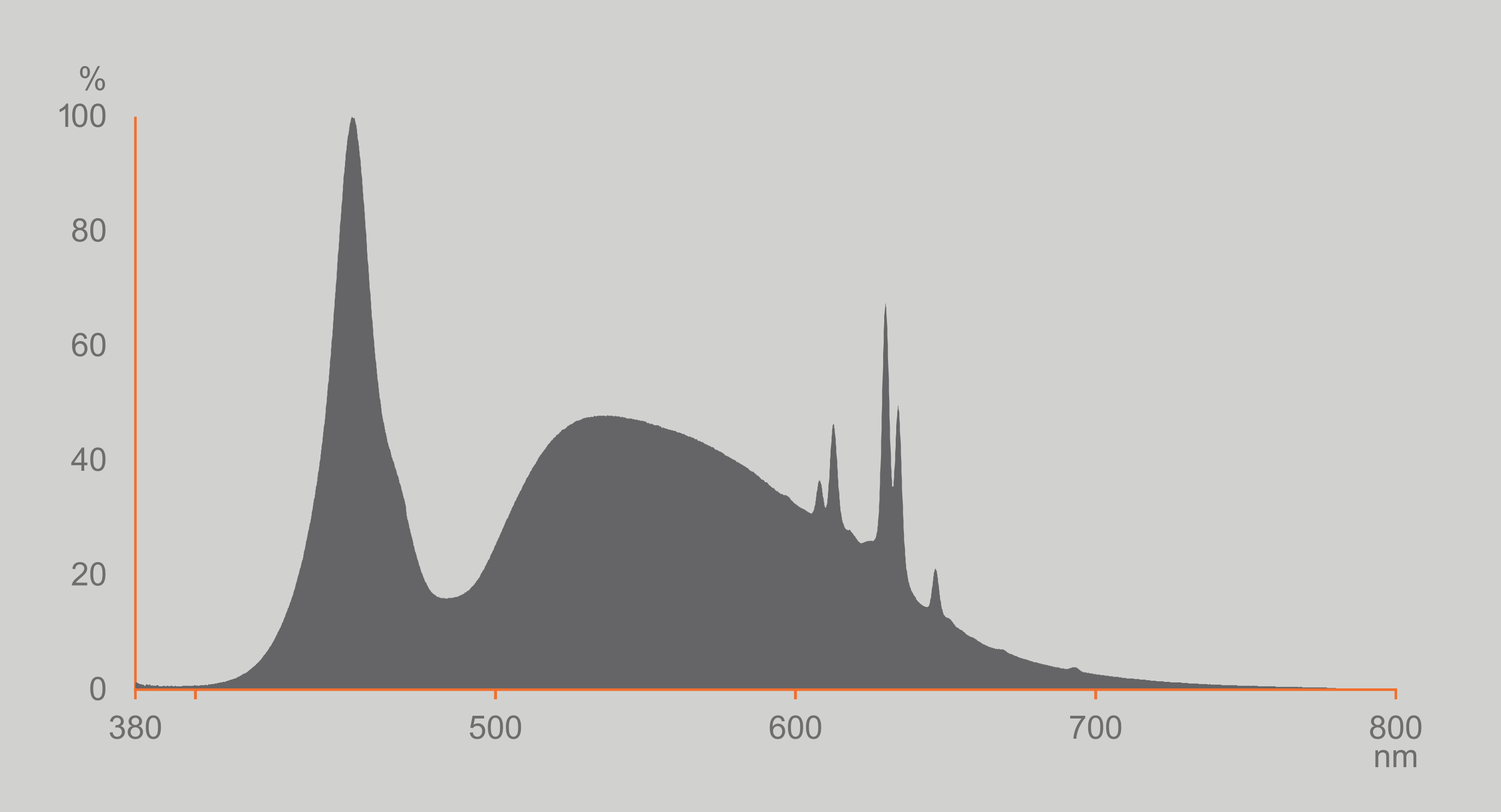

Spectral power distribution
LED GLOBE 6500 K GLFR E27 EEA JPG (1.09 MB)
EAN SEG number STK number
4099854280313 8299664 4737911
