LED CLASSIC B ENERGY EFFICIENCY B S

LED CLASSIC B ENERGY EFFICIENCY B S

Choose your product version

2.5W 827 Clear E14

2.5W 827 Frosted E14

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic B 40 Filament Energy efficiency class B S 2.5W 827 Clear E14 E14 2.5 W 220…240 V 50000 h 470 lm 40 W 300 ° No
LED Classic B 40 Filament Energy efficiency class B S 2.5W 827 Frosted E14 E14 2.5 W 220…240 V 50000 h 470 lm 40 W 300 ° No


LED Classic B 40 Filament Energy efficiency class B S 2.5W 827 Clear E14

Product benefits
  • Lamps with innovative LED "filament" technology
  • Low energy consumption
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Instant 100 % light, no warm-up time
  • Low flickering
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 2.5 W
Construction wattage 2.50 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 40 W
Nominal current 20 mA
Type of current AC
Inrush current 4 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 2307
Max. lamp number on MCB B16 A 3692
Power factor λ ≥ 0.40

Photometrical data

Luminous flux 470 lm
Luminous efficacy 188 lm/W
Lumen main.fact.at end of nom.life time 0.96
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) ≤1.0
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 100.00 mm
Diameter 35.00 mm
Maximum diameter 35 mm
Product weight 16.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 60 °C

Lifespan

Lifespan L70/B50 at 25 °C 50000 h
Number of switching cycles 500000
Lumen maintenance at end of service lifetime 0.96
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class B 1)
Energy consumption 3.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDCLB40EELB 2.

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power not applicable
Networked standby power for CLS not applicable
Claim of equivalent power Yes
Length 100.00 mm
Height 35.00 mm
Width 35.00 mm
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index >0
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor ≥0.4
LED light source replaces a fluorescent light source No
EPREL ID 1371389
Model number AC45268

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Low energy consumption
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Instant 100 % light, no warm-up time
  • Low flickering
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in outdoor luminaires only (minimum IP65)
Product features
  • LED lamps for line voltage
  • Very high efficiency of up to 188 lm/W
  • Beam angle: up to 300°
  • Very long lifetime of up to 50,000 h
  • Very high number of switching cycles: 500,000
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075747821 Folding box
1		 36 mm x 49 mm x 148 mm 31.00 g 0.26 dm³
4058075747838 Shipping box
6		 129 mm x 111 mm x 120 mm 241.00 g 1.72 dm³
Declarations of conformity
LED CLASSIC PDF (433.11 KB)

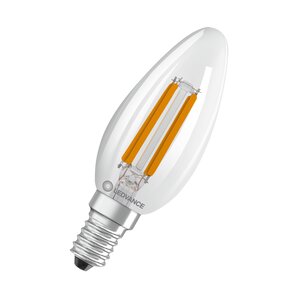

Product image: white background, diagonal with LEDVANCE logo
LED CLASSIC B40 EELB FIL CL E14 JPG (1.53 MB)

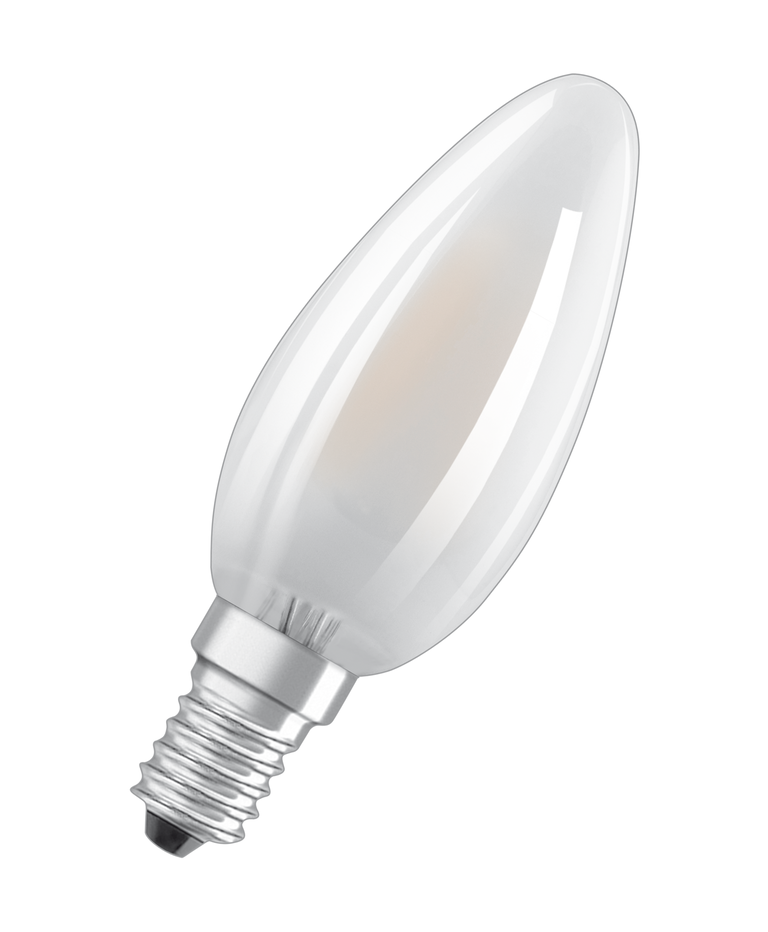

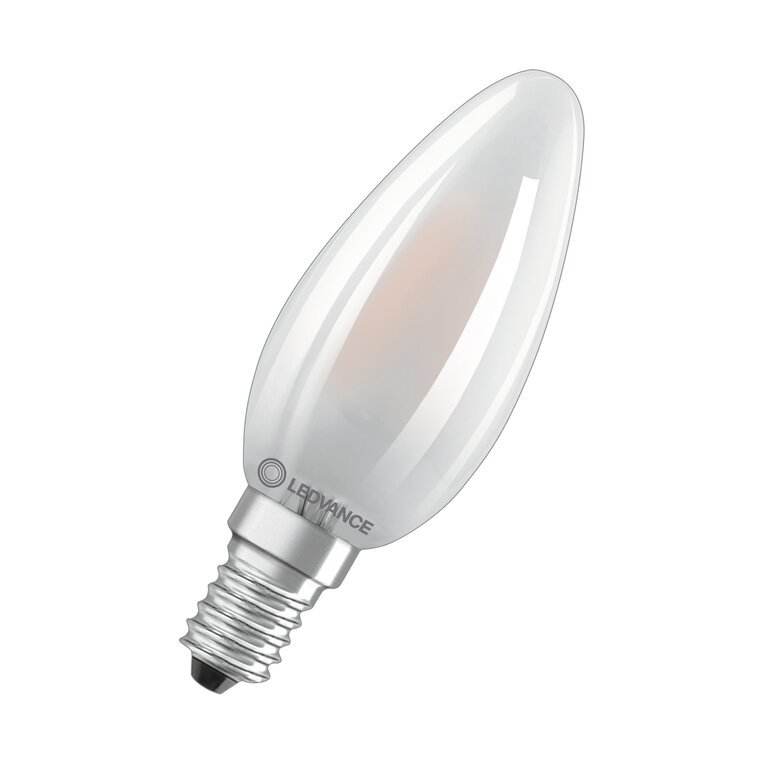

Product image: white background, diagonal
597751_RFCLB37 4 W/827 E14 clear TIF (49.69 MB)
Product image: white background, diagonal
LED CLASSIC B EEL B Cl ear 4- Filaments E14 JPG (1.48 MB)

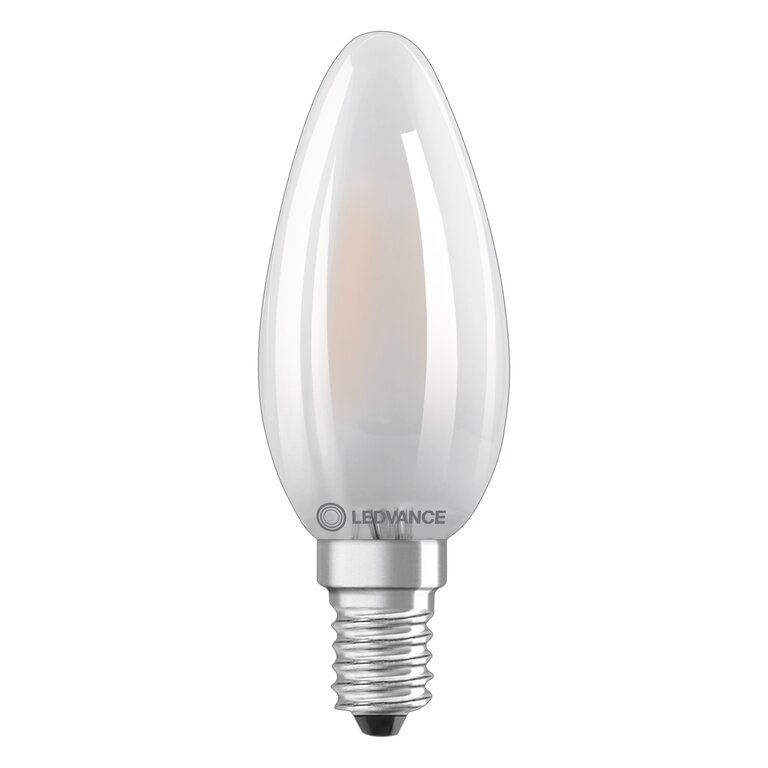

Product image: white background, upright LEDVANCE logo
LED CLASSIC B40 EELB FIL CL E14 JPG (1.42 MB)

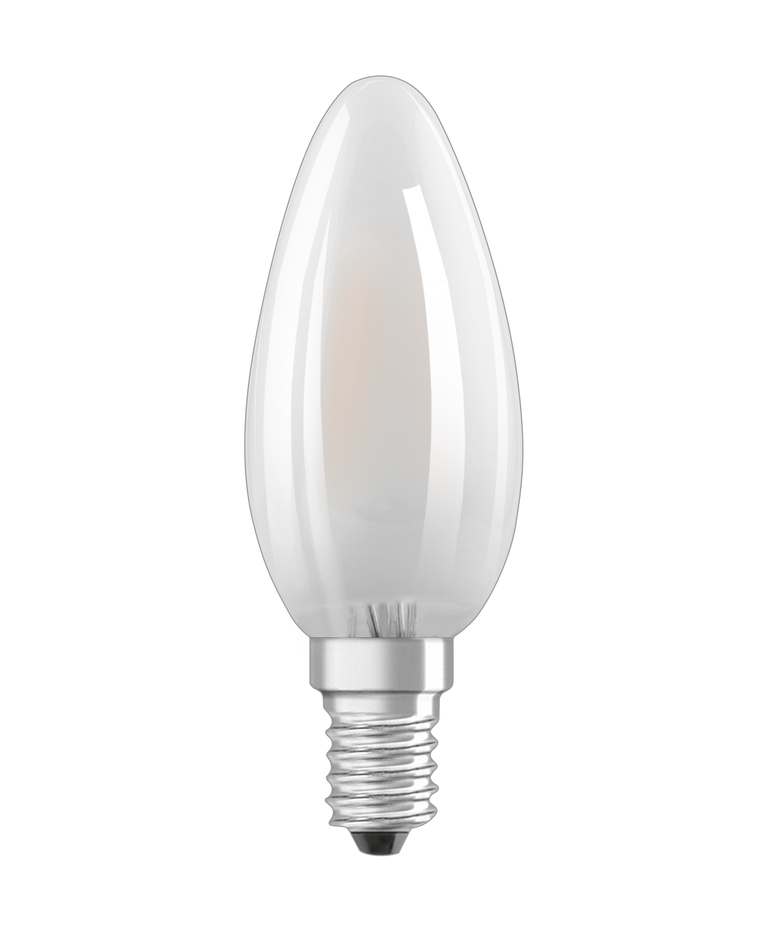

Product image: white background, upright
597763_RFCLB37 4 W/827 E14 clear TIF (49.69 MB)
Product image: white background, upright
LED CLASSIC B EEL B Cl ear 4- Filaments E14 JPG (1.37 MB)
Product line drawing with letters
603593_RFCLB37 4 W/827 E14 clear SVG (14.59 KB)
Product line drawing with letters
LED CLASSIC B EEL B Cl ear 4- Filaments E14 SVG (15.27 KB)
Product line drawing with numbers
LED CLASSIC B EEL B Cl ear 4- Filaments E14 SVG (16.9 KB)
Product line drawing, front, no dimensions
603608_RFCLB37 4 W/827 E14 clear SVG (11.42 KB)
Product line drawing - technical
LED CLASSIC B EEL B Cl ear 4- Filaments E14 SVG (11.11 KB)

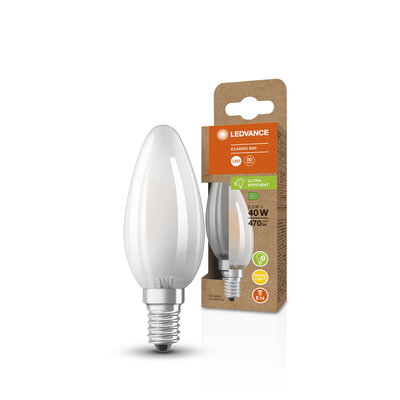

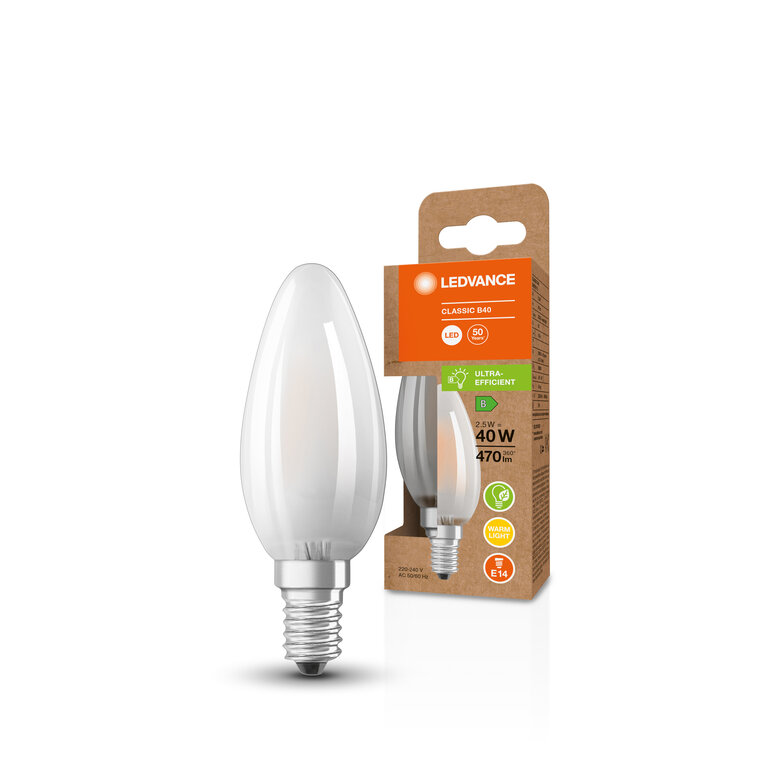

Combo Shot = Product Beauty Shot + Packaging Image
LED CLB 40 ULTRA EFFIC IENT 2.5W 827 FIL E14 MiCh JPG (1.56 MB)
Combo Shot = Product Beauty Shot + Packaging Image
LED CLB 40 ULTRA EFFIC IENT 2.5W 827 FIL E14 MiCh JPG (1.49 MB)

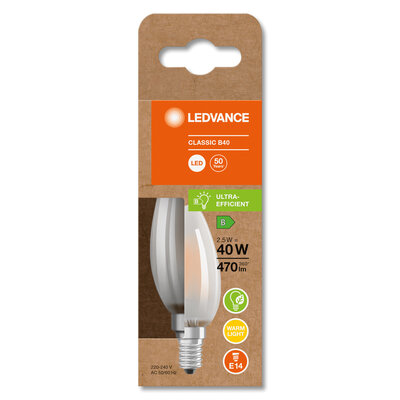

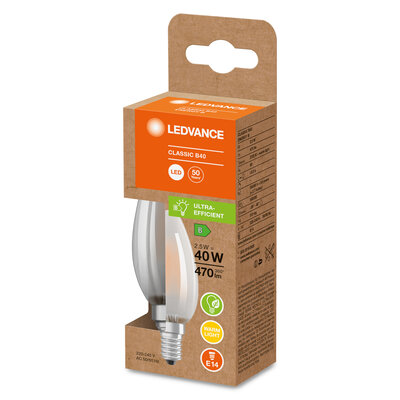

Packaging image, frontal
LED CLB 40 ULTRA EFFIC IENT 2.5W 827 FIL E14 MiCh JPG (2 MB)
Packaging image, spacial
LED CLB 40 ULTRA EFFIC IENT 2.5W 827 FIL E14 MiCh JPG (2 MB)
Energy label
EL-4058075747821-AC452 68 PDF (21.94 KB)
Logos and pictos
B left SVG (2.27 KB)
Logos and pictos
B left BW SVG (1.07 KB)
Logos and pictos
B right SVG (2.24 KB)
Logos and pictos
B right BW SVG (1.06 KB)

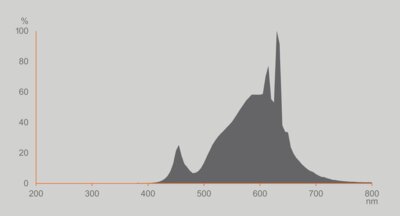

Spectral power distribution
