LED CLASSIC EDISON ENERGY EFFICIENCY A S

LED CLASSIC EDISON ENERGY EFFICIENCY A S

Choose your product version

NEW

3.8W 827 Clear E27

3.8W 830 Clear E27

4W 830 Clear E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic Edison 60 Filament Energy efficiency class A S 3.8W 827 Clear E27 E27 3.8 W 220…240 V 50000 h 806 lm 60 W 300 ° No
LED Classic Edison 60 Filament Energy efficiency class A S 3.8W 830 Clear E27 E27 3.8 W 220…240 V 50000 h 806 lm 60 W 320 ° No
LED Classic Edison 60 Filament Energy efficiency class A S 4W 830 Clear E27 E27 4 W 220…240 V 50000 h 840 lm 60 W 320 ° No


LED Classic Edison 60 Filament Energy efficiency class A S 4W 830 Clear E27

Product benefits
  • Lamps with innovative LED "filament" technology
  • Low energy consumption
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Instant 100 % light, no warm-up time
  • Low flickering
View all details
Product data sheet
Go to LEDVANCE successor product

PRODUCT DETAILS

Electrical data

Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Operating mode Mains voltage
Claimed equiv. conventional lamp power 60 W
Nominal current 37 mA
Type of current AC
Inrush current 2.57 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 54
Max. lamp number on MCB B16 A 68
Total harmonic distortion 125 %
Power factor λ ≥ 0.40

Photometrical data

Luminous flux 840 lm
Nominal useful luminous flux 90° 840 lm
Luminous efficacy 210 lm/W
Lumen main.fact.at end of nom.life time 0.98
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra ≥80
Light color 830
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0,4

Light technical data

Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 140.00 mm
Diameter 64.00 mm
Maximum diameter 64 mm
Product weight 46.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point <49 °C

Lifespan

Lifespan L70/B50 at 25 °C 50000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.98
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Design / version Clear

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class A
Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE, ERP, ROHS, REACH, UKCA
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LEDISON60 4W/83

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Networked standby power for CLS not applicable
Claim of equivalent power Yes
Length 140.00 mm
Height 64.00 mm
Width 64.00 mm
Chromaticity coordinate x 0,46
Chromaticity coordinate y 0,445
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0,90
Displacement factor not applicable
LED light source replaces a fluorescent light source No
EPREL ID 1260034
Model number AC43735

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Low energy consumption
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Instant 100 % light, no warm-up time
  • Low flickering
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Luminous efficacy: up to 210 lm/W
  • Beam angle: up to 300°
  • Very long lifetime of up to 50,000 h
  • Very high number of switching cycles: 500,000
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854002946 Folding box
1		 65 mm x 65 mm x 179 mm 65.00 g 0.76 dm³
4099854002953 Shipping box
6		 216 mm x 143 mm x 153 mm 495.00 g 4.73 dm³
Declarations of conformity
LED lamp Globe FIL lam p PDF (306.61 KB)

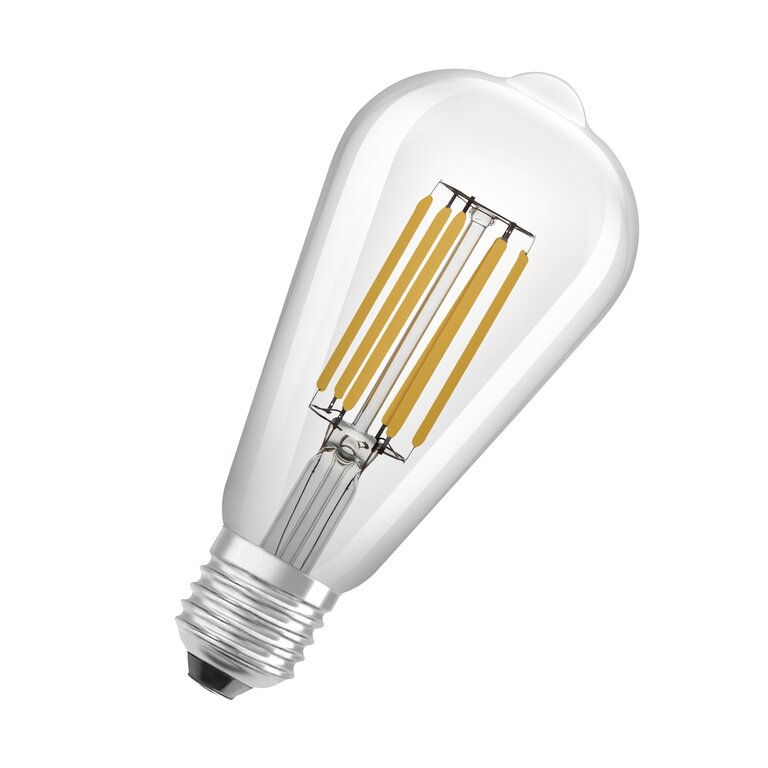

Product image: white background, diagonal
LEDISON60 4W/830 230V FIL UE E276X1OSRAM JPG (1.95 MB)

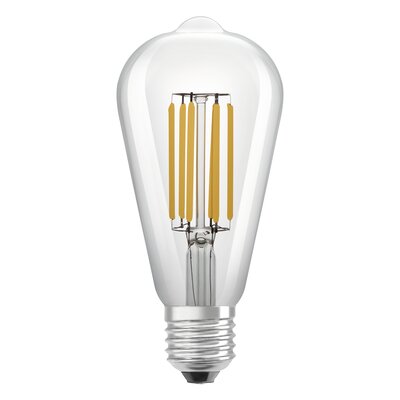

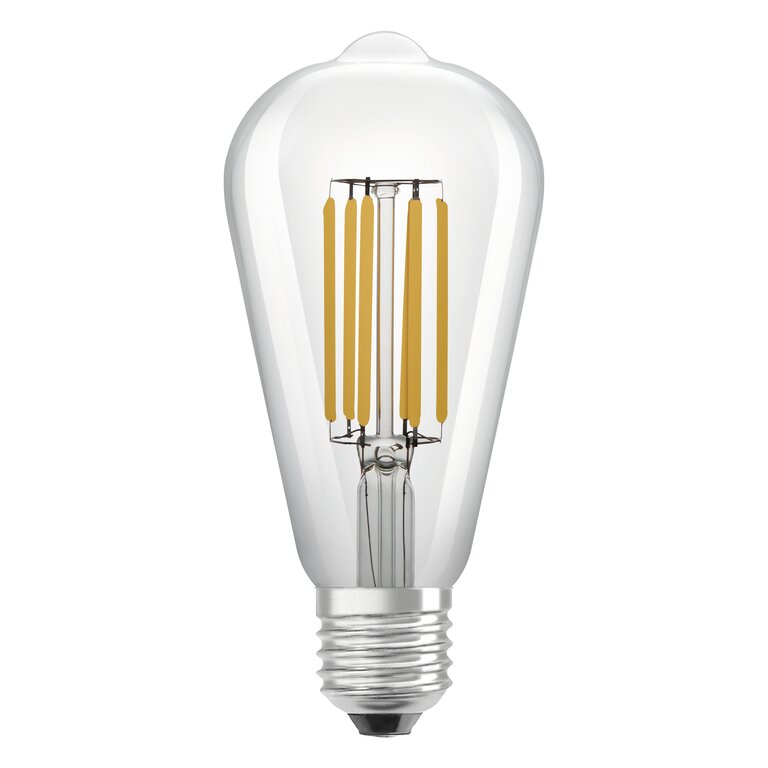

Product image: white background, upright
LEDISON60 4W-830 230V FIL UE E276X1OSRAM JPG (1.79 MB)
Product infographic (application image with text and graphic)
Ultra efficient assort ment E-Com-Grafik V2 1 200x1200 2023 EN JPG (727.86 KB)
Product infographic (application image with text and graphic)
Ultra efficient assort ment E-Com-Grafik V1 1 200x1200 2023 EN JPG (1.61 MB)
Product infographic (application image with text and graphic)
Ultra efficient assort ment E-Com-Grafik V3 1 200x1200 2023 EN JPG (629.36 KB)
Product line drawing with letters
LEDISON60 4W/830 230V FIL UE E276X1OSRAM SVG (16.92 KB)
Product line drawing with numbers
LEDISON60 4W/830 230V FIL UE E276X1OSRAM SVG (18.28 KB)
Product line drawing - technical
LEDISON60 4W/830 230V FIL UE E276X1OSRAM SVG (13.01 KB)

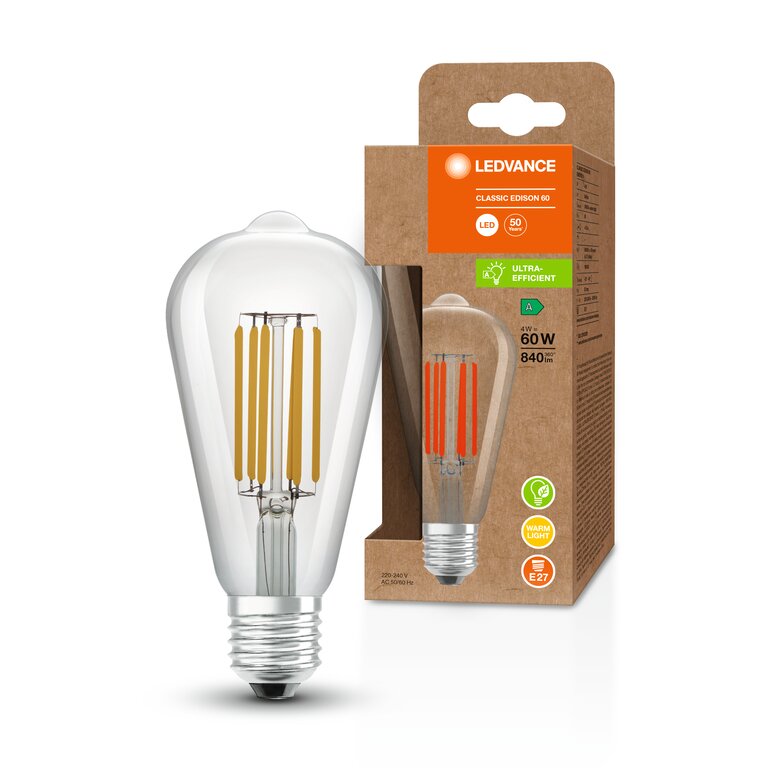

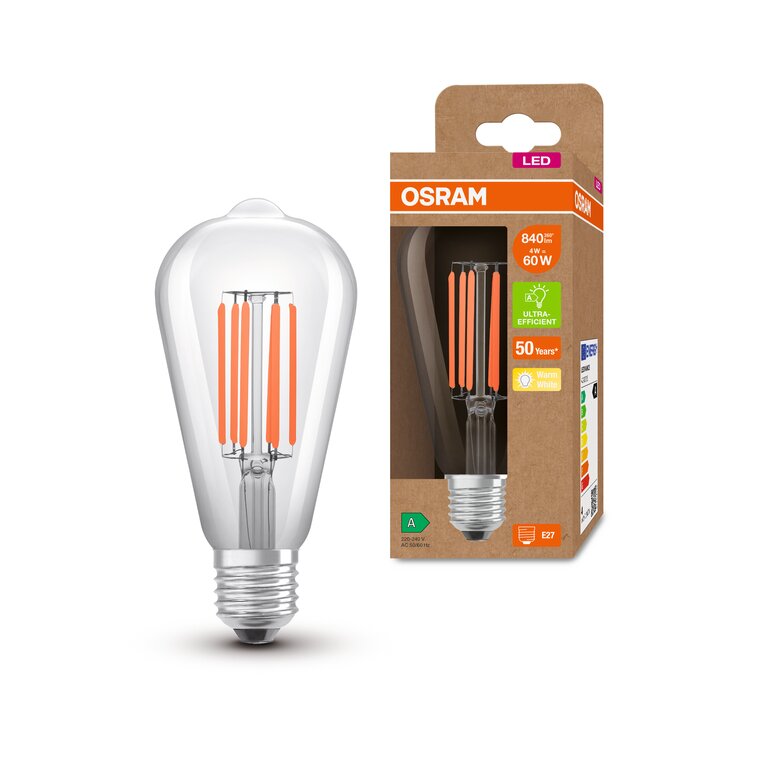

Combo Shot = Product Beauty Shot + Packaging Image
EDISON 60 ULTRA EFFICI ENT 4W 830 FIL E27 MiC h JPG (754.67 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LEDEdison60ULTRAEFFICI ENT4W830FILE27 JPG (2.95 MB)
Combo Shot = Product Beauty Shot + Packaging Image
LEDEDISON60ULTRAEFFICI ENT4W830FILE27 2 JPG (3.31 MB)
Combo Shot = Product Beauty Shot + Packaging Image
LEDEDISON60ULTRAEFFICI ENT4W830FILE27MiCh JPG (3.17 MB)
Packaging image, frontal
EDISON 60 ULTRA EFFICI ENT 4W 830 FIL E27 MiC h JPG (2.09 MB)
Packaging image, spacial
EDISON 60 ULTRA EFFICI ENT 4W 830 FIL E27 MiC h JPG (2.74 MB)
Energy label
EL-4099854002946-AC437 35 PDF (21.43 KB)
Logos and pictos
A left SVG (1.83 KB)
Logos and pictos
A left BW SVG (1.07 KB)
Logos and pictos
A right SVG (1.8 KB)
Logos and pictos
A right BW SVG (1.07 KB)
Spectral power distribution
EPREL Data Spectral Di agram LEDr 3000K Ener gy Class A Globe Ediso n SVG (67.34 KB)
EAN STK number ELDAS number
4099854002946 4736679 941814480
