LED CLASSIC A DIM CRI97 S

LED CLASSIC A DIM CRI97 S

Choose your product version

NEW

4.2W 927 Frosted E27

NEW

4.2W 927 Clear E27

NEW

7.2W 927 Frosted E27

NEW

7.2W 927 Clear E27

NEW

9.5W 927 Clear E27

NEW

9.5W 927 Frosted E27

NEW

13.8W 927 Frosted E27

NEW

13.8W 927 Clear E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic A 40 Filament DIM CRI97 S 4.2W 927 Frosted E27 E27 4.2 W 220…240 V 15000 h 470 lm 40 W 320 ° Yes
LED Classic A 40 Filament DIM CRI97 S 4.2W 927 Clear E27 E27 4.2 W 220…240 V 15000 h 470 lm 40 W 320 ° Yes
LED Classic A 60 Filament DIM CRI97 S 7.2W 927 Frosted E27 E27 7.2 W 220…240 V 15000 h 806 lm 60 W 320 ° Yes
LED Classic A 60 Filament DIM CRI97 S 7.2W 927 Clear E27 E27 7.2 W 220…240 V 15000 h 806 lm 60 W 320 ° Yes
LED Classic A 75 Filament DIM CRI97 S 9.5W 927 Clear E27 E27 9.5 W 220…240 V 15000 h 1055 lm 75 W 320 ° Yes
LED Classic A 75 Filament DIM CRI97 S 9.5W 927 Frosted E27 E27 9.5 W 220…240 V 15000 h 1055 lm 75 W 320 ° Yes
LED Classic A 100 Filament DIM CRI97 S 13.8W 927 Frosted E27 E27 13.8 W 220…240 V 15000 h 1521 lm 100 W 320 ° Yes
LED Classic A 100 Filament DIM CRI97 S 13.8W 927 Clear E27 E27 13.8 W 220…240 V 15000 h 1521 lm 100 W 320 ° Yes
NEW


LED Classic A 100 Filament DIM CRI97 S 13.8W 927 Frosted E27

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Low flickering
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 13.8 W
Construction wattage 13.80 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 100 W
Nominal current 72 mA
Type of current AC
Inrush current 0.072 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 139
Max. lamp number on MCB B16 A 222
Total harmonic distortion 80.20 %
Power factor λ 0.50

Photometrical data

Luminous flux 1521 lm
Luminous efficacy 110 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 97
Light color 927
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 110.00 mm
Diameter 67.00 mm
Maximum diameter 67 mm
Product weight 40.1 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 75.7 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 14.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LED CLA100DIM13

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 110.00 mm
Height 67.00 mm
Width 67.00 mm
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index 91
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.7
LED light source replaces a fluorescent light source No
EPREL ID 1370528,1854823
Model number AC45246,AC57843,AC57843

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Low flickering
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in outdoor luminaires only (minimum IP65)
Product features
  • High CRI & R9 for a natural lighting experience
  • Dimmable
  • LED lamps for line voltage
  • Beam angle: up to 300°
  • Lifetime: up to 15,000 h
  • Very high number of switching cycles: up to 100,000
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854065316 Folding box
1		 71 mm x 71 mm x 127 mm 56.10 g 0.64 dm³
4099854065323 Shipping box
10		 365 mm x 152 mm x 141 mm 669.00 g 7.82 dm³
Declarations of conformity
LED Lamp PDF (247.86 KB)

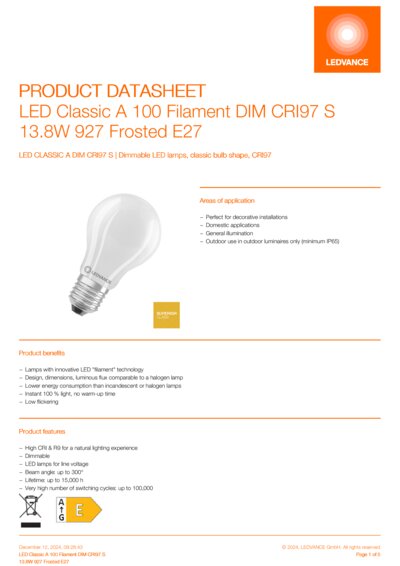

Product datasheet -> old version of product
LEDClassicA100Filament DIMCRI97S13.8W927Frost edE27en PDF (296.22 KB)
Product image: white background, diagonal with LEDVANCE logo
LED CLASSIC A FIL FR E 27 JPG (1.12 MB)
Product image: white background, diagonal
LED CLA GL FR E27 JPG (1.13 MB)
Product image: white background, upright LEDVANCE logo
LED CLASSIC A FIL FR E 27 JPG (1.08 MB)
Product image: white background, upright
LED CLA GL FR E27 JPG (1.06 MB)
Product line drawing with letters
LED CLA GL FR E27 SVG (7.17 KB)
Product line drawing with numbers
LED CLASSIC A DIM FILA MENT FROSTED E27 SVG (11.52 KB)
Product line drawing, front, no dimensions
LED CLA GL FR E27 SVG (4.26 KB)

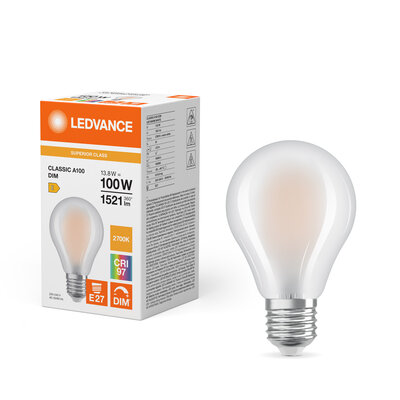

Combo Shot = Product Beauty Shot + Packaging Image
FC1 CLA 100 DIM SUP 13 .8W 927 GLFR E27 JPG (1.14 MB)

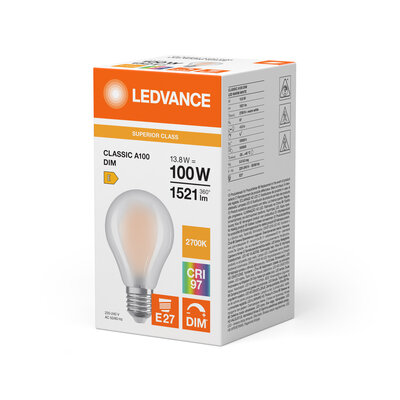

Packaging image, frontal
FC1 CLA 100 DIM SUP 13 .8W 927 GLFR E27 JPG (862.05 KB)
Packaging image, spacial
FC1 CLA 100 DIM SUP 13 .8W 927 GLFR E27 JPG (1.21 MB)
Energy label
EL-4099854065316-AC452 46 PDF (21.5 KB)
Energy label
EL-4099854065316-AC578 43 PDF (21.8 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
Spectral power distribution
Spectral graph classic A 2700 K DIM JPG (389.96 KB)
EAN SEG number STK number ELDAS number
4099854065316 8299024 4736730 941815780
