LED CLASSIC B DIM CRI97 S

LED CLASSIC B DIM CRI97 S

Choose your product version

NEW

4.2W 927 Clear E14

NEW

4.2W 927 Frosted E14

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic B 40 Filament DIM CRI97 S 4.2W 927 Clear E14 E14 4.2 W 220…240 V 15000 h 470 lm 40 W 320 ° Yes
LED Classic B 40 Filament DIM CRI97 S 4.2W 927 Frosted E14 E14 4.2 W 220…240 V 15000 h 470 lm 40 W 320 ° Yes
NEW


LED Classic B 40 Filament DIM CRI97 S 4.2W 927 Frosted E14

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Low flickering
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4.2 W
Construction wattage 4.20 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 40 W
Nominal current 28 mA
Type of current AC
Inrush current 0.028 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 357
Max. lamp number on MCB B16 A 571
Total harmonic distortion 78.20 %
Power factor λ 0.50

Photometrical data

Luminous flux 470 lm
Luminous efficacy 111 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 97
Light color 927
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 100.00 mm
Diameter 35.00 mm
Maximum diameter 35 mm
Product weight 15.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 60 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93

Additional product data

Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 5.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LED CLB40DIM 4.

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 100.00 mm
Height 35.00 mm
Width 35.00 mm
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index 91
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.9
LED light source replaces a fluorescent light source No
EPREL ID 1370532,1854810
Model number AC45255,AC57847,AC57847

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Low flickering
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in outdoor luminaires only (minimum IP65)
Product features
  • High CRI & R9 for a natural lighting experience
  • Dimmable
  • LED lamps for line voltage
  • Beam angle: up to 300°
  • Lifetime: up to 15,000 h
  • Very high number of switching cycles: up to 100,000
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854065613 Folding box
1		 39 mm x 39 mm x 109 mm 29.00 g 0.17 dm³
4099854065620 Shipping box
10		 205 mm x 87 mm x 123 mm 338.00 g 2.19 dm³
Declarations of conformity
LED Lamp PDF (247.86 KB)

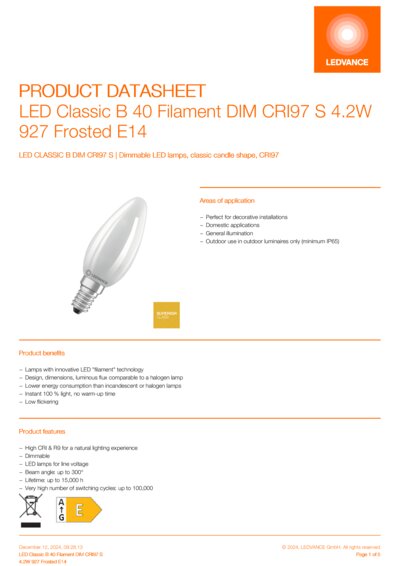

Product datasheet -> old version of product
LEDClassicB40FilamentD IMCRI97S4.2W927Frosted E14en PDF (245.44 KB)
Product image: white background, diagonal with LEDVANCE logo
LED CLB FIL E14 JPG (3.53 MB)
Product image: white background, diagonal
LED CLB GL FR E14 JPG (1.06 MB)
Product image: white background, upright LEDVANCE logo
LED CLB FIL E14 JPG (3.42 MB)
Product image: white background, upright
LED CLB GL FR E14 JPG (955.95 KB)
Product line drawing with letters
LED CLB GL FR E14 SVG (7.36 KB)
Product line drawing, front, no dimensions
LED CLB GL FR E14 SVG (4.45 KB)

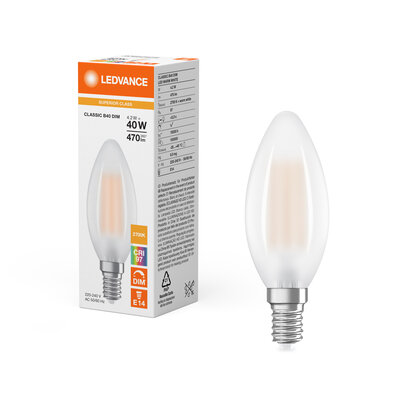

Combo Shot = Product Beauty Shot + Packaging Image
FC1 CLB 40 DIM SUP 4.2 W 927 GLFR E14 JPG (954.87 KB)

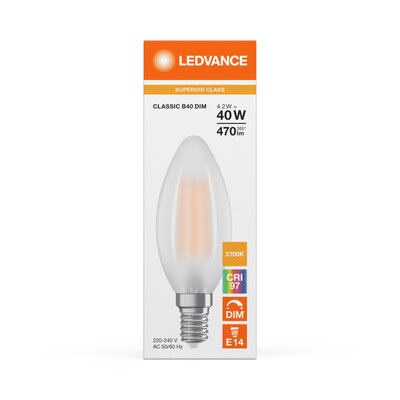

Packaging image, frontal
FC1 CLB 40 DIM SUP 4.2 W 927 GLFR E14 JPG (767.28 KB)

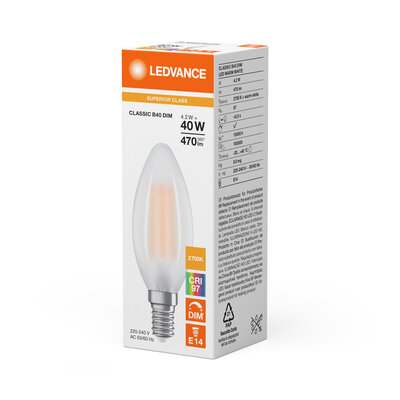

Packaging image, spacial
FC1 CLB 40 DIM SUP 4.2 W 927 GLFR E14 JPG (985.5 KB)
Energy label
EL-4099854065613-AC452 55 PDF (21.37 KB)
Energy label
EL-4099854065613-AC578 47 PDF (21.6 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
Spectral power distribution
Spectral graph classic B P 2700 K DIM JPG (179.39 KB)
EAN SEG number STK number ELDAS number
4099854065613 8299026 4736732 941816440
