LED PAR30 DIM P

LED PAR30 DIM P

Choose your product version

10W 927 E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED PAR30 75 36° DIM P 10W 927 E27 E27 10 W 220…240 V 25000 h 633 lm 75 W 36 ° Yes


LED PAR30 75 36° DIM P 10W 927 E27

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Stepless dimming
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
View all details

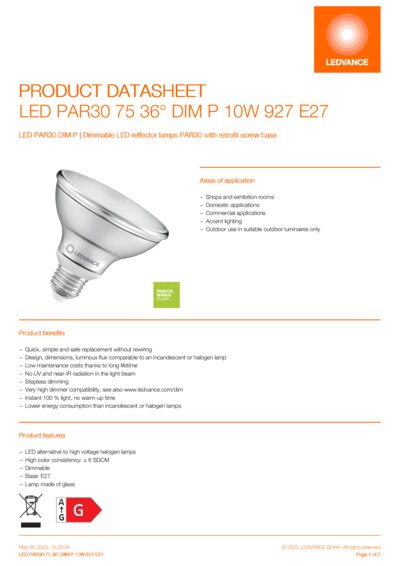

Product data sheet
Go to OSRAM predecessor product

PRODUCT DETAILS

Electrical data

Nominal wattage 10 W
Construction wattage 10.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 75 W
Nominal current 58 mA
Type of current AC
Inrush current 0.23 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 145
Max. lamp number on MCB B16 A 232
Total harmonic distortion < 180 %
Power factor λ > 0.50

Photometrical data

Luminous intensity 1500 cd
Luminous flux 633 lm
Nominal useful luminous flux 90° 633 lm
Luminous efficacy 63 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 90
Light color 927
Standard deviation of color matching ≤6 sdcm
Rated peak intensity 1500 cd
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 36 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 93.00 mm
Diameter 95.00 mm
Maximum diameter 95 mm
Product weight 160.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 90 °C

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Spot
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class G 1)
Energy consumption 10.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LED PAR307536 D

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional DLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 93.00 mm
Height 95.00 mm
Width 95.00 mm
Chromaticity coordinate x 0.4578
Chromaticity coordinate y 0.4101
R9 Colour rendering index 59.6
Beam angle correspondence NARROW_CONE_90
Survival factor 0.90
Displacement factor ＞0.7
LED light source replaces a fluorescent light source No
EPREL ID 522918,2176383
Model number AC32689,AC70573

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Stepless dimming
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Shops and exhibition rooms
  • Domestic applications
  • Commercial applications
  • Accent lighting
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to high voltage halogen lamps
  • High color consistency: ≤ 6 SDCM
  • Dimmable
  • Base: E27
  • Lamp made of glass
  • Very high color rendering (Ra: 90)
  • Lifetime: up to 25,000 h
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854071195 Folding box
1		 100 mm x 100 mm x 149 mm 228.00 g 1.49 dm³
4099854071201 Shipping box
6		 312 mm x 211 mm x 163 mm 1516.00 g 10.73 dm³
Declarations of conformity
LED PAR M2 lamp PDF (161.14 KB)

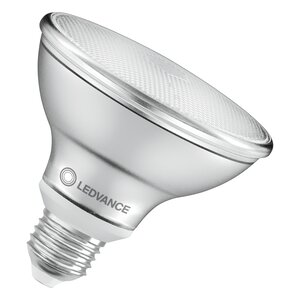

Product image: white background, diagonal with LEDVANCE logo
PAR30 JPG (4.69 MB)
Product image: white background, diagonal
LED PAR30 E27 TIF (30.85 MB)
Product image: white background, upright LEDVANCE logo
PAR30 JPG (4.61 MB)
Product image: white background, upright
LED PAR30 E27 TIF (30.84 MB)
Product line drawing with letters
LED PAR30 E27 SVG (9.9 KB)
Product line drawing with numbers
LED PAR30 E27 SVG (12.73 KB)
Product line drawing, front, no dimensions
LED PAR30 E27 SVG (6.75 KB)

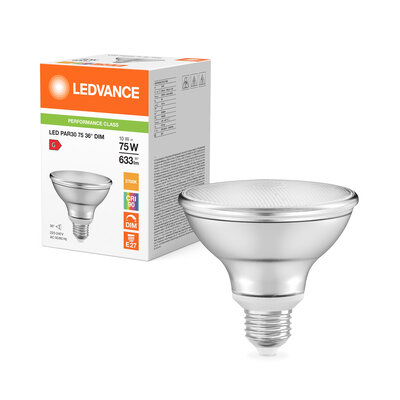

Combo Shot = Product Beauty Shot + Packaging Image
FC1 PAR30 75 DIM PFM 1 0W ba36 927 GL E27 JPG (1.18 MB)
Packaging image, frontal
FC1 PAR30 75 DIM PFM 1 0W ba36 927 GL E27 JPG (924.13 KB)
Packaging image, spacial
FC1 PAR30 75 DIM PFM 1 0W ba36 927 GL E27 JPG (1.25 MB)
Energy label
EL-4099854071195-AC326 89 PDF (21.68 KB)
Energy label
EL-4099854071195-AC705 73 PDF (21.39 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)
Spectral power distribution
Everlight 67-23ST HKE 2700K PNG (108.23 KB)
EAN SEG number STK number EFO number ELDAS number
4099854071195 8299310 4737523 3756166 941818300
