LED PAR38 DIM P

LED PAR38 DIM P

Choose your product version

15.2W 927 E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED PAR38 120 30° DIM P 15.2W 927 E27 E27 15.2 W 220…240 V 25000 h 1035 lm 120 W 30 ° Yes


LED PAR38 120 30° DIM P 15.2W 927 E27

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Stepless dimming
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
View all details

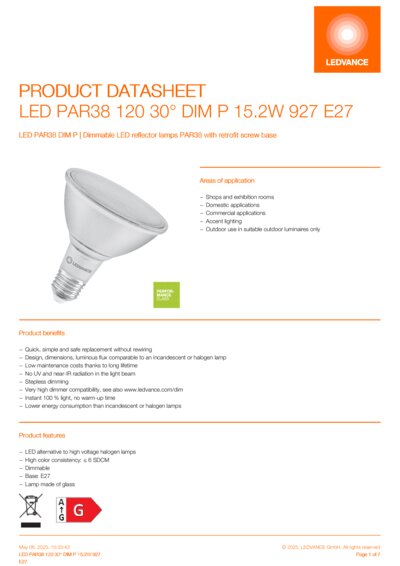

Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 15.2 W
Construction wattage 15.20 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 120 W
Nominal current 91 mA
Type of current AC
Inrush current 0.298 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 105
Max. lamp number on MCB B16 A 168
Total harmonic distortion ≤ 180 %
Power factor λ > 0.50

Photometrical data

Luminous intensity 2800 cd
Luminous flux 1035 lm
Nominal useful luminous flux 90° 1035 lm
Luminous efficacy 68 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 90
Light color 927
Standard deviation of color matching ≤6 sdcm
Rated peak intensity 2800 cd
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 30 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 134.00 mm
Diameter 122.00 mm
Maximum diameter 122 mm
Product weight 300.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 98.9 °C

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Spot
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class G 1)
Energy consumption 16.00 kWh/1000h
Type of protection IP65
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LED PAR3812030

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional DLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 134.00 mm
Height 122.00 mm
Width 122.00 mm
Chromaticity coordinate x 0.4578
Chromaticity coordinate y 0.4101
R9 Colour rendering index 46
Beam angle correspondence NARROW_CONE_90
Survival factor 0.90
Displacement factor ＞0.7
LED light source replaces a fluorescent light source No
EPREL ID 522916,2176392
Model number AC32691,AC70574

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Stepless dimming
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Shops and exhibition rooms
  • Domestic applications
  • Commercial applications
  • Accent lighting
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to high voltage halogen lamps
  • High color consistency: ≤ 6 SDCM
  • Dimmable
  • Base: E27
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80
  • Lifetime: up to 25,000 h
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854071270 Folding box
1		 127 mm x 129 mm x 170 mm 415.00 g 2.79 dm³
4099854071287 Shipping box
6		 402 mm x 278 mm x 196 mm 2859.00 g 21.90 dm³
Declarations of conformity
LED PAR M2 lamp PDF (161.14 KB)

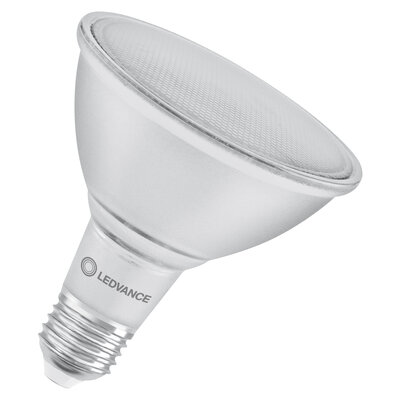

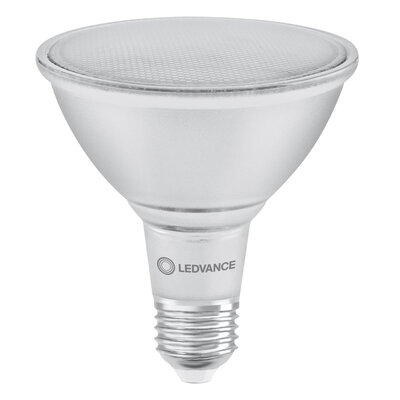

Product image: white background, diagonal with LEDVANCE logo
PAR 38 JPG (2.16 MB)

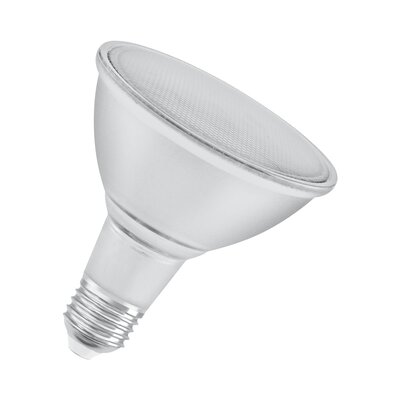

Product image: white background, diagonal
LED PAR38 TIF (12.18 MB)
Product image: white background, upright LEDVANCE logo
PAR 38 JPG (2.12 MB)

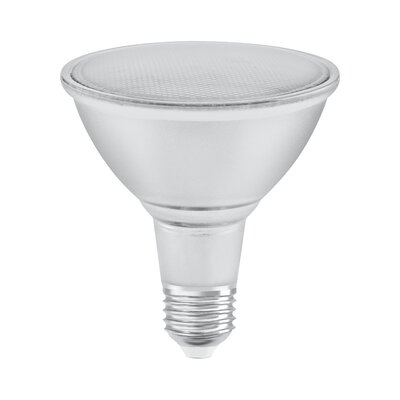

Product image: white background, upright
LED PAR38 TIF (12.33 MB)
Product line drawing with letters
LED PAR38 SVG (9.87 KB)
Product line drawing with numbers
LED PAR38 SVG (12.6 KB)
Product line drawing, front, no dimensions
LED PAR38 SVG (6.76 KB)

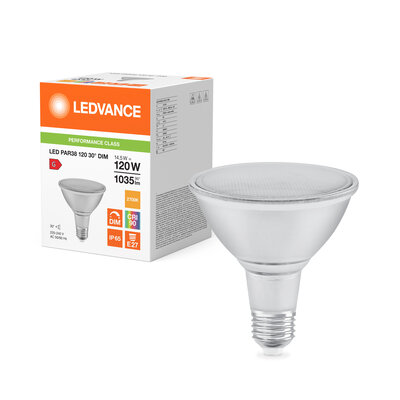

Combo Shot = Product Beauty Shot + Packaging Image
FC1 PAR38 120 DIM PFM 15.2W ba30 927 GL E27 JPG (1.19 MB)
Packaging image, frontal
FC1 PAR38 120 DIM PFM 15.2W ba30 927 GL E27 JPG (952.13 KB)
Packaging image, spacial
FC1 PAR38 120 DIM PFM 15.2W ba30 927 GL E27 JPG (1.28 MB)
Energy label
EL-4099854071270-AC326 91 PDF (21.73 KB)
Energy label
EL-4099854071270-AC705 74 PDF (21.42 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)

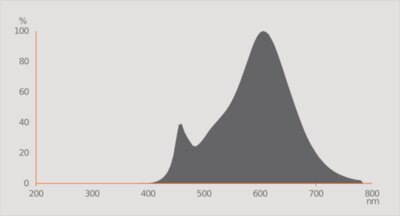

Spectral power distribution
Bridgelux 27E-13H-9B 2 700K PNG (107.75 KB)
EAN SEG number STK number EFO number ELDAS number
4099854071270 8299311 4737524 3756167 941818310
