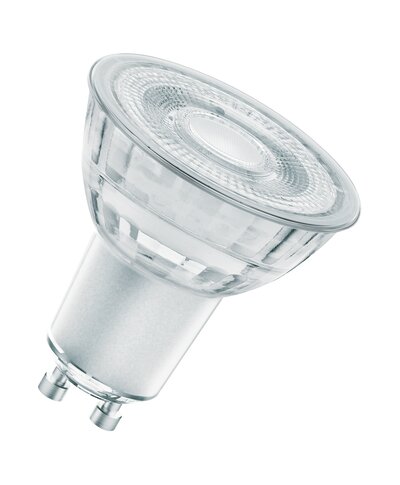

LED PAR16 GLOWdim S

LED PAR16 GLOWdim S

Choose your product version

4.5W 827 GU10

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED PAR16 50 36° GlowDim S 4.5W 827 GU10 GU10 4.5 W 220…240 V 25000 h 350 lm 50 W 36 ° Yes


LED PAR16 50 36° GlowDim S 4.5W 827 GU10

Product benefits
  • Always fitting light atmosphere by changing light color from warm white to extra warm white with dimming
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
View all details

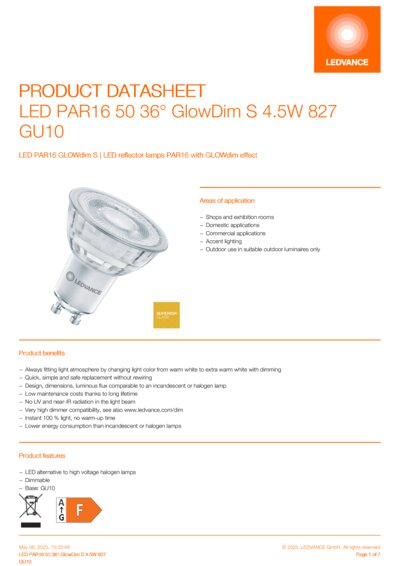

Product data sheet
Go to OSRAM predecessor product

PRODUCT DETAILS

Electrical data

Nominal wattage 4.5 W
Construction wattage 4.50 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 50 W
Nominal current 23 mA
Type of current AC
Inrush current 2.68 A
Operating frequency 50 Hz
Mains frequency 50 Hz
Max. lamp number on MCB B10 A 53
Max. lamp number on MCB B16 A 84
Total harmonic distortion 150 %
Power factor λ > 0.50

Photometrical data

Luminous intensity 750 cd
Luminous flux 350 lm
Nominal useful luminous flux 90° 350 lm
Luminous efficacy 77 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 1800…2700 K
Color rendering index Ra 80
Light color 818…827
Standard deviation of color matching ≤6 sdcm
Rated peak intensity 750 cd
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 36 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 54.00 mm
Diameter 50.00 mm
Maximum diameter 50 mm
Product weight 45.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 105.1 °C

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) GU10
Mercury content 0.0 mg
Mercury-free Yes
Design / version Spot
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Added function Glow DIM

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 5.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LED PAR165036 G

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional DLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) GU10
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type RANGE
Standby power 0 W
Claim of equivalent power Yes
Length 54.00 mm
Height 50.00 mm
Width 50.00 mm
Chromaticity coordinate x 0.4578
Chromaticity coordinate y 0.4101
R9 Colour rendering index 4
Beam angle correspondence NARROW_CONE_90
Survival factor 0.90
Displacement factor > 0.5
LED light source replaces a fluorescent light source No
EPREL ID 522964,2180128
Model number AC32686,AC70525

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Always fitting light atmosphere by changing light color from warm white to extra warm white with dimming
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Shops and exhibition rooms
  • Domestic applications
  • Commercial applications
  • Accent lighting
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to high voltage halogen lamps
  • Dimmable
  • Base: GU10
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80
  • Lifetime: up to 15,000 h
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854071430 Folding box
1		 49 mm x 49 mm x 62 mm 52.00 g 0.15 dm³
4099854071447 Shipping box
10		 255 mm x 107 mm x 72 mm 573.00 g 1.96 dm³

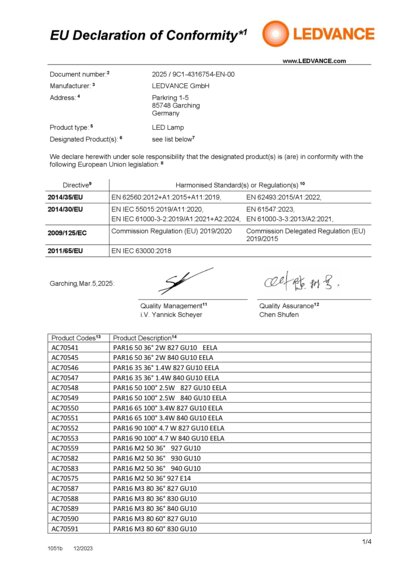

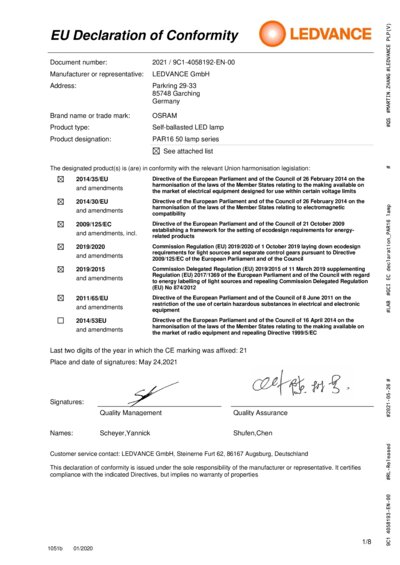

Declarations of conformity
LED lamp PAR16 50 PDF (159.83 KB)

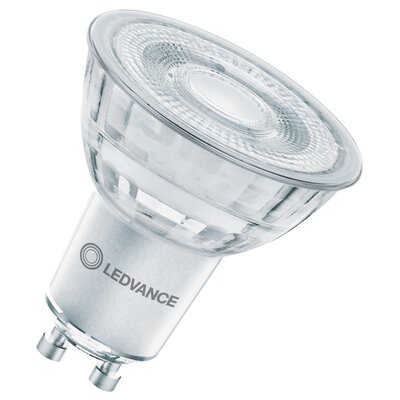

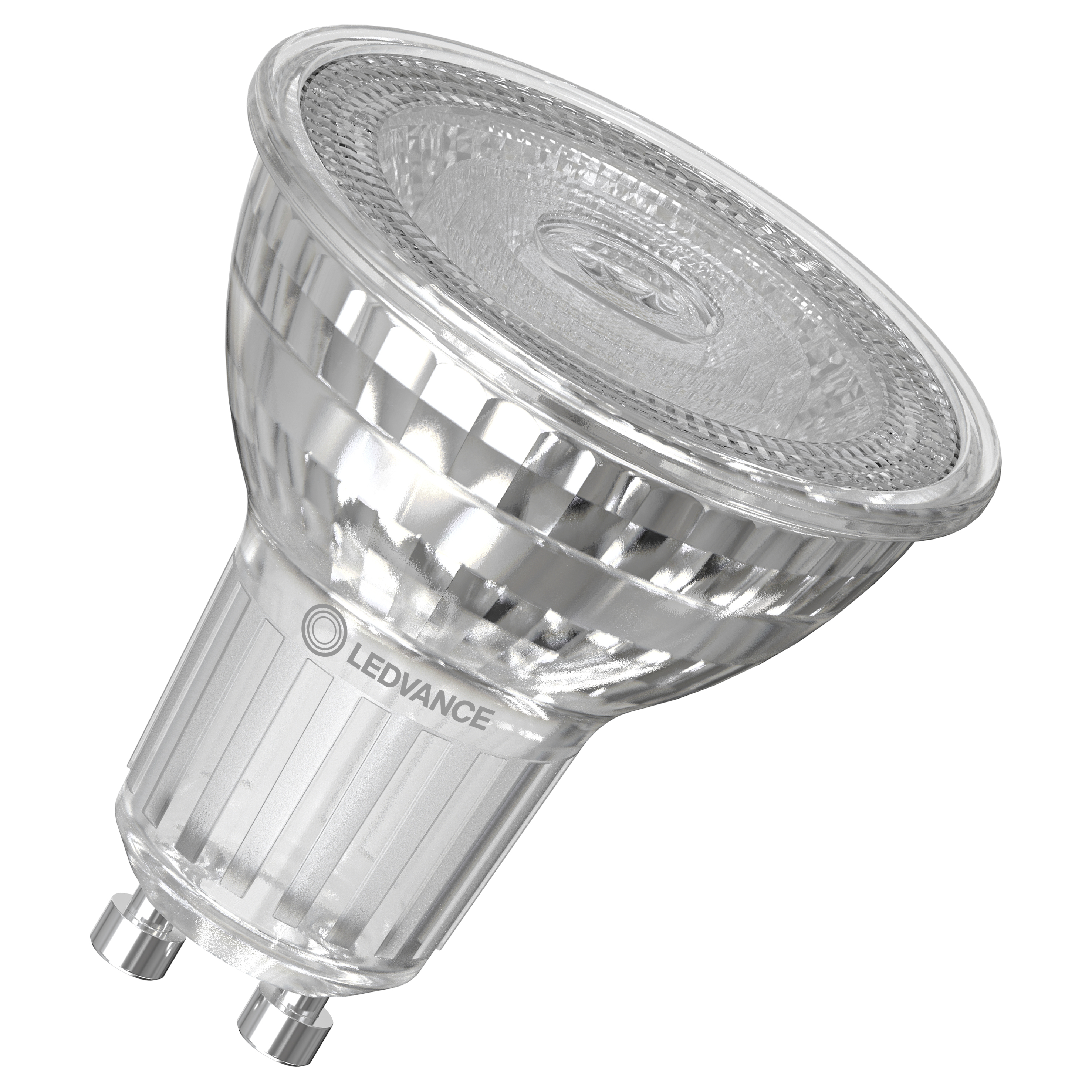

Product image: white background, diagonal with LEDVANCE logo
PAR16 JPG (2.88 MB)

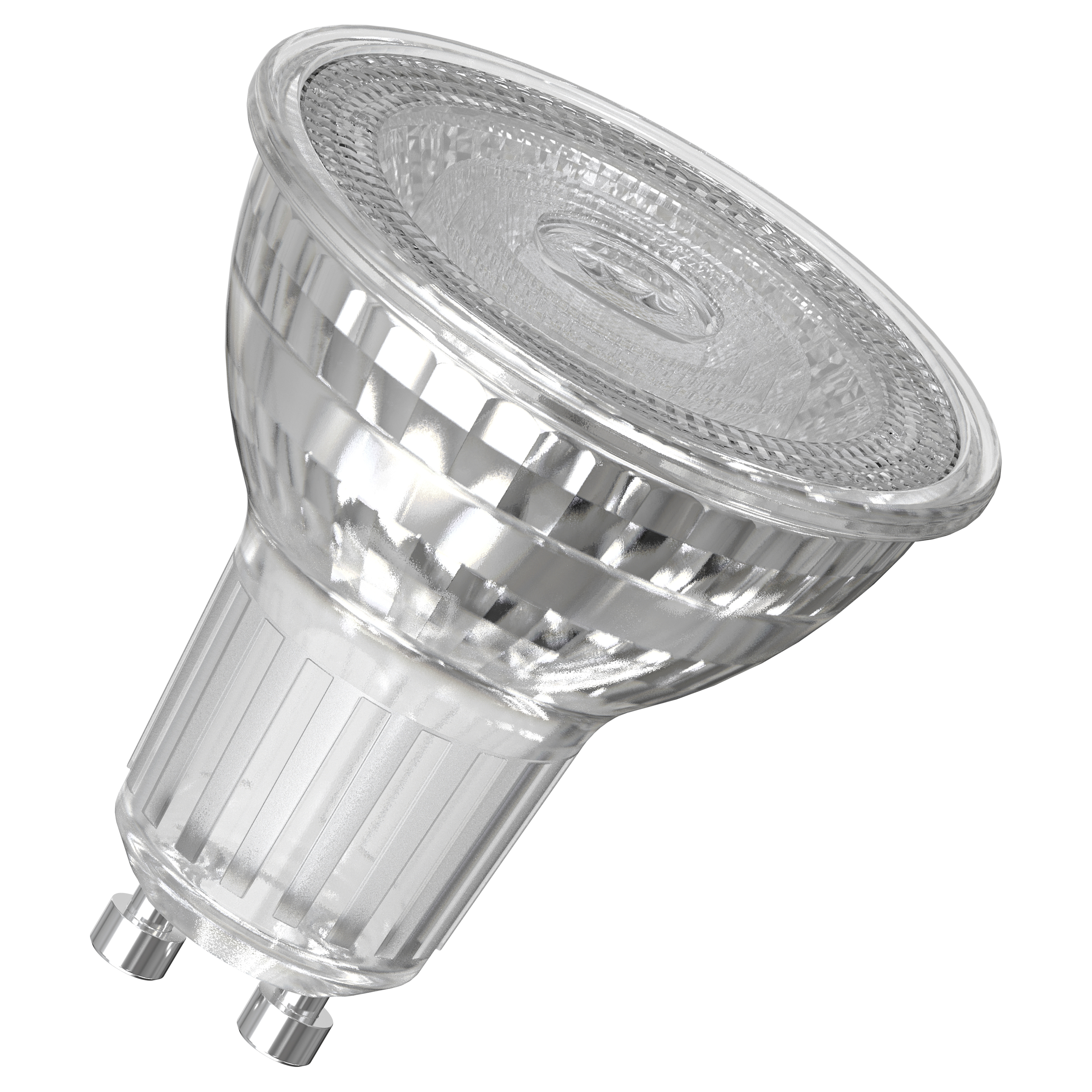

Product image: white background, diagonal
LED PAR16 TIF (8.74 MB)

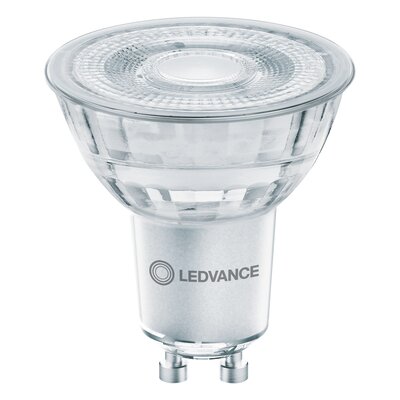

Product image: white background, upright LEDVANCE logo
PAR16 JPG (2.57 MB)

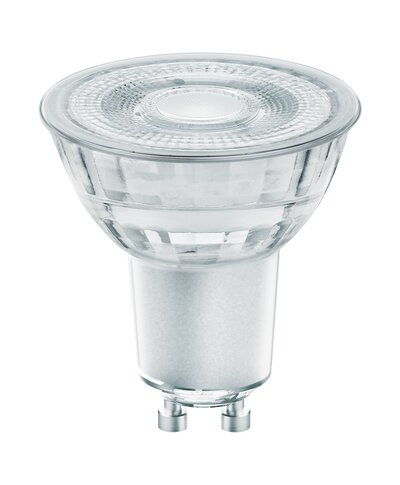

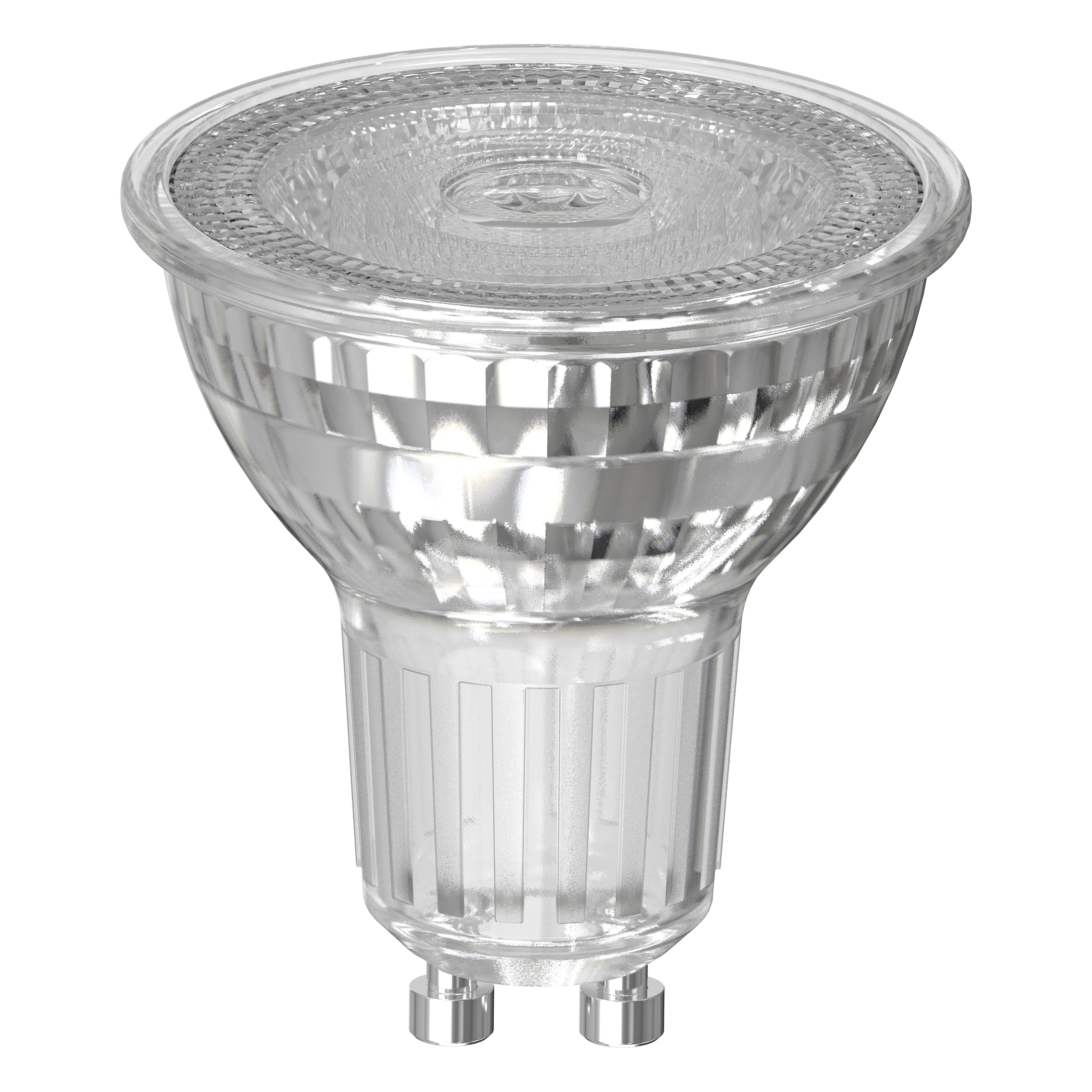

Product image: white background, upright
LED PAR16 TIF (8.74 MB)
Product line drawing with letters
LED PAR16 SVG (18.83 KB)
Product line drawing with numbers
LED PAR16 SVG (9.05 KB)
Product line drawing - technical
LED PAR16 SVG (15.69 KB)

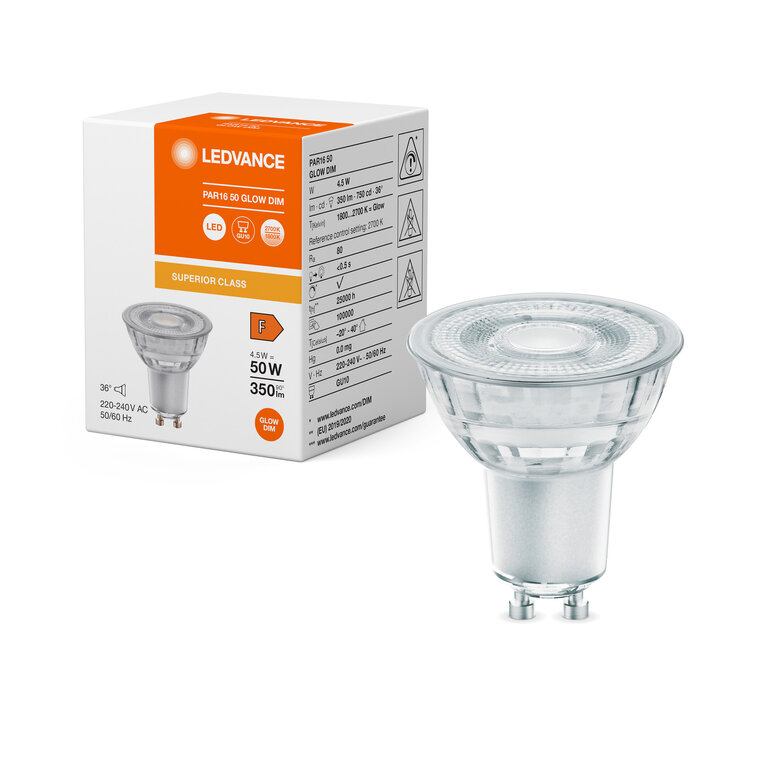

Combo Shot = Product Beauty Shot + Packaging Image
FC1 PAR16 50 GlowDIM S UP 4.5W ba36 827 GL GU 10 JPG (769.96 KB)

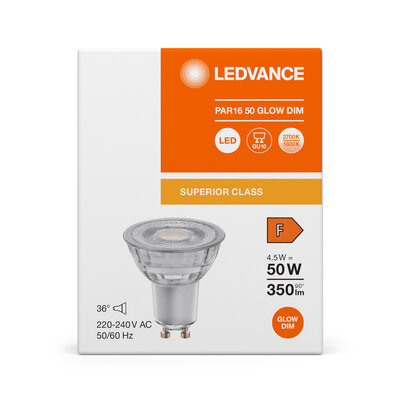

Packaging image, frontal
FC1 PAR16 50 GlowDIM S UP 4.5W ba36 827 GL GU 10 JPG (618.88 KB)

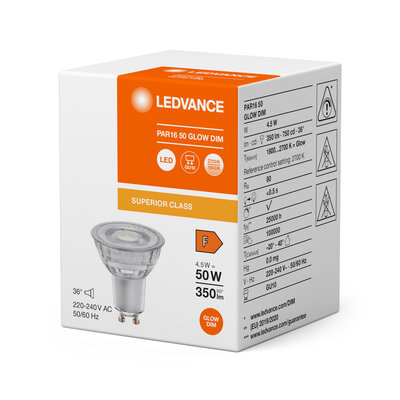

Packaging image, spacial
FC1 PAR16 50 GlowDIM S UP 4.5W ba36 827 GL GU 10 JPG (778.07 KB)
Energy label
EL-4099854071430-AC326 86 PDF (21.84 KB)
Energy label
EL-4099854071430-AC705 25 PDF (21.16 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
Spectral power distribution
Everlight 67-23ST KKE 2700K PNG (115.88 KB)
EAN SEG number STK number EFO number ELDAS number
4099854071430 8299400 4737558 3768008 941004330
