LED PAR16 P

LED PAR16 P

Choose your product version

2.6W 827 GU10

2.6W 830 GU10

2.6W 840 GU10

4.5W 827 E14

4.3W 827 GU10

4.3W 827 GU10

4.3W 827 GU10

4.3W 830 GU10

4.3W 830 GU10

4.3W 830 GU10

4.3W 840 GU10

4.3W 840 GU10

4.3W 840 GU10

6.9W 827 GU10

6.9W 827 GU10

6.9W 830 GU10

6.9W 830 GU10

6.9W 840 GU10

6.9W 840 GU10

6.9W 827 GU10

6.9W 830 GU10

6.9W 840 GU10

7W 840 GU10

8W 827 GU10

8W 830 GU10

9.6W 827 GU10

9.6W 830 GU10

9.6W 840 GU10

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED PAR16 35 36° P 2.6W 827 GU10 GU10 2.6 W 220…240 V 15000 h 230 lm 35 W 36 ° No
LED PAR16 35 36° P 2.6W 830 GU10 GU10 2.6 W 220…240 V 15000 h 230 lm 35 W 36 ° No
LED PAR16 35 36° P 2.6W 840 GU10 GU10 2.6 W 220…240 V 15000 h 230 lm 35 W 36 ° No
LED PAR16 50 36° P 4.5W 827 E14 E14 4.5 W 220…240 V 10000 h 350 lm 50 W 36 ° No
LED PAR16 50 120° P 4.3W 827 GU10 GU10 4.3 W 220…240 V 15000 h 350 lm 32 W 120 ° No
LED PAR16 50 36° P 4.3W 827 GU10 GU10 4.3 W 220…240 V 15000 h 350 lm 50 W 36 ° No
LED PAR16 50 36° P 4.3W 827 GU10 GU10 4.3 W 220…240 V 10000 h 350 lm 50 W 36 ° No
LED PAR16 50 36° P 4.3W 830 GU10 GU10 4.3 W 220…240 V 10000 h 350 lm 50 W 36 ° No
LED PAR16 50 120° P 4.3W 830 GU10 GU10 4.3 W 220…240 V 15000 h 350 lm 32 W 120 ° No
LED PAR16 50 36° P 4.3W 830 GU10 GU10 4.3 W 220…240 V 15000 h 350 lm 50 W 36 ° No
LED PAR16 50 36° P 4.3W 840 GU10 GU10 4.3 W 220…240 V 15000 h 350 lm 50 W 36 ° No
LED PAR16 50 36° P 4.3W 840 GU10 GU10 4.3 W 220…240 V 10000 h 350 lm 50 W 36 ° No
LED PAR16 50 120° P 4.3W 840 GU10 GU10 4.3 W 220…240 V 15000 h 350 lm 32 W 120 ° No
LED PAR16 80 60° P 6.9W 827 GU10 GU10 6.9 W 220…240 V 15000 h 575 lm 80 W 60 ° No
LED PAR16 80 36° P 6.9W 827 GU10 GU10 6.9 W 220…240 V 15000 h 575 lm 80 W 36 ° No
LED PAR16 80 36° P 6.9W 830 GU10 GU10 6.9 W 220…240 V 15000 h 575 lm 80 W 36 ° No
LED PAR16 80 60° P 6.9W 830 GU10 GU10 6.9 W 220…240 V 15000 h 575 lm 80 W 60 ° No
LED PAR16 80 60° P 6.9W 840 GU10 GU10 6.9 W 220…240 V 15000 h 575 lm 80 W 60 ° No
LED PAR16 80 36° P 6.9W 840 GU10 GU10 6.9 W 220…240 V 15000 h 575 lm 80 W 36 ° No
LED PAR16 80 120° P 6.9W 827 GU10 GU10 6.9 W 220…240 V 15000 h 620 lm 49 W 120 ° No
LED PAR16 80 120° P 6.9W 830 GU10 GU10 6.9 W 220…240 V 15000 h 620 lm 49 W 120 ° No
LED PAR16 80 120° P 6.9W 840 GU10 GU10 6.9 W 220…240 V 15000 h 620 lm 49 W 120 ° No
LED PAR16 100 36° P 7W 840 GU10 GU10 7 W 220…240 V 15000 h 750 lm 100 W 36 ° No
LED PAR16 100 36° P 8W 827 GU10 GU10 8 W 220…240 V 15000 h 750 lm 100 W 36 ° No
LED PAR16 100 36° P 8W 830 GU10 GU10 8 W 220…240 V 15000 h 750 lm 100 W 36 ° No
LED PAR16 100 36° P 9.6W 827 GU10 GU10 9.6 W 220…240 V 15000 h 750 lm 100 W 36 ° No
LED PAR16 100 36° P 9.6W 830 GU10 GU10 9.6 W 220…240 V 15000 h 750 lm 100 W 36 ° No
LED PAR16 100 36° P 9.6W 840 GU10 GU10 9.6 W 220…240 V 15000 h 750 lm 100 W 36 ° No


LED PAR16 35 36° P 2.6W 827 GU10

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
View all details

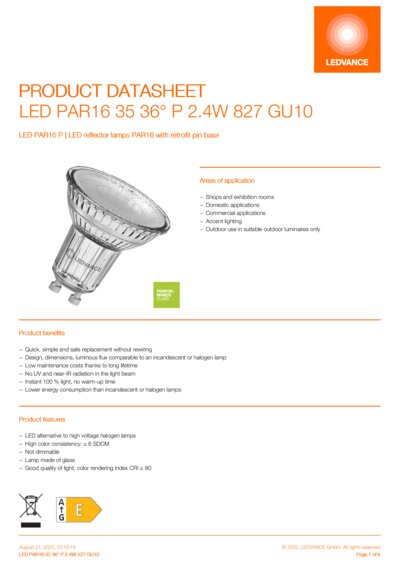

Product data sheet
Go to OSRAM predecessor product

PRODUCT DETAILS

Electrical data

Nominal wattage 2.6 W
Construction wattage 2.60 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 35 W
Nominal current 25 mA
Type of current AC
Inrush current 4.3 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 28
Max. lamp number on MCB B16 A 33
Power factor λ > 0.40

Photometrical data

Luminous intensity 400 cd
Luminous flux 230 lm
Nominal useful luminous flux 90° 230 lm
Luminous efficacy 88 lm/W
Lumen main.fact.at end of nom.life time 0.95
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated peak intensity 400 cd
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 36 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 54.00 mm
Diameter 50.00 mm
Maximum diameter 50 mm
Product weight 40.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 77 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.95
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) GU10
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 3.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LED PAR163536 2

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional DLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) GU10
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 54.00 mm
Height 50.00 mm
Width 50.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 9
Beam angle correspondence NARROW_CONE_90
Survival factor 0.90
Displacement factor ＞0.4
LED light source replaces a fluorescent light source No
EPREL ID 1368221
Model number AC45691

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Shops and exhibition rooms
  • Domestic applications
  • Commercial applications
  • Accent lighting
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to high voltage halogen lamps
  • High color consistency: ≤ 6 SDCM
  • Not dimmable
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854044687 Folding box
1		 49 mm x 49 mm x 62 mm 44.00 g 0.15 dm³
4099854044694 Shipping box
10		 255 mm x 107 mm x 72 mm 493.00 g 1.96 dm³
Declarations of conformity
PAR16 and GX53 PDF (352.55 KB)

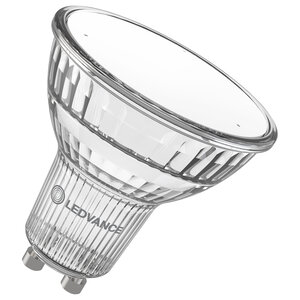

Product image: white background, diagonal with LEDVANCE logo
LED PAR 165036 120 JPG (1.73 MB)
Product image: white background, diagonal
LED PAR 165036 120 JPG (1.7 MB)
Product image: white background, upright LEDVANCE logo
LED PAR 165036 120 JPG (1.57 MB)
Product image: white background, upright
LED PAR 165036 120 JPG (1.16 MB)
Product line drawing with letters
666401_PAR16 35/50/80 2016 SVG (17.58 KB)
Product line drawing with numbers
LED PAR16 wide angle SVG (20.88 KB)
Product line drawing, front, no dimensions
666421_PAR16 35/50/80 2016 SVG (14.4 KB)
Energy label
EL-4099854044687-AC456 91 PDF (21.54 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
Spectral power distribution
Everlight 67-23ST KKE 2700K PNG (115.88 KB)
EAN SEG number STK number EFO number ELDAS number
4099854044687 8299242 4737232 3756114 941818040
