LED R80 P

LED R80 P

Choose your product version

4.8W 827 E27

8.5W 827 E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED R80 60 36° P 4.8W 827 E27 E27 4.8 W 220…240 V 15000 h 350 lm 60 W 36 ° No
LED R80 100 36° P 8.5W 827 E27 E27 8.5 W 220…240 V 15000 h 670 lm 100 W 36 ° No


LED R80 60 36° P 4.8W 827 E27

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
View all details

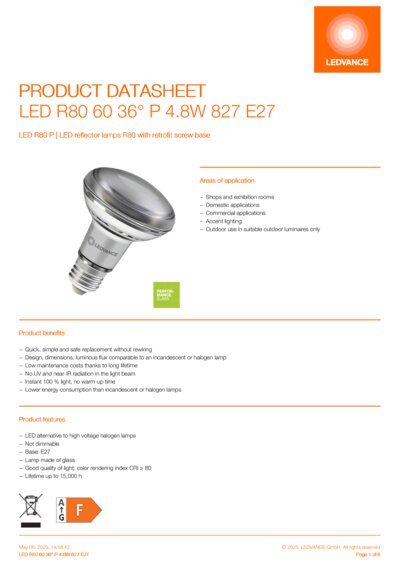

Product data sheet
Go to OSRAM predecessor product

PRODUCT DETAILS

Electrical data

Nominal wattage 4.8 W
Construction wattage 4.80 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 60 W
Nominal current 38 mA
Type of current AC
Inrush current 5.3 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 48
Max. lamp number on MCB B16 A 63
Power factor λ 0.40

Photometrical data

Luminous intensity 650 cd
Luminous flux 350 lm
Nominal useful luminous flux 90° 350 lm
Luminous efficacy 72 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated peak intensity 650 cd
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1,0
Stroboscope effect metric (SVM) 0,4

Light technical data

Beam angle 36 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 105.00 mm
Diameter 80.00 mm
Maximum diameter 80 mm
Product weight 108.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 74.6 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 5.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LED R806036 4.8

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional DLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Networked standby power for CLS 0 W
Claim of equivalent power Yes
Length 105.00 mm
Height 80.00 mm
Width 80.00 mm
Chromaticity coordinate x 0,458
Chromaticity coordinate y 0,410
R9 Colour rendering index 1
Beam angle correspondence NARROW_CONE_90
Survival factor 0.9
Displacement factor /
LED light source replaces a fluorescent light source No
EPREL ID 1368215
Model number AC45623,AC45623

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Shops and exhibition rooms
  • Domestic applications
  • Commercial applications
  • Accent lighting
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to high voltage halogen lamps
  • Not dimmable
  • Base: E27
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80
  • Lifetime: up to 15,000 h
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854050091 Folding box
1		 82 mm x 82 mm x 118 mm 126.00 g 0.79 dm³
4099854050107 Shipping box
10		 449 mm x 188 mm x 146 mm 1577.00 g 12.32 dm³
Declarations of conformity
R63 R80 E27 PDF (358.49 KB)

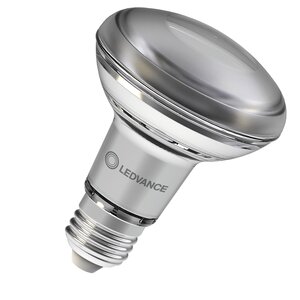

Product image: white background, diagonal with LEDVANCE logo
R80 JPG (4.7 MB)

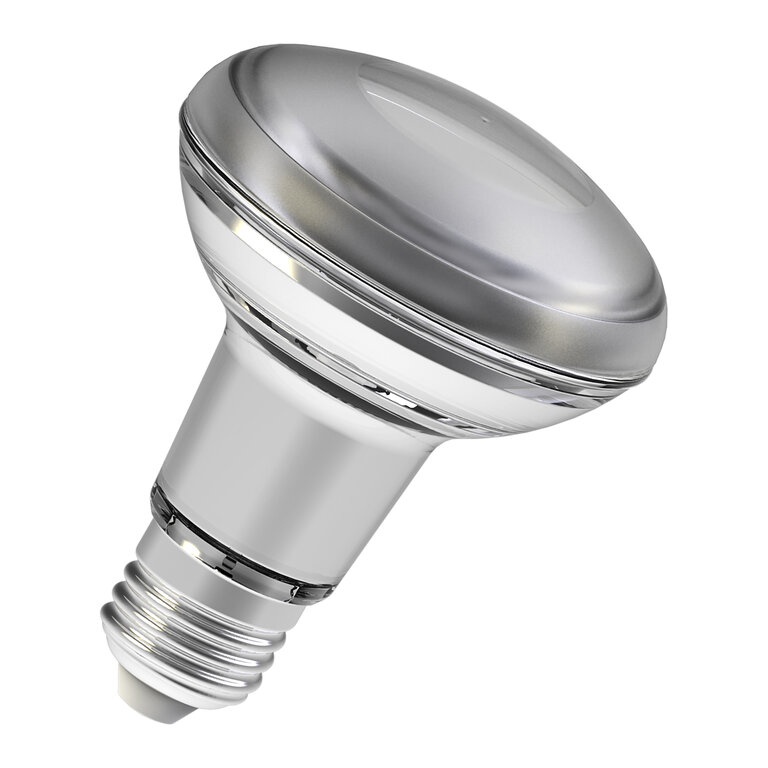

Product image: white background, diagonal
LED R80 230V E27 JPG (1.44 MB)

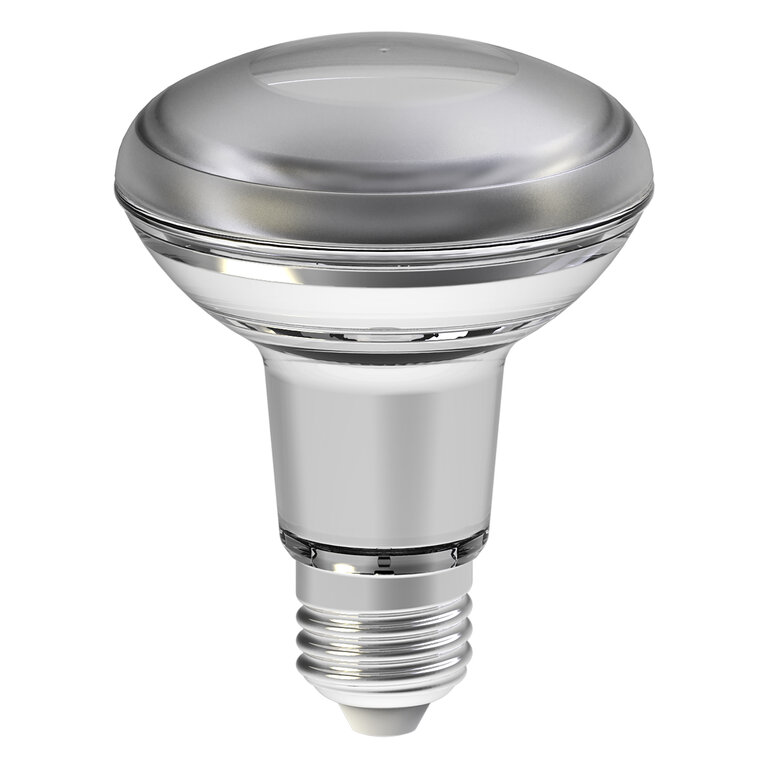

Product image: white background, upright LEDVANCE logo
R80 JPG (4.41 MB)
Product image: white background, upright
LED R80 230V E27 JPG (1.32 MB)
Product line drawing with letters
LED R80 230V E27 SVG (9.98 KB)
Product line drawing with numbers
LED R80 230V E27 SVG (9.6 KB)
Product line drawing - technical
LED R80 230V E27 SVG (6.33 KB)

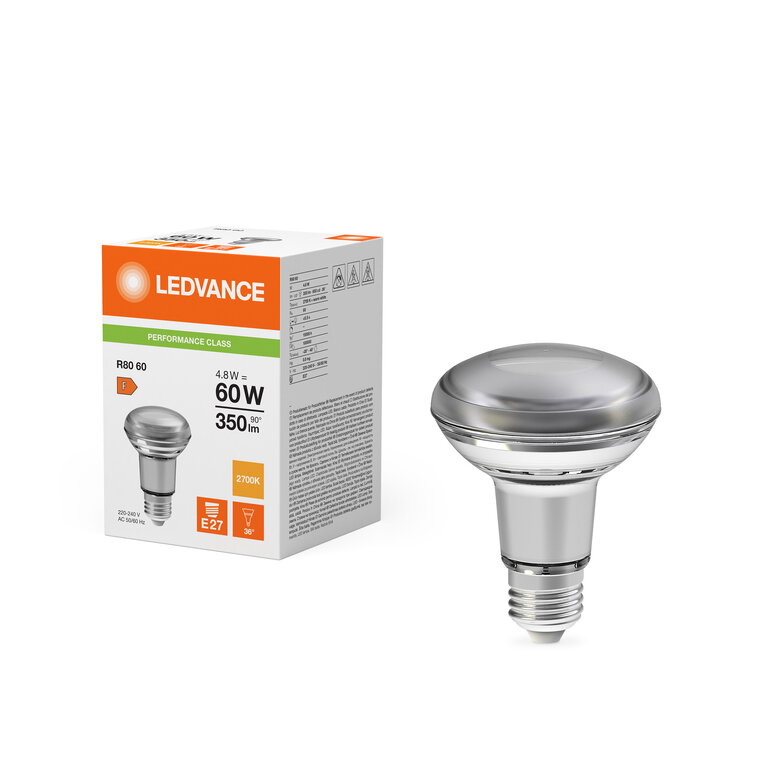

Combo Shot = Product Beauty Shot + Packaging Image
R80 60 PFM 4.8W 827 GL E27 JPG (1.02 MB)
Packaging image, frontal
R80 60 PFM 4.8W 827 GL E27 JPG (926.55 KB)
Packaging image, spacial
R80 60 PFM 4.8W 827 GL E27 JPG (1.26 MB)
Energy label
EL-4099854050091-AC456 23 PDF (21.65 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
IES file (IES)
R80 M3 60 36 2700K E27 IES (51.1 KB)
LDT file (Eulumdat)
R80 M3 60 36 2700K E27 LDT (42.91 KB)
Light distribution curve type polar
R80 M3 60 36 2700K E27 SVG (18.18 KB)

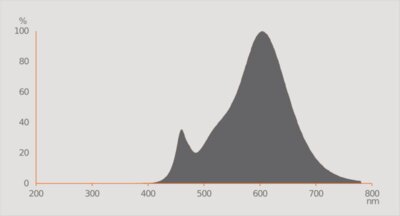

Spectral power distribution
Everlight 67-23ST KKE 2700K PNG (115.88 KB)
EAN SEG number STK number ELDAS number
4099854050091 8299329 4737520 941818610
