DULUX LED S EM & AC MAINS VALUE

Choose your product version

3.5W 830 G23

3.5W 840 G23

4W 830 G23

4W 840 G23

4W 865 G23

6W 830 G23

6W 840 G23

6W 865 G23

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
DULUX LED S7 EM & AC MAINS VALUE 3.5W 830 G23 G23 3.5 W 220…240 V 30000 h 360 lm 7 W 130 ° No
DULUX LED S7 EM & AC MAINS VALUE 3.5W 840 G23 G23 3.5 W 220…240 V 30000 h 400 lm 7 W 130 ° No
DULUX LED S9 EM & AC MAINS VALUE 4W 830 G23 G23 4 W 220…240 V 30000 h 500 lm 9 W 130 ° No
DULUX LED S9 EM & AC MAINS VALUE 4W 840 G23 G23 4 W 220…240 V 30000 h 550 lm 9 W 130 ° No
DULUX LED S9 EM & AC MAINS VALUE 4W 865 G23 G23 4 W 220…240 V 30000 h 550 lm 9 W 120 ° No
DULUX LED S11 EM & AC MAINS VALUE 6W 830 G23 G23 6 W 220…240 V 30000 h 630 lm 11 W 130 ° No
DULUX LED S11 EM & AC MAINS VALUE 6W 840 G23 G23 6 W 220…240 V 30000 h 700 lm 11 W 130 ° No
DULUX LED S11 EM & AC MAINS VALUE 6W 865 G23 G23 6 W 220…240 V 30000 h 700 lm 11 W 120 ° No


DULUX LED S11 EM & AC MAINS VALUE 6W 840 G23

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
View all details
Product data sheet
Go to OSRAM predecessor product

PRODUCT DETAILS

Electrical data

Nominal wattage 6 W
Construction wattage 6.00 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Claimed equiv. conventional lamp power 11 W
Nominal current 29 mA
Type of current AC
Inrush current 19.6 A
Suitable for DC input Yes
Input voltage DC 186…260 V 1)
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 30
Max. lamp number on MCB B10 A - CCG without compensation 138
Max. lamp number on MCB B10 A - CCG with compensation 8
Max. lamp number on MCB B16 A 38
Max. lamp number on MCB B16 A - CCG without compensation 216
Max. lamp number on MCB B16 A - CCG with compensation 10
Total harmonic distortion ≤ 30 %
Power factor λ > 0.90

1) Permitted voltage range

Photometrical data

Luminous flux 700 lm
Nominal useful luminous flux 90° 700 lm
Luminous efficacy 116 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra 80
Light color 840
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.90
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 130 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 220.00 mm
Diameter 32.30 mm
Tube diameter 26,0 mm
Maximum diameter 33 mm
Product weight 50.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 75 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G23
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 6.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference DULUX LED S11 E

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G23
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power No
Length 220.00 mm
Height 32.30 mm
Width 32.30 mm
Chromaticity coordinate x 0.381
Chromaticity coordinate y 0.379
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 1404753,2206850,2324460
Model number AC46411,AC71134,AC81526

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Supermarkets and department stores
  • Walkways and corridors
  • Hotels, restaurants
Product features
  • LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
  • Lifetime up to 30,000 h
  • Single-ended two-pin plug-in G23 base
  • Type of protection: IP20
  • Mercury-free lamps
Safety advice
  • Suitable for tandem operation.
  • The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • All electrical connections must be made by a qualified person.
  • Do not touch the lamp with bare fingers.
  • Must not be used if outer bulb is defective.
  • Lamp not suitable for emergency operation.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075823037 Folding box
1		 24 mm x 35 mm x 226 mm 68.00 g 0.19 dm³
4058075823044 Shipping box
10		 128 mm x 79 mm x 238 mm 752.00 g 2.41 dm³
User instruction / safety instructions
DULUX LED S EM V PDF (3.39 MB)
Extended installation guide
Installation instructi ons LED TUBE T8, T5 un d DULUX LED 2024 10 EN PDF (3.36 MB)
Extended installation guide

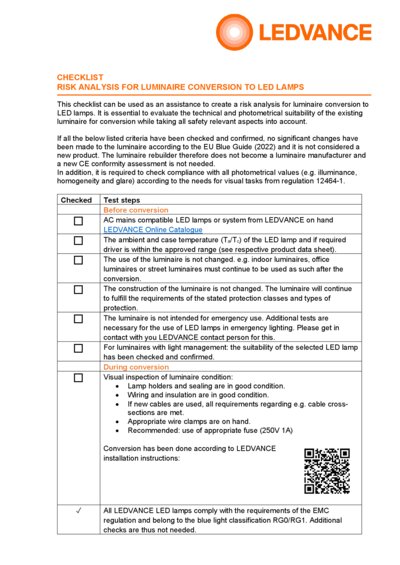

LEDVANCE Luminaire con version checklist PDF (155.99 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
DULUX LED PDF (383.39 KB)
Declarations of conformity
LEDTUBE PDF (310.92 KB)

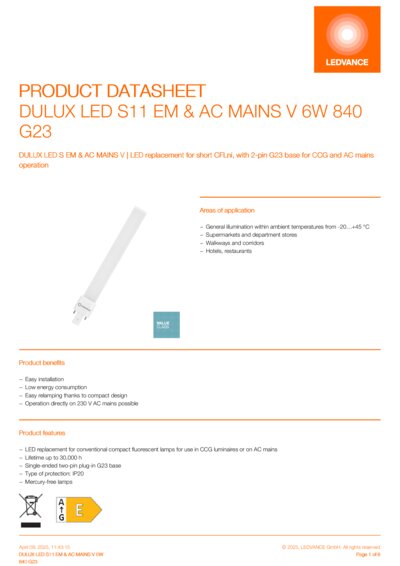

Product datasheet -> old version of product
DULUXLEDS11EM&ACMAINSV 6W840G23en PDF (191.49 KB)

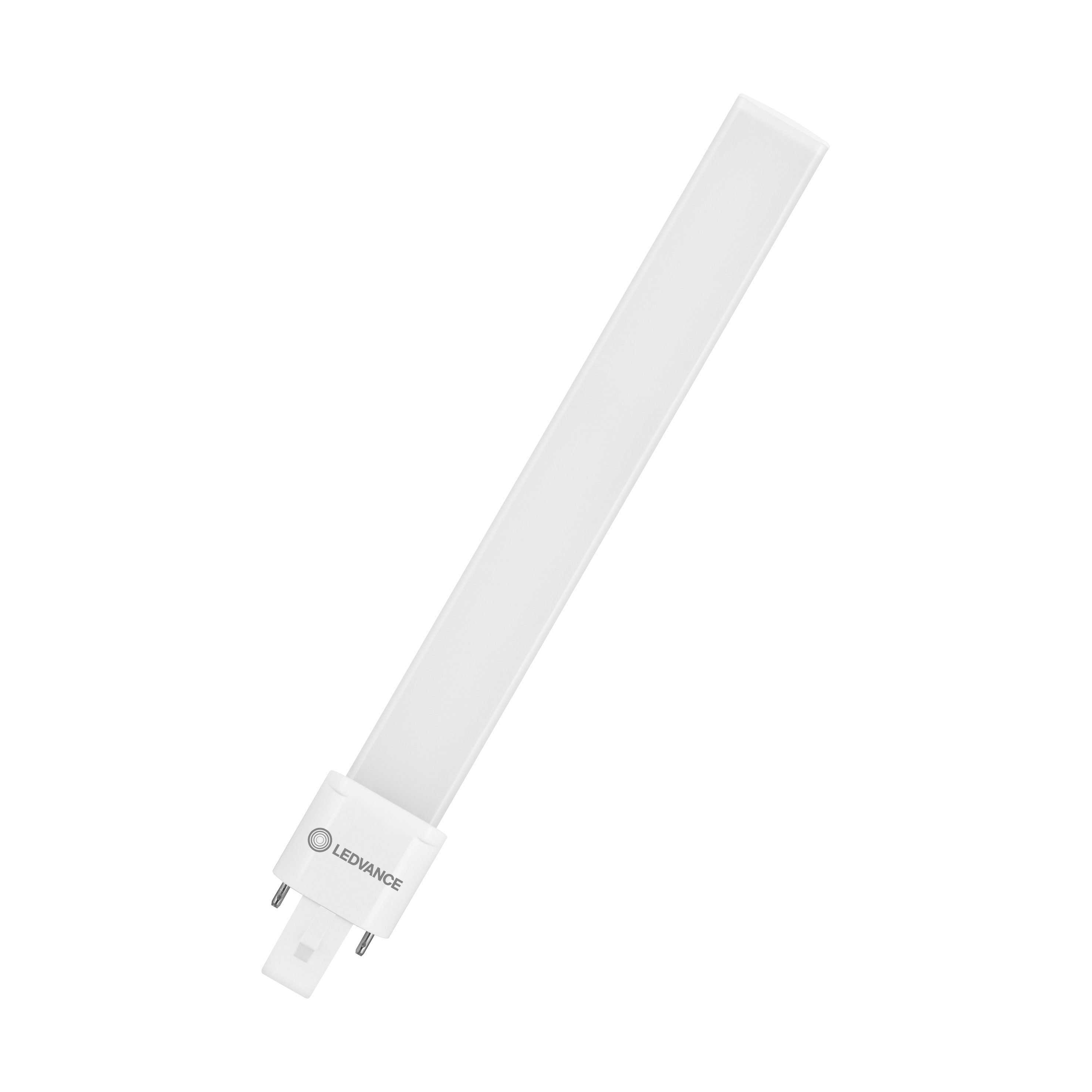

Product image: white background, diagonal with LEDVANCE logo
DULUX LED S EM V 6W JPG (302.54 KB)

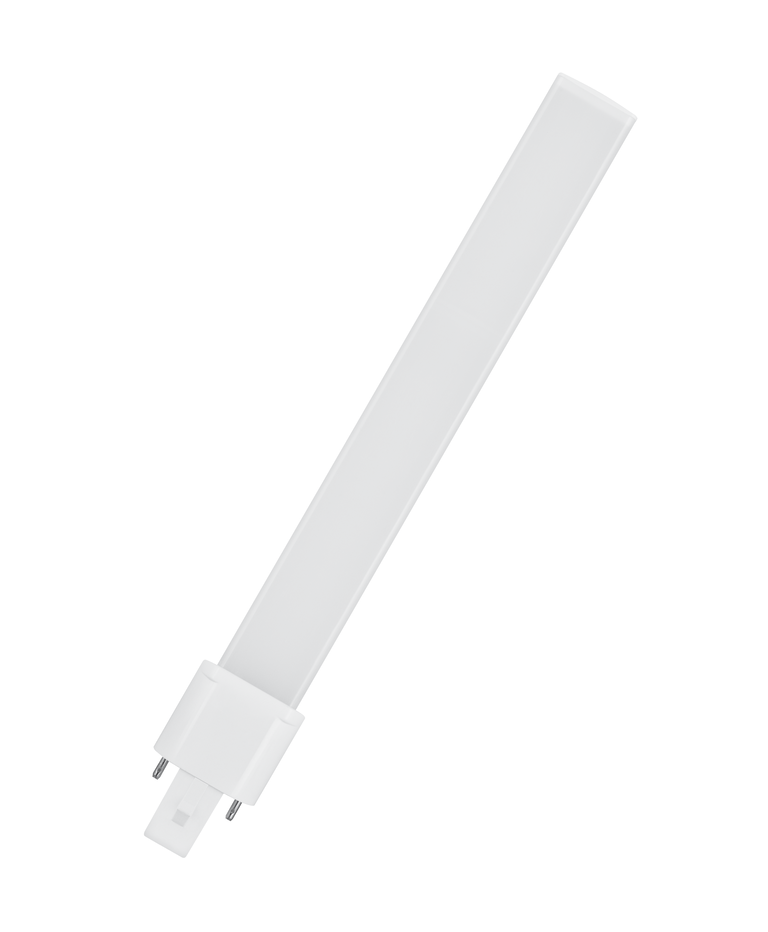

Product image: white background, diagonal
DULUX LED S EM 6W TIF (40.9 MB)

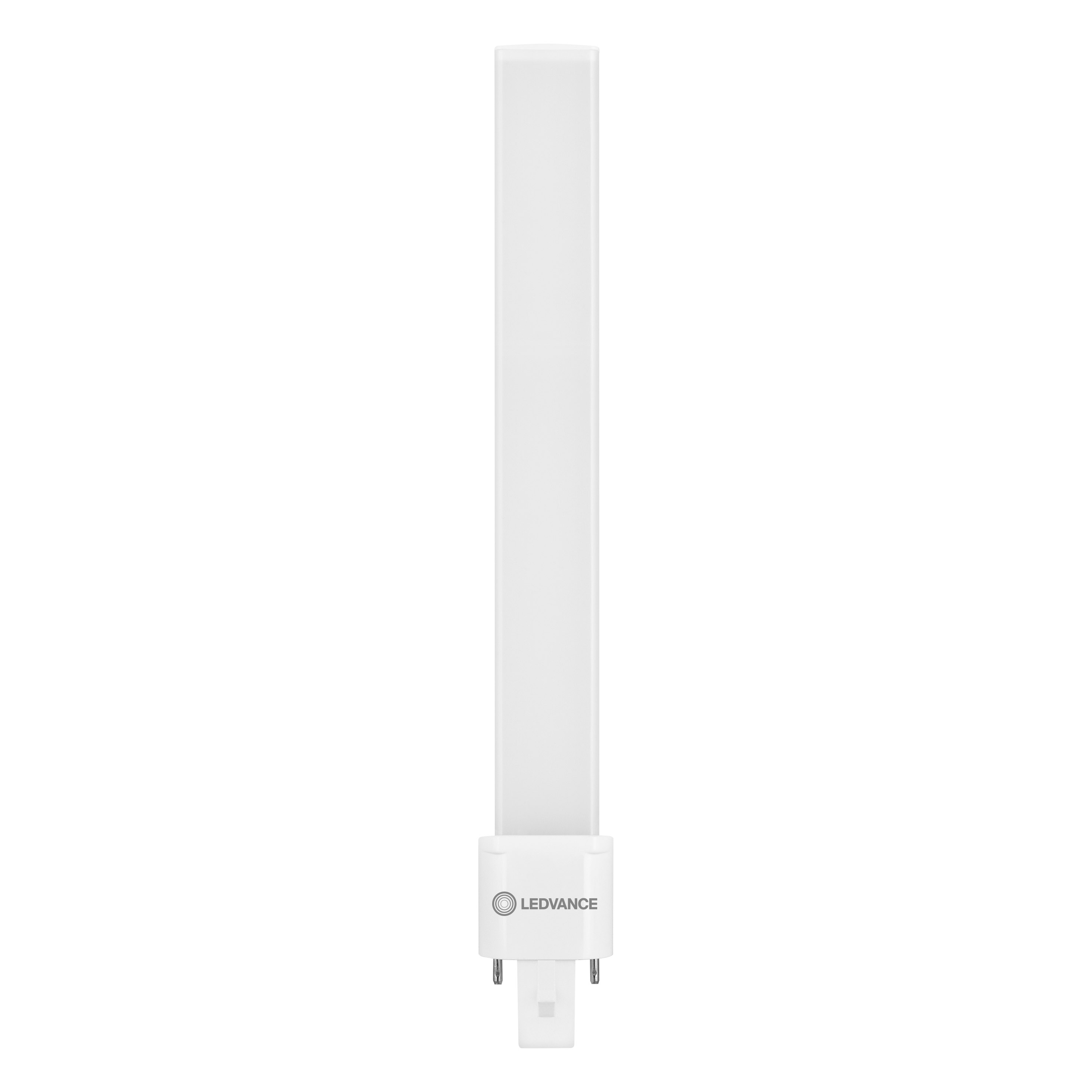

Product image: white background, upright LEDVANCE logo
DULUX LED S EM V 6W JPG (296.78 KB)

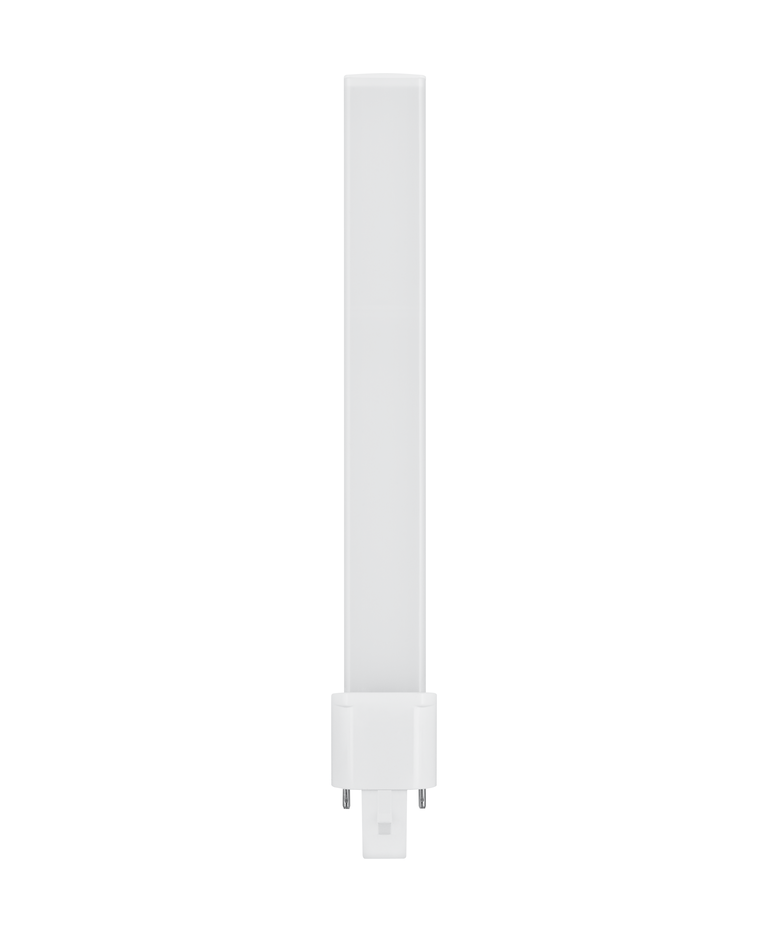

Product image: white background, upright
DULUX LED S EM 6W TIF (40.9 MB)
Product line drawing with letters
DULUX LED S SVG (3.52 KB)
Product line drawing with numbers
DULUX LED S EM 6W SVG (10.87 KB)
Product line drawing - technical
DULUX LED S SVG (1.85 KB)

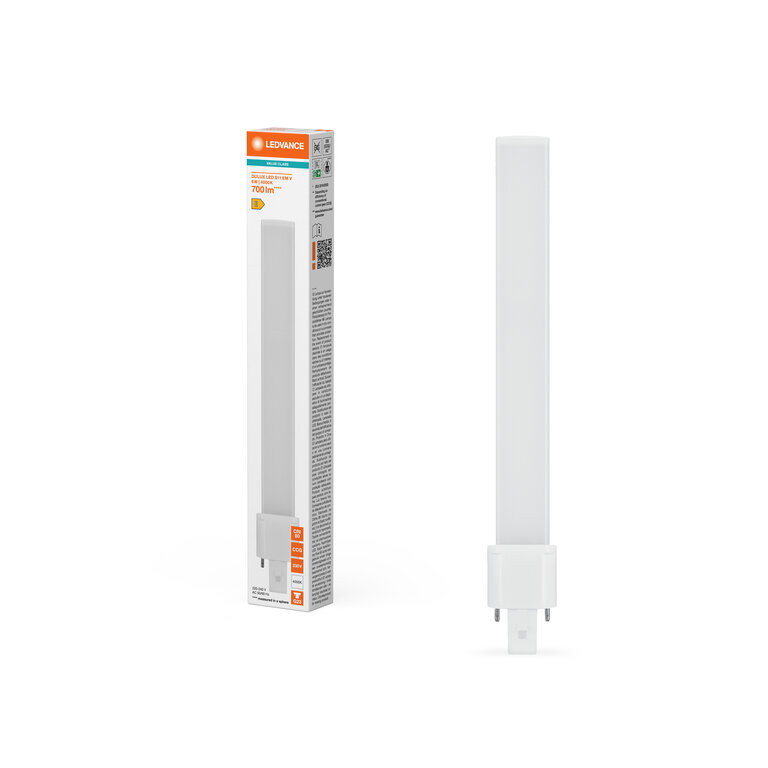

Combo Shot = Product Beauty Shot + Packaging Image
FC1 DULUX LED S11 EM V 6W 840 G23 JPG (755.18 KB)

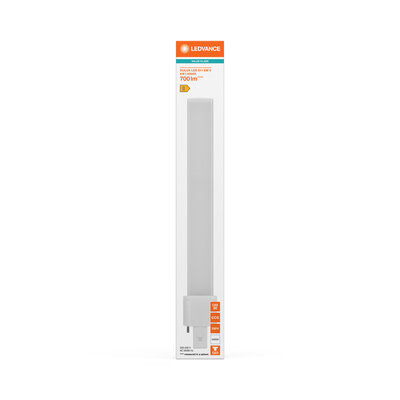

Packaging image, frontal
FC1 DULUX LED S11 EM V 6W 840 G23 JPG (655.19 KB)
Packaging image, spacial
FC1 DULUX LED S11 EM V 6W 840 G23 JPG (773.95 KB)
Energy label
EL-4058075823037-AC464 11 PDF (21.43 KB)
Energy label
EL-4058075823037-AC711 34 PDF (21.69 KB)
Energy label
EL-4058075823037-AC815 26 PDF (21.51 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
IES file (IES)
DULUX LED S11 EM V 6W 840 G23 LEDV IES (14.43 KB)
LDT file (Eulumdat)
DULUX LED S11 EM V 6W 840 G23 LEDV LDT (9.92 KB)

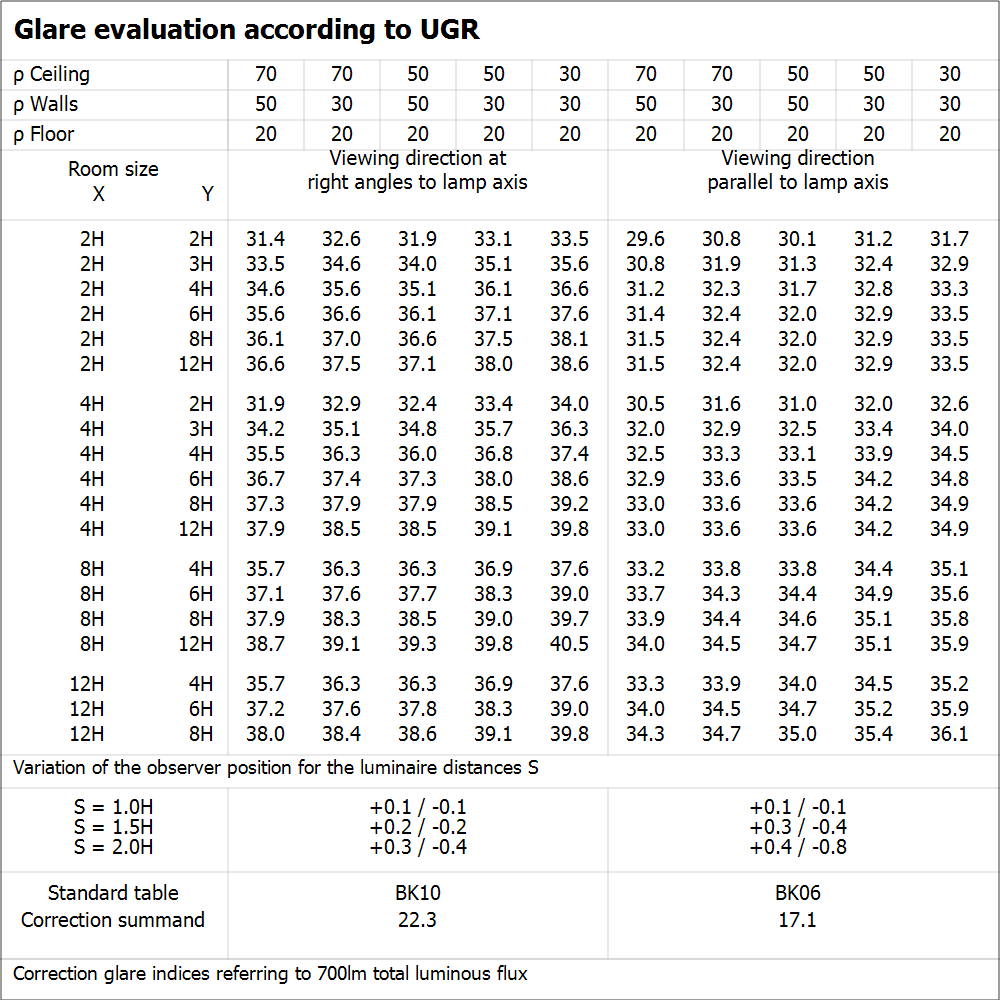

UGR file (UGR table)
DULUX LED S11 EM V 6W 840 G23 LEDV PNG (63.46 KB)
Light distribution curve type cone
DULUX LED S11 EM V 6W 840 G23 LEDV SVG (15.4 KB)
Light distribution curve type polar
DULUX LED S11 EM V 6W 840 G23 LEDV SVG (15.39 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 4000K PNG (116.83 KB)
EAN SEG number STK number EFO number ELDAS number
4058075823037 8298620 4935224 3758044 941815100
