PARATHOM® CLASSIC P DIM

PARATHOM CLASSIC P DIM

Choose your product version

40 4.5 W/2700 K E14

4.9W 827 Frosted E14

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
P CLAS P 40 4.5 W/2700 K E14 E14 4.5 W 220…240 V 25000 h 470 lm 40 W 240 ° Yes
LED Classic P 40 DIM P 4.9W 827 Frosted E14 E14 4.9 W 220…240 V 25000 h 470 lm 40 W 240 ° Yes


P CLAS P 40 4.5 W/2700 K E14

Product benefits
  • Low energy consumption
  • High color consistency thanks to narrow binning
  • Easy replacement of classic lamps thanks to compact design
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 4.5 W
Construction wattage 4.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 30 mA
Type of current AC
Inrush current 5 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 100
Max. lamp number on MCB B16 A 160
Power factor λ > 0.70

Photometrical data

Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 104 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 240 °
Warm-up time (60 %) ‹ 1.00 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 78.00 mm
Diameter 45.00 mm
Maximum diameter 45 mm
Product weight 17.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 99.8 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value, In preparation

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 5.00 kWh/1000h
Type of protection IP20
Standards CE, ROHS, ERP
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference LEDPCLP40D 4,5W

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E14
Correlated colour temperature type SINGLE_VALUE
Length 78.00 mm
Height 45.00 mm
Width 45.00 mm
EPREL ID 1403240
Model number AC24727

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Low energy consumption
  • High color consistency thanks to narrow binning
  • Easy replacement of classic lamps thanks to compact design
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Dimmable
  • Long lifetime: up to 25,000 h
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075462557 Folding box
1		 46 mm x 46 mm x 93 mm 27.00 g 0.20 dm³
4058075462564 Shipping box
10		 240 mm x 101 mm x 108 mm 345.00 g 2.62 dm³

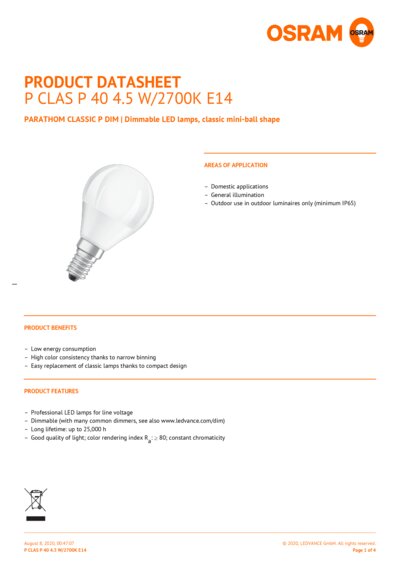

PRODUCT DATASHEET
P CLAS P 40 4.5 W 2700 K E14 PDF (215.9 KB)
Product image: white background, diagonal
CLP 40 DIM FR 6W E14 TIF (1.19 MB)
Product image: white background, upright
CLP 40 DIM FR 6W E14 TIF (10.88 MB)
Product line drawing with letters
CLP 40 DIM FR 6W E14 SVG (8.52 KB)

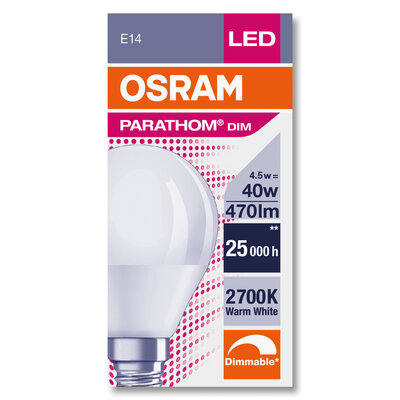

Packaging image, frontal
PARA DIM CLP 40 4.5W 8 27 FR E14 MiCh JPG (2.26 MB)

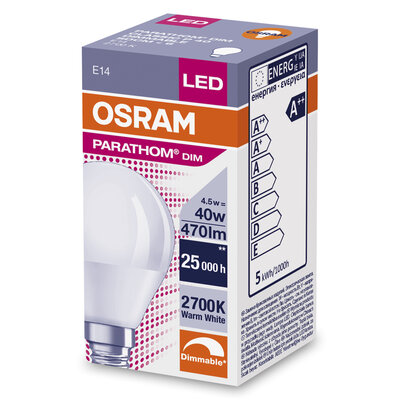

Packaging image, spacial
PARA DIM CLP 40 4.5W 8 27 FR E14 MiCh JPG (2.04 MB)
Energy label
EL-4058075462557-AC247 27 PDF (21.29 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
EAN SEG number STK number EFO number ELDAS number
4058075462557 8295504 4731462 3734060 941805340
