OVERVIEW

Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Claimed equiv. conventional lamp power	Beam angle	Dimmable
LED Classic A 40 P 4.9W 827 Frosted E27	E27	4.9 W	220…240 V	15000 h	470 lm	40 W	200 °	No
LED Classic A 40 P 4.9W 840 Frosted E27	E27	4.9 W	220…240 V	15000 h	470 lm	40 W	200 °	No
P CLAS A 40 5.5 W/2700 K E27	E27	5.5 W	220…240 V	15000 h	470 lm	40 W	200 °	No
P CLAS A 40 5.5 W/2700 K E27	E27	5.5 W	220…240 V	15000 h	470 lm	40 W	200 °	No
P CLAS A 40 5.5 W/4000 K E27	E27	5.5 W	220…240 V	15000 h	470 lm	40 W	200 °	No
P CLAS A 60 8.5 W/2700 K B22d	B22d	8.5 W	220…240 V	15000 h	806 lm	60 W	200 °	No
P CLAS A 60 FR 8.5 W/2700 K E27	E27	8.5 W	220…240 V	15000 h	806 lm	60 W	180 °	No
P CLAS A 60 8.5 W/2700 K E27	E27	8.5 W	220…240 V	15000 h	806 lm	60 W	200 °	No
LED Classic A 60 P 8.5W 827 Frosted E27	E27	8.5 W	220…240 V	15000 h	806 lm	60 W	200 °	No
P CLAS A 60 8.5 W/4000 K E27	E27	8.5 W	220…240 V	15000 h	806 lm	60 W	200 °	No
LED Classic A 60 P 8.5W 840 Frosted E27	E27	8.5 W	220…240 V	15000 h	806 lm	60 W	200 °	No
P CLAS A 75 10 W/2700 K E27	E27	10 W	220…240 V	15000 h	1055 lm	75 W	200 °	No
LED Classic A 75 P 10W 827 Frosted E27	E27	10 W	220…240 V	15000 h	1055 lm	75 W	200 °	No
P CLAS A 75 10 W/4000 K E27	E27	10 W	220…240 V	15000 h	1055 lm	75 W	200 °	No
LED Classic A 75 P 10W 840 Frosted E27	E27	10 W	220…240 V	15000 h	1055 lm	75 W	200 °	No
P CLAS A 75 11 W/2700 K E27	E27	11 W	220…240 V	15000 h	1055 lm	75 W	200 °	No
P CLAS A 75 11 W/4000 K E27	E27	11 W	220…240 V	15000 h	1055 lm	75 W	200 °	No
P CLAS A 100 13 W/2700 K E27	E27	13 W	220…240 V	15000 h	1521 lm	100 W	200 °	No
LED Classic A 100 P 13W 827 Frosted E27	E27	13 W	220…240 V	15000 h	1521 lm	100 W	200 °	No
P CLAS A 100 13 W/4000 K E27	E27	13 W	220…240 V	15000 h	1521 lm	100 W	200 °	No
LED Classic A 100 P 13W 840 Frosted E27	E27	13 W	220…240 V	15000 h	1521 lm	100 W	200 °	No
LED Classic A 150 P 19W 827 Frosted E27	E27	19 W	220…240 V	15000 h	2452 lm	150 W	200 °	No
P CLAS A 150 19 W/2700 K E27	E27	19 W	220…240 V	15000 h	2452 lm	150 W	150 °	No

P CLAS A 150 19 W/2700 K E27

Product benefits

Lower energy consumption than incandescent or halogen lamps
Easy replacement of classic lamps thanks to compact design
Instant 100 % light, no warm-up time

View all details

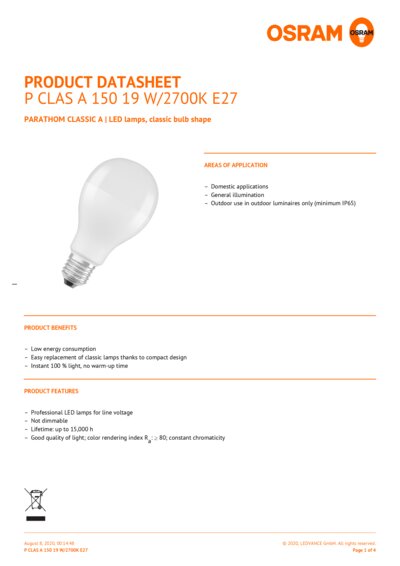

Product data sheet

Go to Predecessor product data

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	19 W
Construction wattage	19.00 W
Nominal voltage	220…240 V
Claimed equiv. conventional lamp power	150 W
Nominal current	160 mA
Type of current	AC
Inrush current	7.5 A
Operating frequency	50…60 Hz
Mains frequency	50…60 Hz
Max. lamp number on MCB B10 A	29
Max. lamp number on MCB B16 A	48
Power factor λ	> 0.50

Photometrical data

Luminous flux	2452 lm
Nominal useful luminous flux 90°	2452 lm
Luminous efficacy	129 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	≥80
Light color	827
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80

Light technical data

Beam angle	150 °
Warm-up time (60 %)	‹ 1.00 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	128.00 mm
Diameter	68.00 mm
Maximum diameter	68 mm
Product weight	72.00 g

Temperatures & operating conditions

Ambient temperature range	-15…+40 °C
Maximum temperature at tc test point	100 °C

Lifespan

Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Additional product data

Base (standard designation)	E27
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Frosted
Product remark	All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable

Certificates & Standards

Energy efficiency class	E ¹⁾
Energy consumption	19.00 kWh/1000h
Type of protection	IP20
Standards	CE
Photobiological safety group acc. to EN62778	RG0

¹⁾ Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference

LEDPCLA150 19W/

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	E27
Correlated colour temperature type	SINGLE_VALUE
Length	128.00 mm
Height	68.00 mm
Width	68.00 mm
EPREL ID	1403224
Model number	AC24709

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
