PARATHOM® CLASSIC P

PARATHOM CLASSIC P

Choose your product version

4.9W 827 Frosted E14

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic P 40 P 4.9W 827 Frosted E14 E14 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No


LED Classic P 40 P 4.9W 827 Frosted E14

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Easy replacement of classic lamps thanks to compact design
  • Instant 100 % light, no warm-up time
View all details
Product data sheet
Go to LEDVANCE successor product

PRODUCT DETAILS

Electrical data

Nominal wattage 4.9 W
Construction wattage 4.90 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 36 mA
Type of current AC
Inrush current 10 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 210
Max. lamp number on MCB B16 A 320
Total harmonic distortion 126 %
Power factor λ > 0.50

Photometrical data

Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 95 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.9

Light technical data

Beam angle 200 °
Warm-up time (60 %) 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 82.00 mm
Diameter 45.00 mm
Maximum diameter 45 mm
Product weight 19.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 78 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 5.00 kWh/1000h
Type of protection IP20
Standards CE, CB, REACH
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDPCLP40 4,9W/

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00 W
Claim of equivalent power Yes
Length 82.00 mm
Height 45.00 mm
Width 45.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 523322
Model number AC31164

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Easy replacement of classic lamps thanks to compact design
  • Instant 100 % light, no warm-up time
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Lifetime: up to 15,000 h
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075593251 Folding box
1		 45 mm x 45 mm x 84 mm 28.00 g 0.17 dm³
4058075593268 Shipping box
10		 238 mm x 99 mm x 95 mm 341.00 g 2.24 dm³

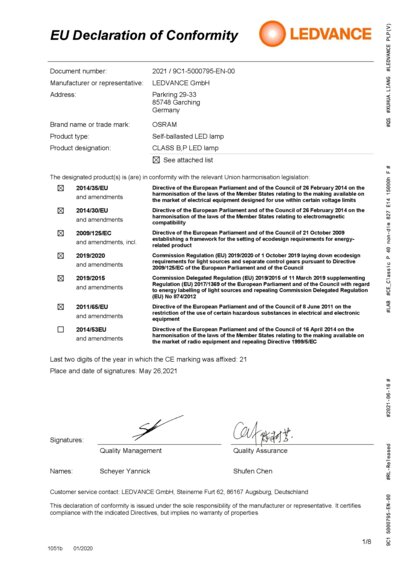

Declarations of conformity
LED CLASS B,P LED lamp PDF (195.68 KB)

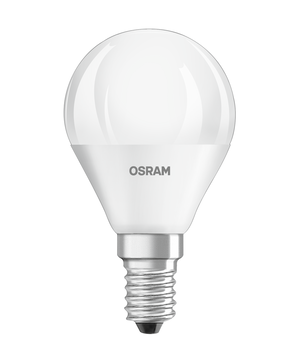

Product image: white background, diagonal
LED CLASP40 E14 JPG (1.26 MB)
Product image: white background, upright, OSRAM logo
662741_Classic P 25 fr osted non dim TIF (11.12 MB)
Product image: white background, upright
LED CLASP40 E14 JPG (1.14 MB)
Product line drawing with letters
LED CLASP40 E14 SVG (7.86 KB)
Product line drawing, front, no dimensions
LED CLASP40 E14 SVG (4.95 KB)
Energy label
EL-4058075593251-AC311 64 PDF (21.73 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
Spectral power distribution
349927_2700K_Evl_5630. eps PNG (83.87 KB)
EAN SEG number STK number ELDAS number
4058075593251 8296937 4731684 941809800
