PARATHOM® STICK

PARATHOM STICK

Choose your product version

60 FR 8 W/2700 K E27

8W 840 Frosted E27

75 FR 9 W/2700 K E27

75 FR 9 W/4000 K E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
P STICK 60 FR 8 W/2700 K E27 E27 8 W 220…240 V 15000 h 806 lm 60 W 200 ° No
LED Star Classic Stick 60 8W 840 Frosted E27 E27 8 W 220…240 V 15000 h 806 lm 60 W 200 ° No
P STICK 75 FR 9 W/2700 K E27 E27 9 W 220…240 V 15000 h 1050 lm 75 W 200 ° No
P STICK 75 FR 9 W/4000 K E27 E27 9 W 220…240 V 15000 h 1050 lm 75 W 200 ° No


P STICK 75 FR 9 W/4000 K E27

Product benefits
  • Low energy consumption
  • Attractive lamp appearance
  • Instant 100 % light, no warm-up time
View all details
Product data sheet
Go to LEDVANCE successor product

PRODUCT DETAILS

Electrical data

Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 75 W
Nominal current 66 mA
Type of current AC
Inrush current 10.2 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 151
Max. lamp number on MCB B16 A 272
Total harmonic distortion 115 %
Power factor λ > 0.50

Photometrical data

Luminous flux 1050 lm
Nominal useful luminous flux 90° 1050 lm
Luminous efficacy 116 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.9

Light technical data

Beam angle 200 °
Warm-up time (60 %) 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 116.00 mm
Diameter 36.00 mm
Maximum diameter 38 mm
Product weight 29.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 85 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 9.00 kWh/1000h
Type of protection IP20
Standards ROHS 2.0, REACH, CE
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDPSTICK75 9W/

LOGISTICAL DATA

Temperature range at storage -40…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00 W
Claim of equivalent power Yes
Length 116.00 mm
Height 36.00 mm
Width 36.00 mm
Chromaticity coordinate x 0.382
Chromaticity coordinate y 0.380
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.50
LED light source replaces a fluorescent light source No
EPREL ID 523296
Model number AC31138

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Low energy consumption
  • Attractive lamp appearance
  • Instant 100 % light, no warm-up time
Areas of application
  • All domestic rooms, especially where the lamps are visible
  • Wherever compact and efficient lamps are needed
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional lamps
  • Lifetime: up to 15,000 h
  • Not dimmable
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075593336 Folding box
1		 36 mm x 36 mm x 120 mm 37.00 g 0.16 dm³
4058075593343 Shipping box
10		 197 mm x 83 mm x 135 mm 467.00 g 2.21 dm³
Declarations of conformity
LED Stick lamp PDF (161.1 KB)
Product image: white background, diagonal
LED STICK Lamp TIF (1.16 MB)
Product image: white background, upright
LED STICK Lamp TIF (29.37 MB)
Product line drawing with letters
LED STICK Lamp SVG (8.63 KB)
Product line drawing, front, no dimensions
LED STICK Lamp SVG (5.46 KB)

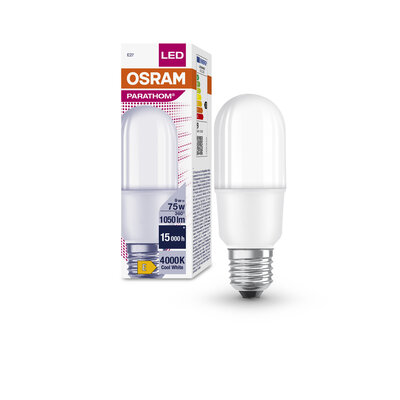

Combo Shot = Product Beauty Shot + Packaging Image
STICK 75 9W 840 FR E27 MiCh JPG (1.39 MB)
Energy label
EL-4058075593336-AC311 38 PDF (21.63 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
Spectral power distribution
349924_4000K_Se_5630.e ps PNG (84.63 KB)
EAN SEG number STK number
4058075593336 8296941 4731688
