OVERVIEW

Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Claimed equiv. conventional lamp power	Beam angle	Dimmable
LED Classic A 40 Filament P 4.8W 827 Clear E27	E27	4.8 W	220…240 V	15000 h	470 lm	40 W	320 °	Yes
LED Classic A 40 DIM P 4.8W 827 Frosted E27	E27	4.8 W	220…240 V	15000 h	470 lm	40 W	320 °	Yes
P CLAS A 40 5 W/2700 K E27	E27	5 W	220…240 V	15000 h	470 lm	40 W	300 °	Yes
P CLAS A 40 FR 5 W/2700 K E27	E27	5 W	220…240 V	15000 h	470 lm	40 W	320 °	Yes
P CLAS A 40 CL 5 W/2700 K E27	E27	5 W	220…240 V	15000 h	470 lm	40 W	320 °	Yes
LED Classic A 60 Filament DIM P 6.5W 827 Clear B22d	B22d	6.5 W	220…240 V	15000 h	806 lm	60 W	300 °	Yes
P CLAS A 60 6.5 W/2700 K E27	E27	6.5 W	220…240 V	15000 h	806 lm	60 W	300 °	Yes
P CLAS A 60 6.5 W/2700 K E27	E27	6.5 W	220…240 V	15000 h	806 lm	60 W	300 °	Yes
LED Classic A 60 DIM P 6.5W 840 Frosted E27	E27	6.5 W	220…240 V	15000 h	806 lm	60 W	300 °	Yes
P CLAS A 60 7 W/2700 K B22d	B22d	7 W	220…240 V	15000 h	806 lm	60 W	320 °	Yes
P CLAS A 60 7 W/2700 K B22d	B22d	7 W	220…240 V	15000 h	806 lm	60 W	320 °	Yes
P CLAS A 60 7.5 W/2700 K E27	E27	7.5 W	220…240 V	15000 h	806 lm	60 W	300 °	Yes
P CLAS A 60 7 W/2700 K E27	E27	7 W	220…240 V	15000 h	806 lm	60 W	320 °	Yes
P CLAS A 60 7 W/2700 K E27	E27	7 W	220…240 V	15000 h	806 lm	60 W	320 °	Yes
P CLAS A 60 7 W/4000 K E27	E27	7 W	220…240 V	15000 h	806 lm	60 W	320 °	Yes
LED Classic A 75 Filament P 7.5W 827 Clear E27	E27	7.5 W	220…240 V	15000 h	1055 lm	75 W	300 °	Yes
LED Classic A 75 DIM P 7.5W 827 Frosted E27	E27	7.5 W	220…240 V	15000 h	1055 lm	75 W	300 °	Yes
LED Classic A 75 DIM P 7.5W 840 Frosted E27	E27	7.5 W	220…240 V	15000 h	1055 lm	75 W	300 °	Yes
P CLAS A 75 9 W/2700 K E27	E27	9 W	220…240 V	15000 h	1055 lm	75 W	320 °	Yes
P CLAS A 75 9 W/2700 K E27	E27	9 W	220…240 V	15000 h	1055 lm	75 W	320 °	Yes
P CLAS A 75 9 W/4000 K E27	E27	9 W	220…240 V	15000 h	1055 lm	75 W	320 °	Yes
P CLAS A 100 11 W/2700 K E27	E27	11 W	220…240 V	15000 h	1521 lm	100 W	300 °	Yes
P CLAS A 100 11 W/2700 K E27	E27	11 W	220…240 V	15000 h	1521 lm	100 W	300 °	Yes
P CLAS A 100 12 W/2700 K E27	E27	12 W	220…240 V	15000 h	1521 lm	100 W	320 °	Yes
P CLAS A 100 12 W/2700 K E27	E27	12 W	220…240 V	15000 h	1521 lm	100 W	320 °	Yes
P CLAS A 150 18 W/2700 K E27	E27	18 W	220…240 V	15000 h	2452 lm	150 W	330 °	Yes

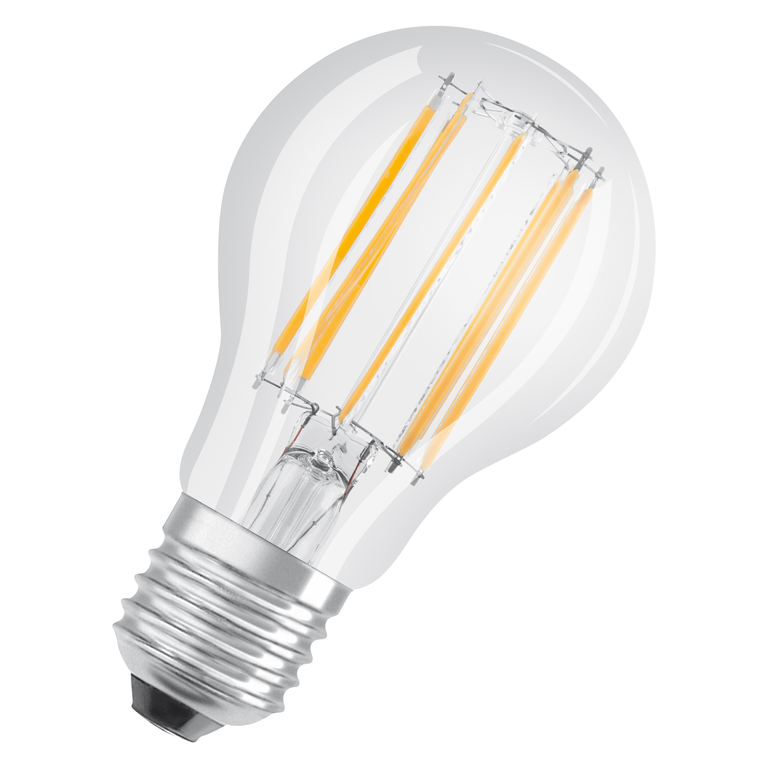

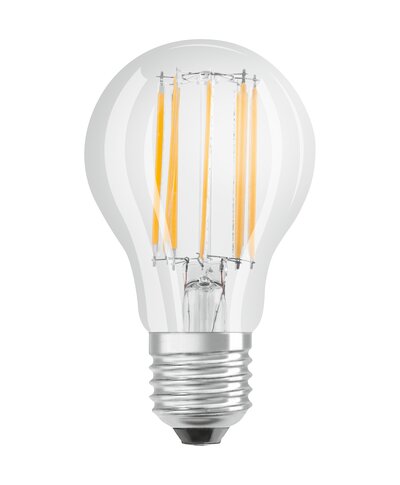

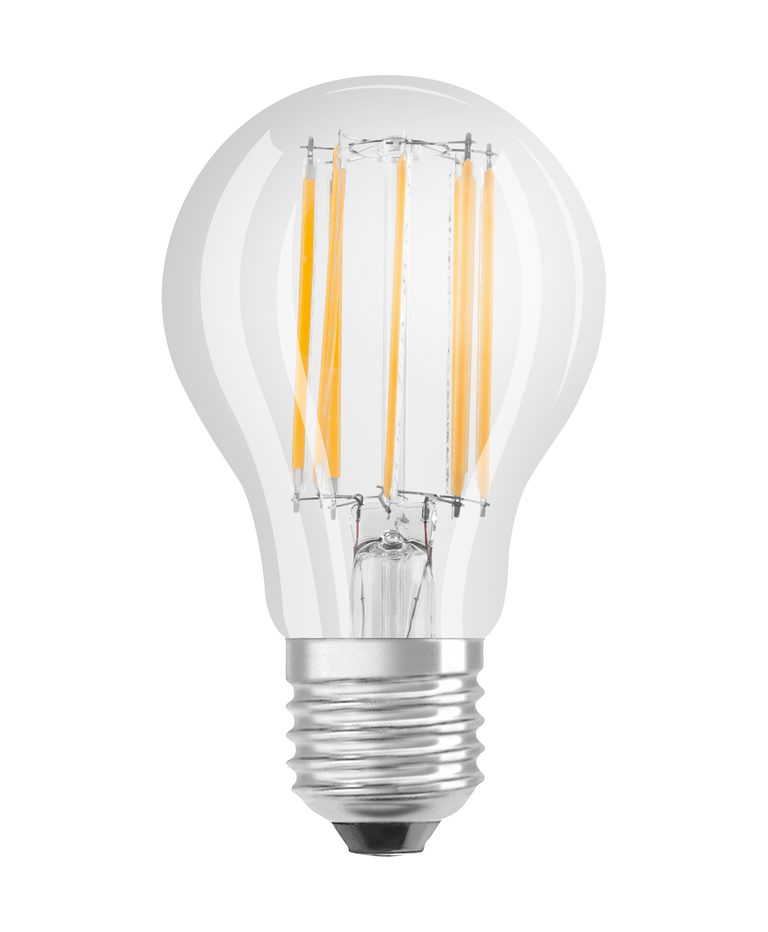

P CLAS A 100 12 W/2700 K E27

Product benefits

Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Lower energy consumption than incandescent or halogen lamps
Robust against vibrations
No UV and near-IR radiation in the light beam
Instant 100 % light, no warm-up time
Can be easily fitted instead of ordinary light bulbs

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	12 W
Construction wattage	12.00 W
Nominal voltage	220…240 V
Claimed equiv. conventional lamp power	100 W
Nominal current	72 mA
Type of current	AC
Inrush current	0.15 A
Operating frequency	50…60 Hz
Mains frequency	50…60 Hz
Max. lamp number on MCB B10 A	55
Max. lamp number on MCB B16 A	85
Power factor λ	> 0.50

Photometrical data

Luminous flux	1521 lm
Nominal useful luminous flux 90°	1521 lm
Luminous efficacy	126 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	≥80
Light color	827
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80

Light technical data

Beam angle	320 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	105.00 mm
Diameter	60.00 mm
Maximum diameter	60 mm
Product weight	32.00 g

Temperatures & operating conditions

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	65 °C

Lifespan

Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Additional product data

Base (standard designation)	E27
Mercury content	0.0 mg
Mercury-free	Yes
Product remark	All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value, LED lamps contain several electronic components. Under unfavourable conditions these can lead to acoustic noise. In case of resonance even low noise can cause audible effect. Possible factors influencing this are the installation, the design of the lamp holder and the luminaire (acoustic resonance effect) as well as the dimmer or the transformer (harmonics or electronic resonance)

Capabilities

Dimmable

Yes

Certificates & Standards

Energy efficiency class	E ¹⁾
Energy consumption	12.00 kWh/1000h
Type of protection	IP20
Standards	CE
Photobiological safety group acc. to EN62778	RG0

¹⁾ Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference

LEDPCLA100D 12W

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	E27
Correlated colour temperature type	SINGLE_VALUE
Length	105.00 mm
Height	60.00 mm
Width	60.00 mm
EPREL ID	1403338
Model number	AC24246

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
