PARATHOM CLASSIC B DIM

Choose your product version

4.8W 827 Frosted B22d

40 4.8 W/2700 K E14

40 4.8 W/2700 K E14

40 4.8 W/2700 K E27

40 5 W/2700 K B22d

40 5 W/2700 K E14

40 FR 5 W/2700 K E14

40 5 W/2700 K E14

40 5 W/2700 K E27

60 5.5 W/2700 K E14

60 6.5 W/2700 K E14

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic B 40 DIM P 4.8W 827 Frosted B22d B22d 4.8 W 220…240 V 15000 h 470 lm 40 W 300 ° Yes
P CLAS B 40 4.8 W/2700 K E14 E14 4.8 W 220…240 V 15000 h 470 lm 40 W 300 ° Yes
P CLAS B 40 4.8 W/2700 K E14 E14 4.8 W 220…240 V 15000 h 470 lm 40 W 300 ° Yes
P CLAS B 40 4.8 W/2700 K E27 E27 4.8 W 220…240 V 15000 h 470 lm 40 W 300 ° Yes
P CLAS B 40 5 W/2700 K B22d B22d 5 W 220…240 V 15000 h 470 lm 40 W 300 ° Yes
P CLAS B 40 5 W/2700 K E14 E14 5 W 220…240 V 15000 h 470 lm 40 W 300 ° Yes
P CLAS B 40 FR 5 W/2700 K E14 E14 5 W 220…240 V 15000 h 470 lm 40 W 300 ° Yes
P CLAS B 40 5 W/2700 K E14 E14 5 W 220…240 V 15000 h 470 lm 40 W 300 ° Yes
P CLAS B 40 5 W/2700 K E27 E27 5 W 220…240 V 15000 h 470 lm 40 W 300 ° Yes
P CLAS B 60 5.5 W/2700 K E14 E14 5.5 W 220…240 V 15000 h 806 lm 60 W 300 ° Yes
P CLAS B 60 6.5 W/2700 K E14 E14 6.5 W 220…240 V 15000 h 806 lm 60 W 300 ° Yes


LED Classic B 40 DIM P 4.8W 827 Frosted B22d

Product benefits
  • Design, dimensions, luminous flux comparable to an incandescent lamp
  • Lower energy consumption than incandescent or halogen lamps
  • Robust against vibrations
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
View all details
Product data sheet
Go to LEDVANCE successor product

PRODUCT DETAILS

Electrical data

Nominal wattage 4.8 W
Construction wattage 4.80 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 26 mA
Type of current AC
Inrush current 0.07 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 100
Max. lamp number on MCB B16 A 150
Power factor λ > 0.70

Photometrical data

Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 97 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 94.00 mm
Diameter 35.00 mm
Maximum diameter 35 mm
Product weight 19.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 75 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) B22d
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark Dimmable (with many common dimmers, see also www.ledvance.com/dim)

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 5.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDPCLB40D 4,8W

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) B22d
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.0
Networked standby power for CLS 0.0
Claim of equivalent power Yes
Length 94.00 mm
Height 35.00 mm
Width 35.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 523121
Model number AC32296

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Design, dimensions, luminous flux comparable to an incandescent lamp
  • Lower energy consumption than incandescent or halogen lamps
  • Robust against vibrations
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Dimmable
  • Lifetime up to 15,000 h
  • Beam angle: up to 300°
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075590755 Folding box
1		 39 mm x 39 mm x 109 mm 33.00 g 0.17 dm³
4058075590762 Shipping box
10		 205 mm x 87 mm x 123 mm 379.00 g 2.19 dm³
Declarations of conformity
LED CLA CLB CLP T26 C L GLOBE125 PDF (306.54 KB)

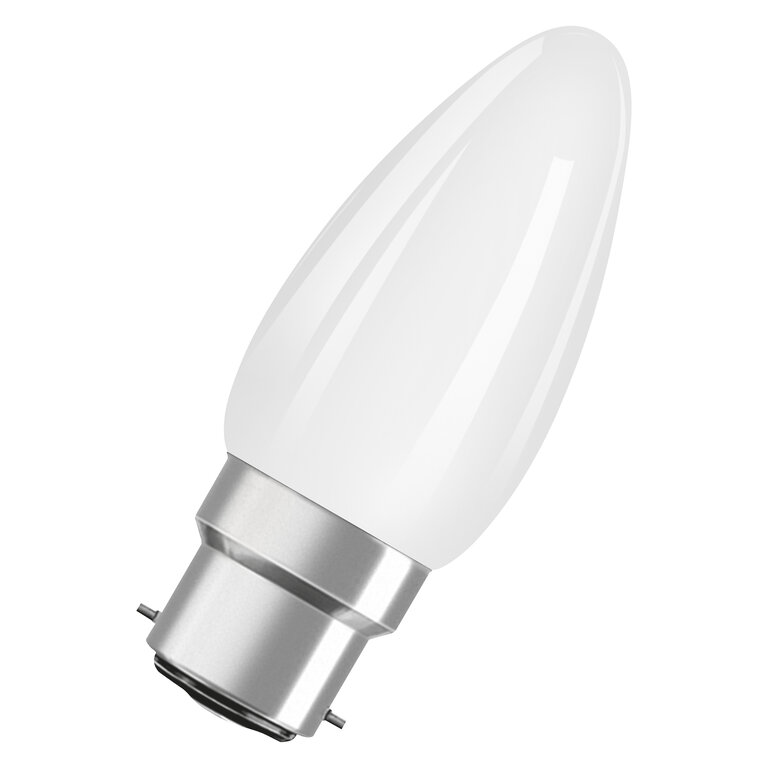

Product image: white background, diagonal
LED CLB40 GL FR B22d JPG (981.89 KB)

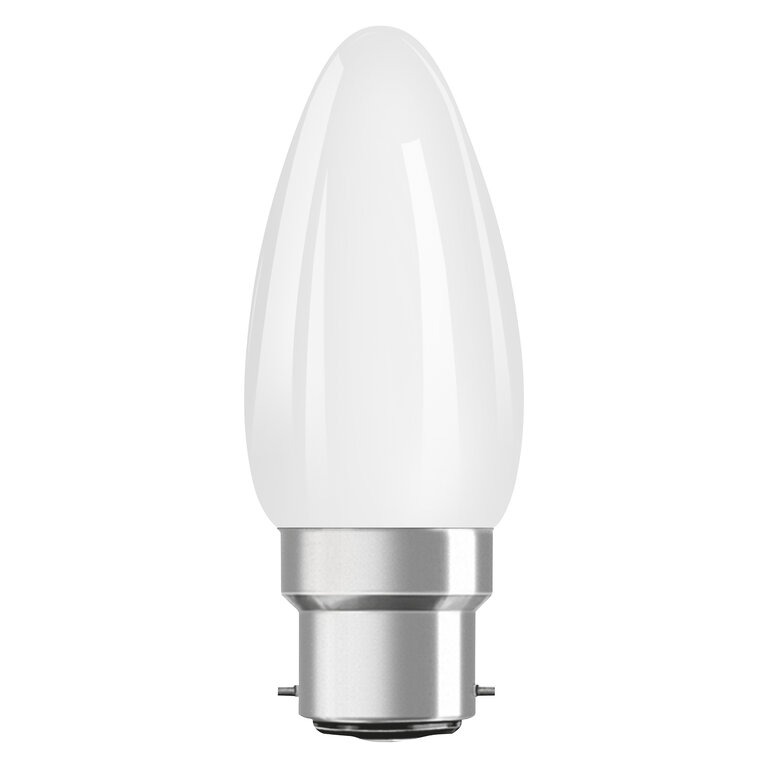

Product image: white background, upright
LED CLB40 GL FR B22d JPG (909.22 KB)
Product line drawing with letters
LED CLB40 GL FR B22d SVG (7.46 KB)
Product line drawing, front, no dimensions
LED CLB40 GL FR B22d SVG (4.54 KB)
Energy label
EL-4058075590755-AC322 96 PDF (21.65 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 2700K PNG (103.24 KB)
EAN SEG number STK number ELDAS number
4058075590755 8296786 4731633 941809530
