PARATHOM® CLASSIC ST

PARATHOM CLASSIC ST

Choose your product version

40 4 W/2700 K E27

40 4 W/2700 K E27

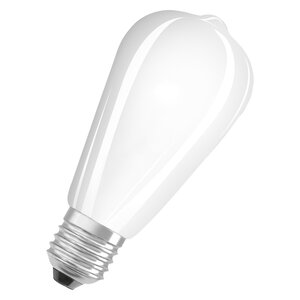

4W 827 Frosted E27

55 6.5 W/2700 K E27

6.5W 827 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
P RF CLAS ST 40 4 W/2700 K E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
P CLAS ST 40 4 W/2700 K E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Classic Edison 40 P 4W 827 Frosted E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
P RF CLAS ST 55 6.5 W/2700 K E27 E27 6.5 W 220…240 V 15000 h 730 lm 55 W 300 ° No
LED Classic Edison 55 P 6.5W 827 Frosted E27 E27 6.5 W 220…240 V 15000 h 730 lm 55 W 300 ° No


P RF CLAS ST 40 4 W/2700 K E27

Product benefits
  • Lamps with innovative LED "filament" technology
  • Very low energy consumption
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 32 mA
Type of current AC
Inrush current 3.7 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 100
Max. lamp number on MCB B16 A 150
Power factor λ > 0.40

Photometrical data

Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 117 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 143.00 mm
Diameter 64.00 mm
Maximum diameter 64 mm
Product weight 46.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 50 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference LEDISON40P 4W/8

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Correlated colour temperature type SINGLE_VALUE
Length 143.00 mm
Height 64.00 mm
Width 64.00 mm
EPREL ID 1403388
Model number AC24314

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Very low energy consumption
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Lifetime: up to 15,000 h
  • Beam angle: up to 360°
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075438750 Folding box
1		 65 mm x 65 mm x 147 mm 64.00 g 0.62 dm³
4058075438767 Shipping box
10		 337 mm x 141 mm x 161 mm 738.00 g 7.65 dm³

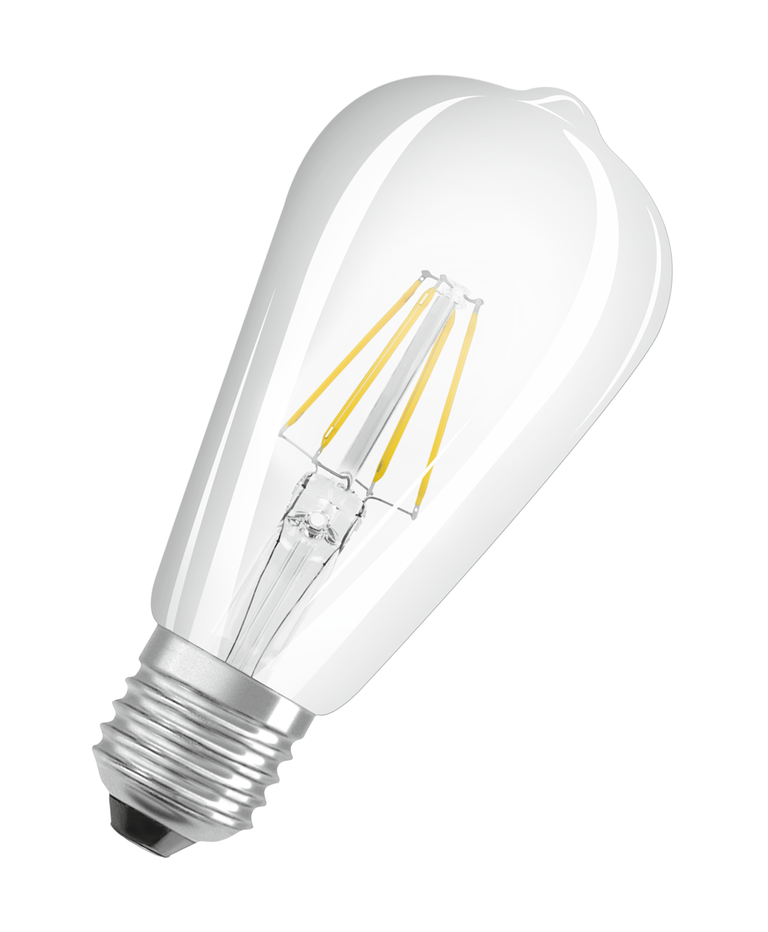

Product image: white background, diagonal
710772_LED RETROFIT ED ISON FILAMENT TIF (10.15 MB)

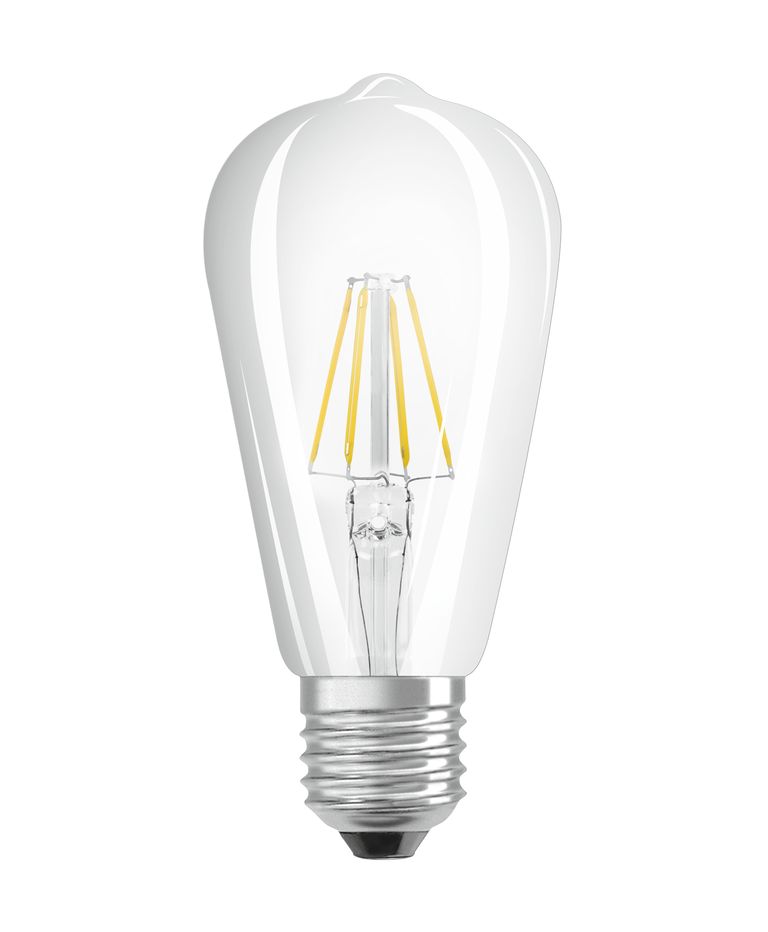

Product image: white background, upright
710780_LED RETROFIT ED ISON FILAMENT TIF (10.15 MB)
Product line drawing with letters
710809_LED RETROFIT ED ISON FILAMENT SVG (12.64 KB)
Product line drawing, front, no dimensions
710818_LED RETROFIT ED ISON FILAMENT SVG (9.46 KB)
Energy label
EL-4058075438750-AC243 14 PDF (21.4 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
EAN SEG number STK number EFO number ELDAS number
4058075438750 8295409 4731572 3733688 941805290
