PARATHOM PAR16

Choose your product version

2.6W 827 GU10

2.6W 840 GU10

4.3W 830 GU10

4.3W 840 GU10

6.9W 830 GU10

9.6W 827 GU10

9.6W 830 GU10

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED PAR 16 35 36° P 2.6W 827 GU10 GU10 2.6 W 220…240 V 15000 h 230 lm 35 W 36 ° No
LED PAR 16 35 36° P 2.6W 840 GU10 GU10 2.6 W 220…240 V 15000 h 230 lm 35 W 36 ° No
LED PAR 16 50 36° P 4.3W 830 GU10 GU10 4.3 W 220…240 V 15000 h 350 lm 50 W 36 ° No
LED PAR 16 50 36° P 4.3W 840 GU10 GU10 4.3 W 220…240 V 15000 h 350 lm 50 W 36 ° No
LED PAR16 80 36° P 6.9W 830 GU10 GU10 6.9 W 220…240 V 15000 h 575 lm 80 W 36 ° No
LED PAR 16 100 36° P 9.6W 827 GU10 GU10 9.6 W 220…240 V 15000 h 750 lm 100 W 36 ° No
LED PAR 16 100 36° P 9.6W 830 GU10 GU10 9.6 W 220…240 V 15000 h 750 lm 100 W 36 ° No


LED PAR 16 35 36° P 2.6W 827 GU10

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet
Go to LEDVANCE successor product

PRODUCT DETAILS

Electrical data

Nominal wattage 2.6 W
Construction wattage 2.60 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 35 W
Nominal current 25 mA
Type of current AC
Inrush current 7 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 42
Max. lamp number on MCB B16 A 53
Power factor λ > 0.40

Photometrical data

Luminous intensity 400 cd
Luminous flux 230 lm
Nominal useful luminous flux 90° 230 lm
Luminous efficacy 88 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated peak intensity 400 cd
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 36 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 52.00 mm
Diameter 50.00 mm
Maximum diameter 50 mm
Product weight 37.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 90 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) GU10
Mercury content 0.0 mg

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 3.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LPPAR163536 2,6

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional DLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) GU10
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power Yes
Length 52.00 mm
Height 50.00 mm
Width 50.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 1
Beam angle correspondence NARROW_CONE_90
Survival factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 522950
Model number AC32699

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead 7439-92-43

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Shops and exhibition rooms
  • Domestic applications
  • Commercial applications
  • Accent lighting
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to high voltage halogen lamps
  • High color consistency: ≤ 6 SDCM
  • Not dimmable
  • Lamp made of glass
  • Good quality of light; color rendering index CRI ≥ 80
  • Lifetime up to 15,000 h
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075608214 Folding box
1		 49 mm x 49 mm x 62 mm 44.00 g 0.15 dm³
4058075608221 Shipping box
10		 257 mm x 110 mm x 70 mm 493.00 g 1.98 dm³

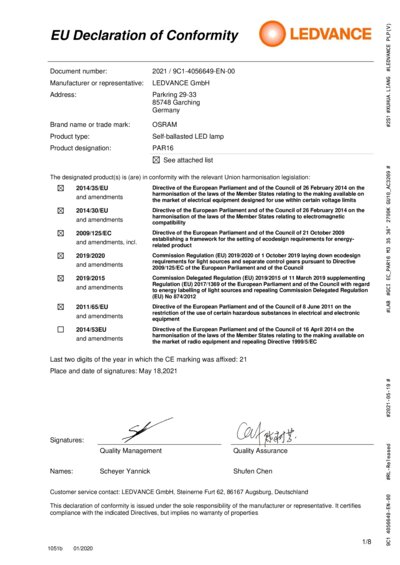

Declarations of conformity
LED lamp PAR16 PDF (195.04 KB)

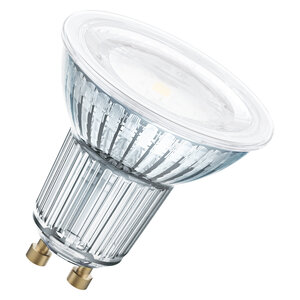

Product image: white background, diagonal
PAR16 35-50-80 GU10 TIF (14.99 MB)

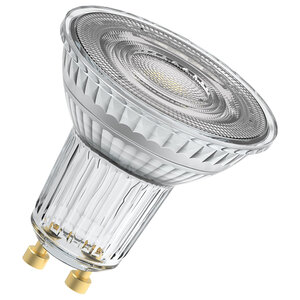

Product image: white background, upright
PAR16 35-50-80 GU10 JPG (2.57 MB)
Product line drawing with letters
666401_PAR16 35/50/80 2016 SVG (17.58 KB)
Product line drawing, front, no dimensions
628158_LED PAR16 SVG (4.96 KB)

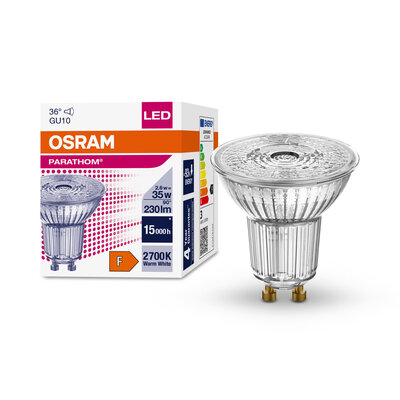

Combo Shot = Product Beauty Shot + Packaging Image
PARA PAR16 50 ba36 4.3 W 827 GL GU10 MiCh JPG (2 MB)
Energy label
EL-4058075608214-AC326 99 PDF (21.55 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
Spectral power distribution
Everlight 67-23ST KKE 2700K PNG (115.88 KB)
EAN SEG number STK number EFO number ELDAS number
4058075608214 8296855 4731713 3766047 941810180
