LED SLIM LINE R7S

Choose your product version

4.5W 827 Glas R7s

4.5W 840 Glas R7s

7W 827 Clear R7s

8W 827 Glas R7s

8W 840 Glas R7s

12W 827 Clear R7s

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Slim Line 78 40 300° 4.5W 827 Glas R7s R7s 4.5 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Slim Line 78 40 300° 4.5W 840 Glas R7s R7s 4.5 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Slim Line 78 60 300° 7W 827 Clear R7s R7s 7 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED Slim Line 118 60 300° 8W 827 Glas R7s R7s 8 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED Slim Line 118 60 300° 8W 840 Glas R7s R7s 8 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED Slim Line 118 100 300° 12W 827 Clear R7s R7s 12 W 220…240 V 15000 h 1521 lm 100 W 300 ° No


LED Slim Line 78 60 300° 7W 827 Clear R7s

Product benefits
  • Particularly compact dimensions
  • Lower thermal output (compared with the standard reference product)
  • Long lifetime of up to 15,000 h
  • Three year guarantee
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 7 W
Construction wattage 7.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 60 W
Nominal current 47 mA
Type of current AC
Inrush current 5.88 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 37
Max. lamp number on MCB B16 A 44
Total harmonic distortion 125,60 %
Power factor λ 0.50

Photometrical data

Luminous flux 806 lm
Nominal useful luminous flux 90° 806 lm
Luminous efficacy 115 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 78.00 mm
Diameter 20.00 mm
Maximum diameter 20 mm
Product weight 20.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 78 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) R7s
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LESLIM7860 7W/8

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) R7s
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 78.00 mm
Height 20.00 mm
Width 20.00 mm
Chromaticity coordinate x 0.4578
Chromaticity coordinate y 0.4101
R9 Colour rendering index 6
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.70
LED light source replaces a fluorescent light source No
EPREL ID 1403270,522893,1368312,2201951
Model number AC32128,AC45785,AC24772,AC71610

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Particularly compact dimensions
  • Lower thermal output (compared with the standard reference product)
  • Long lifetime of up to 15,000 h
  • Three year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination within ambient temperatures from -20…+40 °C
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional R7s lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075432710 Folding box
1		 21 mm x 49 mm x 130 mm 48.00 g 0.13 dm³
4058075633087 Shipping box
6		 111 mm x 83 mm x 106 mm 200.00 g 0.98 dm³
4058075633094 Shipping box
96		 350 mm x 238 mm x 239 mm 6117.00 g 19.91 dm³
Declarations of conformity
LED LINE SPECIAL PDF (375.83 KB)
Declarations of conformity
LED special lamps PDF (281.24 KB)

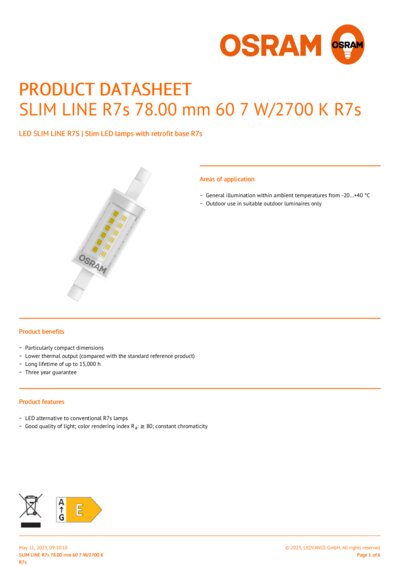

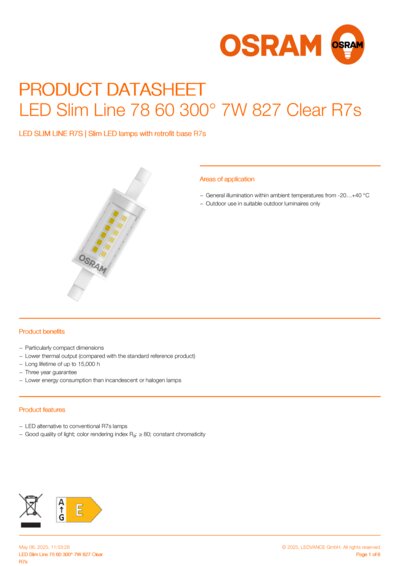

PRODUCT DATASHEET
SLIMLINER7s78.00mm607W 2700KR7sen PDF (322.84 KB)

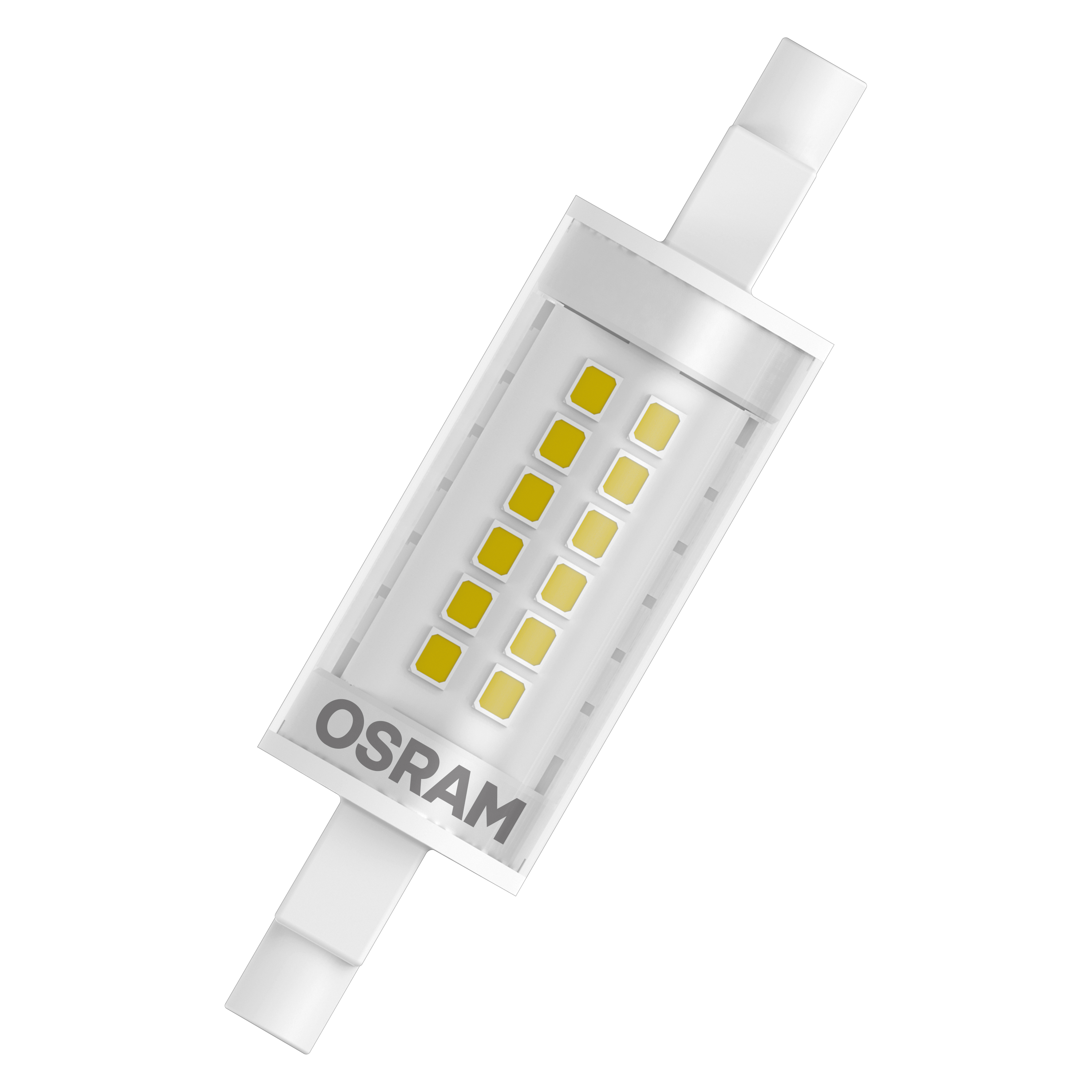

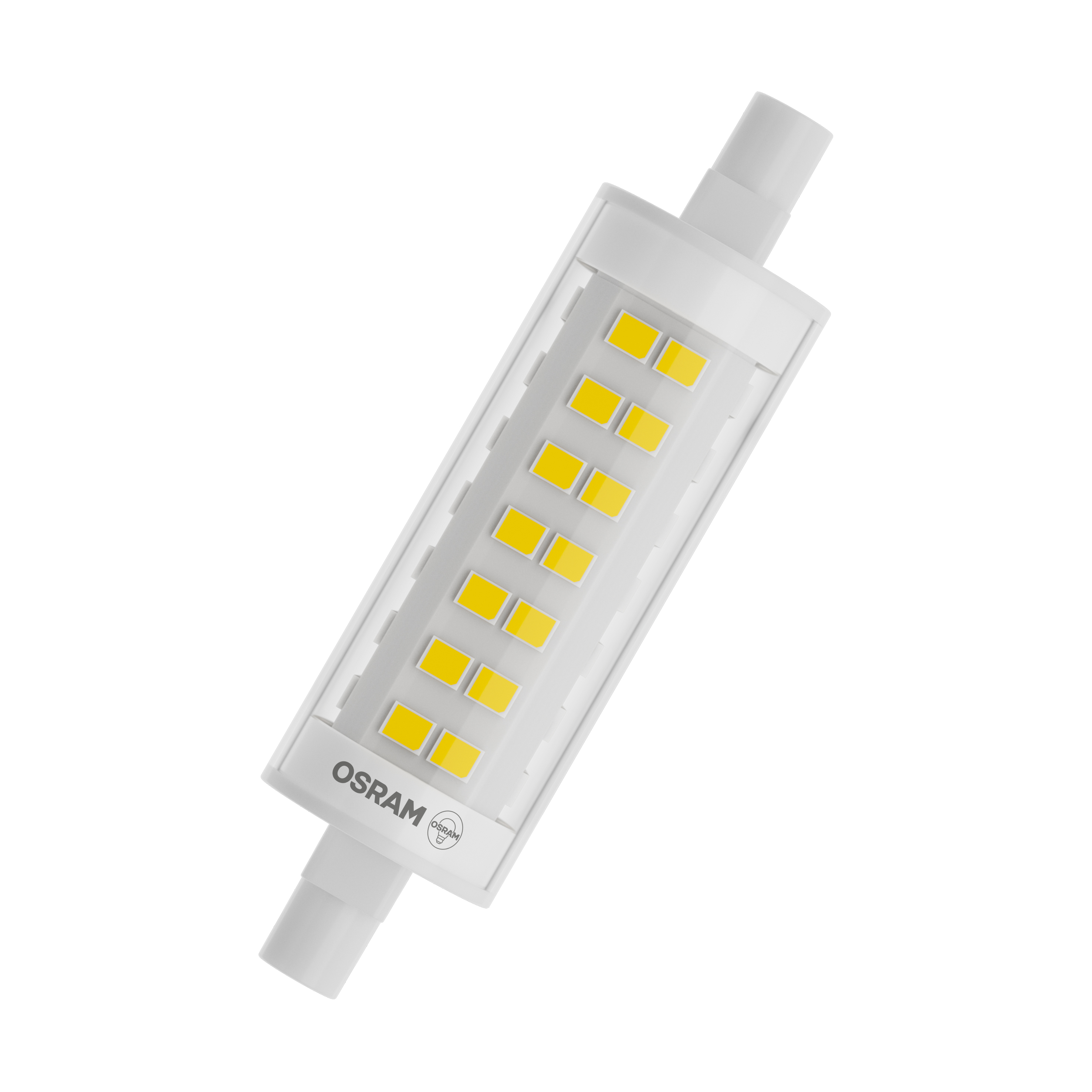

Product image: white background, diagonal with OSRAM logo
LED SLIM LINE R7s (78x 20mm) JPG (1.16 MB)

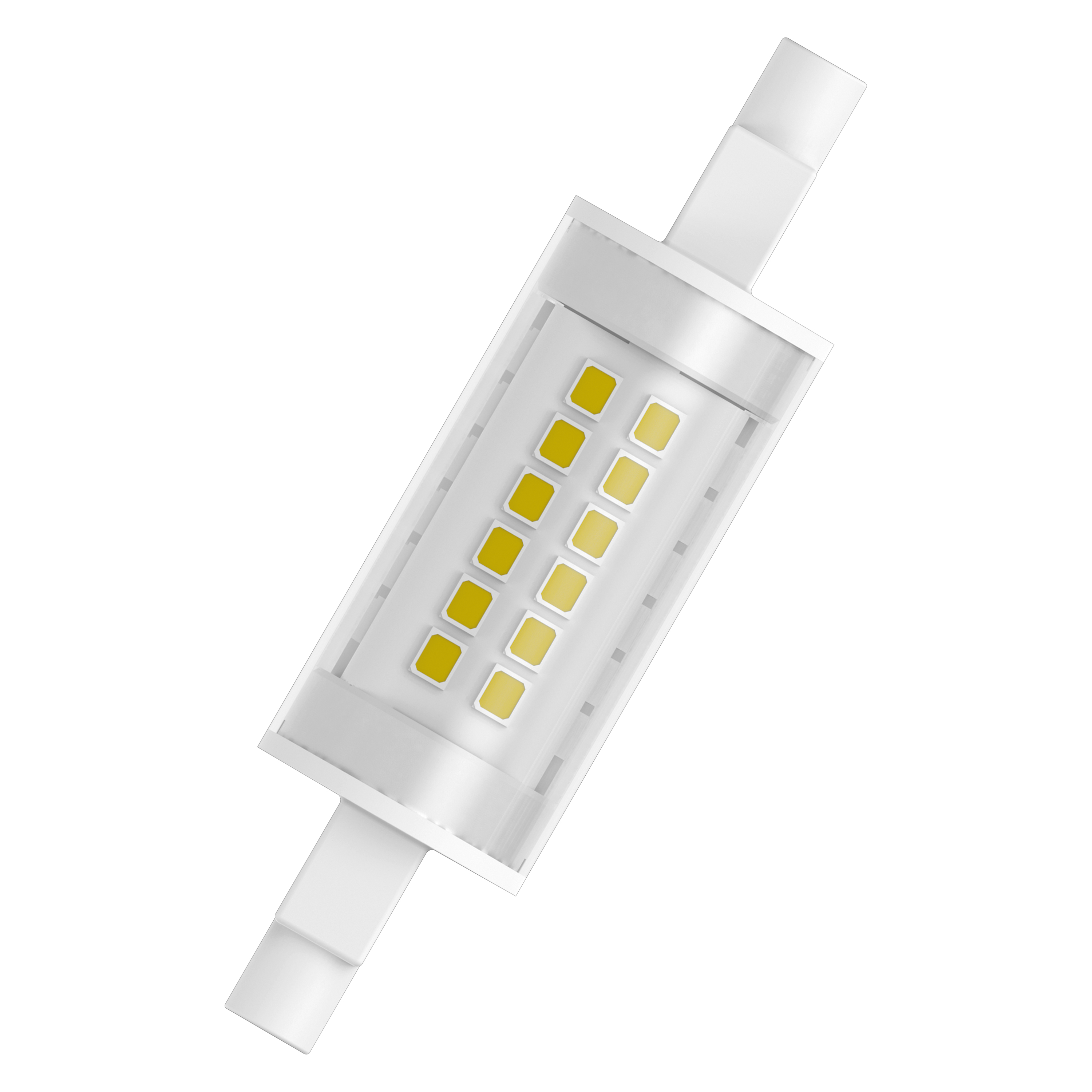

Product image: white background, diagonal
LED SLIM LINE R7s (78x 20mm) JPG (1.15 MB)

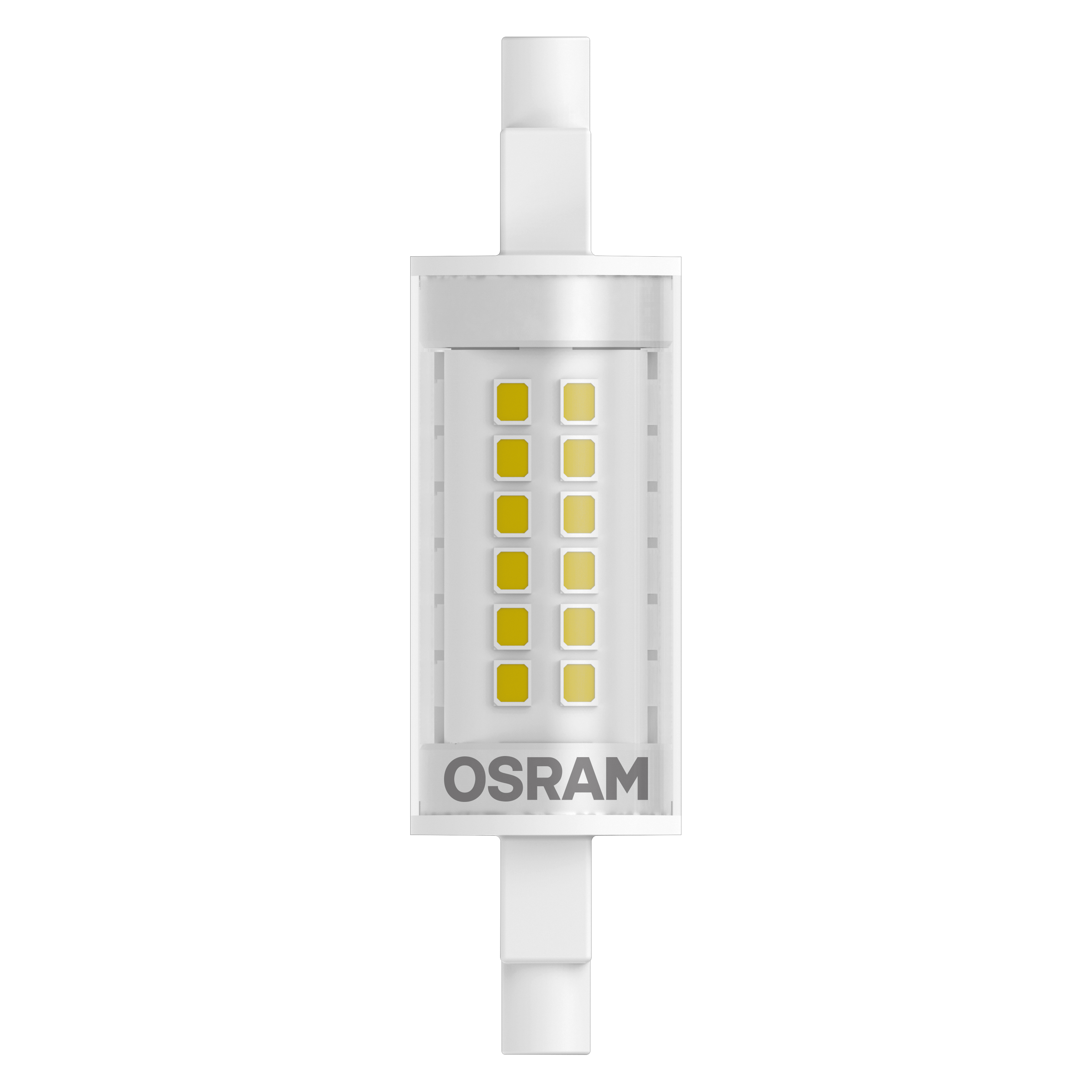

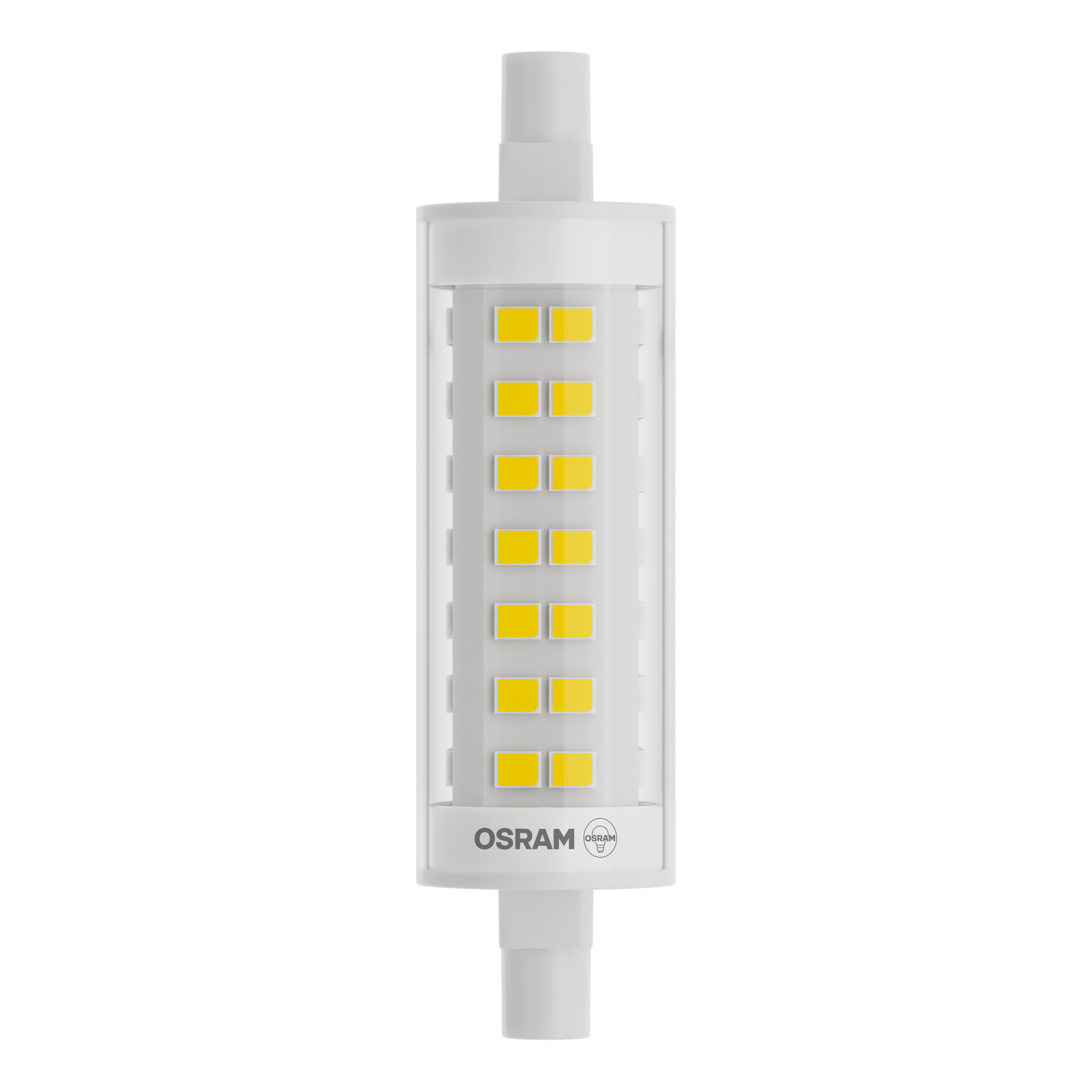

Product image: white background, upright, OSRAM logo
LED SLIM LINE R7s (78x 20mm) JPG (1.05 MB)

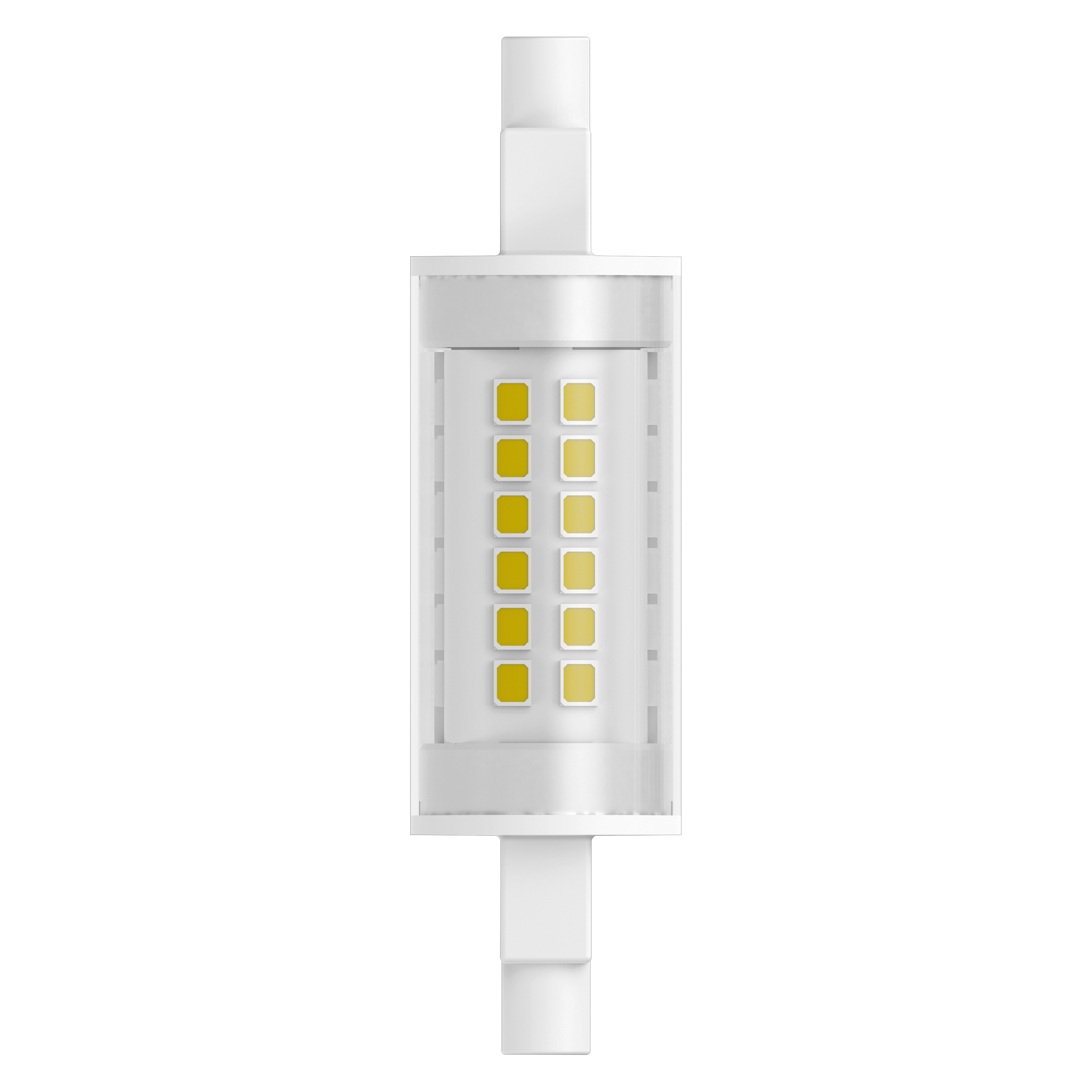

Product image: white background, upright
LED SLIM LINE R7s (78x 20mm) JPG (1.04 MB)
Product line drawing with letters
LED SLIM LINE R7s (78x 20mm) SVG (12.45 KB)
Product line drawing with numbers
LED SLIM LINE R7s (78x 20mm) SVG (16.57 KB)
Product line drawing - technical
LED SLIM LINE R7s (78x 20mm) SVG (9.53 KB)

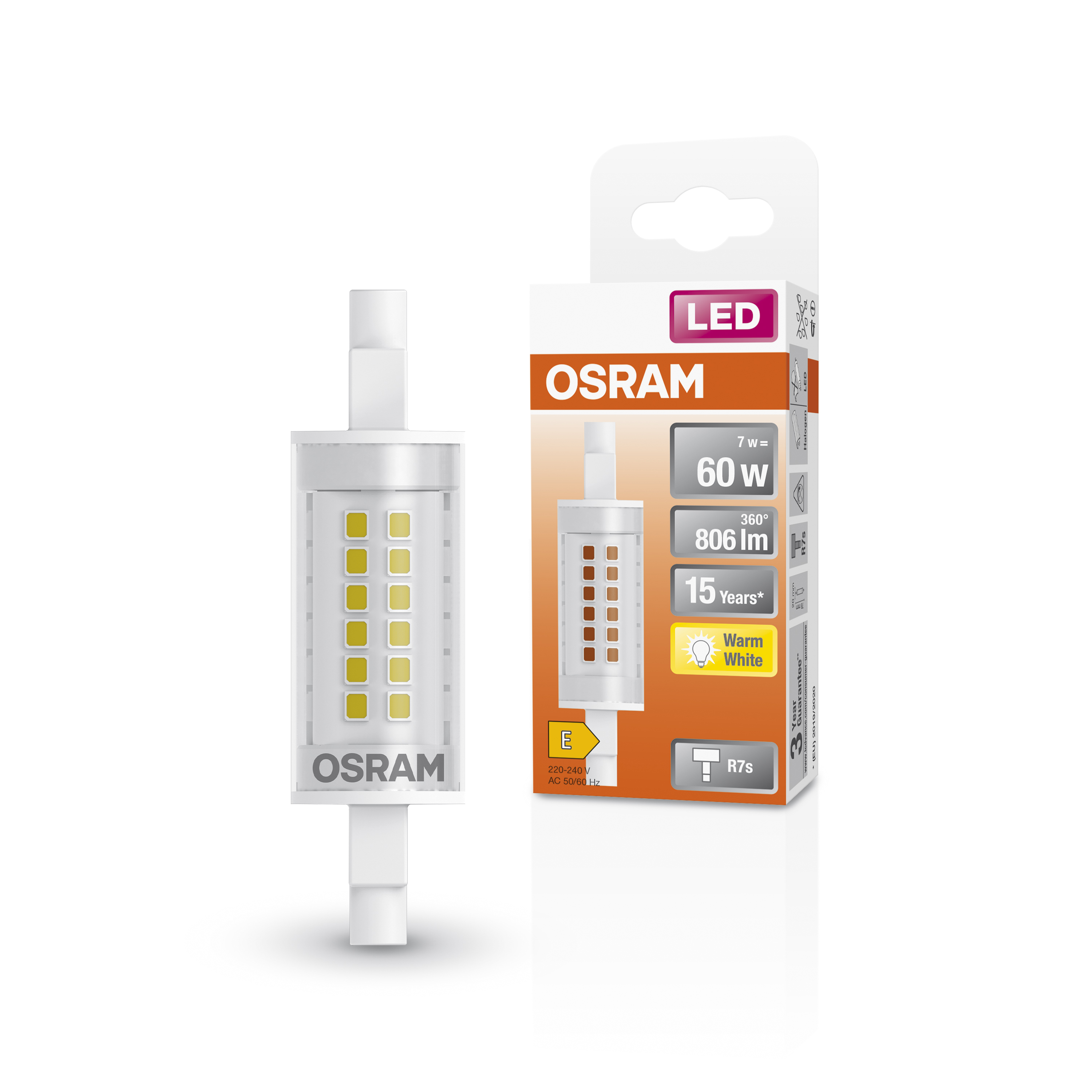

Combo Shot = Product Beauty Shot + Packaging Image
LED ST SLIM LINE 78 7W 827 CL R7s MiCh JPG (1.32 MB)

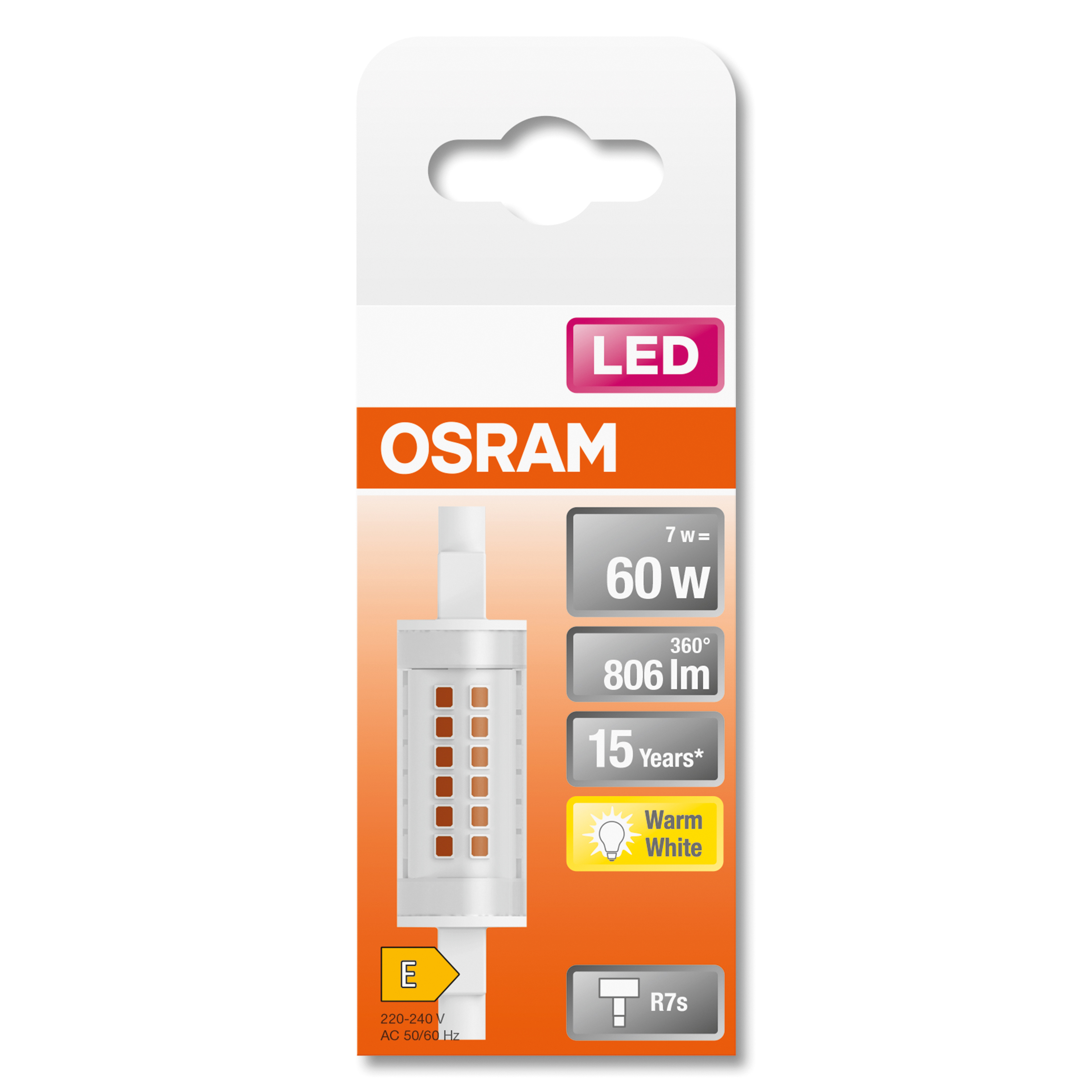

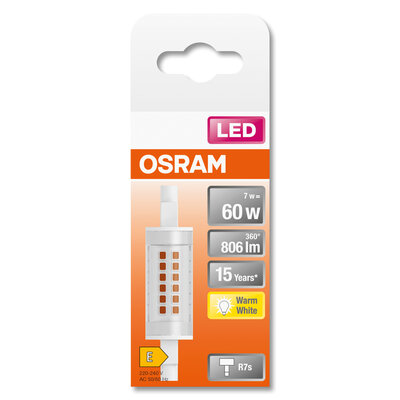

Packaging image, frontal
LED ST LINE 78 60 6.0W 827 CL R7S MiCh TIF (1.74 MB)

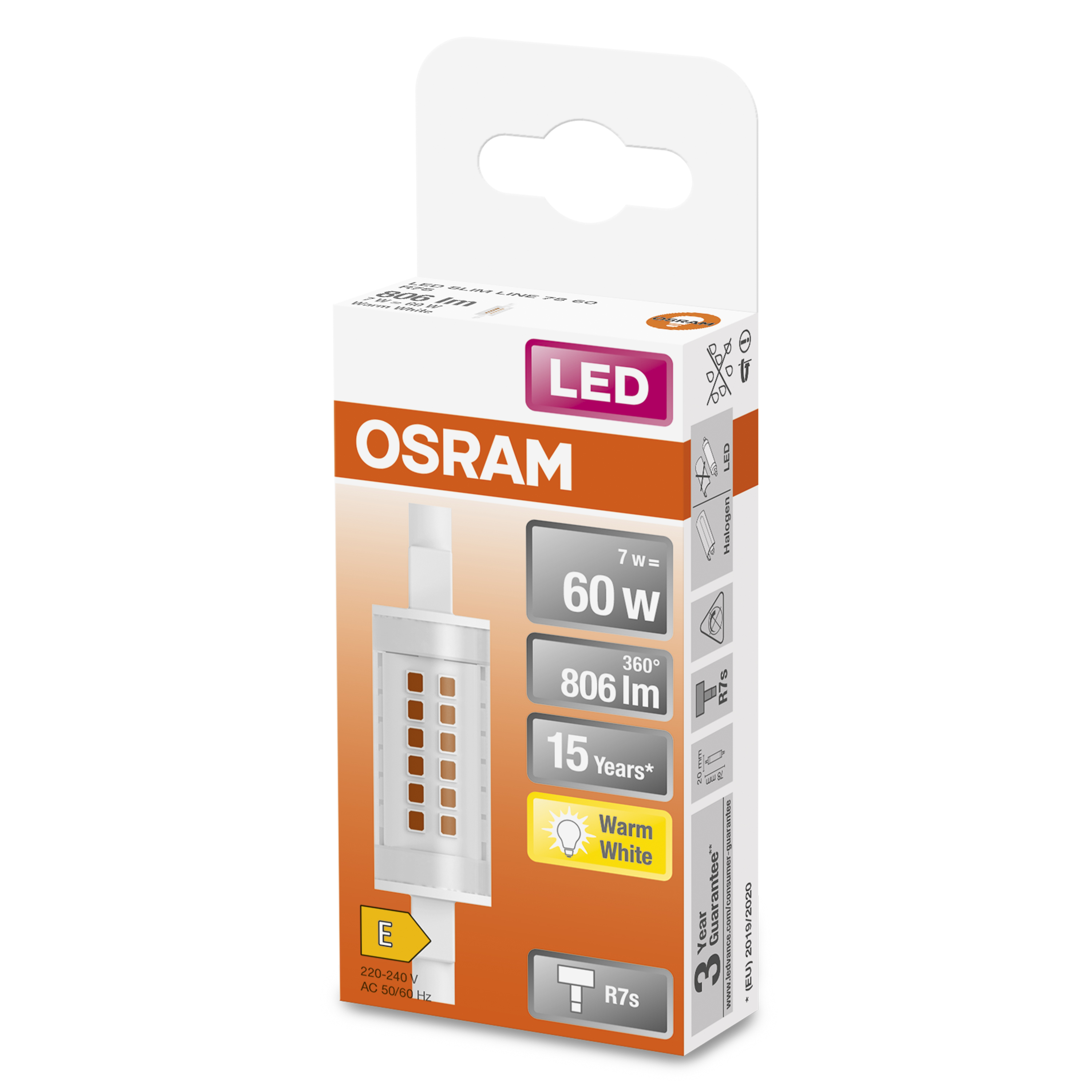

Packaging image, spacial
LED ST LINE 78 60 6.0W 827 CL R7S MiCh TIF (1.28 MB)

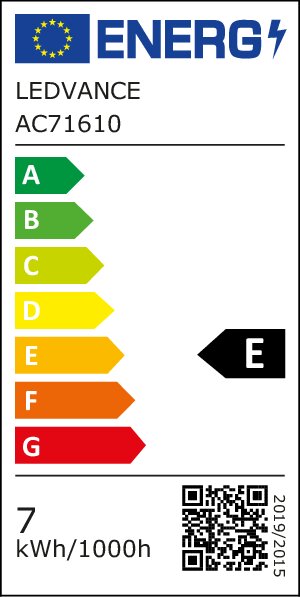

Energy label
EL-4058075432710-AC321 28 PDF (21.68 KB)
Energy label
EL-4058075432710-AC247 72 PDF (21.41 KB)
Energy label
EL-4058075432710-AC457 85 PDF (21.43 KB)
Energy label
EL-4058075432710-AC716 10 PDF (21.52 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 2700K PNG (103.24 KB)
EAN SEG number STK number EFO number ELDAS number
4058075432710 8295515 4731560 3766085 941806250
