LED TUBE T8 EM MOTION SENSOR

Choose your product version

600 mm 6.8W 840

1200 mm 13.1W 840

1500 mm 19.3W 840

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED TUBE T8 EM MOTION SENSOR 600 mm 6.8W 840 G13 6.8 W 220…240 V 60000 h 1100 lm 18 W 190 ° No
LED TUBE T8 EM MOTION SENSOR 1200 mm 13.1W 840 G13 13.1 W 220…240 V 60000 h 2100 lm 36 W 190 ° No
LED TUBE T8 EM MOTION SENSOR 1500 mm 19.3W 840 G13 19.3 W 220…240 V 60000 h 3100 lm 58 W 190 ° No


LED TUBE T8 EM MOTION SENSOR 600 mm 6.8W 840

Product benefits
  • Energy savings of up to 67 % compared to conventional fluorescent lamp
  • Suitable for closed luminaires thanks to microwave technology
  • Very high resistance to switching loads
  • Quick, simple and safe replacement of fluorescent lamps without rewiring the CCG
  • No bending thanks to glass tube
  • Shatter protection thanks to special PET coating
  • Support the implementation of the HACCP concepts from production through to presentation
  • Also suitable for operation at low temperatures
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 6.8 W
Construction wattage 6.80 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Nominal current 32 mA
Type of current AC
Inrush current 2.76 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz 1)
Max. lamp number on MCB B10 A 217
Max. lamp number on MCB B10 A - CCG without compensation 217
Max. lamp number on MCB B10 A - CCG with compensation 27
Max. lamp number on MCB B16 A 272
Max. lamp number on MCB B16 A - CCG without compensation 272
Max. lamp number on MCB B16 A - CCG with compensation 32
Total harmonic distortion < 20 %
Power factor λ > 0.90

1) DC 0Hz

Photometrical data

Luminous flux 1100 lm
Luminous efficacy 161 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra 80
Light color 840
Standard deviation of color matching ≤5 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 190 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 603.00 mm
Length with base excl. base pins/connection 600.00 mm
Diameter 26.70 mm
Product weight 110.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C 1)
Maximum temperature at tc test point 65 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C 60000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class C 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDTUBE T8 EM M

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power No
Length 603.00 mm
Height 26.70 mm
Width 26.70 mm
Chromaticity coordinate x 0,3818
Chromaticity coordinate y 0.3797
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.9
LED light source replaces a fluorescent light source No
EPREL ID 1351272
Model number AC45295,AC45295

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings of up to 67 % compared to conventional fluorescent lamp
  • Suitable for closed luminaires thanks to microwave technology
  • Very high resistance to switching loads
  • Quick, simple and safe replacement of fluorescent lamps without rewiring the CCG
  • No bending thanks to glass tube
  • Shatter protection thanks to special PET coating
  • Support the implementation of the HACCP concepts from production through to presentation
  • Also suitable for operation at low temperatures
Areas of application
  • General illumination within ambient temperatures from -20…+50 °C
  • Corridors, stairways, parking garages
  • Warehouses
  • Walkways and corridors
  • Logistics areas, transport facilities and corridors
Product features
  • LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
  • Integrated microwave sensor with motion detection
  • Automatic dimming to 20 % light output after 5 minutes without motion detection
  • Automatic light switch off 7 minutes after the last motion detection
  • Microwave sensor with 5,8 GHz
  • Motion detection up to 5 m
  • Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
  • Type of protection: IP20
  • Mercury-free and RoHS compliant
Equipment / Accessories
  • Suitable for operation with low-loss and conventional control gears
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • Recommended maximum mounting height: 5 m
  • Not suitable for emergency lighting.
  • Disconnect mains before installation.
References / Links
  • For current information see www.ledvance.com/ledtube
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854044472 Sleeve
1		 695 mm x 29 mm x 29 mm 128.00 g 0.58 dm³
4099854044489 Shipping box
10		 725 mm x 180 mm x 95 mm 1602.00 g 12.40 dm³
User instruction / safety instructions
LEDTUBE T8 EM MS P PDF (10.89 MB)
Extended installation guide
Notes on the operation of LEDVANCE LED tubes in compensated lumina ires PDF (551.59 KB)
Extended installation guide
LEDVANCE Luminaire con version checklist PDF (168.28 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Safety insert_G1123331 2 PDF (292.59 KB)
Declarations of conformity
LEDTUBE T8 EM MS PDF (370.4 KB)
Product image: white background, diagonal with LEDVANCE logo
LEDVANCE LED TUBE T8 E M JPG (862.17 KB)
Product image: white background, diagonal
LED TUBE T8 EM JPG (769.9 KB)
Product image: white background, upright LEDVANCE logo
LEDVANCE LED TUBE T8 E M JPG (657.34 KB)
Product image: white background, upright
LED TUBE T8 EM JPG (650.51 KB)
Product line drawing with letters
338276_SubstiTUBE Basi c ST8-HB SVG (8.95 KB)
Product line drawing with letters
LEDTUBE T8 EM SVG (9.49 KB)
Product line drawing with numbers
LEDTUBE T8 EM 600 SVG (15.28 KB)
Product line drawing - technical
638401_Technical drawi ng TC point LED TUBE T 8 EM SVG (22 KB)

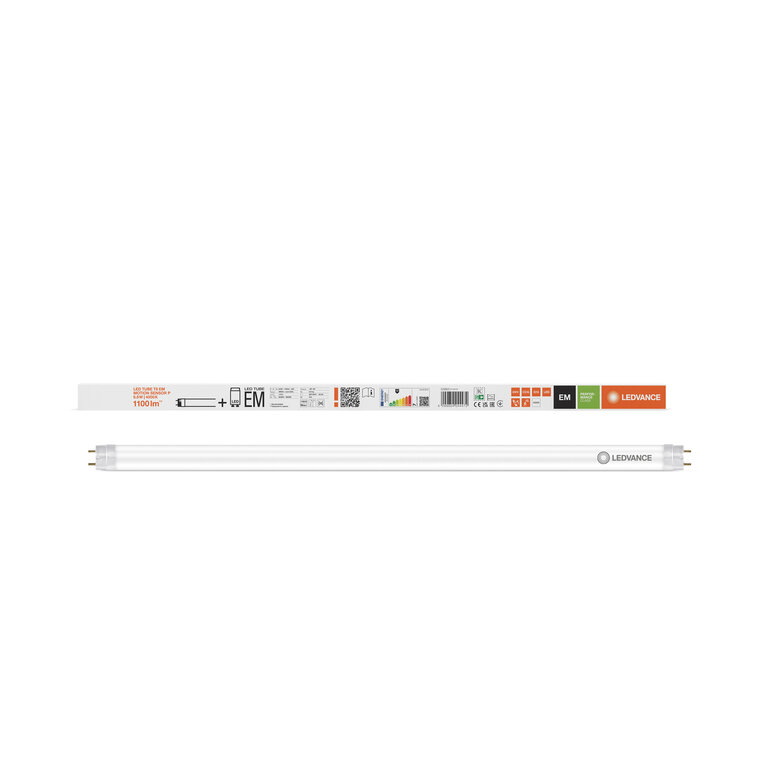

Combo Shot = Product Beauty Shot + Packaging Image
AdTp LEDTUBE T8 EM MS P 600 6.8W 840 G13 JPG (402.04 KB)

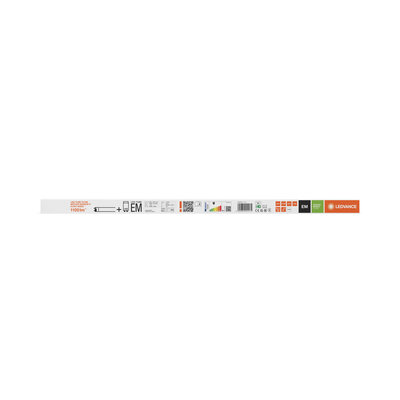

Packaging image, frontal
