LED TUBE T8 EM FOOD P

Choose your product version

600 mm 5.2W 833

900 mm 7.9W 833

1200 mm 11.6W 833

1500 mm 17.9W 833

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED TUBE T8 EM FOOD P 600 mm 5.2W 833 G13 5.2 W 220…240 V 60000 h 500 lm 18 W 190 ° No
LED TUBE T8 EM FOOD P 900 mm 7.9W 833 G13 7.9 W 220…240 V 60000 h 750 lm 30 W 190 ° No
LED TUBE T8 EM FOOD P 1200 mm 11.6W 833 G13 11.6 W 220…240 V 60000 h 1100 lm 36 W 190 ° No
LED TUBE T8 EM FOOD P 1500 mm 17.9W 833 G13 17.9 W 220…240 V 60000 h 1700 lm 58 W 190 ° No


LED TUBE T8 EM FOOD P 600 mm 5.2W 833

Product benefits
  • Food looks fresh and appetizing without unduly “beautifying” it
  • Quick, simple and safe replacement of fluorescent lamps without rewiring the CCG
  • Energy savings of up to 74 % (compared to T8 fluorescent lamp)
  • Shatter protection thanks to special PET coating
  • Support the implementation of the HACCP concepts from production through to presentation
  • No bending thanks to glass tube
  • Also suitable for operation at low temperatures
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 5.2 W
Construction wattage 5.20 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Nominal current 24 mA
Type of current AC
Inrush current 2.92 A
Suitable for DC input Yes
Input voltage DC 186…260 V
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 205
Max. lamp number on MCB B10 A - CCG without compensation 87
Max. lamp number on MCB B10 A - CCG with compensation 30
Max. lamp number on MCB B16 A 257
Max. lamp number on MCB B16 A - CCG without compensation 109
Max. lamp number on MCB B16 A - CCG with compensation 35
Total harmonic distortion < 20 %
Power factor λ > 0.90

Photometrical data

Luminous flux 500 lm
Luminous efficacy 96 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) NATURA
Color temperature 3300 K
Color rendering index Ra 80
Light color 833
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 190 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 603.00 mm
Length with base excl. base pins/connection 600.00 mm
Diameter 26.70 mm
Tube diameter 25.8 mm
Maximum diameter 27 mm
Product weight 100.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C 1)
Maximum temperature at tc test point 60 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C 60000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Energy consumption 6.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, VDE, ENEC, EAC
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LEDTUBE T8 EM F

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Standby power 0 W
Claim of equivalent power No
Length 603.00 mm
Height 26.70 mm
Width 26.70 mm
Chromaticity coordinate x 0.3684
Chromaticity coordinate y 0.2816
R9 Colour rendering index 70
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.9
LED light source replaces a fluorescent light source No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Food looks fresh and appetizing without unduly “beautifying” it
  • Quick, simple and safe replacement of fluorescent lamps without rewiring the CCG
  • Energy savings of up to 74 % (compared to T8 fluorescent lamp)
  • Shatter protection thanks to special PET coating
  • Support the implementation of the HACCP concepts from production through to presentation
  • No bending thanks to glass tube
  • Also suitable for operation at low temperatures
Areas of application
  • Food presentation in e.g. butchers, bakeries, supermarkets or meat processors
  • Suitable for ambient temperatures of -20 to +50 °C
Product features
  • Specially tailored spectral distribution (comparable to T8 FL NATURA 76)
  • LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
  • Lamp tube made of glass with splinter protection e.g. for food industry applications
  • ENEC 10 VDE mark
  • Type of protection: IP20
  • Mercury-free and RoHS compliant
Equipment / Accessories
  • Suitable for operation with low-loss and conventional control gears
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • Not suitable for emergency lighting.
  • Disconnect mains before installation.
References / Links
  • For current information see www.ledvance.com/ledtube
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854044793 Sleeve
1		 695 mm x 29 mm x 29 mm 118.00 g 0.58 dm³
4099854044809 Shipping box
10		 725 mm x 180 mm x 95 mm 1502.00 g 12.40 dm³

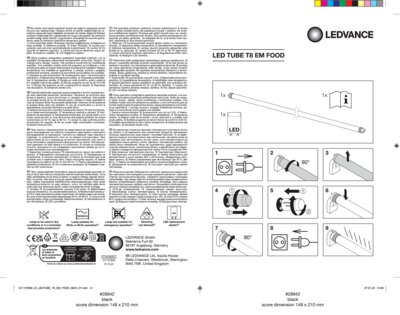

User instruction / safety instructions
LEDTUBE T8 EM FOOD P PDF (6.85 MB)
On-Pack-Info
ELR - exempt lamps PDF (1.88 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

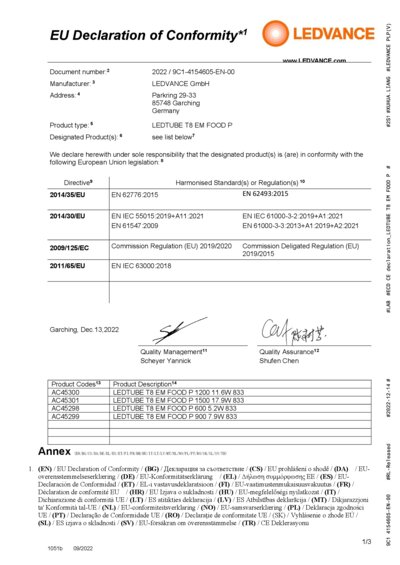

Declarations of conformity
LEDTUBE T8 EM FOOD P PDF (369.04 KB)
Product image: white background, diagonal with LEDVANCE logo
LEDVANCE LED TUBE T8 E M JPG (862.17 KB)
Product image: white background, diagonal
LED TUBE T8 EM JPG (769.9 KB)
Product image: white background, upright LEDVANCE logo
LEDVANCE LED TUBE T8 E M JPG (657.34 KB)
Product image: white background, upright
LED TUBE T8 EM JPG (650.51 KB)
Product line drawing with letters
338276_SubstiTUBE Basi c ST8-HB SVG (8.95 KB)
Product line drawing with letters
LEDTUBE T8 EM SVG (9.49 KB)
Product line drawing with numbers
LEDTUBE T8 EM 600 SVG (15.28 KB)
Product line drawing - technical
638401_Technical drawi ng TC point LED TUBE T 8 EM SVG (22 KB)
IES file (IES)
LEDTUBE T8 EM FOOD P 6 00 5.2W 833 LEDV IES (47 KB)
LDT file (Eulumdat)
LEDTUBE T8 EM FOOD P 6 00 5.2W 833 LEDV LDT (34.67 KB)
Light distribution curve type polar
LEDTUBE T8 EM FOOD P 6 00 5.2W 833 LEDV SVG (19.6 KB)
Tender documents
LED TUBE T8 EM FOOD P 600 mm 5.2W 833-EN TXT (3 KB)
EAN SEG number STK number EFO number ELDAS number
4099854044793 8298488 4933312 3768045 941819220
