SubstiTUBE T9 EM

Choose your product version

Phase out

22 12 W/4000 K G10q

Phase out

22 12 W/6500 K G10q

Phase out

32 20 W/4000 K G10q

Phase out

32 20 W/6500 K G10q

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
SubstiTUBE T9 C EM 22 12 W/4000 K G10q G10q 12 W 220…240 V 30000 h 1320 lm 22 W 120 ° No
SubstiTUBE T9 C EM 22 12 W/6500 K G10q G10q 12 W 220…240 V 30000 h 1320 lm 22 W 120 ° No
SubstiTUBE T9 C EM 32 20 W/4000 K G10q G10q 20 W 220…240 V 30000 h 2200 lm 32 W 120 ° No
SubstiTUBE T9 C EM 32 20 W/6500 K G10q G10q 20 W 220…240 V 30000 h 2200 lm 32 W 120 ° No
Phase out


SubstiTUBE T9 C EM 22 12 W/4000 K G10q

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 50 % (compared to T9 fluorescent lamp)
  • Also suitable for operation at low temperatures
View all details
Product data sheet
Go to LEDVANCE successor product

PRODUCT DETAILS

Electrical data

Nominal wattage 12 W
Construction wattage 12.00 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Nominal current 60 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 24
Max. lamp number on MCB B10 A - CCG without compensation 94
Max. lamp number on MCB B10 A - CCG with compensation 15
Max. lamp number on MCB B16 A 30
Max. lamp number on MCB B16 A - CCG without compensation 150
Max. lamp number on MCB B16 A - CCG with compensation 18
Total harmonic distortion 20 %
Power factor λ > 0.90

Photometrical data

Luminous flux 1320 lm
Luminous efficacy 110 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.40

Light technical data

Beam angle 120 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 212.00 mm
Diameter 212.00 mm
Tube diameter 30,0 mm
Maximum diameter 212 mm
Product weight 145.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C
Maximum temperature at tc test point 75 °C

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G10q
Mercury content 0.0 mg
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 12.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDTUBE T9C EM

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G10q
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00
Claim of equivalent power No
Length 212.00 mm
Height 212.00 mm
Width 212.00 mm
Chromaticity coordinate x 0.382
Chromaticity coordinate y 0.380
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0,70
LED light source replaces a fluorescent light source No
EPREL ID 716577
Model number AC36307

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 50 % (compared to T9 fluorescent lamp)
  • Also suitable for operation at low temperatures
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Corridors, stairways, parking garages
  • Domestic applications
  • Decorative applications
Product features
  • LED alternative to classic T9 fluorescent lamps in CCG luminaires
  • Uniform illumination
  • Lifetime up to 30,000 h
  • Mercury-free and RoHS compliant
Legal advice
  • When used to replace a T9 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
References / Links
  • For current information see www.ledvance.com/osram-substitube
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075604612 Folding box
1		 38 mm x 220 mm x 260 mm 221.00 g 2.17 dm³
4058075604629 Shipping box
10		 397 mm x 251 mm x 260 mm 2630.00 g 25.91 dm³
User instruction / safety instructions
SubstiTUBE® T9 PDF (1.67 MB)
Declarations of conformity
LEDTUBE T9C PDF (205.75 KB)

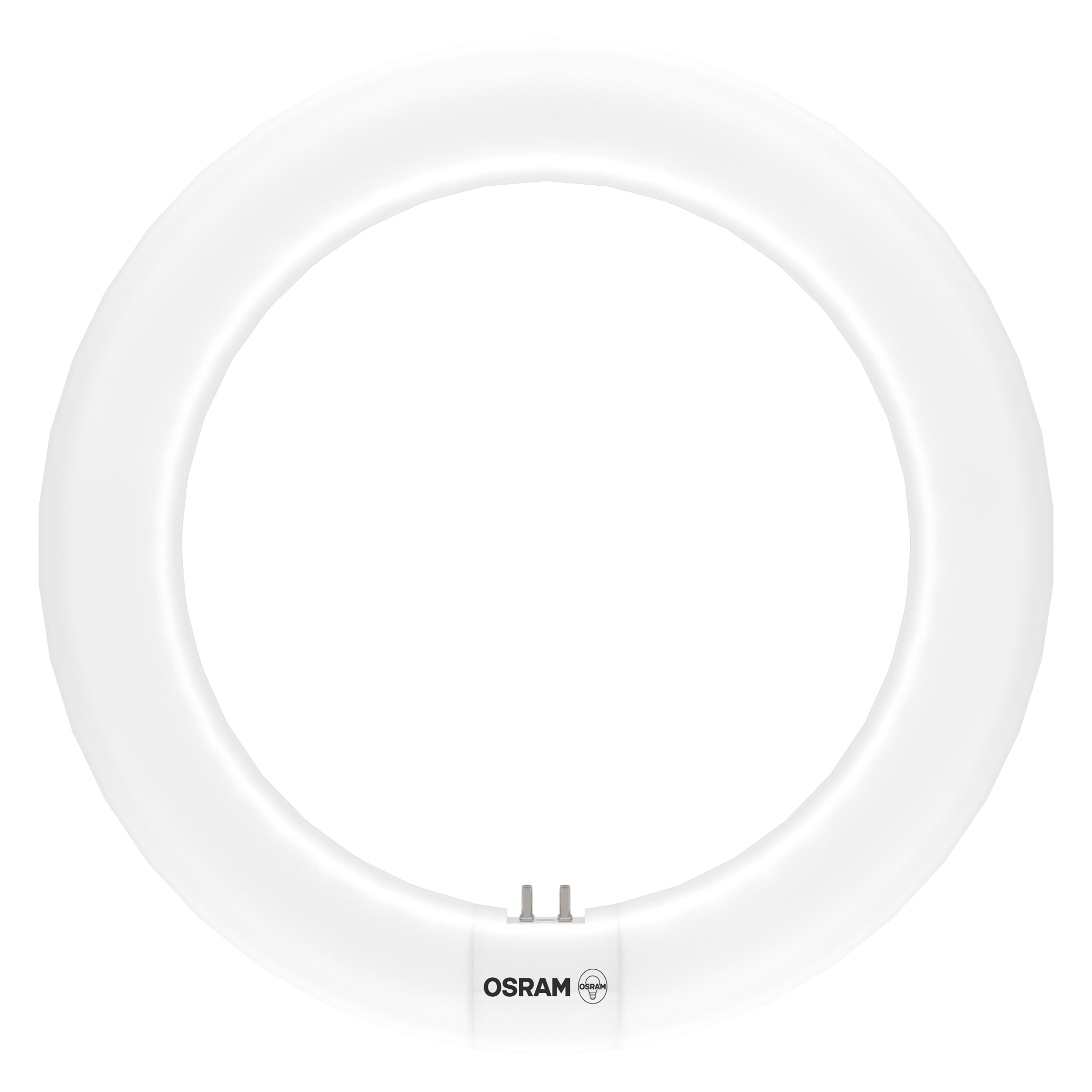

Product image: white background, diagonal
LEDTUBE T9C EM 22 12W G10Q JPG (448.36 KB)

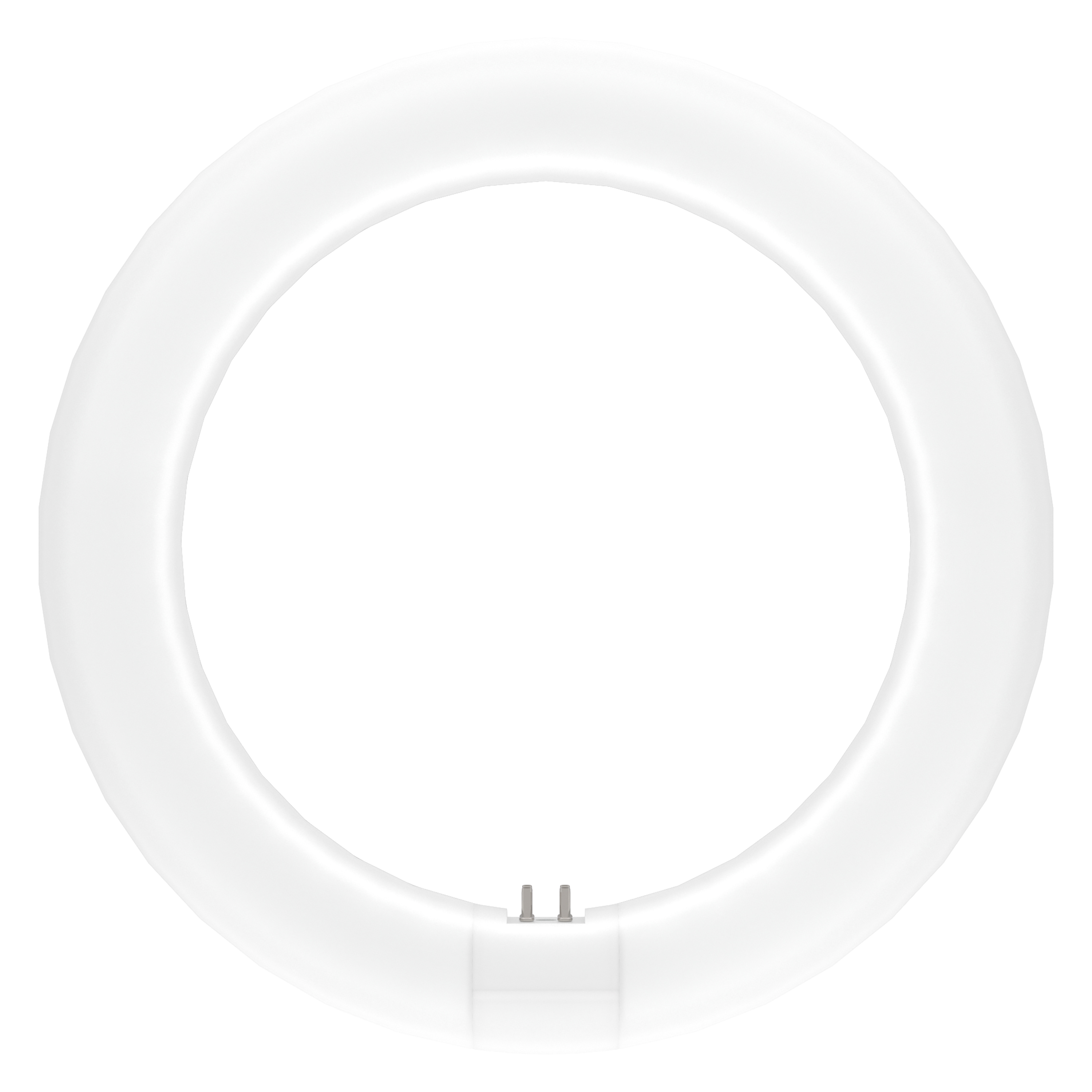

Product image: white background, upright, OSRAM logo
LEDTUBE T9C EM 22 12W G10Q     OSRAM JPG (600.01 KB)

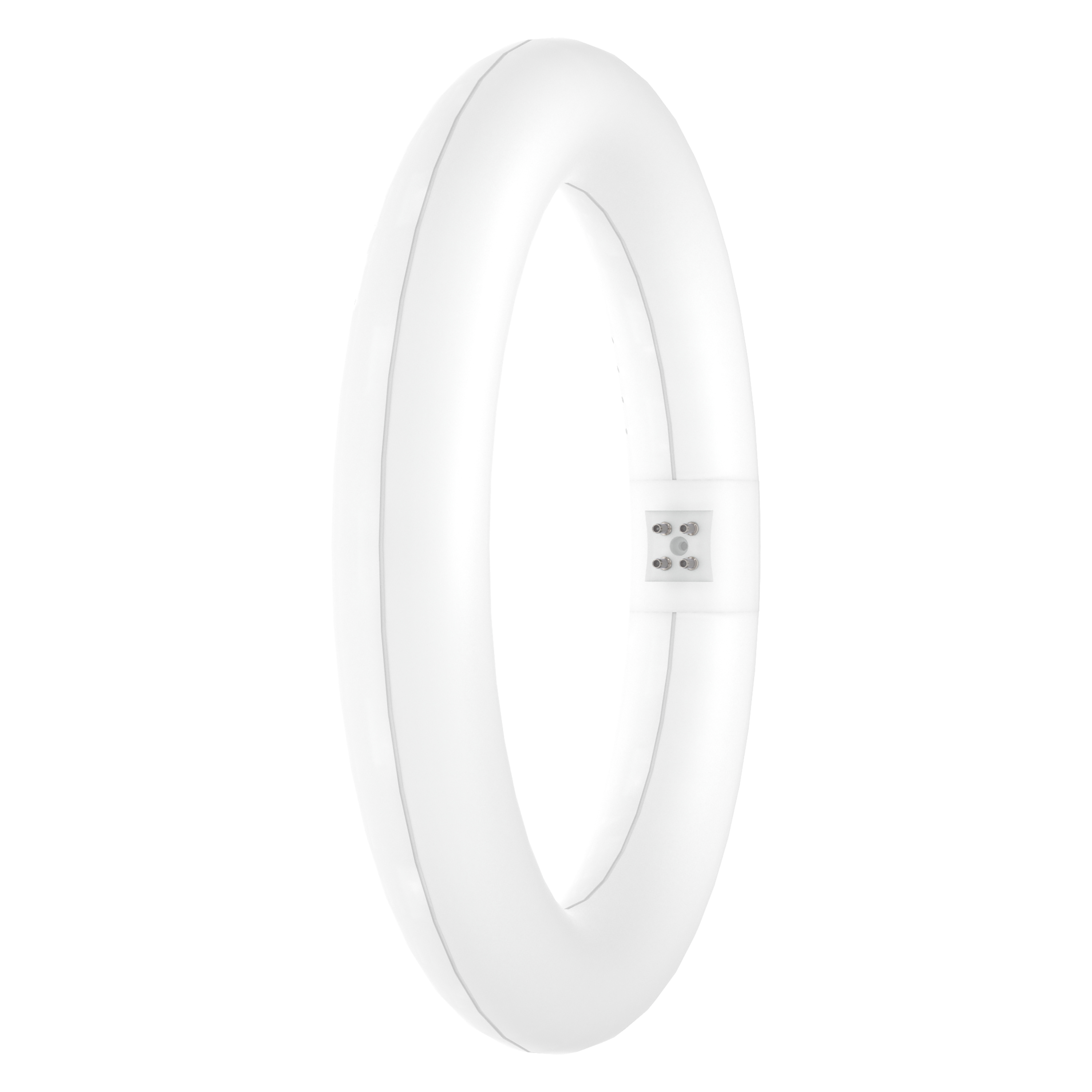

Product image: white background, upright
